Peerless DST965 Back-to-Back Fixed Tilt Ceiling Mount

Includes shelves for media player storage. Fixed or adjustable length column (sold separately) is needed.

0 out of 5 (based on 0 review). Be the first to review this product
Product ID: 17202
List Price: $829.00
Our Price: $728.00
Shipping: $88.98 *
Usually ships in 1 to 2 business days
* applies to Contiguous United States

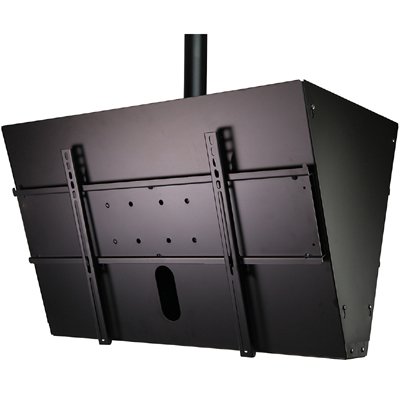

When aesthetics are essential, choose peerless DST965. The perfect back-to-back ceiling mount for digital signage applications. Included shelving provides ample storage space for multiple media players while the side panels hide all wiring and components from view. The Peerless universal adapter plates accommodate most displays and hold them at an ideal 20 degree viewing angle. Included security hardware deters tampering and theft.

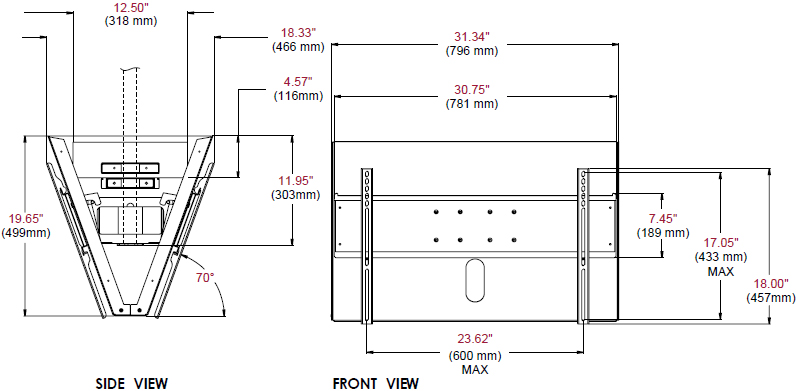

Technical Drawing

Technical Drawing for Peerless DST965 Back to Back Ceiling Mount


  • Holds two displays back-to-back at a 20° fixed tilt

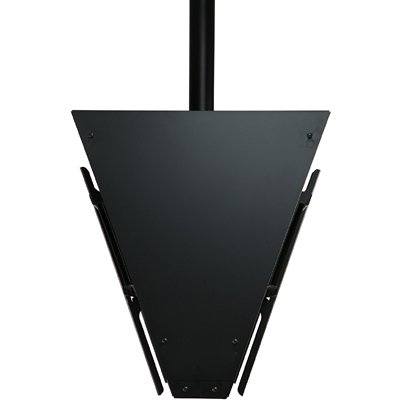

  • Removable side panels for easy maintenance

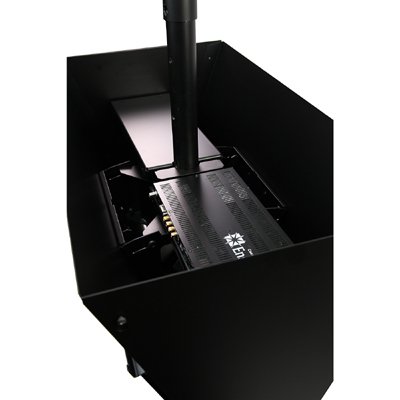

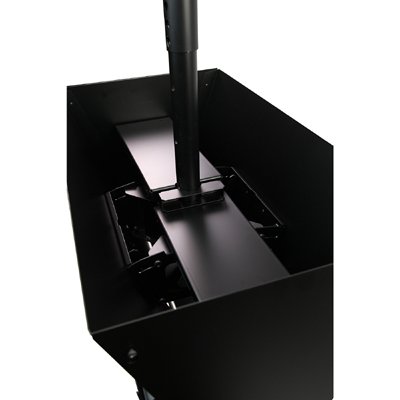

  • Two component shelves provide storage for standard size computers
  • Cables are routed through the column for a clean appearance

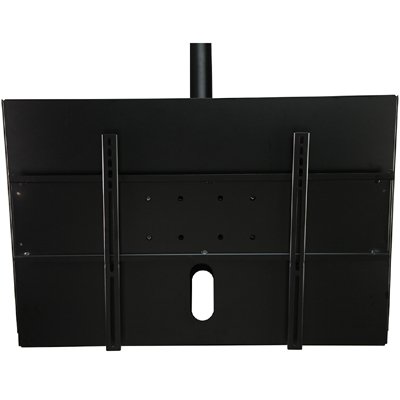

  • Comes standard with Peerless universal mounting brackets
  • Security hardware to deter tampering and loss


Technical Specifications

Minimum to Maximum Screen Size

40" to 65"

Mounting Pattern

729 x 433mm (28.7 x 17.05")

Product Weight

80lb (36kg)

Weight Capacity

300lb (136kg)




Powder Coat

Security Features

Security Hardware



Product Dimensions (W x H x D)

31.34" x 19.65" x 18.33" (796 x 499 x 466mm)

Shipping Dimensions (W x H x D)

33.13" x 31.88" x 10.75" (842 x 810 x 273mm)

Shipping Weight

85lb (39kg)

Units in Package 1

Literature (Please open the following documents for more technical information)

Product Sheet - Peerless DST-965 Back to Back Ceiling Mount with Media Player Storage

 - pdf

Installation Instructions - Peerless DST 965 Back-to-Back 20° Fixed Tilt Ceiling Mount

 - pdf

Model DST965
Manufacturer Peerless Mounts
Part Number DSt965
UPC 735029282419
Color Black
Weight Capacity 300 lb (136 kg)
Dimensions (W x H x D) 31.34" x 19.65" x 18.33" (796 x 499 x 466mm)
Weight 80 lb (36 kg)
Shipping Dimensions 33.13" x 31.88" x 10.75" (842 x 810 x 273mm)
Shipping Weight 85 lb (39 kg)
Mounting Pattern Up to 729 x 433 mm
Warranty Limited 5 year
Tilt 20 degree
Mounting Options Ceiling
Screen Size 31-45" in
Screen Size 46-60" in
Screen Size 61" and larger in

Be the first to review this product

Peerless DST965 Back-to-Back Fixed Tilt Ceiling Mount

Warranties and Returns

Limited Warranty

Peerless Industries, Inc. (Peerless-AV) warrants to original end-users of Peerless-AV products that Peerless-AV products will be free from defects in material and workmanship, under normal use, for the periods listed below, from the date of purchase by the original end-user. At its option, Peerless-AV will repair or replace with new or refurbished products or parts, or refund the purchase price of, any Peerless-AV product which fails to conform with this warranty.

In no event shall the duration of any implied warranty of merchantability or fitness for a particular purpose be longer than the period of the applicable express warranty set forth above. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.

This warranty does not cover damage caused by (a) service or repairs by the customer or a person who is not authorized for such service or repairs by Peerless-AV, (b) the failure to utilize proper packing when returning the product, (c) incorrect installation or the failure to follow Peerless-AV’s instructions or warnings when installing, using or storing the product, or (d) misuse or accident, in transit or otherwise, including in cases of third-party actions and force majeure. This warranty also does not cover corrosion or rust resulting from damaged, scratched or chipped paint or other surfaces.

In no event shall Peerless-AV be liable for incidental or consequential damages or damages arising from the theft of any product, whether or not secured by a security device which may be included with the Peerless-AV product. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

This warranty is in lieu of all other warranties, express or implied, and is the sole remedy with respect to product defects. No dealer, distributor, installer or other person is authorized to modify or extend this Limited Warranty or impose any obligation on Peerless-AV in connection with the sale of any Peerless-AV product.
This warranty gives specific legal rights, and you may also have other rights which vary from state to state.

Product Warranty Period
Mounts 5 years
Kiosk Enclosures 5 years
Furniture 1 year
Cables 25 years
Cleaning Products 1 year
Power Products 1 year
Electronic Products and Components 1 year
Xtreme Displays, Ultra View TVs 2 years
Interactive 1 year
