Innovative 9112-SWITCH-D-28 Articulating Quad LCD Arm, 28" Pole

Now includes Next Generation Tilter 8500 (not shown in the image). Please see Description for more details.

Product ID 17347

Innovative FLEXmount

Description

Innovative 9112-Switch-D-28 suspends 4 flat panels, 2-over-2, above your work surface with the Switch Multi-Monitor Mounting System. Save valuable workspace and reduce desktop clutter. Unique cable management allows cables to be tucked under the forearm extensions.

Our adjustable Switch bracket allows you to adjust monitors and also allows rotation. Includes our spring-assist monitor tilter for effortless motion. Switch works with all VESA 75 & 100 mm VESA monitors.

Switch is a configurable multi-monitor mounting system by Innovative. Switch meets your current mounting requirements, but also easily adapts to meet your future requirements! You can convert your monitor configurations with little time or effort, often without even having to purchase additional components.

Save desk space while increasing productivity with the 9112-Switch-D-28 monitor mount with a quad monitor setup (2-over-2).

Introducing Switch - One Switch, many possibilities

A highly configurable solution for multi-monitor applications. Switch meets your current mounting requirements, but also easily adapts to meet your future requirements. You can convert your monitor configurations with little time or effort, often without even having to purchase additional components.

Workplace configurations are continually changing and evolving. That’s why you need a monitor mounting system that can quickly adapt.

Configurable solutions for a range of applications. Switch multi-monitor mounting system is ideal in any of these environments:

  • Financial trading

  • Command & control

  • A/V & multimedia

  • Call centers






Please note this monitor arm was updated in January 2022. The manufacturer, Innovative Design Works, has upgraded this part.

Tilter - A tilter is the part of the adjustable monitor arm that attaches to the back of your monitor and allows the monitor to rotate, pivot and tilt to desired position.  This monitor arm is now available with Next Gen Tilter 8500. This new tilter apart from being slim and sleek has a quick release bracket, which makes installation and release easy and fast. It has a 30 lb weight capacity. However please bear in mind that the Next Gen Tilter 8500 comes with 100mm VESA adapter unlike the earlier standard tilter which comes with 75mm and 100mm adapter plate. If your monitor has only 75x75mm VESA pattern, please contact us through monitor arm finder. We will find the best monitor arm that matches your needs.

Innovative 8500 Quick Release Monitor Tilter
8500 Quick Release Monitor Tilter
Innovative 8336 Standard Monitor Tilter Head
8336 Standard Monitor Tilter


Technical Drawing

Technical Drawing for Innovative 9112-SWITCH-D-28 Articulating Quad LCD Arm, 28

Technical Specifications

Color 104 - Vista Black, 124 - Silver
Number of Monitors 4
Monitor Size Up to 24" (61 cm) widescreen
Monitor Weight Up to 15 lbs (6.8 kg) per monitor
Monitor Tilt Up to 180 degrees
Extension Range 13.1" (33.3 cm) from center of pole
Pole Size 28" (71 cm)
Pivot 90 degree
Rotation 360 degrees at three joints

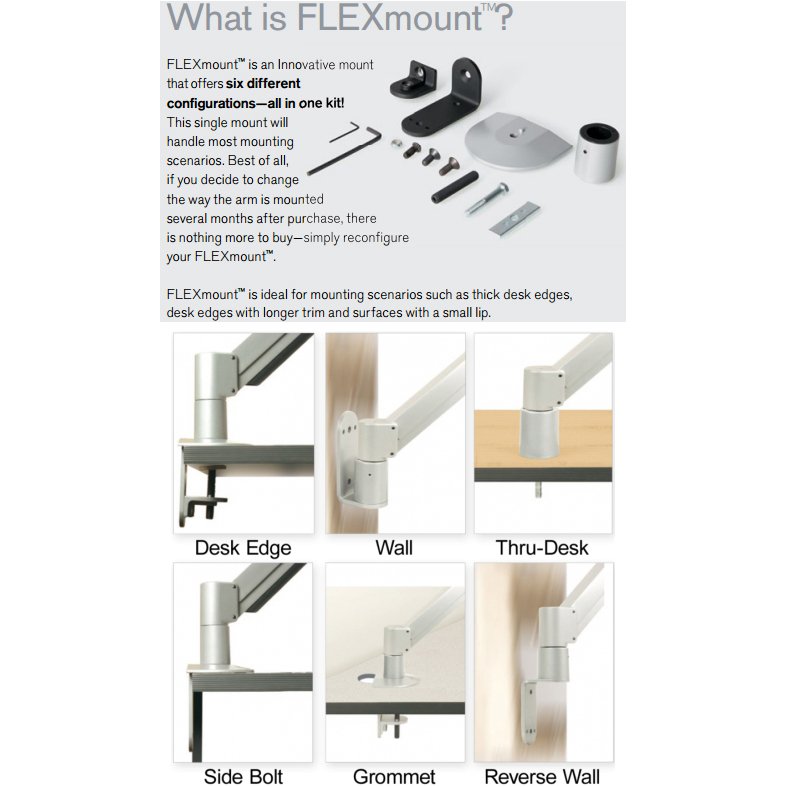

Mount Configurations Desk Edge, Thru-Desk, Grommet, Wall, Reverse Wall, Side Bolt
VESA Compatibility 100mm quick-release adapter included
Warranty 10 years
Cable Management Cables to be tucked under the forearm extensions

Features

  • Multi-monitor mount features three articulation joints for greater reach and flexibility

  • Rotates 360 degrees at three joints

  • Position monitors in either portrait or landscape

  • LCD monitor mount enables monitors to be set at any desired height along the included 28" pole

  • Quick-install VESA adapter saves time at setup

  • Switch multi-monitor mount is VESA-monitor compatible - 100 mm VESA adapter included

  • Tilt monitors up to 180 degrees

  • FLEXmount with six mounting options is available

  • Ideal for slatwall mounting; can be combined with all Innovative mount options (sold separately)

Model 9112-SWITCH-D-28
Manufacturer Innovative LCD Arms
Part Number 9112-SWITCH-D-28
Color 104 - Vista Black, 124 - Silver
Tilt Up to 180 degree
Monitor Size Up to 24" (61 cm) widescreen
Monitor Weight Up to 15 lbs (6.8 kg) per monitor
Pole Length 28" (71 cm)
Mounting Options Wall
Mounting Pattern VESA 100 mm
Mounting Options Desk
Number of Monitors 4 Monitors
Extension 13.1" (33.3 cm) from center of pole
Rotation At three joints 360 degree
Pivot 90 degree
Warranty 10 Years
