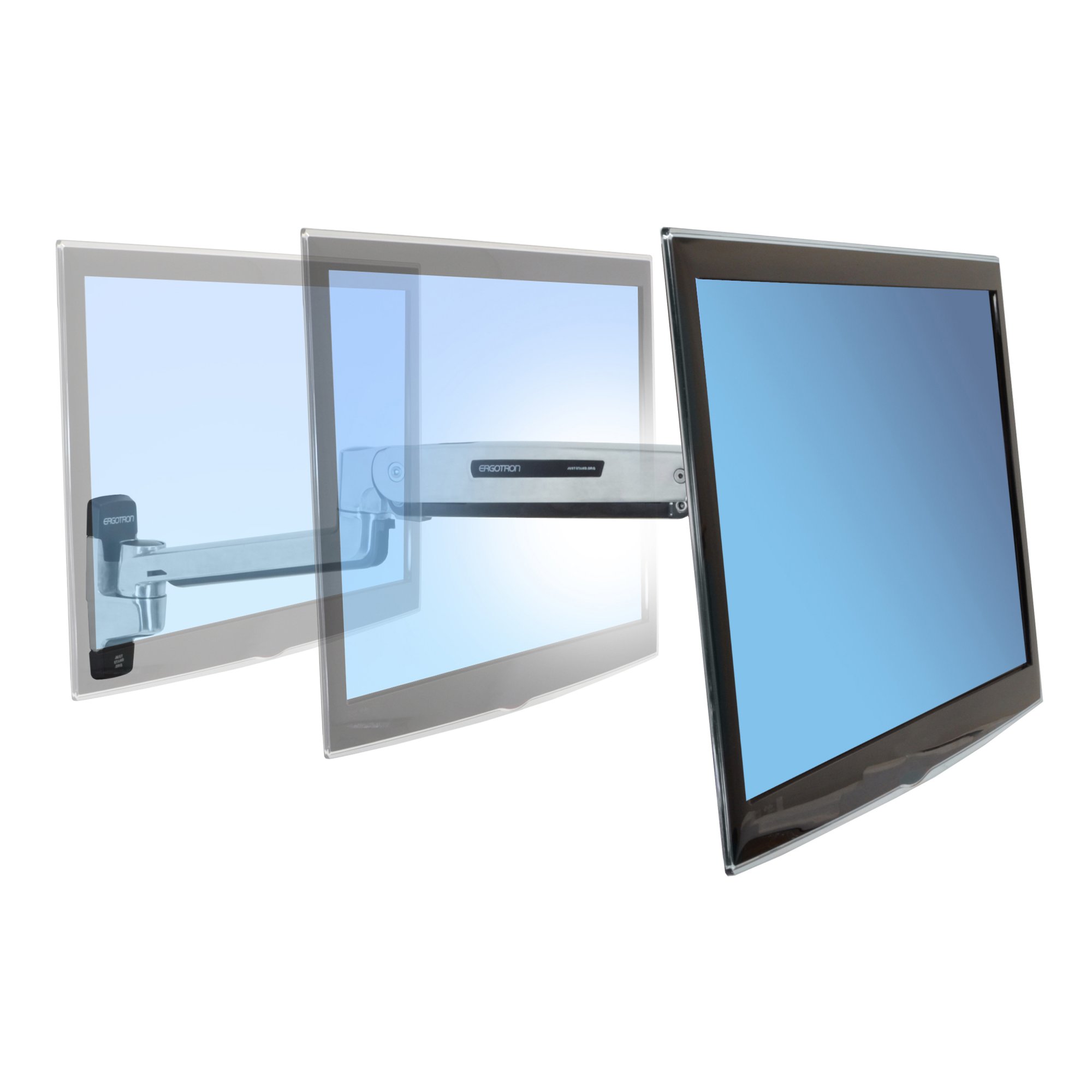

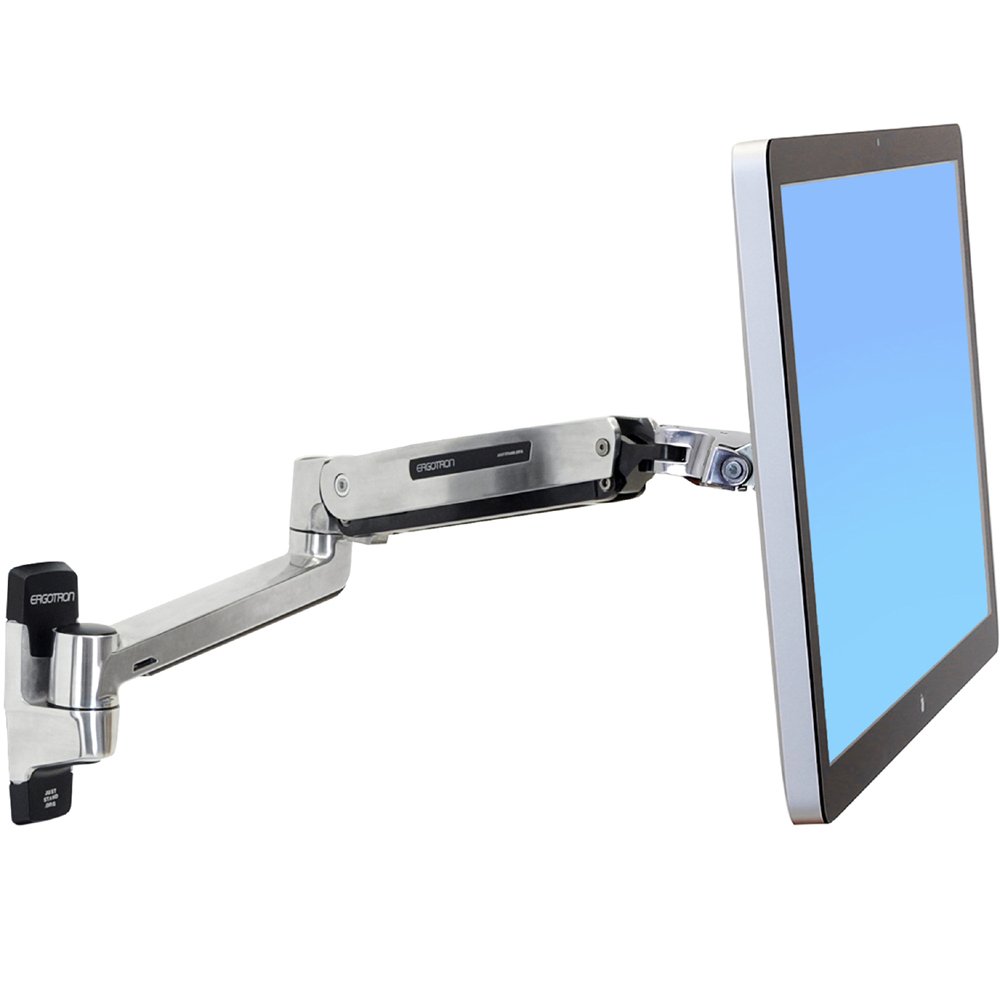

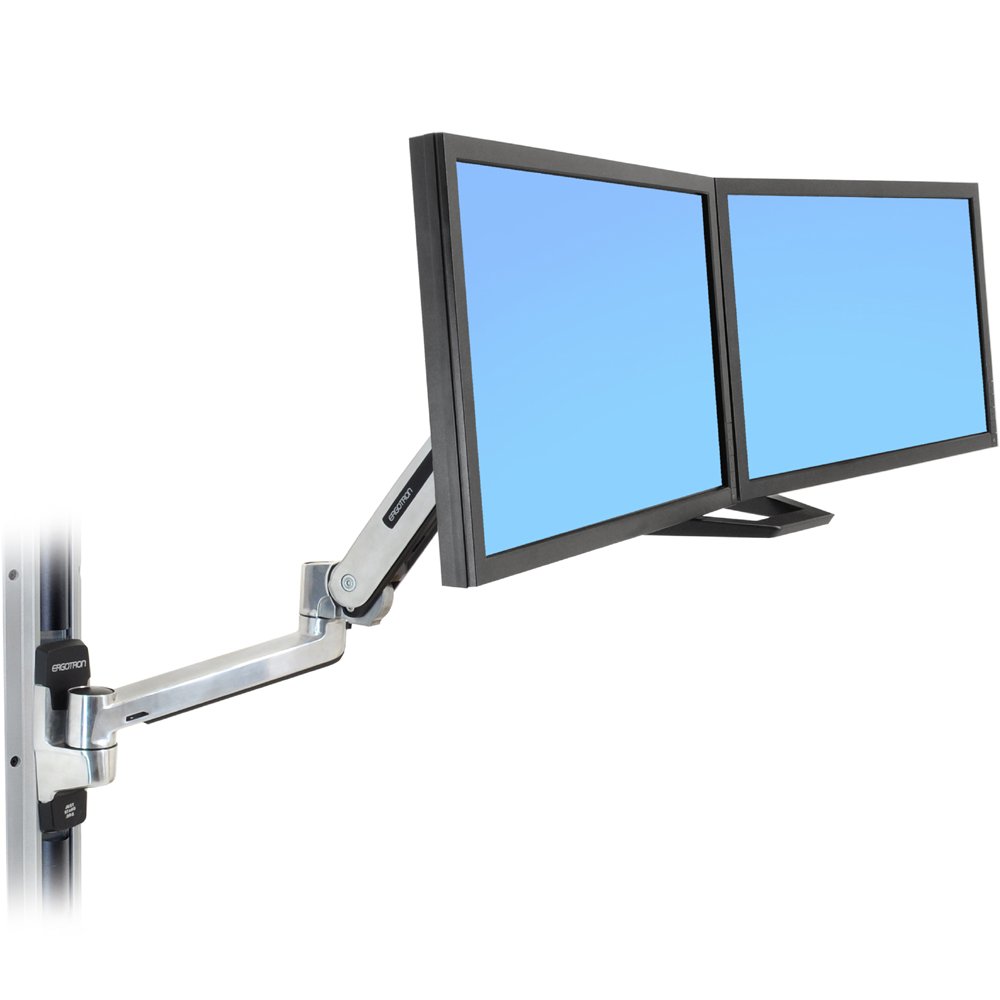

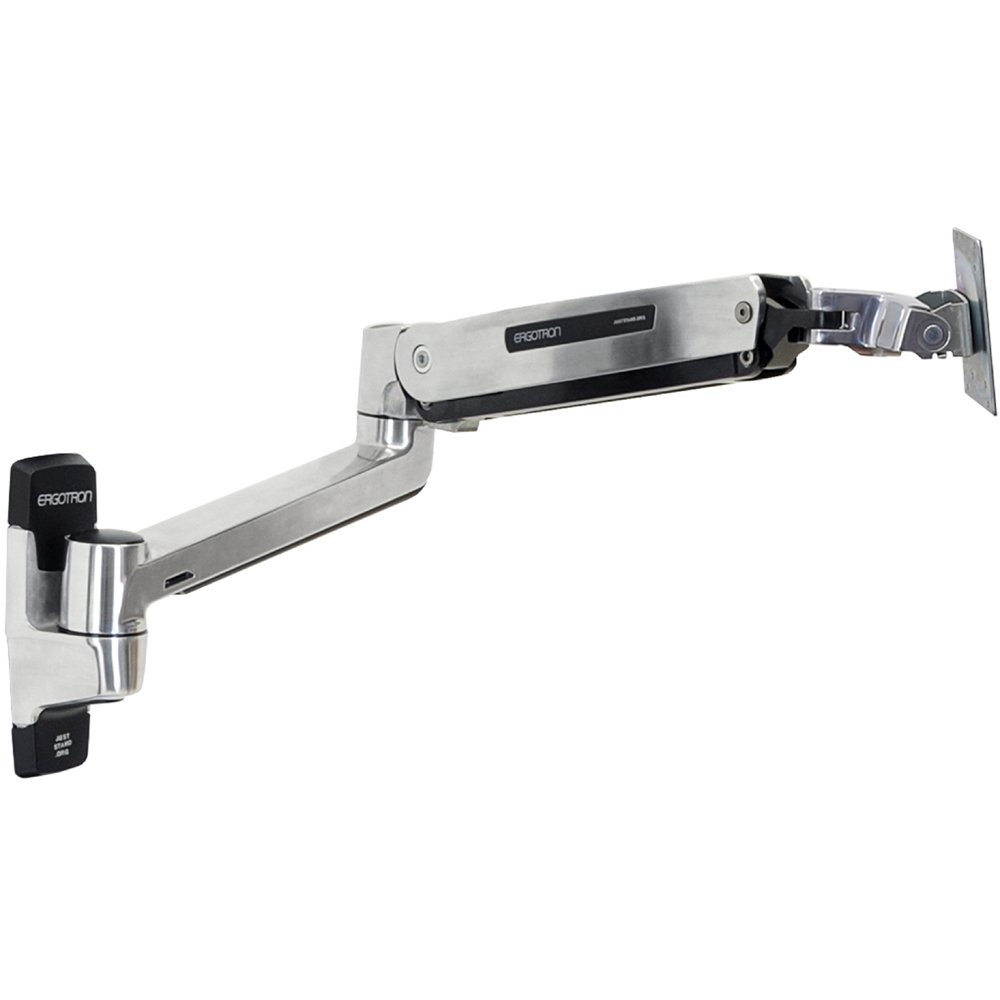

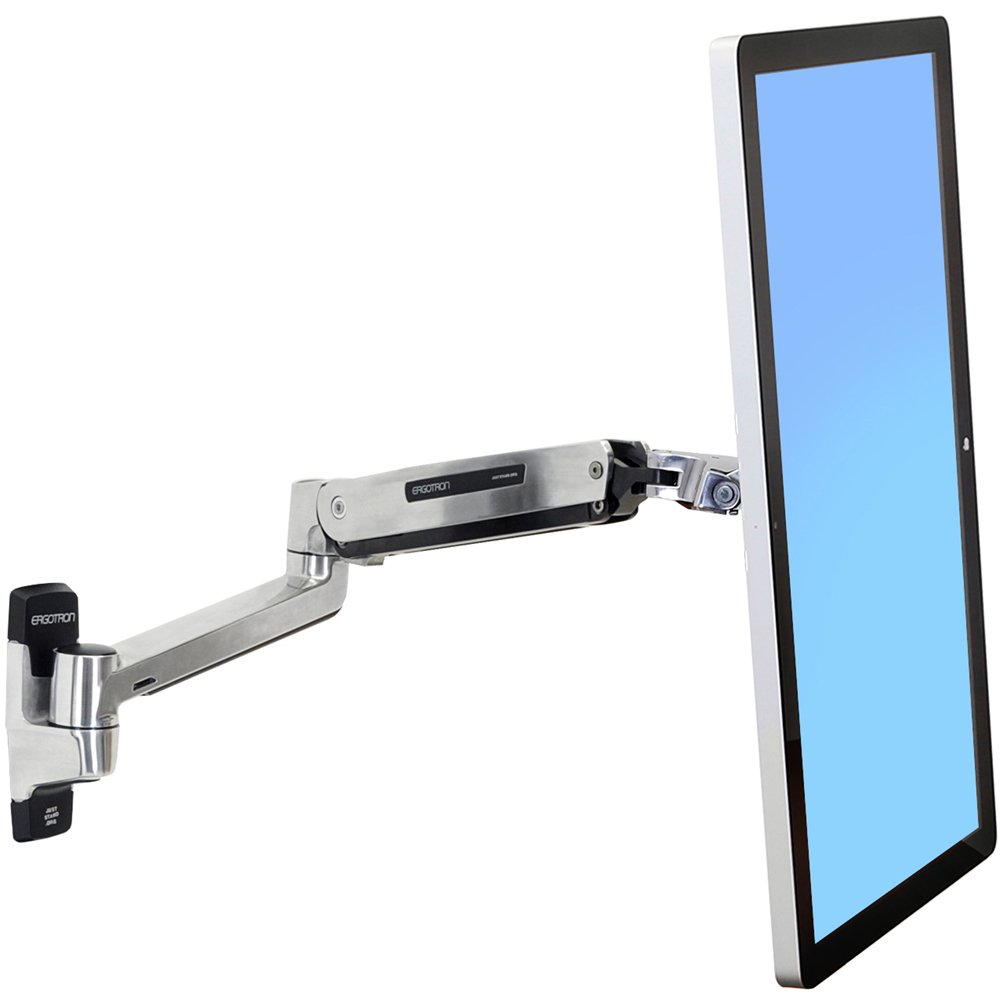

Ergotron 45-383-026 LX HD Sit-Stand Wall Mount Monitor Arm
The Ergotron 45-383-026 is a versatile arm. Install it on a manufacturing floor to quickly access data or mount a mid-sized TV for digital signage in a restaurant!
|Up to 49"||
14 - 30 lbs
6.4 - 13.6 kg
|Description||LX HD Sit-Stand Wall Mount LCD Arm (polished aluminum)|
|Quality Tested||10,000-cycle test applied to lift mechanism, ensuring years of trouble-free height adjustment|
|Weight Capacity||14 to 30 lbs (6.4 to 13.6 kg). Monitor depth may affect weight capacity|
|Monitor Tilt||75° up and 5° down|
|Mounting Standards||VESA MIS-D, 75/100 (hole pattern = 100 x 100 mm & 75 x 75 mm), MIS-E (hole pattern = 200 x 100 mm), MIS-F (hole pattern = 200 x 200 mm ONLY). Optional VESA Bracket Adaptor Kit (97-759) can be ordered separately for MIS-F interface with hole pattern of 400 x 200 mm, 400 x 300 mm or 400 x 400 mm|
|Locking Connections||Between arm, extension and base offer increased theft deterrence and prevent potential disconnections caused by jarring or impacts|
|Mounting Options||Attaches directly to sturdy vertical surfaces. Where applicable, install to wood stud. Also attaches to Wall Track using bracket (97-091, order separately)|
|Cable Management||Clips on the under side of the arm route and hide cords|
|Base||Includes theft-deterrent anchor holes for cable locks|
|NOTE||Computer systems mounted on this product may require extra long USB, power or video cables in order to span between standing and sitting heights|
|Product Weight||13.5 lbs (6.1 kg)|
|Shipping Dimensions||22" x 11" x 7.5" (56 x 28 x 19 cm)|
|Shipping Weight||13.5 lbs (6.1 kg)|
|Warranty||Ten (10) years|
- 20" height adjustability allows users to alternate between sitting and standing positions while working on the display
- Extends LCD up to 33" and pushes display out of the way when not in use
- Vertical, horizontal adjustability provides ergonomic relief and relieves stress on the back, shoulder and neck
- Suitable for tight areas as it folds up to within 4.5" of the back of the wall
- Increase viewing comfort - help reduce eye, back and neck strain
- Upgrade LCD monitors and TVs with improved ergonomic adjustment
- Patented CF motion technology provides premium ease-of-use adjustment
- Cable management clips on the under side of the arm route and hide cords
Frequently Asked Questions
The Samsung Ultra HD 50" needs 400 x 400 adapter, which weighs 1.8 lbs. The weight capacity of Ergotron 45-383-026 is 14-30 lbs. So after taking into account the weight of the adapter, your TV must weigh less than 28.2 lbs to be compatible. But the Samsung Ultra HD weighs more than that, hence here are some other recommendations to mount it - the Interactive Arm HD and Interactive Arm, VHD
|Monitor Size||Up to 49"|
|Weight Capacity||14 to 30 lbs (6.4 to 13.6 kg)|

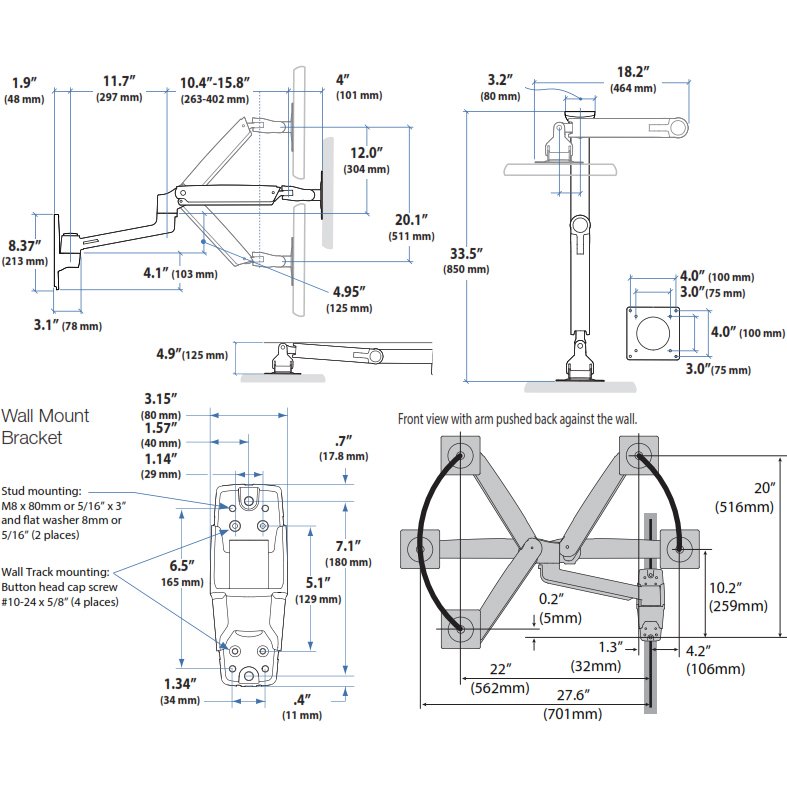

|Adjustments||20" (50.8 cm) of vertical adjustment and 62" (157 cm) of side-to-side adjustment|
|Tilt||Up 75 degree and down 5 degree|
|Mounting Pattern||VESA MIS-D, 75/100 (100 x 100 mm & 75 x 75 mm), MIS-E (200 x 100 mm), MIS-F (200 x 200 mm ONLY). Optional VESA Bracket Adaptor Kit (97-759) can be ordered separately for MIS-F interface with hole pattern of 400 x 200 mm, 400 x 300 mm or 400 x 400 mm|
|Weight||13.5 lbs (6.1 kg)|
|Shipping Dimensions||22" x 11" x 7.5" (56 x 28 x 19 cm)|
|Shipping Weight||13.5 lbs (6.1 kg)|
|Warranty||Ten (10) years|
|Monitor Arm Types||1 Monitor|
- 1 stars 0
- 2 stars 0
- 3 stars 0
- 4 stars 0
- 5 stars 3
by Scott Hair, Lake George,, New York, Mar 07, 2023
We've purchased several of these arms and thus far have no complaints. They look great of our equipment, very functional for our needs. Would highly recommend.
by Jack H, Conroe, Texas, Jul 28, 2017
Delivery was on time and as promised, and product is very high quality and worked perfectly.
by Daniel H, Alabama, Nov 20, 2014
This arm is top notch aluminum construction. I've paid more for cheap junk. Performs flawlessly, easy to install. I have a 42" screen at 18lbs on it.
