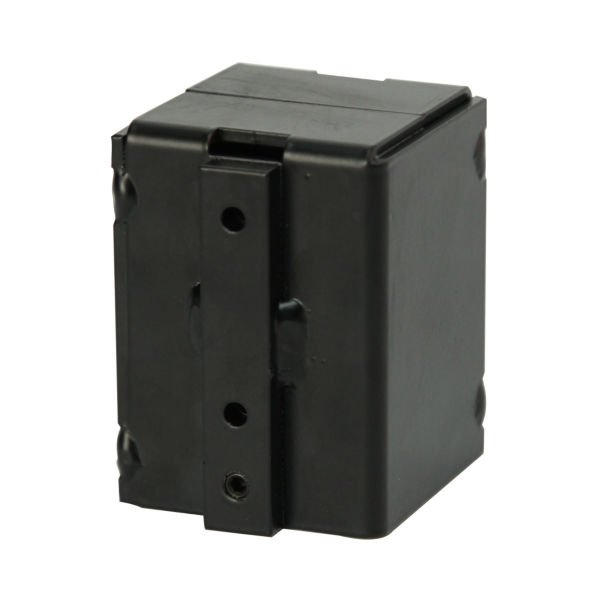

Peerless MOD-ADF Pole Drill Fixture for Modular Projector Mounts

For 2" (50mm) diameter pole

Product ID 17635
Peerless MOD-ADF Pole Drill Fixture for Modular Projector Mounts
Peerless MOD-ADF Pole Drill Fixture for Modular Projector Mounts


The Peerless-AV Modular Mounts Line features a full range of products that can fulfill multiple requirements from a limited number of SKUs. With the universality of the components, configure your own perfect custom flat-panel display or projector mounting solution for any application.

The Modular Mount Line was developed with the professional AV installer in mind. Designed around a 2" (50mm) diameter pole, the line is ideal for new projects as well as for upgrading existing installations.
Peerless MOD-ADF Pole Drill Fixture serves as a template for marking and positioning new installation holes to be drilled into newly cut 2" (50mm) poles.

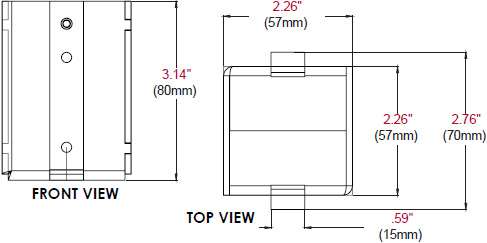

Technical Drawing

Technical drawing for
Peerless MOD-ADF Pole Drill Fixture for Modular Projector Mounts


Color Black and White
Finish Powder Coat
Security Features Non-Security Hardware
Dimensions 3.23 x 2.6 x 2.6" (82 x 66 x 66mm)
Weight 1.00lb (0.45kg)
Shipping Dimensions 3.25 x 3.25 x 7.63" (82.6 x 82.6 x 193.8mm)
Shipping Weight 1.2 lbs (0.54kg)
Package Contents
  • Pole Drill Fixture
UPC Code 735029279044


  • Allows marking and positioning of new installation holes to be drilled into newly cut 2" (50mm) poles

Manufacturer Peerless Mounts
Part Number MOD-ADF
UPC 735029279044
Color Black
Dimensions 3.23 x 2.6 x 2.6" (82 x 66 x 66mm)
Weight 1 lbs (0.45kg)
Finish Powder coat
Shipping Dimensions 3.25" x 7.63" x 3.25" (82.55 x 193.8 x 82.55mm)
Shipping Weight 1.2 lbs (0.54kg)
Pole Diameter 2" (50mm)
Warranty Limited 5 year

Customer reviews

  • 1 stars 0
  • 2 stars 0
  • 3 stars 0
  • 4 stars 0
  • 5 stars 1
(5 out of 1)
Worked exactly as it was intended

by Ray P, Casper, Wyoming, Dec 08, 2016

The product was recommended by the manufacturer. It was simple to use and can be reused as often as needed
