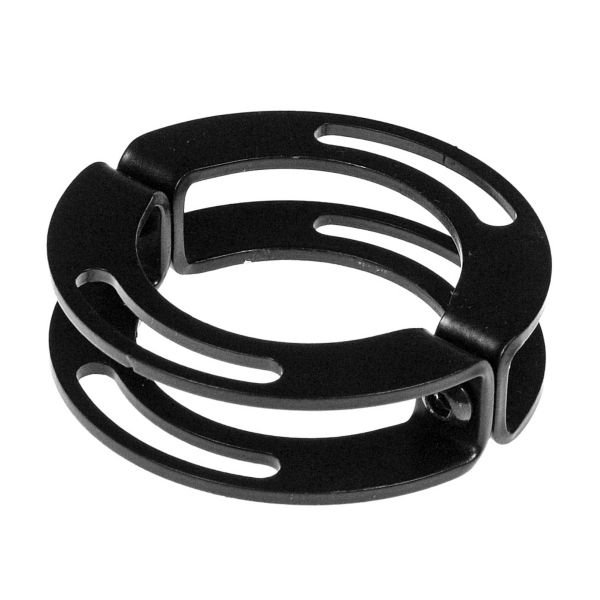

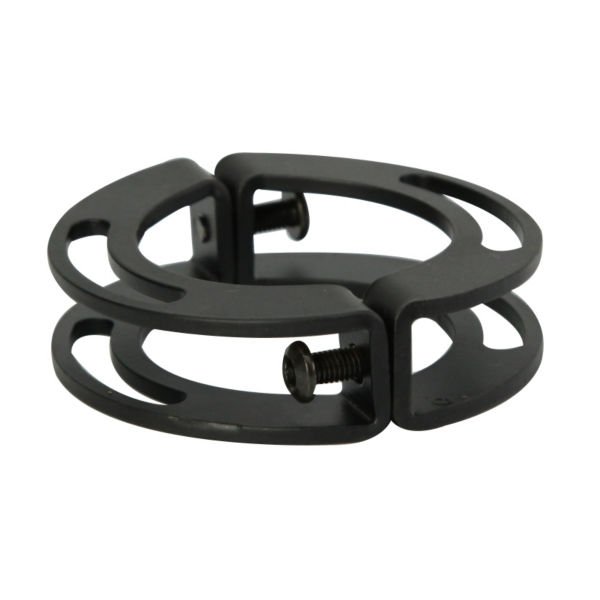

Peerless MOD-ASC Single or Dual Display Stacking Clamp

Package contents: Clamp and screws. Max load capacity: 187 lbs (85kg)

Product ID 17637
Peerless MOD-ASC Single or Dual Display Stacking Clamp
Peerless MOD-ASC Single or Dual Display Stacking Clamp

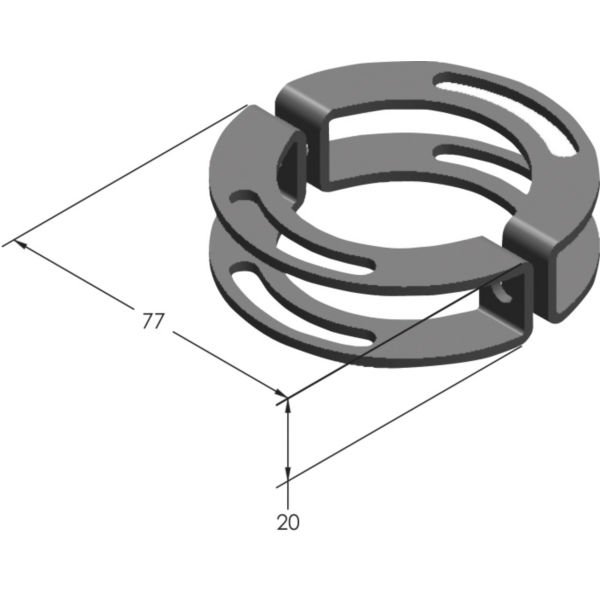

With dimensions
Peerless MOD-ASC Single or Dual Display Stacking Clamp
Peerless MOD-ASC Single or Dual Display Stacking Clamp
With dimensions


The Peerless-AV Modular Mounts Line features a full range of products that can fulfill multiple requirements from a limited number of SKUs. With the universality of the components, configure your own perfect custom flat-panel display or projector mounting solution for any application.

The Modular Mount Line was developed with the professional AV installer in mind. Designed around a 2" (50mm) diameter pole, the line is ideal for new projects as well as for upgrading existing installations.
Peerless MOD-ASC serves as solution for stacking single or dual displays on a single pole.

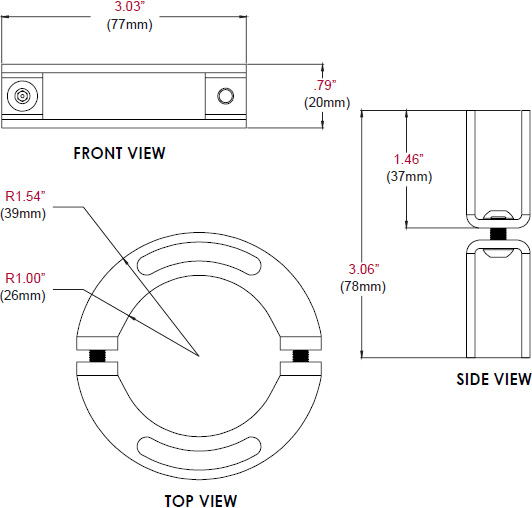

Technical Drawing

Technical drawing for
Peerless MOD-ASC Single or Dual Display Stacking Clamp


Color Black
Finish Powder Coat
Security Features Non-Security Hardware
Dimensions 3.03" x 0.78" x 3.03" (77 x 20 x 77mm)
Weight 0.20 lbs (0.90kg)
Shipping Dimensions 3.25 x 3.25 x 7.63" (82.6 x 82.6 x 193.8mm)
Shipping Weight 0.45 lbs (0.20kg)
Package Contents
  • Clamp
  • Screws
UPC Code 735029270010


  • 85 kg (187lbs) max. weight capacity

  • Clamps around extension pole to stack multiple single or dual back-to-back screens on single pole

  • Secondary safety screw provided to secure mount into place

Manufacturer Peerless Mounts
Part Number MOD-ASC
UPC 735029270010
Color Black
Dimensions 3.03" x 0.78" x 3.03" (77 x 20 x 77mm)
Weight 0.20 lbs (0.90kg)
Weight Capacity 187 lbs (85kg)
Finish Powder coat
Shipping Dimensions 3.25" x 7.63" x 3.25" (82 x 193 x 82mm)
Shipping Weight 0.45 lbs (0.20kg)
Warranty Limited 5 year

Customer reviews

  • 1 stars 0
  • 2 stars 0
  • 3 stars 0
  • 4 stars 0
  • 5 stars 0
(0 out of 0)

Warranties and Returns

Limited Warranty

Peerless Industries, Inc. (Peerless-AV) warrants to original end-users of Peerless-AV products that Peerless-AV products will be free from defects in material and workmanship, under normal use, for the periods listed below, from the date of purchase by the original end-user. At its option, Peerless-AV will repair or replace with new or refurbished products or parts, or refund the purchase price of, any Peerless-AV product which fails to conform with this warranty.

In no event shall the duration of any implied warranty of merchantability or fitness for a particular purpose be longer than the period of the applicable express warranty set forth above. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.

This warranty does not cover damage caused by (a) service or repairs by the customer or a person who is not authorized for such service or repairs by Peerless-AV, (b) the failure to utilize proper packing when returning the product, (c) incorrect installation or the failure to follow Peerless-AV’s instructions or warnings when installing, using or storing the product, or (d) misuse or accident, in transit or otherwise, including in cases of third-party actions and force majeure. This warranty also does not cover corrosion or rust resulting from damaged, scratched or chipped paint or other surfaces.

In no event shall Peerless-AV be liable for incidental or consequential damages or damages arising from the theft of any product, whether or not secured by a security device which may be included with the Peerless-AV product. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

This warranty is in lieu of all other warranties, express or implied, and is the sole remedy with respect to product defects. No dealer, distributor, installer or other person is authorized to modify or extend this Limited Warranty or impose any obligation on Peerless-AV in connection with the sale of any Peerless-AV product.
This warranty gives specific legal rights, and you may also have other rights which vary from state to state.

Product Warranty Period
Mounts 5 years
Kiosk Enclosures 5 years
Furniture 1 year
Cables 25 years
Cleaning Products 1 year
Power Products 1 year
Electronic Products and Components 1 year
Xtreme Displays, Ultra View TVs 2 years
Interactive 1 year
