Peerless MOD-CPI I-Beam Ceiling Plate for Projector Mounts

It fits I-beams 3.34"-9.84" (85-250mm) wide. Package contents: I-Beam Ceiling Plate and mounting hardware. Max load capacity: 264lb (119.7kg)

0 out of 5 (based on 0 review). Be the first to review this product
Product ID: 17642
List Price: $129.00
Our Price: $108.00
Shipping: $12.98 *
Usually ships in 1 to 2 business days
* applies to Contiguous United States


The Peerless-AV Modular Mounts Line features a full range of products that can fulfill multiple requirements from a limited number of SKUs. With the universality of the components, configure your own perfect custom flat-panel display or projector mounting solution for any application.

The Modular Mount Line was developed with the professional AV installer in mind. Designed around a 2" (50mm) diameter pole, the line is ideal for new projects as well as for upgrading existing installations. Peerless MOD-CPI provides a solution for attaching to I-beams, with full adjustability to accommodate 3.34" (85mm) wide, up to 9.84" (250mm) wide.

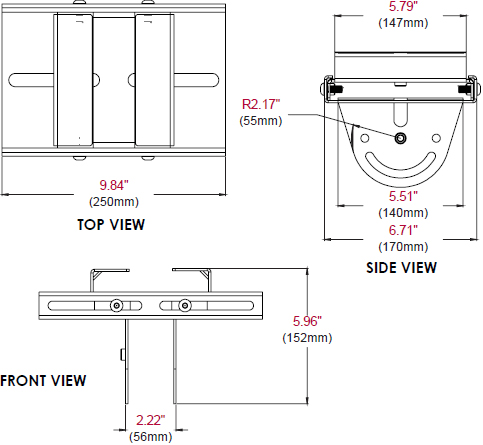

Technical Drawing

Technical drawing for
Peerless MOD-CPI I-Beam Ceiling Plate for Projector Mounts


Color Black
Finish Powder Coat
Security Features Non-Security Hardware
Dimensions 9.84 x 6.69 x 6.30" (250 x 170 x 160mm)
Weight 5.8 lbs (2.6kg)
Weight Capacity 264 lbs (119.7kg)
Shipping Dimensions 10.25 x 8.25 x 10.25 (260.35 x 209.55 x 260.35mm)
Shipping Weight 6.7 lbs (3kg)
Package Contents
  • I-Beam Ceiling Plate

  • Mounting hardware

UPC Code 735029272724


  • Fully adjustable for I-beams 3.34" (85mm) to 9.84" (250mm) wide

  • Mounts to concrete and wood joist ceilings

  • Tilt: ±60°

Manufacturer Peerless Mounts
Part Number MOD-CPI
UPC 735029272724
Color Black
Dimensions 9.84 x 6.69 x 6.30" (250 x 170 x 160mm)
Weight 5.8 lbs (2.6kg)
Weight Capacity 264.0 lbs (119.7kg)
Finish Powder Coat
Shipping Dimensions 10.25" x 8.25" x 10.25" (260.35 x 209.55 x 260.35mm)
Shipping Weight 6.7 lbs (3kg)
Warranty Limited 5 year
Tilt ±60 degree
