Ergotron 24-390-026 WorkFit-A with Suspended Keyboard, Single LD

4.5 out of 5 (based on 2 reviews)
Product ID: 17739
Highlights

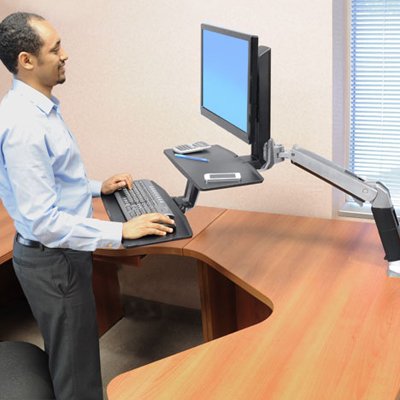

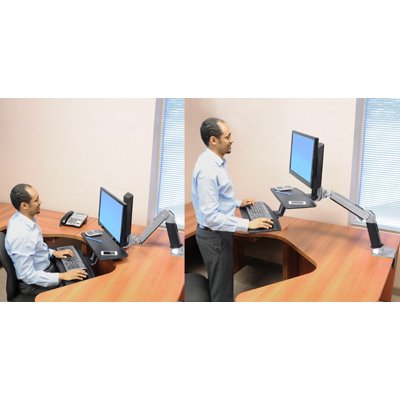

  • Sit-stand workstation: Converts your desk so that it lets you sit or stand while working
  • 25" vertical adjustability: Maximum possible height adjustment of the monitor
  • 5-15 lbs monitor weight: Carries a single light duty (LD) monitor
  • 24" screen size: Holds a monitor up to 24" in screen size
  • 4" suspension: Keyboard tray drops down up to 4"below desktop
  • 10"x22" worksurface
  • Installs at back of the desk: Keeps desktop space clear
  • For a heavier monitor, see Ergotron WorkFit-A, Single HD
  • Sit-Stand video
Recommended Accessories
List Price: $885.00
Our Price: $509.00
Shipping: FREE SHIPPING *
Usually ships in 2 to 3 business days
* applies to Contiguous United States

Animation for Ergotron 24-390-026 WorkFit-A LD Monitor Workstation with Keyboard

Description

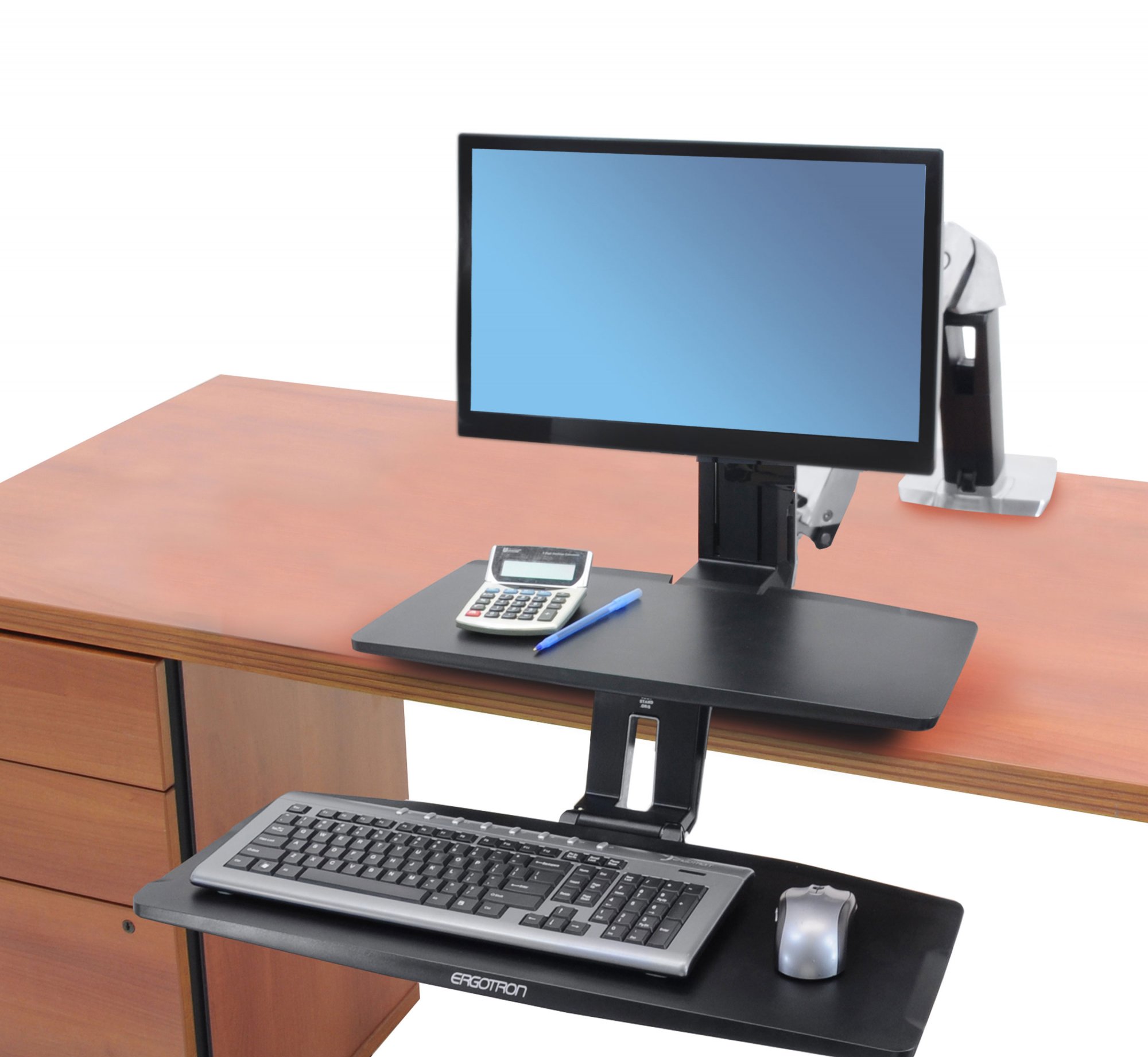

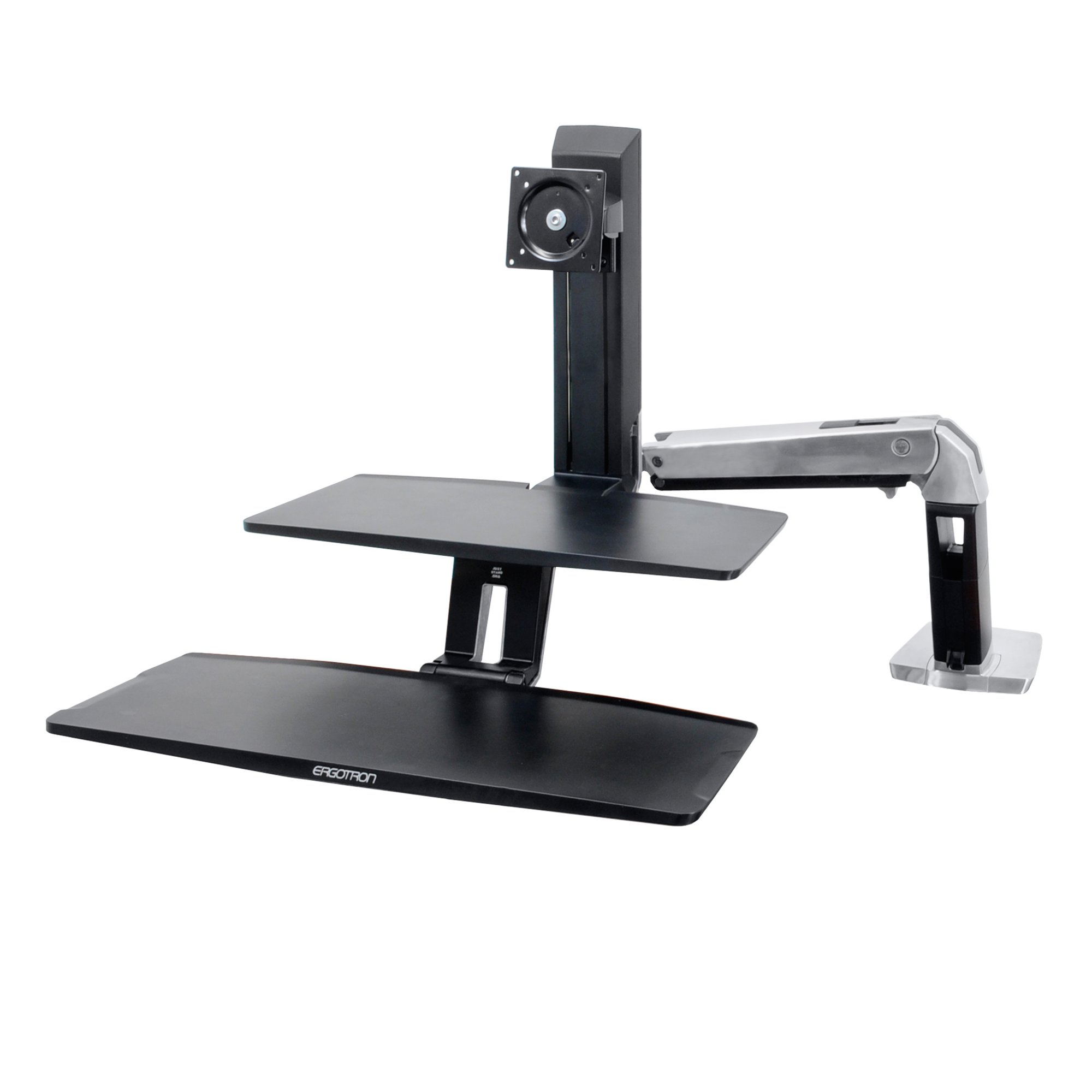

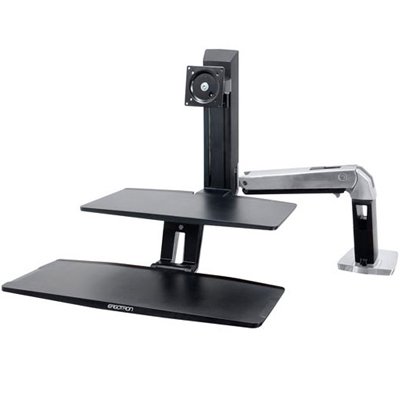

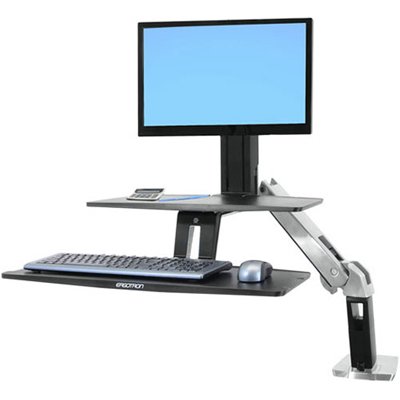

Ergotron WorkFit-A 24-390-026 is an affordable workstation that lets a computer user alternate between sitting and standing while working. This model is designed to support light weight monitors (5-15 lbs). Changing your position from sitting to standing offered by this product is increasingly recommended to maintain a healthy posture and thereby prevent medical problems like diabetes, high blood pressure and cardiovascular diseases along with musculoskeletal injuries like carpal tunnel syndrome and tendinitis.

Workfit-As are installed at the back of the desk clearing valuable desk space in the front. When the computer is not in use, the entire assembly of this WorkFit-A can be moved to the side and the keyboard tray flips up 90 degrees. It has a suspended keyboard which drops down up to 4" below the desktop surface for neutral positioning of the hand. 24-390-026 is especially valuable for users who have to work on a computer for 6 hours or more per day.

Featuring an unprecedented range of motion for a standing desk solution, WorkFit-A let’s you swing your computer system left, right, up or down to wherever you need it. Premium ergonomic benefits include keyboard placement below desktop height when sitting and independent monitor positioning.

The height-adjustable arm moves the keyboard and monitor in one simple motion, allowing you to easily sit down or stand up as you work. Fold the keyboard up and push the arm out of the way when you need your desk surface. Includes several installation options to best fit your space.

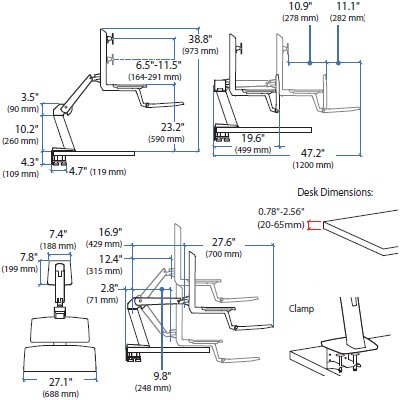

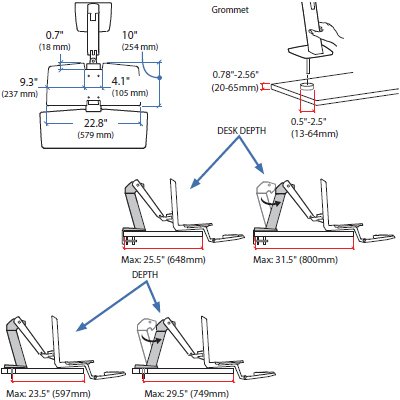

Technical Drawing

Technical Drawing for Ergotron 24-390-026 WorkFit-A LD Monitor Workstation with Keyboard

Technical Specifications

LCD size Capacity Lift Tilt Pan Rotation VESA
Screen Capacity Lift Tilt Pan Rotation VESA
Up to 24"

Up to 20 lbs

9.1 kg

25"

63 cm

30° 180° 360° MIS-D

Product Information

Part Number 24-390-026
Description WorkFit-A with Suspended Keyboard, Sit-Stand Workstation, LD Light Duty for standard-size monitors (polished aluminum, black)
Includes
  • Arm
  • Desk clamp
  • Grommet mount
  • Monitor riser
  • Monitor pivot
  • Keyboard tray support bracket
  • Worksurface
  • Keyboard tray
  • Assembly fasteners
  • Velco
  • Cable wrap
  • Adjustment tools
Weight Capacity Maximum total load on height-adjustment assembly ≤ 20 lbs (9.1 kg). LCD weight = 5–15 lbs (2.3–6.8 kg), worksurface ≤ 5 lbs (2.3 kg), keyboard tray ≤ 2 lbs (.9 kg). For proper operation the total maximum weight when added together should not exceed 20 lbs (9.1 kg). The minimum total weight should not be less than 6 lbs (2.7 kg)
Lift Range LCD and keyboard adjust 20" (51 cm) in tandem; LCD adjusts 5" (13 cm) independently; maximum LCD height adjustment = 25" (63.5 cm)
Keyboard Tray

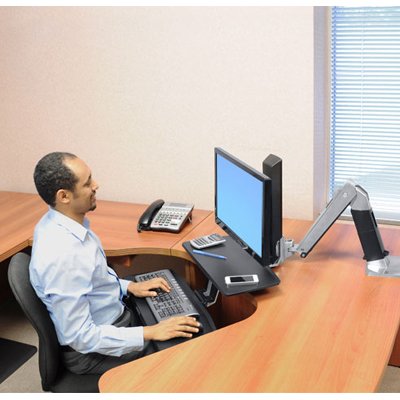

  • When in seated position, keyboard tray can drop down ≤ 4" (10 cm) below level of desktop surface, placing the keyboard at the optimum ergonomic height
  • Keyboard tray can be installed in 3 different positions: centered, offset right or offset left
  • Keyboard tray designed with slight tilt to ensure wrists remain in a neutral position during data entry and help prevent repetitive stress-injuries; tray can be flipped up 90º when not in use
Mounting Surface Requirements When installed using Desk Clamp option, can be configured to work with desk surfaces up to 31.5" (80 cm) deep. When installed using Grommet Mount option, center of through-hole should be no more than 29.5" (75 cm) from front edge of desk surface. These requirements ensure that the suspended keyboard tray can extend past the desktop’s front edge
Cable Management Integrated cable management hides wires
Worksurface Dimensions Approximately 0.25" H x 22" W x 10"D (6.4 x 560 x 255 mm)
Desk Clamp Attaches to edge up to 2.5" (65 mm) thick; grommet mount attaches through hole 0.5" to 2.5" (7–65 mm) wide and up to 2.5" (65 mm) thick
Mounting Standards VESA FDMI, MIS-D, 75/100, C (hole patterns = 100 x 100 mm and 75 x 75 mm)
Notebook Tray Can be configured to hold a laptop in place of monitor: order accessory Notebook Tray (50-193-200)
Washington State Analysis

A Washington State analysis of case studies related to office ergonomics showed a median productivity increase of 12% following an ergonomic intervention.

New studies from the Office Ergonomics Research Committee (OERC) suggest that employees who are provided with well-designed ergonomic furniture and are trained to use it see an average productivity increase of 18%

Note Extra-long cables may be required to span between standing and sitting heights
Certified This product is certified in compliance with indoor air quality standards defined by ANSI/BIFMA pertaining to emissions of VOC (volatile organic compounds)
Shipping Dimensions 36" x 21.25" x 10.75" (941 x 540 x 273 mm)
Shipping Weight 45 lbs (20.5 kg)
Warranty Five (5) years

Advantages

For Computer Users

  • Keyboard can be positioned below desk surface for optimum ergonomic comfort
  • Safe, easy to use - simple installation and effortless operation
  • Easily and simultaneously lift keyboard and LCD screen to proper height for unsurpassed ergonomic comfort
  • Patented Constant Force lift technology provides fluid, one-touch adjustments of the keyboard and monitor
  • Fold keyboard up and swing arm and monitor out of the way when you need your desk surface
  • Included worksurface provides ample space and quick access to a tablet computer, phone or task-related items

For IT and Facilities Staff

  • Flexible, open-architecture design is scalable for future computer equipment
  • Modify existing office spaces or cubes by simply clamping a WorkFit on an existing worksurface, without the cost of expensive professional installers
  • Safe and neat routing of cables

For HR/Risk Management and Company Cost Savings

  • Manage the cost of healthcare premiums by promoting wellness in the daily work routine
  • Provide standing work platforms for employees without having to buy expensive height-adjustable chairs
  • Comfortable computing offers provable ROI on investment - healthcare costs associated with unhealthy computing and missed time are reduced while productivity increases
  • WorkFit helps alleviate back and neck pain, the most costly conditions affecting employees according to the 2007 OE Medicine Journal
  • Studies in office ergonomics show productivity increases of 12%–18% following an ergonomic intervention where employees are provided with well-designed ergonomic furniture

Frequently Asked Questions

Question: Can I swap the keyboard and worksurface locations? Answer: The worksurface and keyboard trays are fixed on this unit and cannot be removed. However we do have similar units without worksurfaces and with levelled keyboard trays.
Model 24-390-026
Manufacturer Ergotron
Part Number 24-390-026
UPC 698833040036
Color Polished aluminum, black
Weight Capacity Up to 20 lbs (9.1 kg)
Lift (63 cm) 25 in
Tilt 30 degree
Pan 180 degree
Rotation 360 degree
Mounting Pattern VESA FDMI, MIS-D, 75/100, C (hole patterns = 100 x 100 mm and 75 x 75 mm)
Worksurface Dimensions 0.25" H x 22" W x 10"D (6.4 x 560 x 255 mm)
Shipping Dimensions 36" x 21.25" x 10.75" (941 x 540 x 273 mm)
Shipping Weight 45 lbs (20.5 kg)
Warranty Five (5) years
Mounting Options Desk Mount
Desk Type Desk Mount
Screen Size Up to 24 in
Monitor Weight 5–15 lbs (2.3–6.8 kg)
Suspended Keyboard Yes
Keyboard Tray Dimensions 27" W x 10" D
Worksurface Yes
Monitor Arm Types 1 Monitor
Price $400 - $499
