Ergotron 45-385-223 Neo-Flex Cantilever Wall Mount, VHD

Be the first to review this product
Product ID: 17808
Recommended Accessories
List Price: $230.00
Our Price: $115.00
Shipping: $14.95 *
Usually ships in 2 to 3 business days
* applies to Contiguous United States

Description

Ergotron 45-385-223 low-profile full motion mount fits most 37"–63" flat panels and TVs up to 80 lbs (36.3 kg) and is well-suited for those applications where seamless integration counts most.

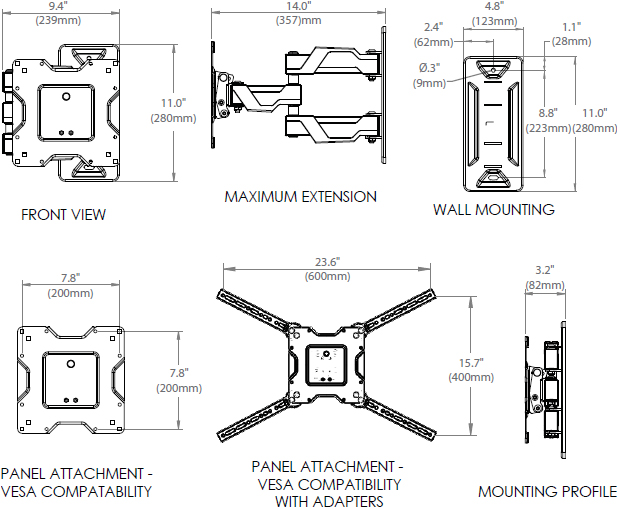

Technical Drawing

Technical Drawing for Ergotron 45-385-223 Neo-Flex Cantilever Wall Mount, VHD

Technical Specifications

LCD size Capacity Lift Tilt Pan Rotation VESA
Screen Capacity Lift Tilt Pan Rotation VESA
Up to 63"

Up to 80 lbs

36.3 kg

- 20° 180° - MIS-E/F

Product Information

Part Number 45-385-223
Description Neo-Flex Cantilever Wall Mount, VHD, Very Heavy Duty (black)
Includes
  • Wall plate

  • Cantilever arm

  • Monitor plate

  • Cable management

  • Spider 46 adapter

  • Complete hardware kit

Screen Size Screen Size is approximate only. Use Display Weight and VESA hole pattern to determine compatibility, i.e., stated screen size may be exceeded as long as display weight does not exceed weight capacity
VESA Monitor Attachment 200 x 100 mm to 600 x 400 mm
Minimum Profile 3.2" (82 mm)
Maximum Extension 14" (357 mm)
Adaptor If adaptor is used, add 0.2" (6 mm) to minimum profile and maximum extension
UL Certified and Listed UL certified and listed to UL Standard 2442. This product has been tested to hold four times its maximum load capacity per UL standard (do NOT exceed listed weight capacity in actual use)
Full Compliance With RoHS directive
Shipping Dimensions 14.2" x 12.8" x 4.5" (360 x 325 x 113 mm)
Shipping Weight 11 lbs (5 kg)
Warranty Three (3) years

Benefits

  • Tilt range up to 20º to reduce glare

  • Extends up to 14" (36 cm) from wall

  • Minimum profile is just 3.2" (8.2 cm)

  • Tilt and pan for maximum viewing flexibility

  • Includes adaptor for greater panel compatibility

  • Integrated cable management and covers guide and hide cords

  • Lift n’ Lock allows you to easily attach your flat panel to the mount

  • Two-tone design and modern aesthetic complements newer panels

  • Built-in flat screen leveling

  • Extruded aluminum arms for maximum support in a lightweight TV wall mount

  • Arm design provides ample throw and nests centered on the wall

Model 45-385-223
Manufacturer Ergotron
Part Number 45-385-223
UPC 698833040173
Color Black
Monitor Size Up to 63"
Weight Capacity Up to 80 lbs (36 kg)
Tilt 20 degree
Pan 180 degree
Mounting Pattern VESA Monitor Attachment: 200 x 100 mm to 600 x 400 mm
Minimum Profile 3.2" (82 mm)
Maximum Extension 14" (357 mm)
Shipping Dimensions 14.2" x 12.8" x 4.5" (360 x 325 x 113 mm)
Shipping Weight 11 lbs (5 kg)
Warranty Three (3) years
Mounting Options Wall
Monitor Arm Types 1 Monitor
