Apple compatible Ergotron 24-422-227 WorkFit-A Workstation, Platinum

Apple compatible Ergotron 24-422-227 WorkFit-A Workstation, Platinum

This product has been discontinued. See below for similar products we offer instead. We apologize for the inconvenience.

View Similar Products

Description

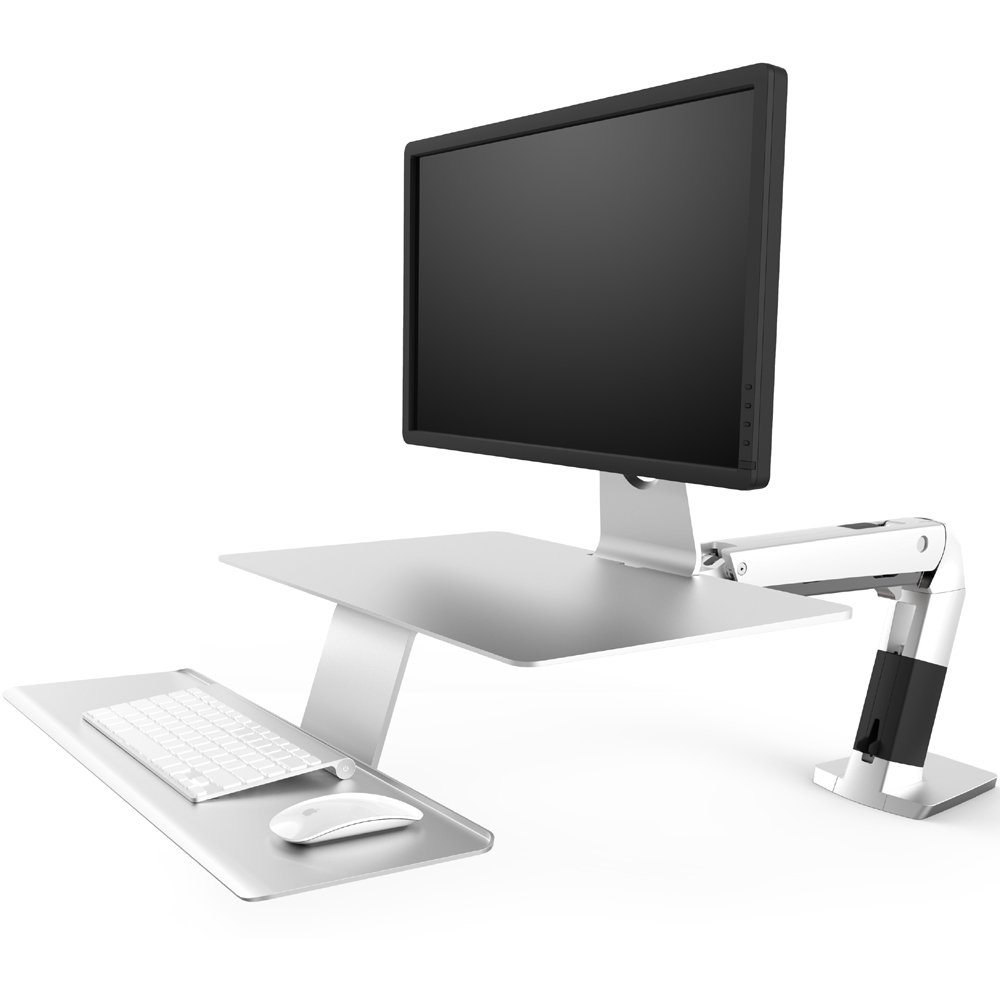

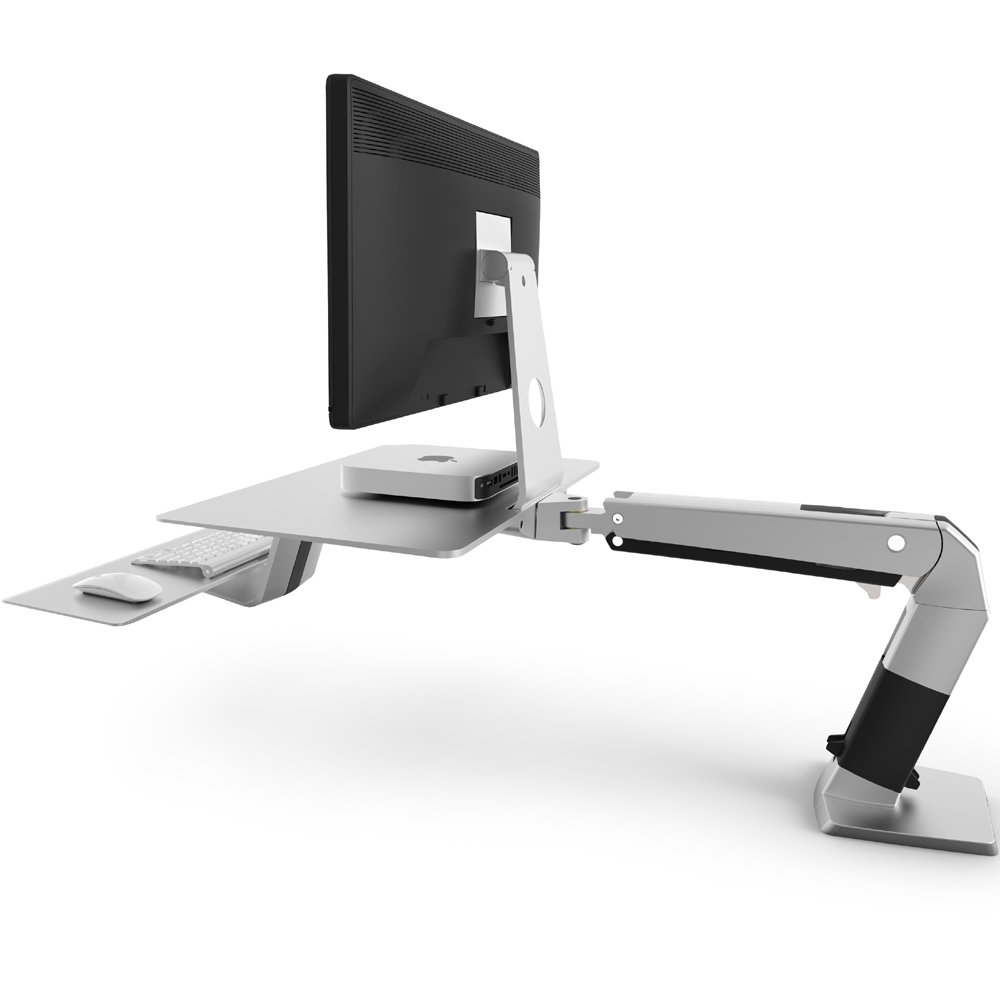

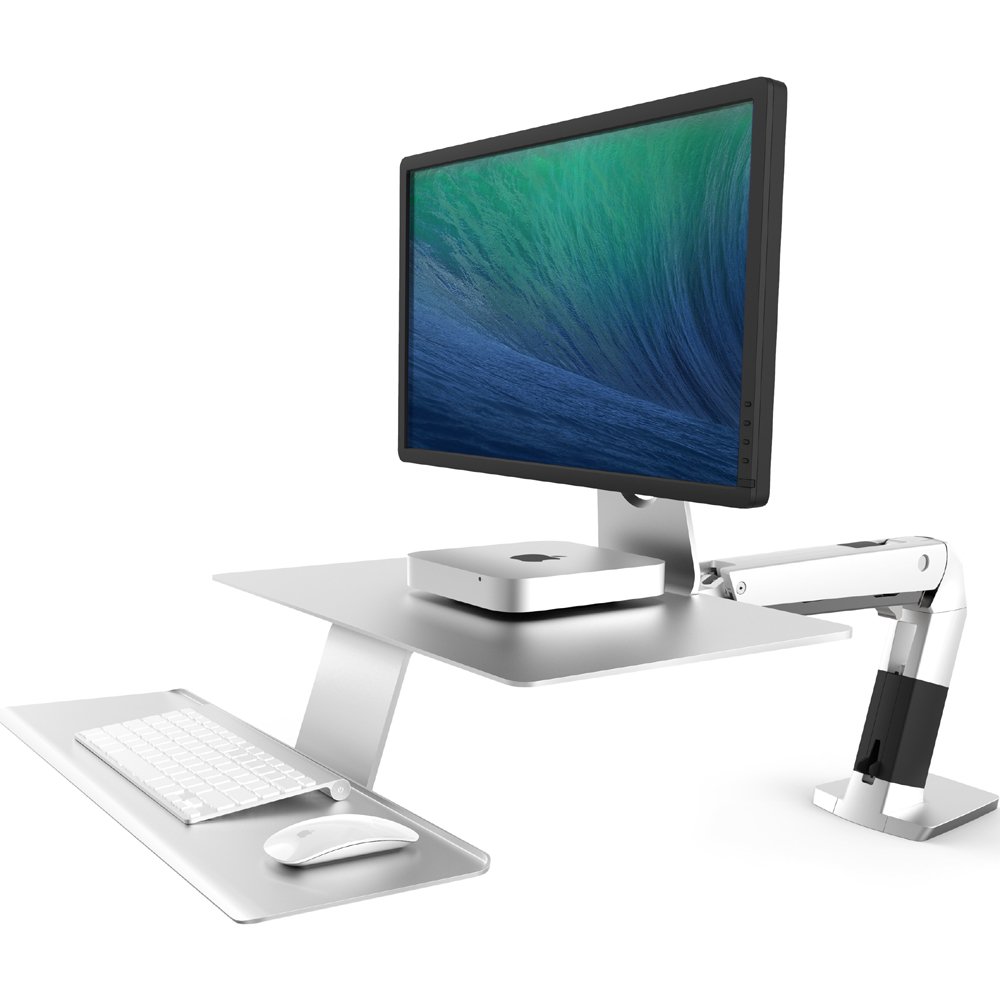

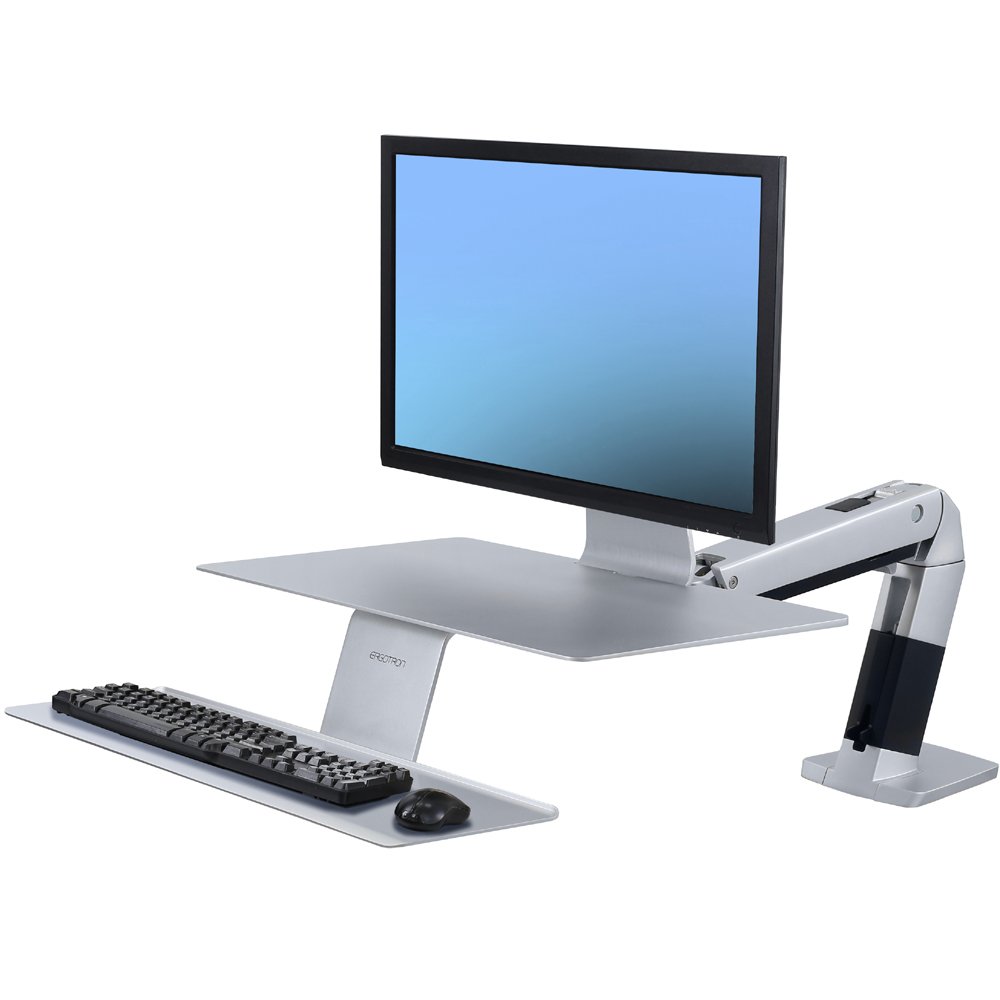

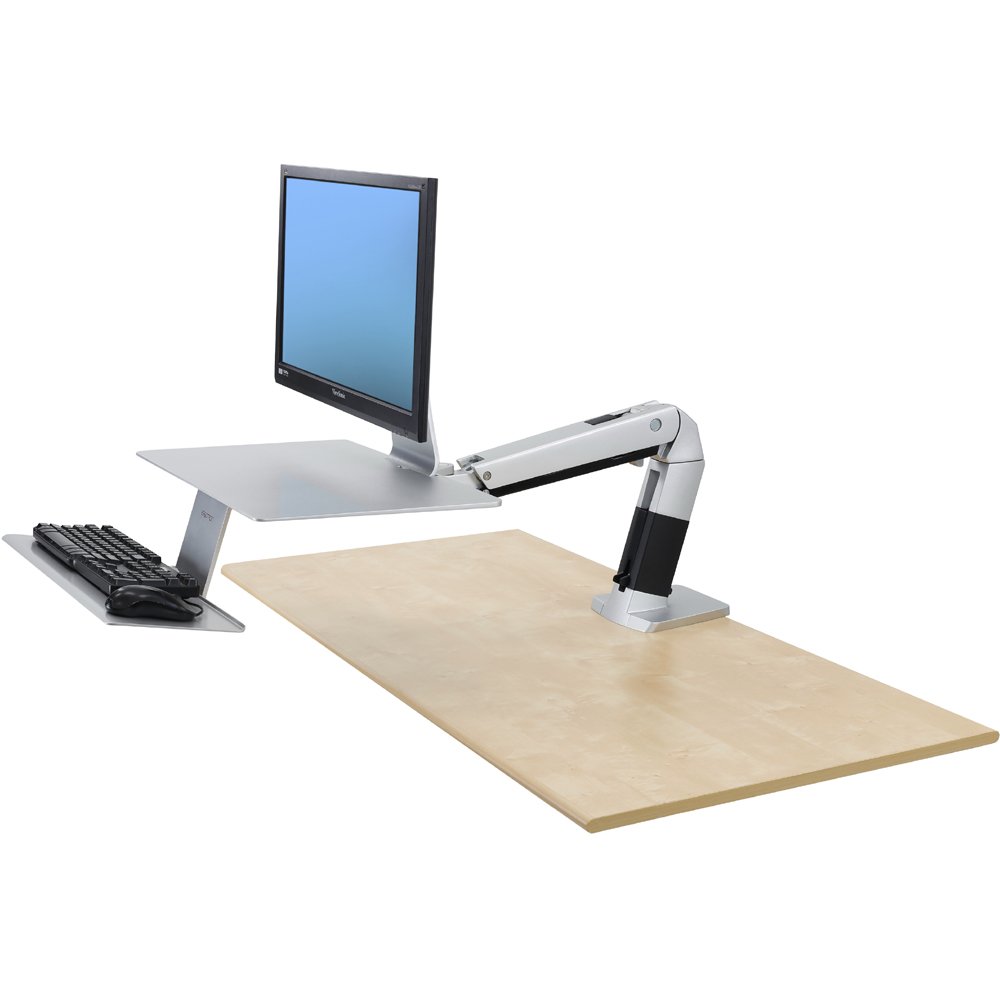

Ergotron 24-422-227 is a height-adjustable workstation for VESA compliant displays as well as Apple monitors that have a built-in VESA configuration.

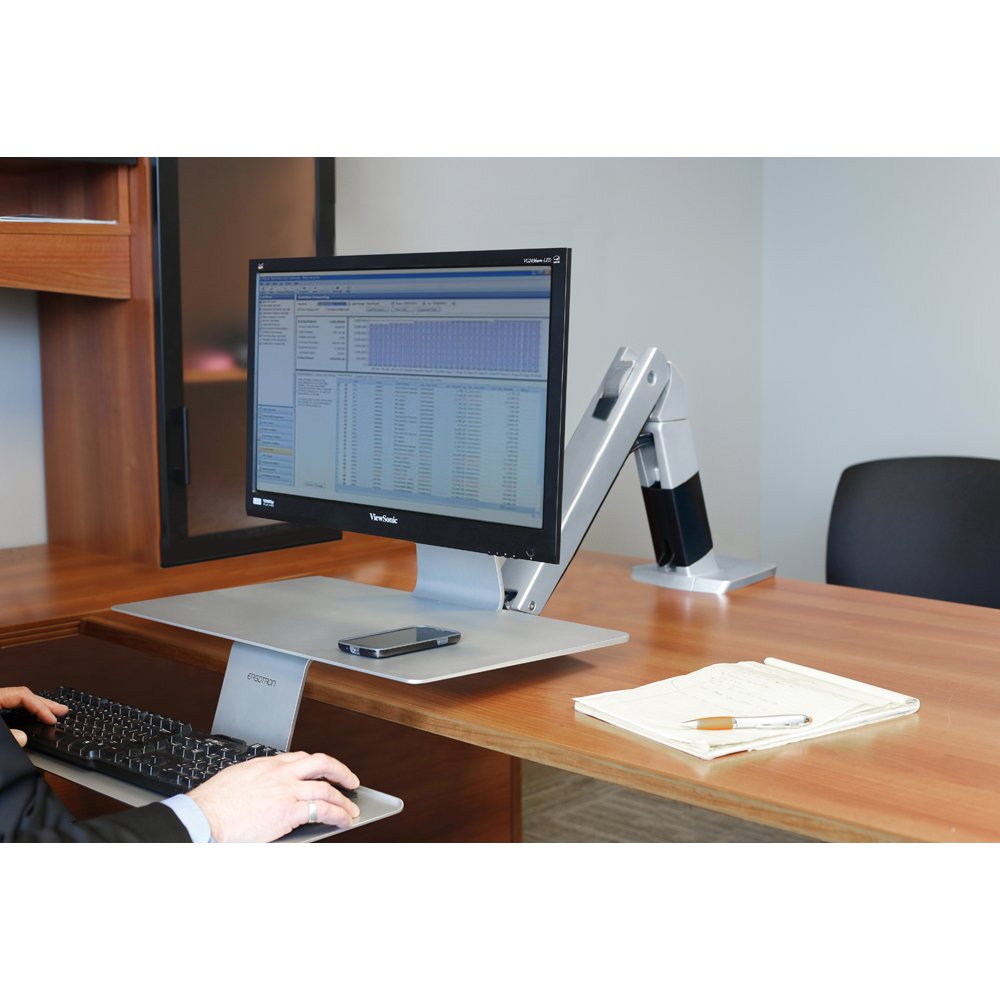

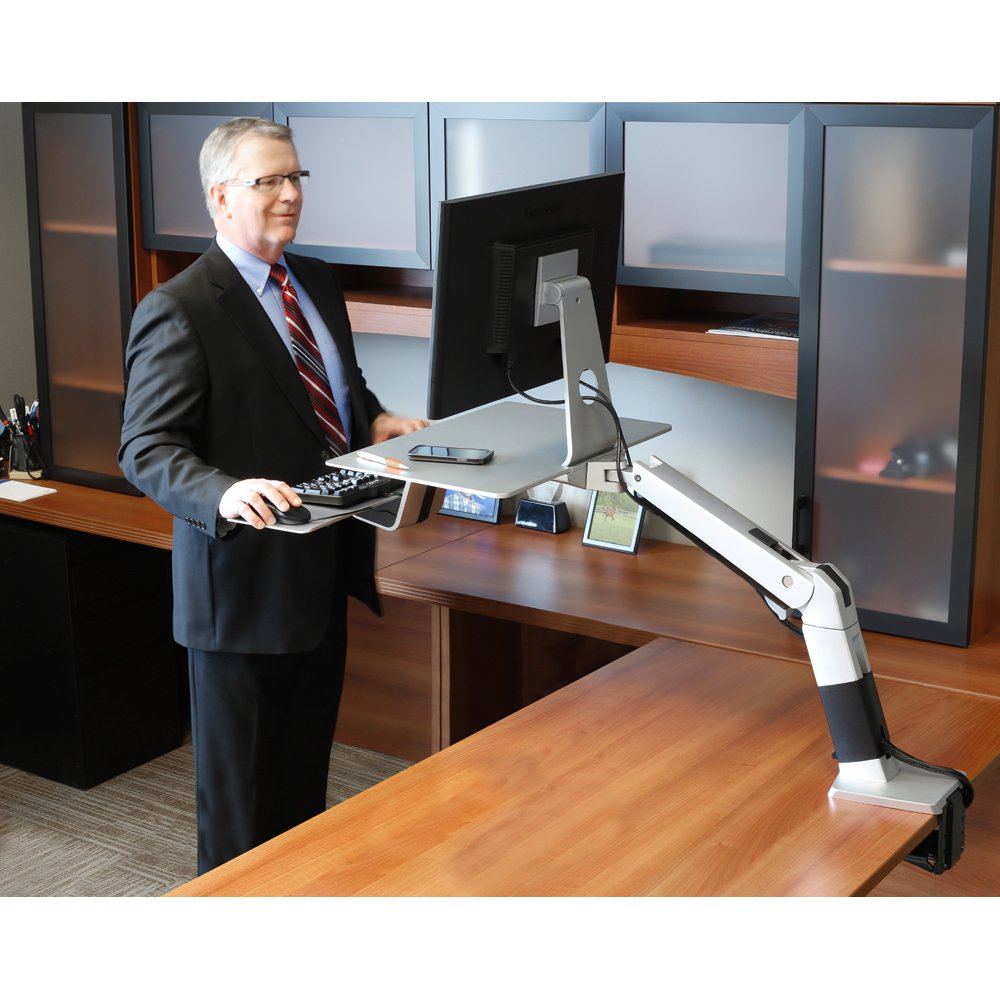

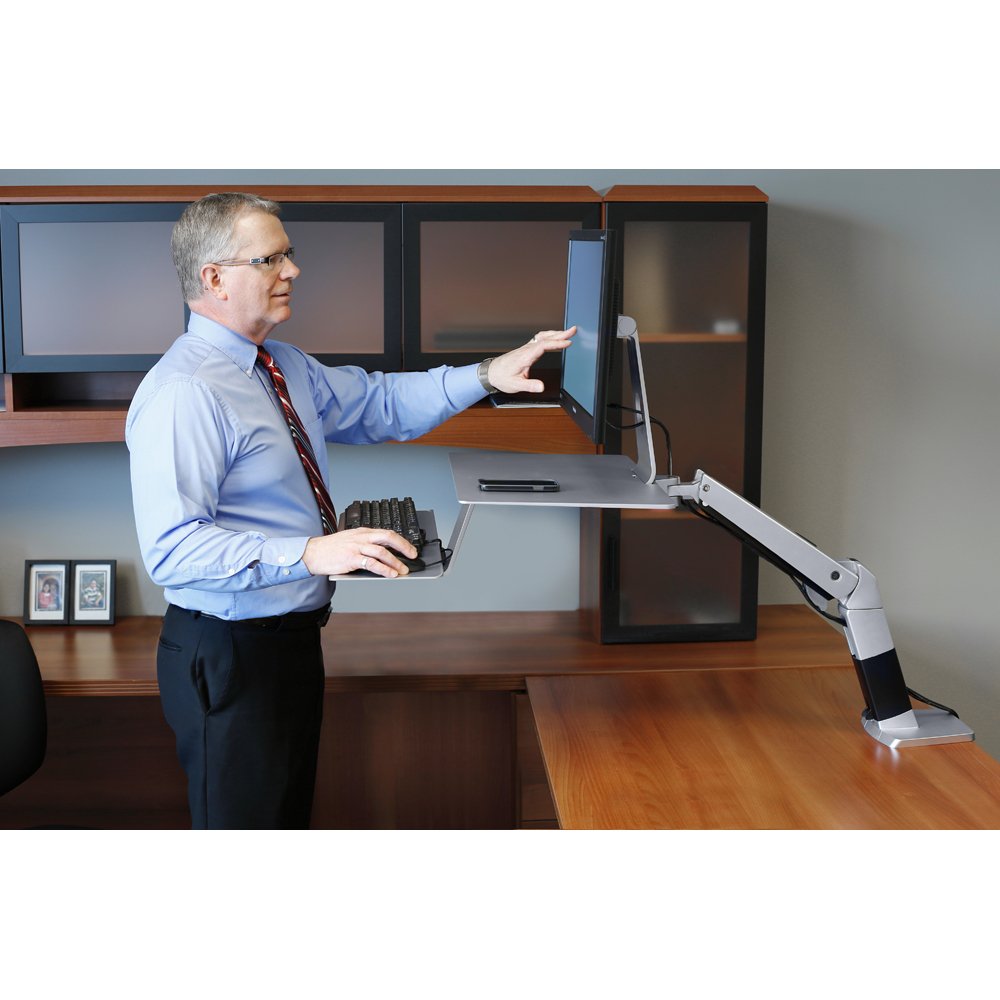

Move while you work! This premium mount converts your workstation into an adjustable standing desk, allowing you to sit less and become healthier doing so. Freely move the arm with you as your posture changes; swing the arm out of the way when you need your desk surface.

A sleek, high-tech design perfectly complements contemporary decor, while the aluminum construction offers superior quality and durability.
NOTE: To span between standing and sitting heights, extra long computer cables may be required for your system.

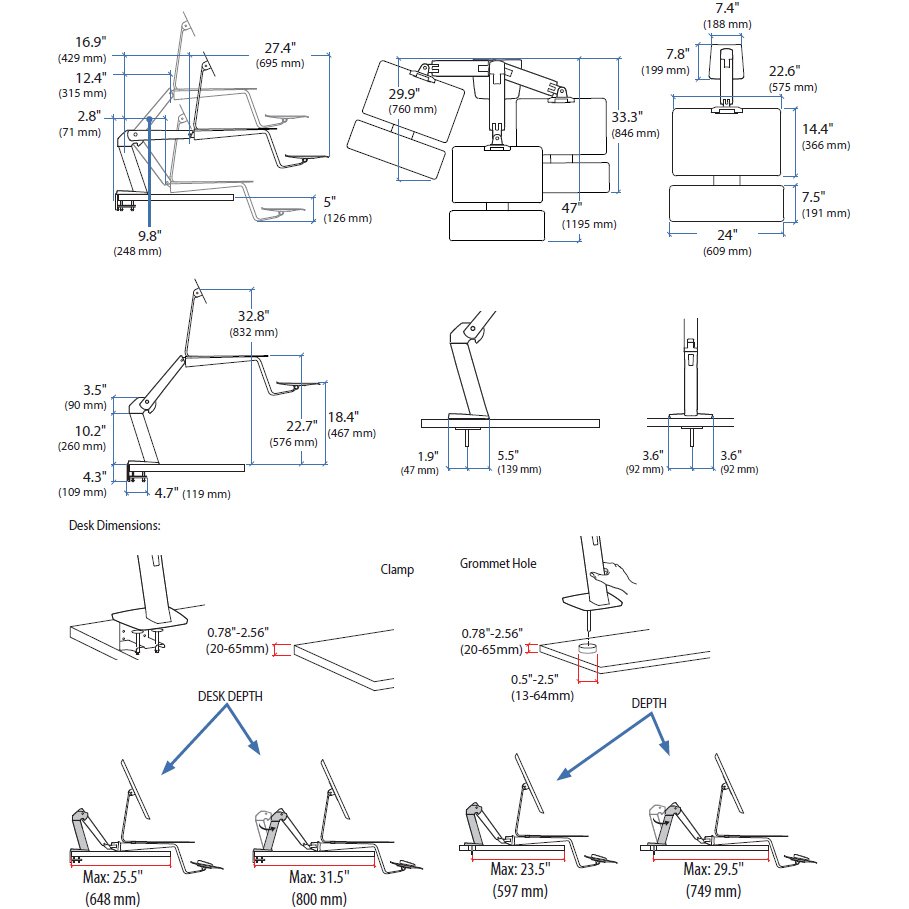

Technical Drawing

Technical Drawing for Apple compatible Ergotron 24-422-227 WorkFit-A Workstation, Platinum

Technical Specifications

LCD size Capacity Lift Tilt Pan Rotation VESA
Screen Capacity Lift Tilt Pan Rotation VESA
Up to 27"

9 - 24 lbs

4.1 - 10.9 kg

18"

45.7 cm

 30° 180° - MIS-D

Product Information

Part Number 24-422-227
Description WorkFit-A, Sit-Stand Workstation with Suspended Keyboard, Platinum

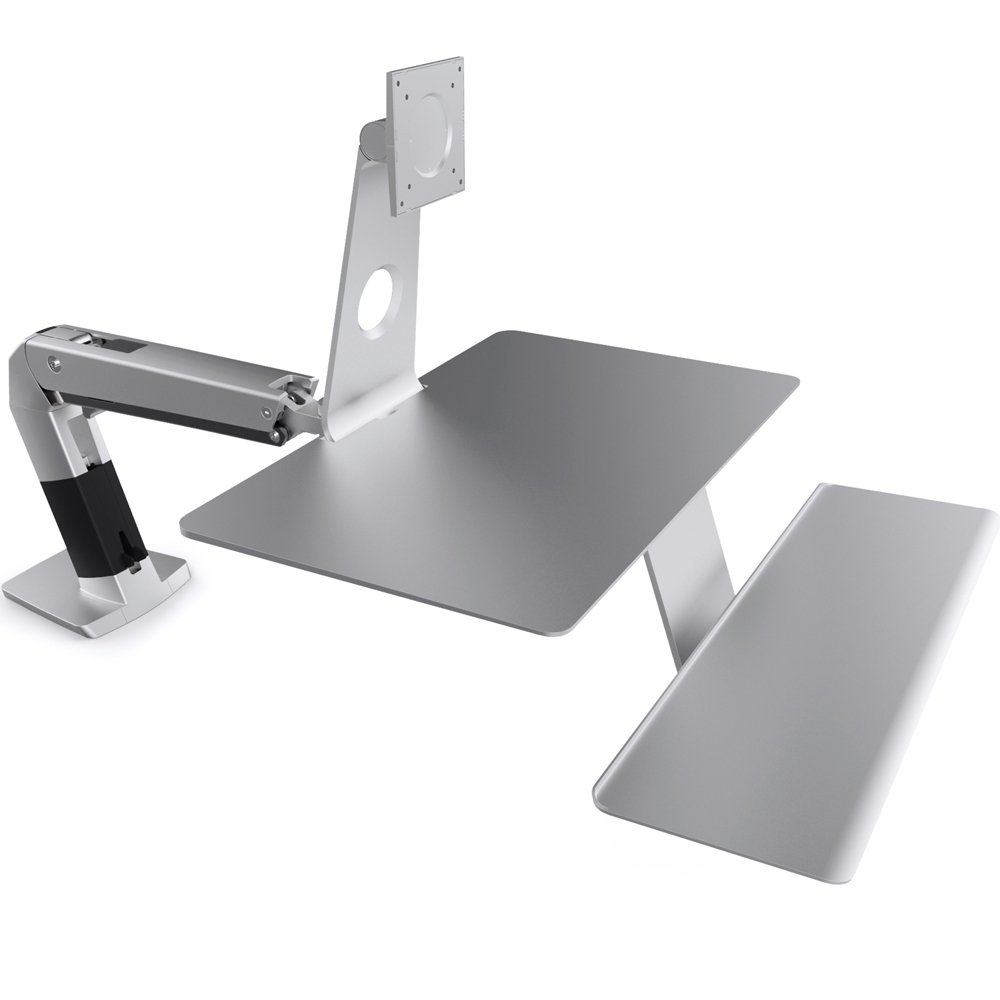

Includes

  • Arm

  • Worksurface

  • VESA-bracket stand

  • Base

  • Keyboard tray support

  • Keyboard tray

  • Desk clamp

  • Grommet mount

  • Assembly fasteners

  • Cable management hardware

  • Adjustment tools
Maximum Capacity

  • 24 lbs (10.9 kg). This is the sum weight of all hardware added to the workstation, including monitor, keyboard, mouse and contents placed on worksurface.

  • The weight of the monitor should not exceed 20 lbs (9.1 kg) and should not be less than 6 lbs (2.3 kg); a minimum total load of 9 lbs (4.1 kg) must be applied to the unit to ensure proper operation

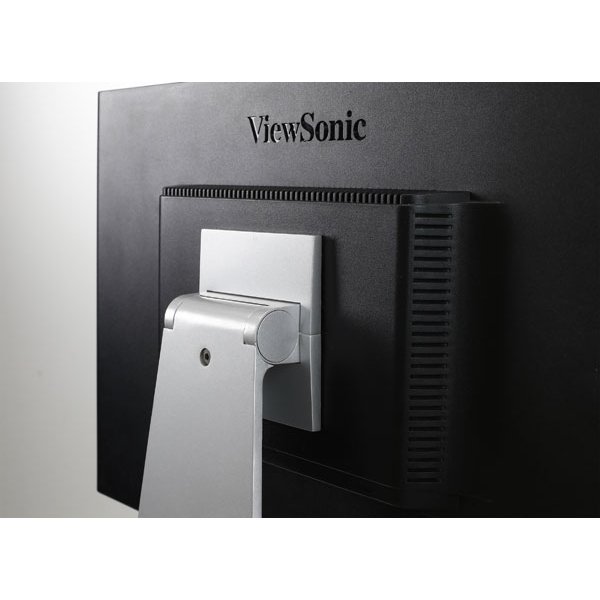

Mounting Standards VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm); compatible with displays conforming to the VESA standard, including Apple’s iMac with Built-in VESA Interface
Keyboard Tray Tilt Range 20°

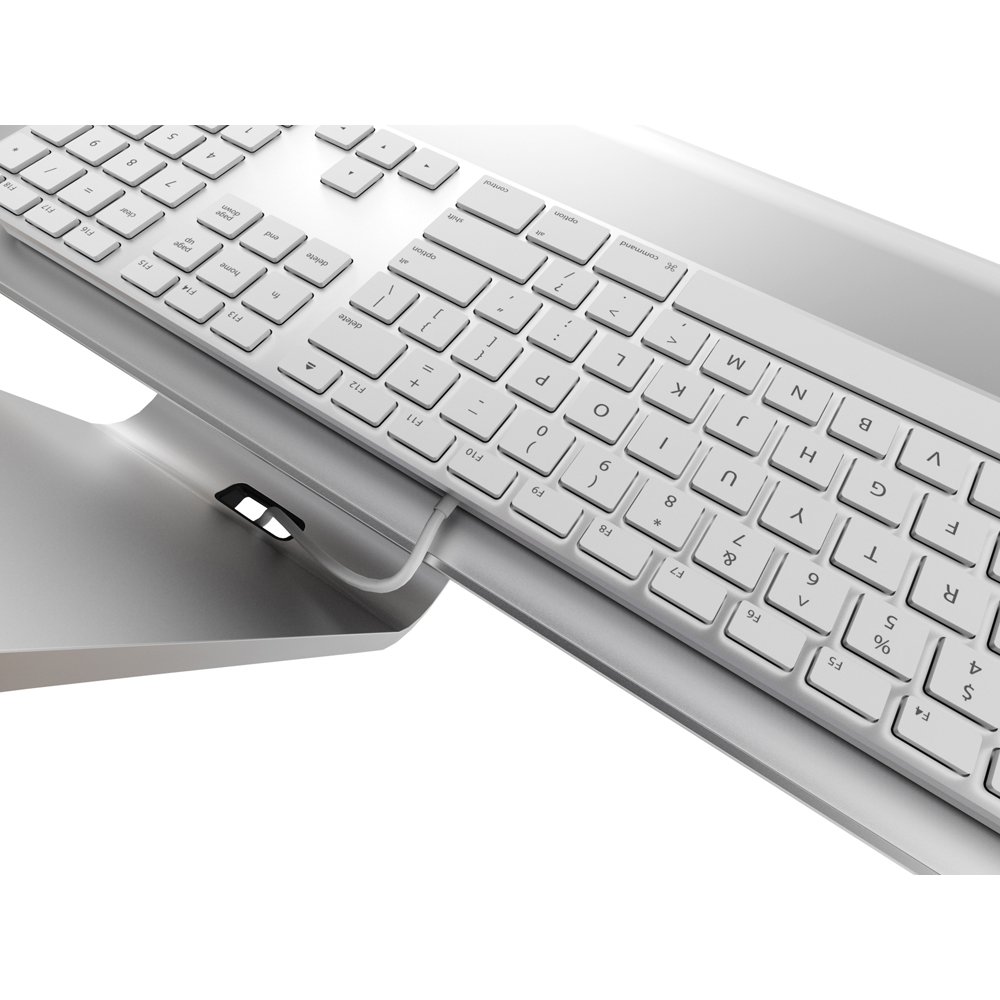

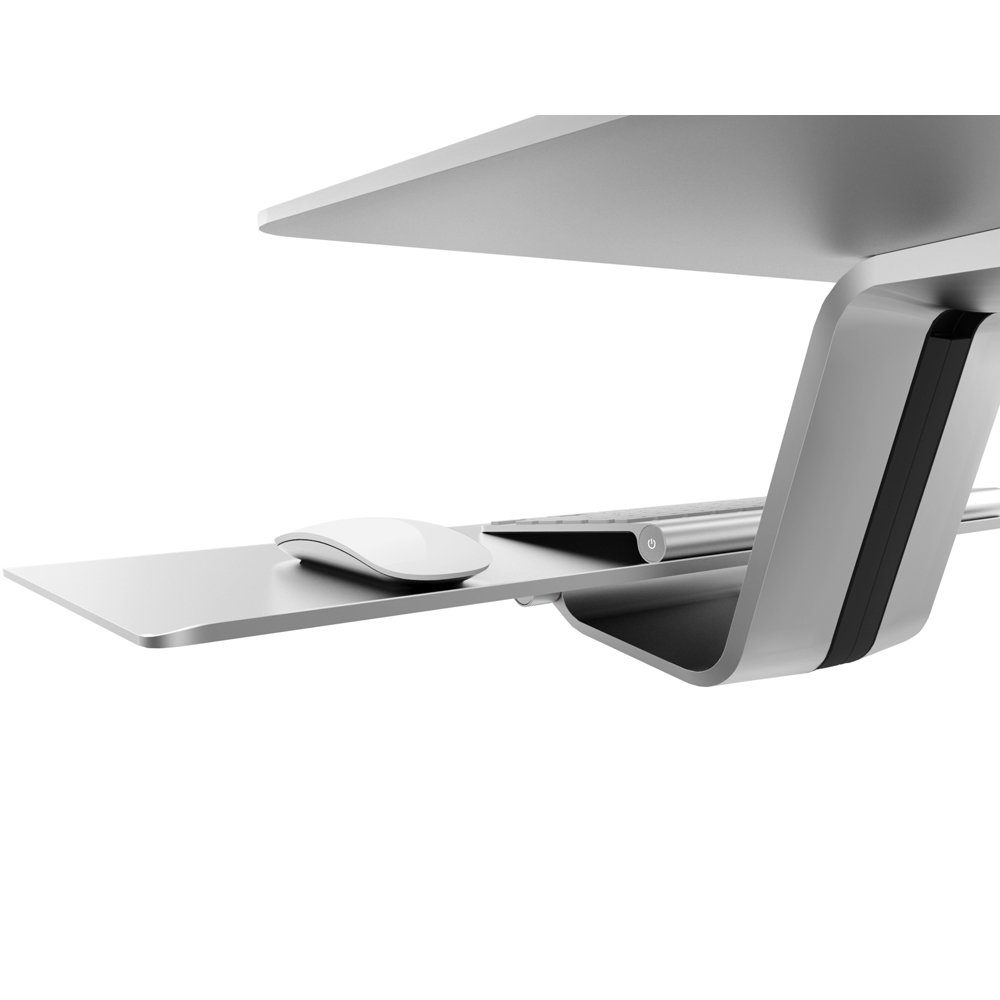

Keyboard Tray When in seated position, keyboard tray can drop down approximately ≤ 4" (10 cm) below level of desktop surface, placing the keyboard at the optimum ergonomic height
Mounting Surface Requirements

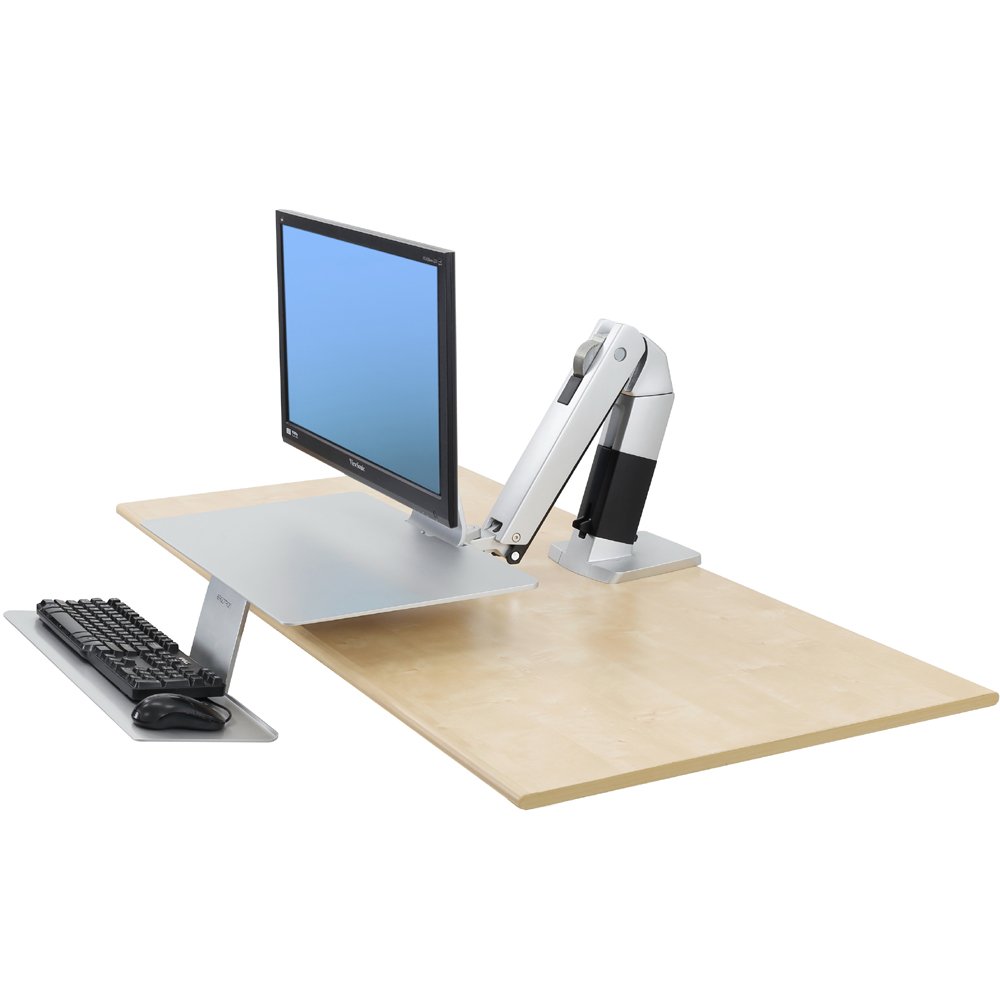

  • When installed using Desk Clamp option, can be configured to work with desk surfaces up to 31.5" (80 cm) deep.

  • When installed using Grommet Mount option, center of through-hole should be no more than 29.5" (75 cm) from front edge of desk surface.

  • These requirements ensure that the suspended keyboard tray can extend past the desktop’s front edge

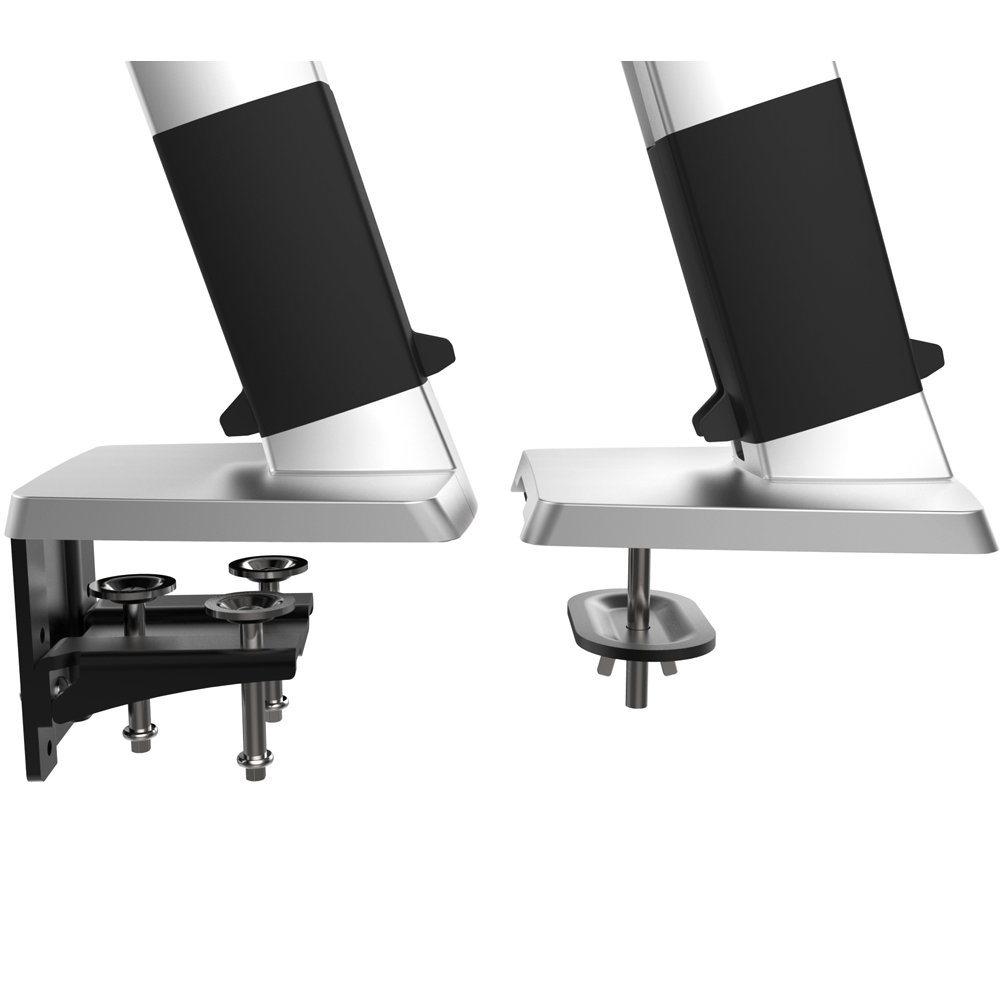

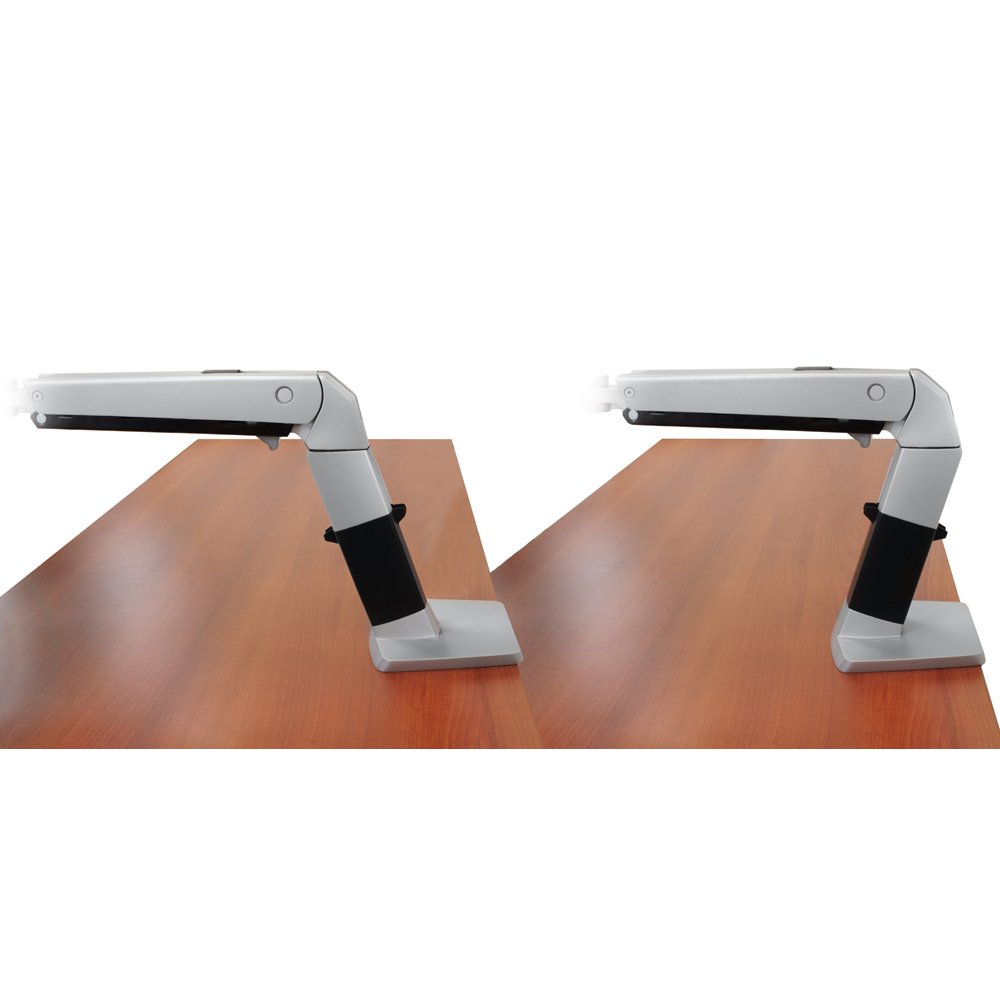

Desk Clamp Attaches to edge up to 2.5" (65 mm) thick; grommet mount attaches through hole 0.5" to 2.5" (7–65 mm) wide and up to 2.5" (65 mm) thick
Worksurface Dimensions 22.6" W x 14.4"D (575 x 366 mm)
Keyboard Tray Dimensions 24" x 7.5" (609 x 191 mm)

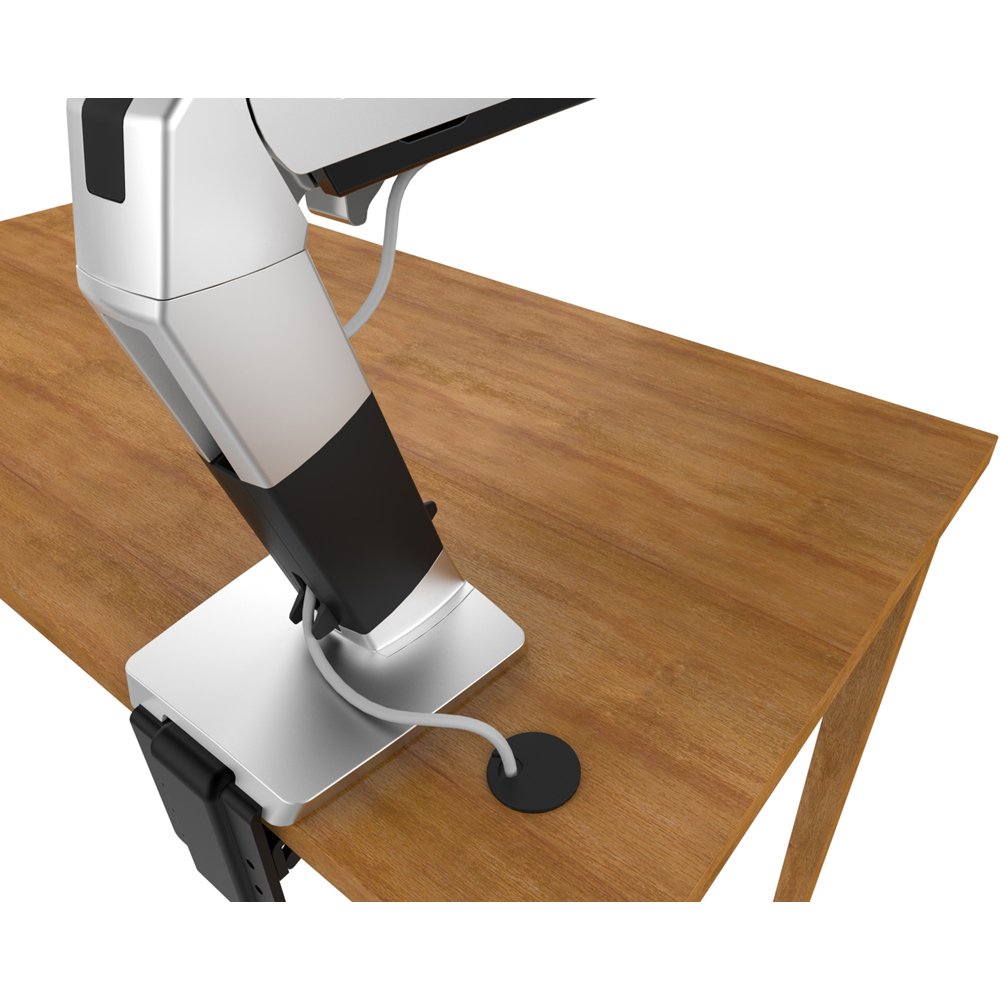

Cable Management Integrated cable management hides cords
Product Weight 38.2 lbs (17.4 kg)
Shipping Dimensions 21.5" x 11" x 37" (55 x 28 x 94 cm)
Shipping Weight 46 lbs (20.9 kg)
Warranty Five (5) years

Benefits

  • High-quality, solid-aluminum construction gives it a sleek, modern look

  • Compatible with some Apple monitors as well as other monitors as long as they are VESA compliant

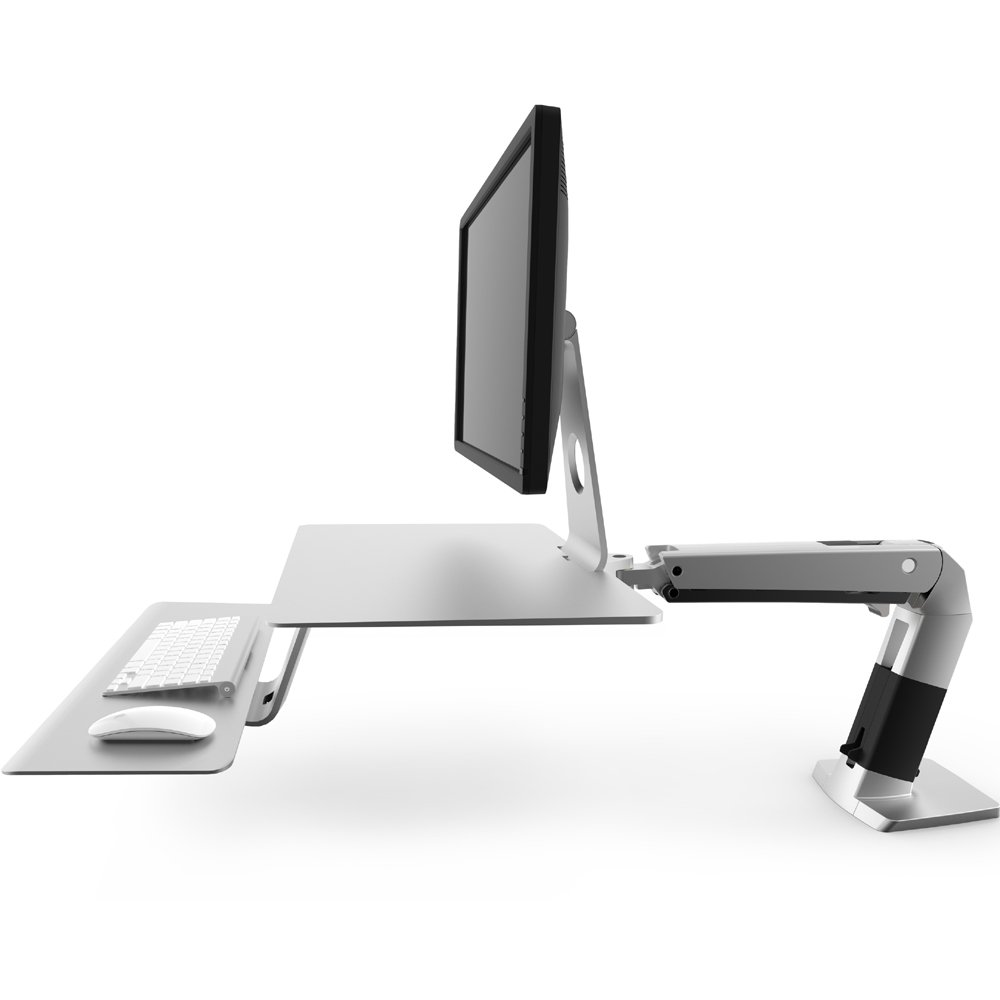

  • Keyboard drops up to 4" below the desktop in sitting position for ergonomic relief to shoulders, forearms and wrists

  • Worksurface facilitates storing of papers, writing materials, phone and a tablet

  • Sleek, high-tech design perfectly complements contemporary decor

  • Keyboard tray tilts through 20° range, positioning hands and wrists to ensure comfortable computing

  • Keyboard can drop below desktop level when sitting for optimum ergonomics

  • Full sit-to-stand height adjustment

  • Get a premium WorkFit-A configuration with near-universal compatibility: VESA standard interface and extended weight range accommodates your current and future hardware

  • Fluid, one-touch motion with patented CF Technology

  • Standing is like walking: it increases energy, burns extra calories, tones muscles, improves posture, increases blood flow and ramps up metabolism

Product Options/Accessories
Ergotron 85-025-079 Mouse Pad

85-025-079 Mouse Pad

$20.00 $11.19
Ergotron 99-033-085 Mouse Holder (black)

99-033-085 Mouse Holder

$26.00
Ergotron 97-505 Foam Wrist Rest

97-505 Foam Wrist Rest by Ergotron

$47.00
Ergotron 97-563-057 Cable Management Kit

97-563-057 Cable Management Kit by Ergotron

$57.00
Ergotron 80-105-064 Universal CPU Holder

80-105-064 Universal CPU Holder by Ergotron

$89.00
Ergotron 97-533 Wrist Rest, Antimicrobial

97-533 Wrist Rest Antimicrobial by Ergotron

$52.00
Ergotron 80-106-085 Universal Tablet Cradle

80-106-085 Universal Tablet Cradle

$70.00 $43.65
Ergotron 97-620-060 WorkFit Anti-Fatigue Floor Mat

97-620-060 WorkFit Floor Mat

$341.00
Ergotron 97-711 Power Strip

97-711 Six Outlet Power Strip by Ergotron

$124.00
Ergotron 97-747 - 6-ft. USB 2.0 Extension Cable

97-747 USB 2.0 Extension Cable 6'

$26.00
Ergotron 97-749 - 10-ft. Power Cord

97-749 Power Cord 10'

$42.00
Ergotron 97-748 - 10-ft. SVGA/VGA Monitor Cable

97-748 - 10 ft. SVGA/VGA Monitor Cable with RGB Coax

$58.00
Ergotron 97-750 - 10-ft. DVI Dual-Link Monitor Cable

97-750 DVI Dual Link TMDS Cable

$63.00
Ergotron 80-107-200 Thin Client Mount ( Black)

Ergotron 80-107-200 Thin Client Mount ( Black)

$89.00
Ergotron 80-107-200 Thin Client Mount ( Black)

Ergotron 80-107-200 Thin Client Mount ( Black)

$89.00
Ergotron WorkFit Integration, Fit Check, Tier 2 and 3 Integration

Ergotron WorkFit Integration, Fit Check, Tier 2 and Integration

$354.64
Ergotron 98-076 Neo-Flex Anti-Fatigue Floor Mat

98-076 Anti-Fatigue Floor Mat by Ergotron

$158.00
Ergotron 98-078 Neo-Flex Anti-Fatigue Floor Mat, Small

Ergotron 98-078 Anti-Fatigue Floor Mat, Small

$85.00 $49.00
Ergotron 80-107-216 Thin Client Mount (White)

Ergotron 80-107-216 Thin Client Mount (White)

$89.00
VuRyte VUR 3060 Ergonomic Document Holder

VuRyte VUR 3060 Ergonomic Document Holder

$59.95
Frequently Asked Questions

A Yes, this unit does come with a grommet mount.
Product Information
  • Model 24-422-227
  • Manufacturer Ergotron
  • Part Number 24-422-227
  • UPC 698833040715
  • Color Platinum
  • Monitor Size Up to 27"
  • Weight Capacity 9–24 lbs (4.1–10.9 kg)
  • Lift (45 cm) 18 in
  • Tilt 30 degree
  • Pan 180 degree
  • Mounting Pattern VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm); compatible with displays conforming to the VESA standard, including Apple’s iMac with Built-in VESA Interface
  • Keyboard Tray Tilt 20 degee
  • Worksurface Dimensions 22.6" W x 14.4"D (575 x 366 mm)
  • Keyboard Tray Dimensions 24" x 7.5" (609 x 191 mm)
  • Weight 38.2 lbs (17.4 kg)
  • Shipping Dimensions 21.5" x 11" x 37" (55 x 28 x 94 cm)
  • Shipping Weight 46 lbs (20.9 kg)
  • Warranty Five (5) years
  • Desk Type Desk Mount
  • Monitor Arm Types Apple Monitor
  • Price $500 - $599
