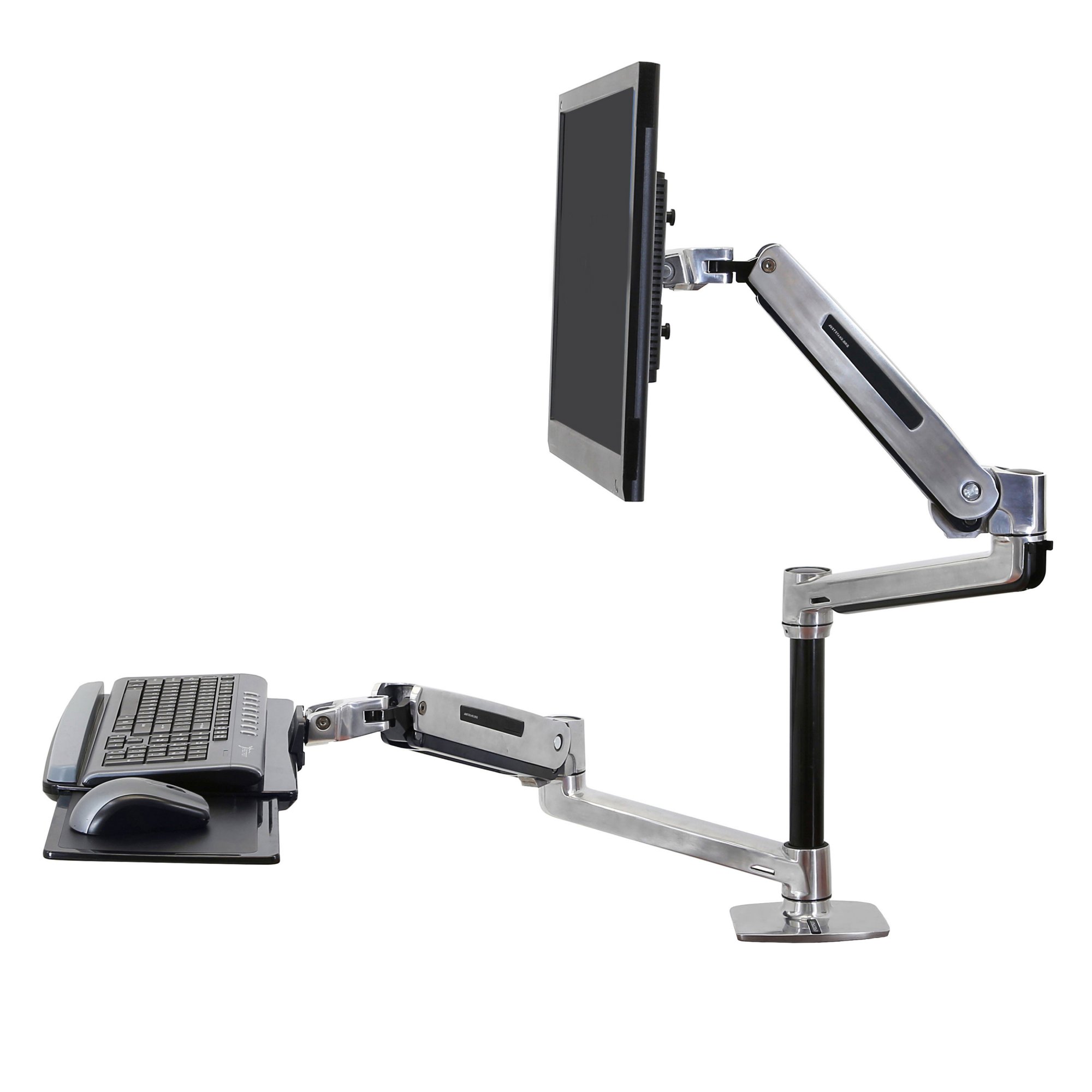

Ergotron 45-405-026 WorkFit-LX Sit-Stand Desk Mount System

Product ID 17898
Ergotron 45-405-026 WorkFit-LX Sit-Stand Desk Mount System

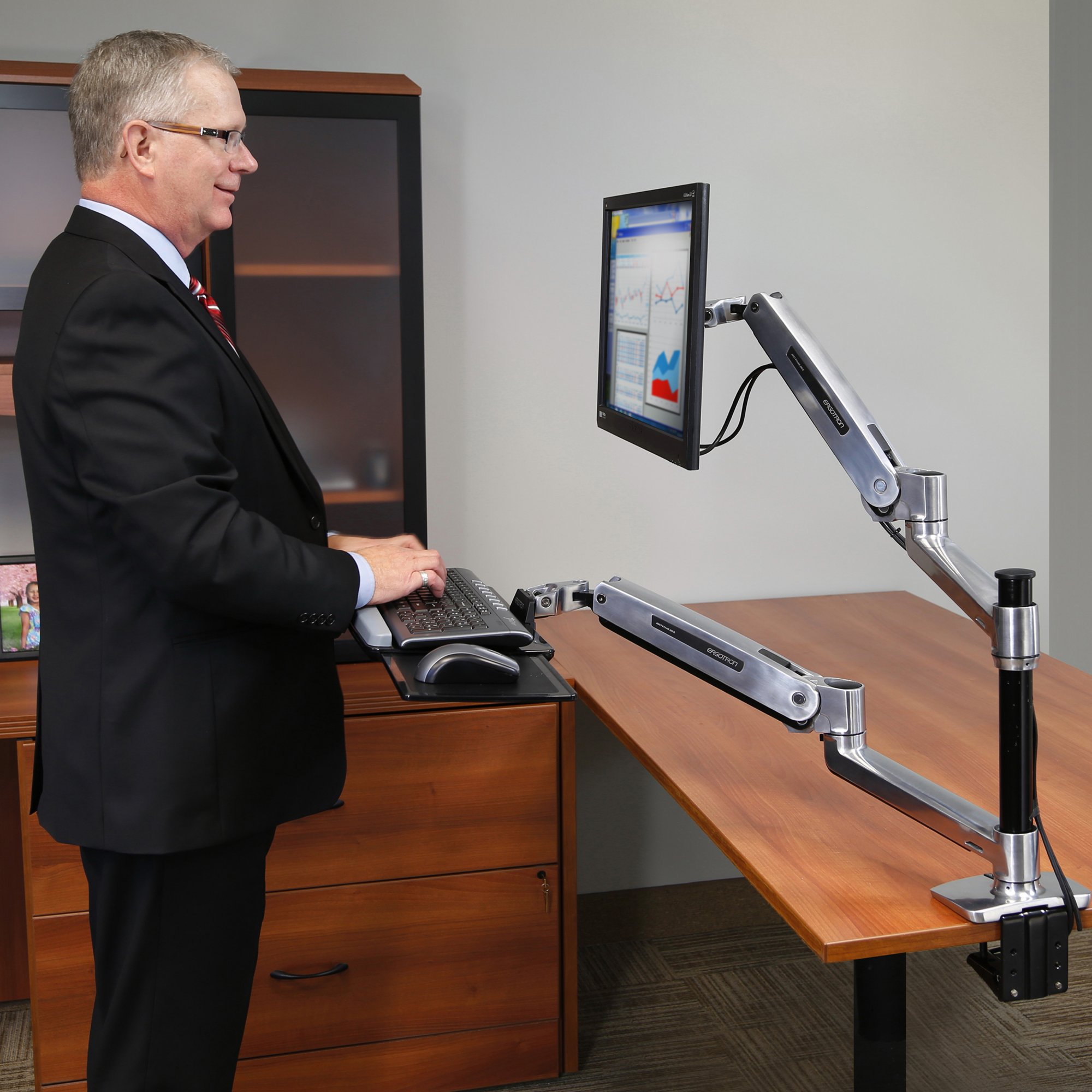

Stand and work with Ergotron 45-405-026

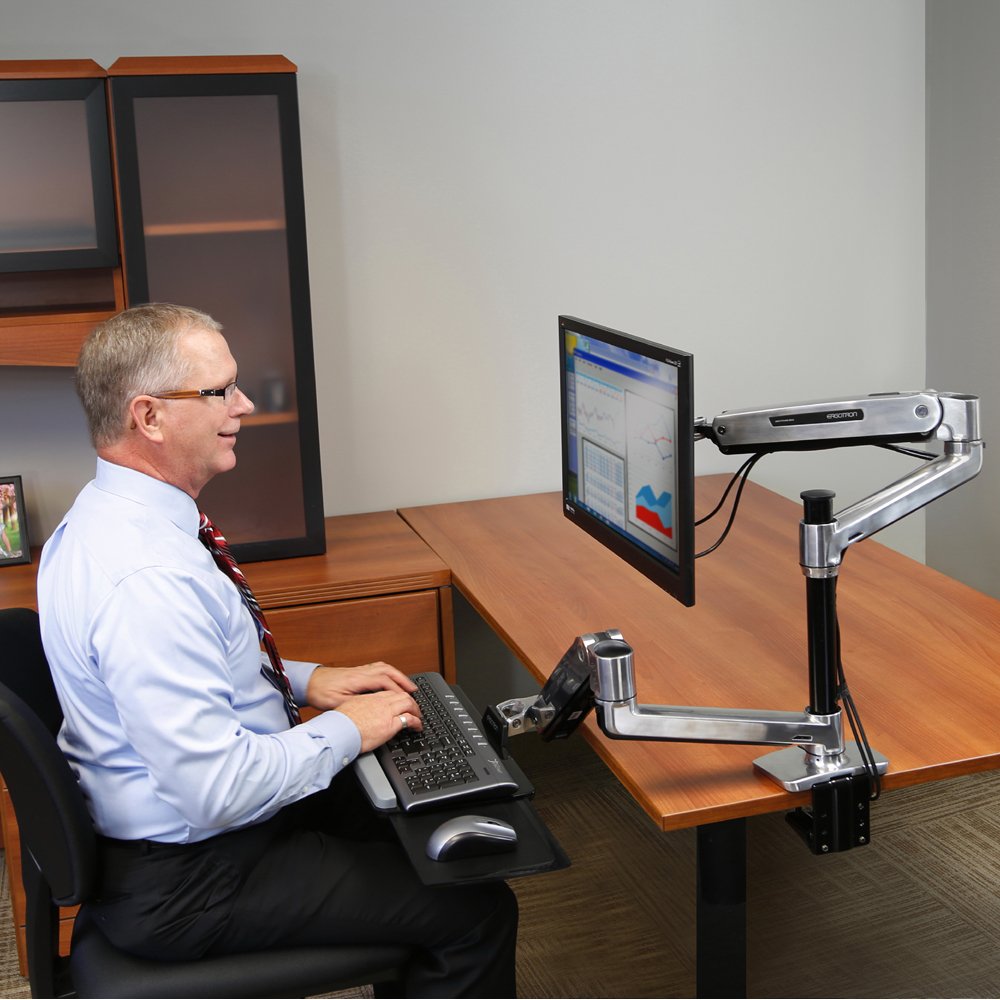

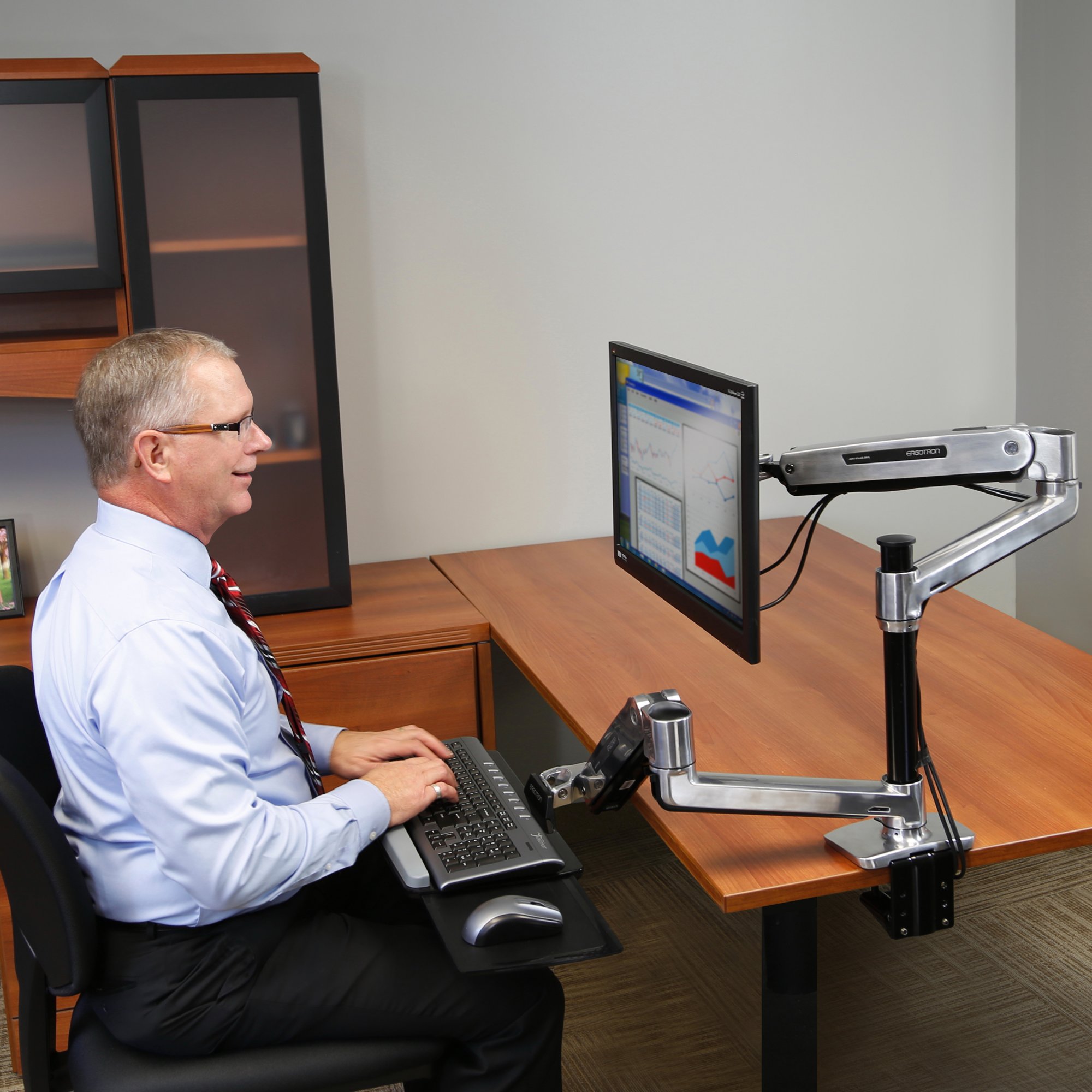

Sit and work with Ergotron 45-405-026

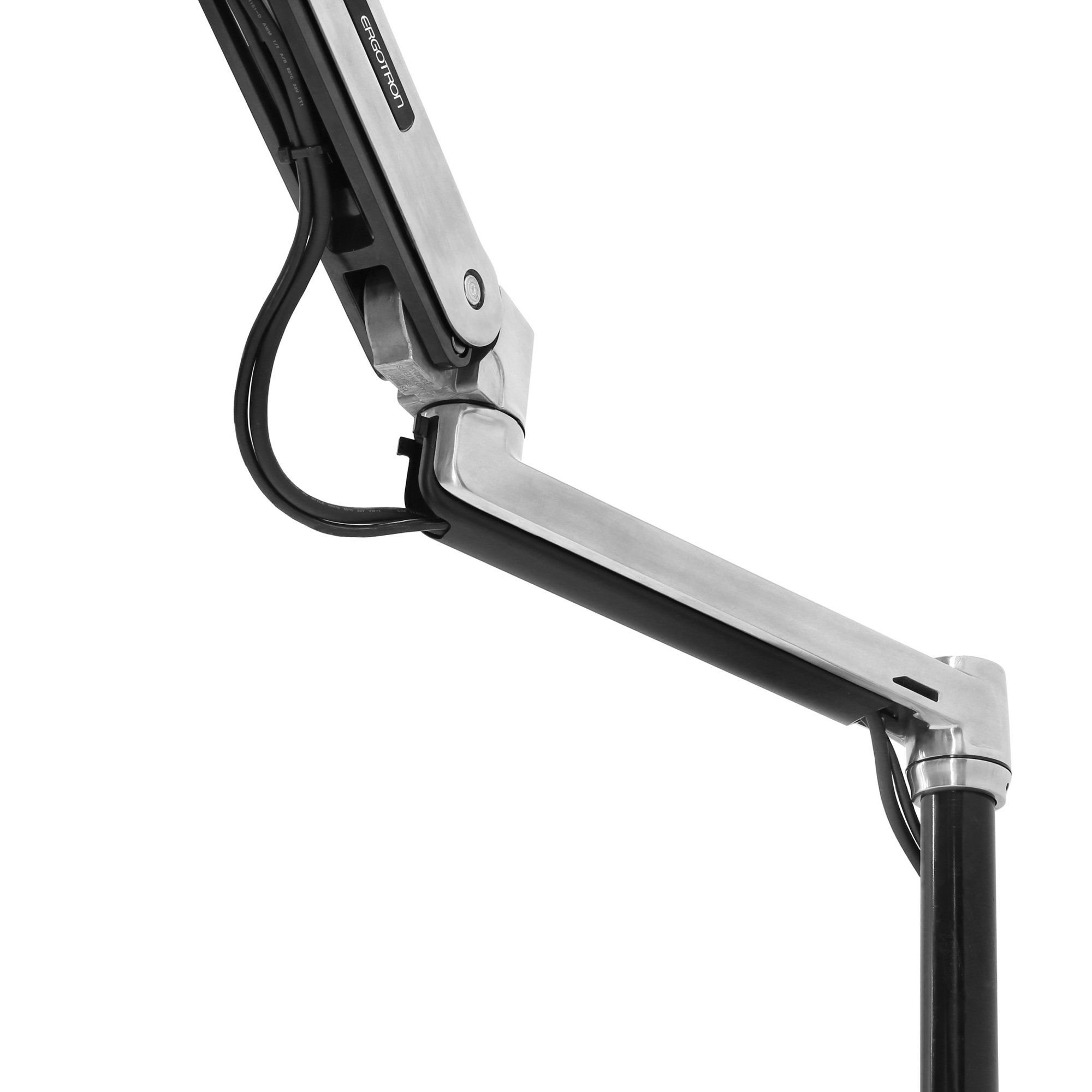

Neat cable management
Work together with Ergotron 45-405-026

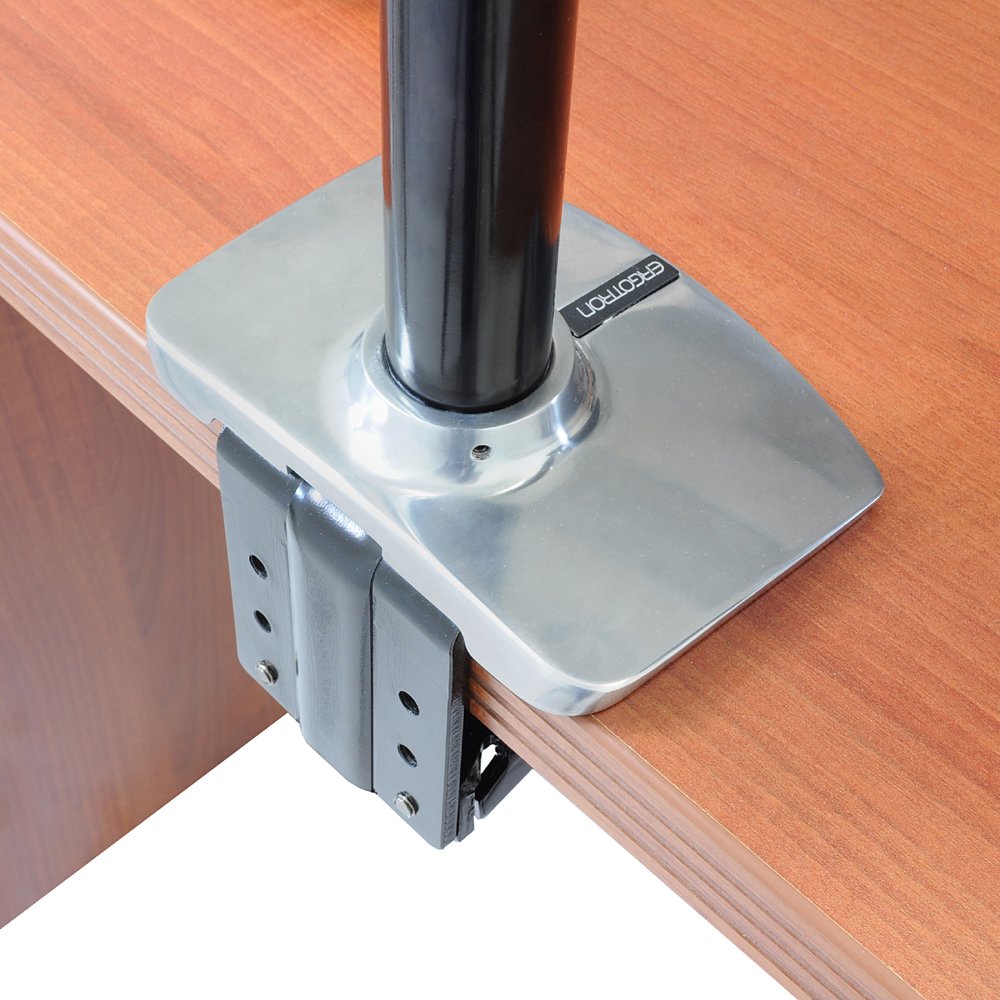

Desk clamp of Ergotron 45-405-026

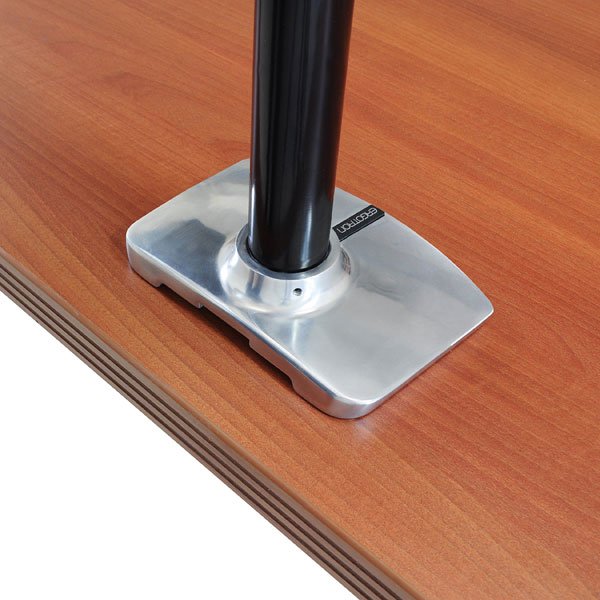

Grommet mount of Ergotron 45-405-026
Ergotron 45-405-026 WorkFit-LX Sit-Stand Desk Mount System
Stand and work with Ergotron 45-405-026
Sit and work with Ergotron 45-405-026
Neat cable management
Work together with Ergotron 45-405-026
Desk clamp of Ergotron 45-405-026
Grommet mount of Ergotron 45-405-026


  • WorkFit-LX Sit-Stand system
  • Operation: Made up of 2 arms that let you adjust monitor and keyboard independent of each other
  • Tight Spaces: Installs on the side or back of the desk, sit-stand for tight spaces
  • 20" height adjustment: Keyboard, Monitor can be adjusted 20" vertically
  • 25 lbs weight capacity: Monitor Arm holds weight 7-25 lbs, keyboard arm up to 5 lbs
  • For dual monitor system: Monitor weight should not exceed 8 lbs each. If your monitors weigh more than 8 lbs each, please check dual monitors with the WorkFit-LX


The highlight of Ergotron 45-405-026 WorkFit-LX is its modular and flexible design that lets you adjust the height and position of your keyboard and monitor independent of each other. This WorkFit-LX provides 20" vertical and 62" side-to-side flexibility to both the keyboard as well as the monitor.

This standing desk system enables complete control over focal distance in the positioning of the keyboard relative to the monitor screen. With an unparalleled range of adjustment, the LX easily accommodates a user’s sitting or standing posture.

Technical Drawing

Technical drawing for Ergotron 45-405-026 WorkFit-LX Sit-Stand Desk Mount System

Technical Specifications

LCD size Capacity Lift Tilt Pan Rotation VESA
Screen Capacity Lift Tilt Pan Rotation VESA
Up to 42"

7 - 25 lbs

3.2 - 11.3 kg


50.8 cm

75° 360° 360° MIS-D/E/F

Product Information

Part Number 45-405-026
Description WorkFit-LX Sit-Stand Desk Mount System (polished aluminum)
  • Monitor arm
  • Keyboard arm
  • Two extensions
  • Keyboard tray
  • Slide-out mouse tray
  • Desk clamp base
  • Grommet-mount base
  • 48 cm pole
  • Two pole collars
  • VESA brackets
  • Wrist rest
NOTE Extra-long cables may be required to span between standing and sitting heights
Weight Capacity Monitor arm = 7 to 25 lbs (3.1 to 11.3 kg); keyboard arm ≤ 5 lbs (2.2 kg)
Monitor Tilts 70° up and 5° down. When keyboard is in down position, tray features a back-tilt of 5°; folds upright 90° in storage position.
Dimensions Keyboard tray dimensions = 18.3" x 8.9" (46 x 23 cm); mouse tray dimensions = 8" x 8" (20 x 20 cm)
Mouse Tray Slides out to either left or right side, depending on user preference
Mounting Standards VESA MIS-D, 75/100 (hole pattern = 100 x 100 mm & 75 x 75 mm), MIS-E (hole pattern = 200 x 100 mm), MIS-F (hole pattern = 200 x 200 mm ONLY). Optional VESA Bracket Adaptor Kit (97-759) can be ordered separately for MIS-F interface with hole pattern of 400 x 200 mm, 400 x 300 mm or 400 x 400 mm
Locking Connections Between arm, extension and base offer increased theft deterrence and prevent potential disconnections caused by jarring or impacts
Desk Clamp Attaches to edge up to 2.5" (65 mm) thick; grommet mount attaches through hole 0.5" to 2.5" (7–65 mm) wide and up to 2.5" (65 mm) thick
Stability of Monitor Arm Is dependent on stability of desk or table to which system is attached; any bounce in desk or table surface will be transferred to arm
Cable Management Clips on the underside of the arm route and hide cords
Product Weight 30 lbs (14 kg)
Shipping Dimensions 23.3" x 19.8" x 10.3" (59 x 50 x 26 cm)
Shipping Weight 35 lbs (16 kg)
Warranty Five (5) years


  • Easily extend or retract the arms for precise control of the distance between the keyboard and screen
  • Modular design allows you to configure the system to suit your specific requirements
  • Compact footprint - fits in tight spaces including corner desks
  • Focal distance is easily changed, making it well suited for use with larger monitors
  • Cable management features route cables under the arms, out of the way
  • Stable data-entry platform
  • Patented CF motion technology provides premium ease-of-use display adjustment
  • Durable polished aluminum and steel construction
  • Proven durability: Passes Ergotron’s 10,000-cycle motion test
Model 45-405-026
Manufacturer Ergotron
Part Number 45-405-026
UPC 698833042955
Color Polished aluminum
Monitor Size Up to 42"
Weight Capacity Monitor arm = 7 to 25 lbs (3.2 to 11.3 kg); keyboard arm up to 5 lbs (2.2 kg)
Lift (50.8 cm) 20 in
Tilt Up 70 degree and down 5 degree
Pan 360 degree
Rotation 360 degree
Keyboard Tray Dimensions 18.3" x 8.9" (46 x 23 cm)
Mouse Tray Dimensions 8" x 8" (20 x 20 cm)
Weight 30 lbs (14 kg)
Shipping Dimensions 23.3" x 19.8" x 10.3" (59 x 50 x 26 cm)
Shipping Weight 35 lbs (16 kg)
Warranty Five (5) years
Side-to-side Movement 62" (157 cm)
Monitor Arm Types 1 Monitor
Monitor Arm Types Sit-Stand Workstation
Monitor Arm Types 2 Monitors
Mounting Pattern VESA MIS-D, 75/100 (hole pattern = 100 x 100 mm & 75 x 75 mm), MIS-E (hole pattern = 200 x 100 mm), MIS-F (hole pattern = 200 x 200 mm ONLY)
Price $600 - $699

Customer reviews

  • 1 stars 0
  • 2 stars 0
  • 3 stars 0
  • 4 stars 2
  • 5 stars 2
(4.5 out of 4)
Exactly what I expected.

by Anon, USA, Jan 04, 2019

Arrived on time with no damage to product.

Product is working perfectly. The screen holds in place with no downward drift and isn’t too difficult to move (my monitor is around 10 lbs in weight). The tray for the mouse is textured well enough that I don’t need a mouse pad. The rubber strip (used as a wrist rest, and to hold the keyboard in place) isn’t going anywhere; I don’t need it because I use a compact / lightweight keyboard and it doesn’t slide around at all, but I would feel confident placing a heavier keyboard there. The monitor arm had only a little trouble handling the five or so cables I strung through it (power, two HDMI, one DP, and speakers are all plugged into the monitor), though the plastic bit seems a bit flimsy and I feel I might be applying duct tape in the future—but to be fair, the HDMI cables are large and not terribly flexible. The product does need to be affixed to a fairly sturdy table or it will wobble when you type and move the arms, but that seems like common sense and not a negative.

The assembly instructions are the only real con for this product; as noted in other reviews, they were confusing. I’ve put together more complicated IKEA furniture with less confusing instructions. My friend and I literally spent an hour doing nothing but trying to figure out what was supposed to happen next. There were also parts that weren’t used, which added to the confusion, and I’m still not sure why these plastic bits came in all sticky (also, sliding those into place along the poles got the glue on the poles, so some cleaning was required... for the poles and my fingers).

The stand is great.

by Elsa B, New York, Jul 07, 2016

The stand is great and helps me with my back pain. I can go from sitting and standing flawlessly. The only thing I would change was that the arms extended longer.

Computer Supports for Laboratory Classroom

by Crystal P, New York, Jan 06, 2016

Great experience. I contacted Ergo Direct for a solution, since we were retrofitting our lab tables in the Anatomy and Physiology lab with ventilation, leaving less room for computers.The arms suggested worked well. We were able to have the computers positioned in and down during lectures so students could see over ttem, and up and out the way when using the lab table tops for dissections. Thanks

I think I'm piloting a Star Ship!

by Jenny J, Oregon, Jul 01, 2015

I have two monitors on arms with the keyboard on an arm and this thing literally saves me everyday from carpel tunnel pain that was really debilitating. It takes a little getting used to, for example, you really need to rest your hands a bit on the keyboard because there's a little bit of quake that moves up the arms if you don't put any pressure on the keyboard at the extreme extensions that I use this thing. I also have very large monitors which add to this. But I am quickly getting used to that, particularly because my wrists and shoulders are no longer killing me on a daily basis.
