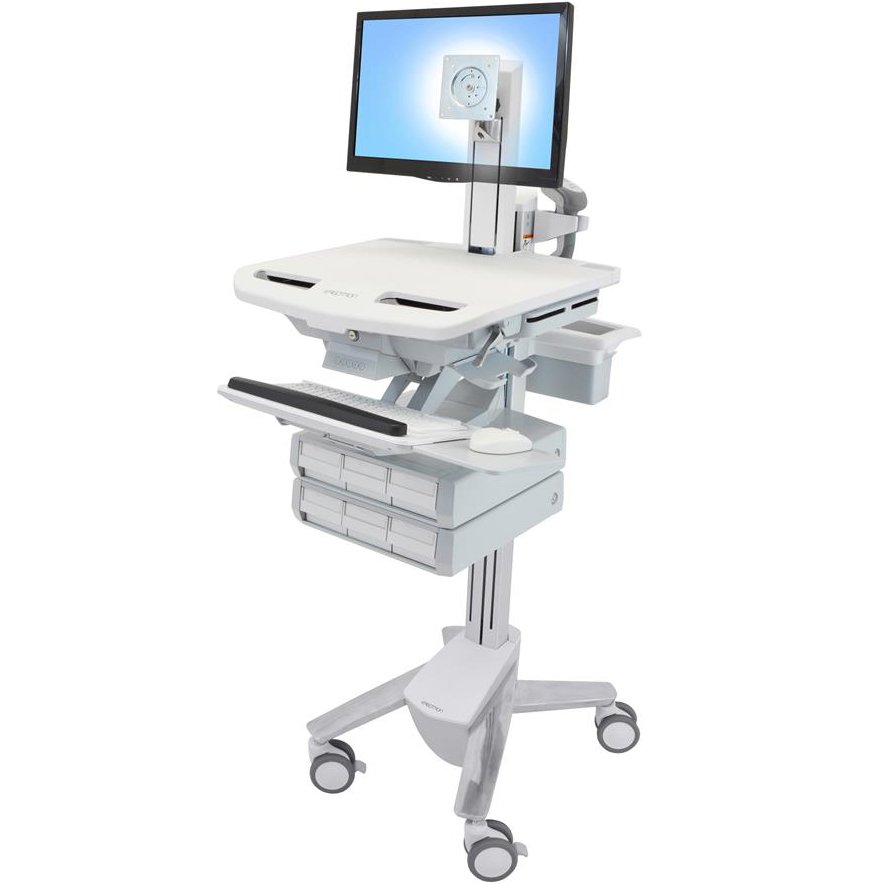

Ergotron SV43-1360-0 innovative, truly ergonomic and easy-to-maneuver healthcare cart features sit-to-stand height adjustment, independent screen positioning, side-to-side keyboard motion and an adjustable back-tilt keyboard tray. Its auto-locking drawer system enables simple and efficient management of non-controlled medication.
|Up to 24"||
Up to 37 lbs
|Description||StyleView Cart with LCD Pivot, non-powered, 6 Drawers (3 small drawers x 2 rows)|
|Total Maximum Load on Height Adjustment Assembly||37 lbs (16.8 kg). This is the sum of the following components: LCD pivot = 5–14 lbs (2.3–6.4 kg); worksurface ≤ 5 lbs (2.2 kg); keyboard tray ≤ 2 lbs (1 kg); CPU compartment ≤ 13 lbs (5.9 kg); small drawer ≤ .25 lbs (.1 kg)|
|LCD and Worksurface||LCD and worksurface adjust 20" (51 cm) in tandem; LCD Pivot adjusts 5" (13 cm) independently; maximum LCD height adjustment = 25" (63 cm)|
|Portrait Screen Orientation||Portrait screen orientation may be incompatible with widescreen displays > 19"|
|All the Details Covered||
|Compatibility and Dimensions||
|Shipping Dimensions||53"D x 34"W x 36"H (135 x 89 x 91 cm)|
|Shipping Weight||112 lbs (50.8 kg); actual cart weight = 86 lbs (39 kg)|
|Warranty||Five (5) years for mechanical components, one (1) year for electrical components|
Auto-locking drawer system: simple and efficient medication management at the point-of-care reduces opportunities for errors; security system stores variable-length PINs for up to 1,000 users with StyleLink software (100 users without StyleLink)
Drawer system supports "Pharmacy mode," allowing all drawers to be unlocked simultaneously to facilitate efficient stocking of medication
Extra rows of drawers may be added - up to a maximum of 5 rows
Effortlessly maneuver the cart to the point of need - StyleView quickly responds to caregivers’ touch and enables nurses to focus on their patients
Truly ergonomic design accommodates the largest range of nurses and other caregivers; designed for sitting or standing with single-motion fluid adjustment - helps promote caregiver wellness and productivity
StyleView’s small footprint, with ultra-smooth gliding casters, travels easily across crowded carpet or hard surface floors and is perfect for space constrained areas
Open-architecture design accommodates multiple configurations: closed notebooks with monitor, CPU and monitor, thin clients, tablets, all-in-one computers and future hardware upgrades

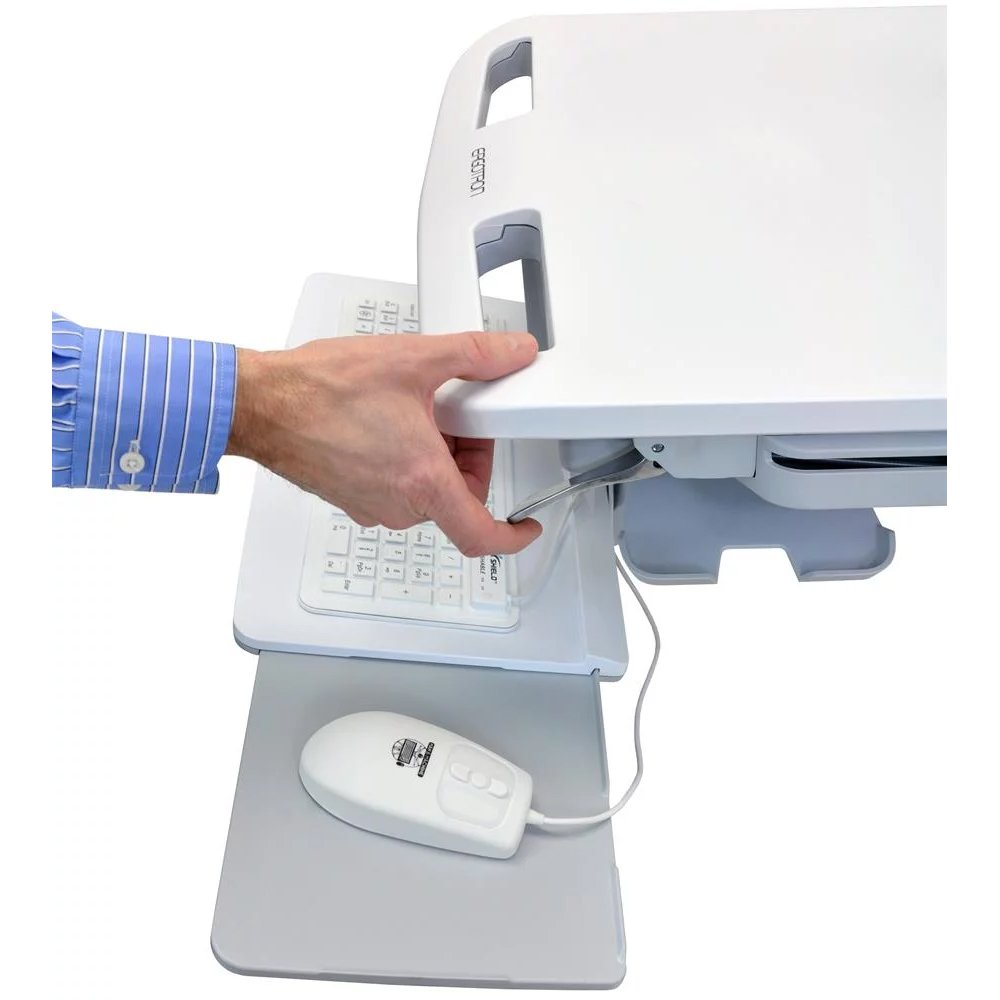

Keyboard pans fully side-to-side for closer access while interacting with clients
Passes Ergotron’s 10,000-cycle motion test, which ensures years of trouble-free sit-to-stand height adjustment
Product Options/AccessoriesErgotron 50-193-200 Laptop Tray $70.00 $61.00 60-575-003 T-Slot Bracket $60.00 $39.50 60-590 Power Strip Mounting Kit $65.00 $34.99 97-464 Coiled Extension Cord $185.00 $134.07 97-466-214 Medical-Grade Power Strip $230.00 $178.96 97-540-053 Large Utility Shelf $125.00 $89.50 97-512-009 StyleView Rear VESA Mount $50.00 $35.50 97-507-216 Utility Shelf $155.00 $115.00 80-105-064 Universal CPU Holder $85.00 $60.54 97-631 StyleView T Nut Kit $20.00 $15.99 97-632 StyleView IV Pole Clamp Kit $45.00 $39.00 97-650 StyleView LCD Pan Pivot Kit $45.00 $33.85 97-702 CPU Lock Kit $45.00 $35.99 97-754-002 StyleView Task Light $45.00 $37.73 Ergotron 97-740 StyleView Storage Bin $225.00 $175.16 Ergotron 97-776-194 StyleView Camera Shelf $70.00 $51.65 Ergotron 97-780-194 StyleView Scanner Shelf $70.00 $54.05 Ergotron 97-827 SV Height-Adjustable Keyboard Arm $225.00 $170.82 Ergotron 97-848 SV Replacement Drawer Kit, Single $55.00 $39.72 Ergotron 97-847 SV Replacement Drawer Kit, Triple $55.00 $39.72 Ergotron 97-873 SV Drawer Travel-Stop, 16" $35.00 $25.85 Ergotron 97-874 SV Drawer Travel-Stop, 4–5 rows $35.00 $25.16 Ergotron 97-862 SV Supplemental Single Storage Drawer $340.00 $259.99 Ergotron 97-864 SV Supplemental Triple Storage Drawer $340.00 $259.99 Ergotron 97-851 SV43/44 Supplemental Single Drawer $510.00 $386.75 Ergotron 97-849 SV43/44 Supplemental Triple Drawer $510.00 $386.75 Ergotron 97-855 SV Ethernet Side Cover, for LCD Carts $55.00 $39.72 Ergotron 97-999 Storage Hook (white) $20.00 $18.09 Ergotron 97-962 SV Drawer Travel-Stop, 12"/30 cm $35.00 $26.99 Ergotron 97-963 SV Drawer Travel-Stop, 5"/13 cm $35.00 $26.99 Ergotron 97-985 SV Replacement Drawer Kit, Double $65.00 $52.54 Ergotron 97-991 SV Supplemental Double Storage Drawer $340.00 $262.73 Ergotron 97-992 SV Supplemental Single Tall Storage Drawer $340.00 $262.73 Ergotron 97-993 SV Supplemental Double Tall Storage Drawer $340.00 $262.73 Ergotron 97-983 SV43/44 Supplemental Double Drawer $510.00 $414.53 Ergotron 97-984 SV43/44 Supplemental Double Tall Drawer $510.00 $408.68 Ergotron 97-974 SV43/44 Supplemental Single Tall Drawer $510.00 $391.17 Ergotron StyleView DC Power System $2665.00 $2227.92 Ergotron 98-069 SV 3-Function Caster $65.00 $54.88 Ergotron 98-135-216 SV Large Wire Basket $135.00 $107.42 Ergotron 98-136-216 SV Small Wire Basket $100.00 $79.40 Ergotron 98-134 SV Front Tray $160.00 $125.80 T-Slot Sani-Wipes Holder - Ergotron 98-450 $75.00 $52.97 SV Sharps Container Drawer-Mount Bracket Kit - Ergotron 98-414-251 $126.06
|Color||White, grey and polished aluminum|
|Monitor Size||Up to 24"|
|Weight Capacity||Up to 37 lbs (16.8 kg)|
|Lift||(63.5 cm) 25 in|
|Mounting Pattern||VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)|
|Dimensions||Internal: individual small drawer = 2.5"H x 3.75"W x 10.5"D (63.5 x 95 x 267 mm) - includes dividers to configure up to 4 compartments|
|Compact Wheel to Wheel Base Dimensions||17" x 21" (430 x 533 mm)|
|Worksurface Dimensions||22.4"W x 19.75"D (567 x 502 mm)|
|Shipping Dimensions||53"D x 34"W x 36"H (135 x 89 x 91 cm)|
|Shipping Weight||112 lbs (50.8 kg)|
|Cart Weight||86 lbs (39 kg)|
|Warranty||Five (5) years|
|Cart Type||Full-Featured Medical Cart|
|Display Type||Single Monitor Cart|
|Lift Technology||Constant Force|
Be the first to review this product
All Ergotron and OmniMount durable products will remain free of defects in material and workmanship for a period of five years from the date of receipt of the product, subject to any exclusions and
limitations as set forth below.
Ten-year warranty on all HX Products, as well as LX and MX Products purchased on or after August 1, 2014
Zip and YES Charging Systems: Lifetime material/workmanship; three years electrical components; one year cables (power/Ethernet)
Ten-year warranty on LearnFit Sit-Stand Desks
Three-year warranty on all Neo-Flex Ergotron Products
Two-year warranty on WorkFit-Z Mini
Elevate and accessories: Lifetime material/workmanship. Five (5) years on electrical components. Cords, cables and plugs not warranted
The Peanut, Zido and accessories: Lifetime material/workmanship; five (5) years for pneumatic cylinder
One-year warranty on electronic components. For example: Auto Lock Drawers, Auto Lock Systems, Keyboard Lights, User Interface, Coiled Cord, Battery Harness, Cables from User I/F to Power Module (excludes AA batteries)
Two-year warranty on Power Modules by Ergotron
Sealed Lead-Acid (SLA) Power Systems, SLA Batteries
Two-year warranty on all SLA power system components by Ergotron
Up to one-year capacity warranty on SLA batteries (refer to Further Exclusions and Limitations section)
Six-month warranty against Manufacturer’s Defects on SLA batteries, or as mandated by local law
Lithium Iron (LiFe) Power Systems, LiFe Batteries
LiFe battery capacity is warranted for two years or 1200 discharge cycles, whichever comes first (refer to Further Exclusions and Limitations section)
Five-year warranty against Manufacturer’s Defects on LiFe factory-installed batteries (excludes LiFe replacement batteries). Factory-installed LiFe batteries are covered at 100% for the first three years; coverage for years four and five are prorated at 1/60th per month (refer to Further Exclusions and Limitations section)
Service Programs - 30-day warranty
Refurbished StyleView Carts - one-year warranty for Mechanical Components and Power Module (excludes batteries and cosmetic defects). The appropriate battery-type warranty applies
Original Equipment Manufacturer (OEM) Products resold by Ergotron are warranted by the respective manufacturer
- StyleView Electric Lift motor: Three (3) years on motor and switch
Further Exclusions and Limitations
In Dual SLA battery systems, replacement of both batteries must occur at the same time (in accordance with the Ergotron User Manual), or the Warranty is automatically void
Warranties on SLA batteries (fully-charged or fully-uncharged) left in an unused state for more than three consecutive months are automatically void
Factory-installed SLA batteries, and replacement SLA batteries carry a Six-month Warranty Against Manufacturer’s Defects and a 90-day Performance Warranty, or as mandated by local law
- The 90-day Performance Warranty on factory-installed SLA batteries (excludes SLA replacement batteries) is extended to one-year provided that:
StyleLink software is installed and remains continually operational to show compliance with exclusions and limitations
SLA Battery is not discharged below 25% capacity more than 25 times as recorded by the StyleLink software history
SLA Battery is fully recharged at least once every 36 hours as recorded by the StyleLink software history
LiFe batteries that fail to deliver 70% of their rated capacity during the first 1200 discharge cycles of battery life are deemed not to have met performance standards (capacity retention)
The LiFe battery discharge cycle is defined as starting at the fully-charged state through the fully discharged state and back to the fully-charged state. Discharge cycle counts are calculated by the software within the battery.
These warranties do not cover product abuse, modification and failure to adhere to product instructions, improper operations and/or misuse. Ergotron is not responsible for damage arising from failure to follow instructions relating to the product’s intended use. Ergotron is not responsible for injury or loss caused by or associated with the installation and/or use of equipment in any manner other than in strict conformance with the instructions set forth in its installation manuals, supplemental assembly and installation instruction sheets, technical bulletins and/or product literature. You will provide Ergotron immediate written notice of any personal injury resulting from the use of Ergotron products.
Ergotron does not warrant damages or defects to the Ergotron product under the following conditions: an Act of God, unauthorized service or repair of the Ergotron products, damage from electrical power problems, usage of parts or components not supplied by Ergotron, failure to follow product instructions and guidelines, unauthorized changes to the Ergotron product, shipping damage (other than original shipment from Ergotron), failure to perform preventative maintenance, or damage caused by peripherals or software or from other external sources.
Warranty Repair: In the event that any Ergotron equipment becomes defective in material or workmanship during the warranty period, Ergotron will determine with you if the product defect is covered under warranty. Ergotron, at its sole discretion, may replace or repair the unit determined to be under warranty at a designated Ergotron location or at your location. The labor costs associated with the repair of the product may be the responsibility of Ergotron if determined to be under warranty. You must receive pre-approval by Ergotron for the labor costs prior to repair or replacement of warranty products. You must contact Ergotron to obtain a Return Material Authorization (RMA) number. An RMA number may be obtained by contacting Ergotron Customer Care online or by telephone within your specific region. Contact information is available to you on the Ergotron web site at www.ergotron.com. Performance of any repair or replacement on product under warranty does not renew or extend the warranty period.
Non-Warranty Repair: You may return a product for repair that is not covered by warranty only if you have received a preapproved RMA number from Ergotron Customer Care. Labor costs and freight charges associated with non-warranty repair will be the sole responsibility of the customer, reseller or installer/integrator. A standard repair fee, specific to the product, is charged for any product that is repaired outside of the warranty period. Repairs on products out of warranty also carry a 90-day warranty, effective the day that you receive the item after repair.
For products that are not covered under warranty, Ergotron offers you the following options:
You may upgrade to a newer, functionally equivalent product at a normal MSR list price
Ergotron will return the product to you
You can request in writing that Ergotron appropriately dispose of the product for you. A fee may apply for this service as designated by local law
Non-Defective Products: You are notified if, after examining and testing a returned product, Ergotron concludes that the product is not defective. The product is returned to you and you would be responsible for the freight charges associated with the return.
Except as expressly set forth in this Limited Warranty and to the greatest extent allowed by law, Ergotron makes no other representations, warranties or conditions, express or implied, including any implied representations, warranties or conditions of merchantability, fitness for a particular purpose, non-infringement, and non-interference. Ergotron does not warrant that your use of the Ergotron product will be uninterrupted or error free. Any implied warranties that may be imposed by law are limited in duration to the Limited Warranty period, to the greatest extent allowed by law. Some states or countries do not allow a limitation on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages for consumer products. In such states or countries, some exclusions or limitations of this Limited Warranty may not apply to you. This Limited Warranty is subject to change without notification.
Ergotron devices are not intended to cure, treat, mitigate or prevent any disease.
This Limited Warranty is available only to the original end consumer and is non-transferable. For this warranty to be valid, the Ergotron product must have been purchased directly from an authorized distributor, reseller and/or authorized representative of Ergotron.
