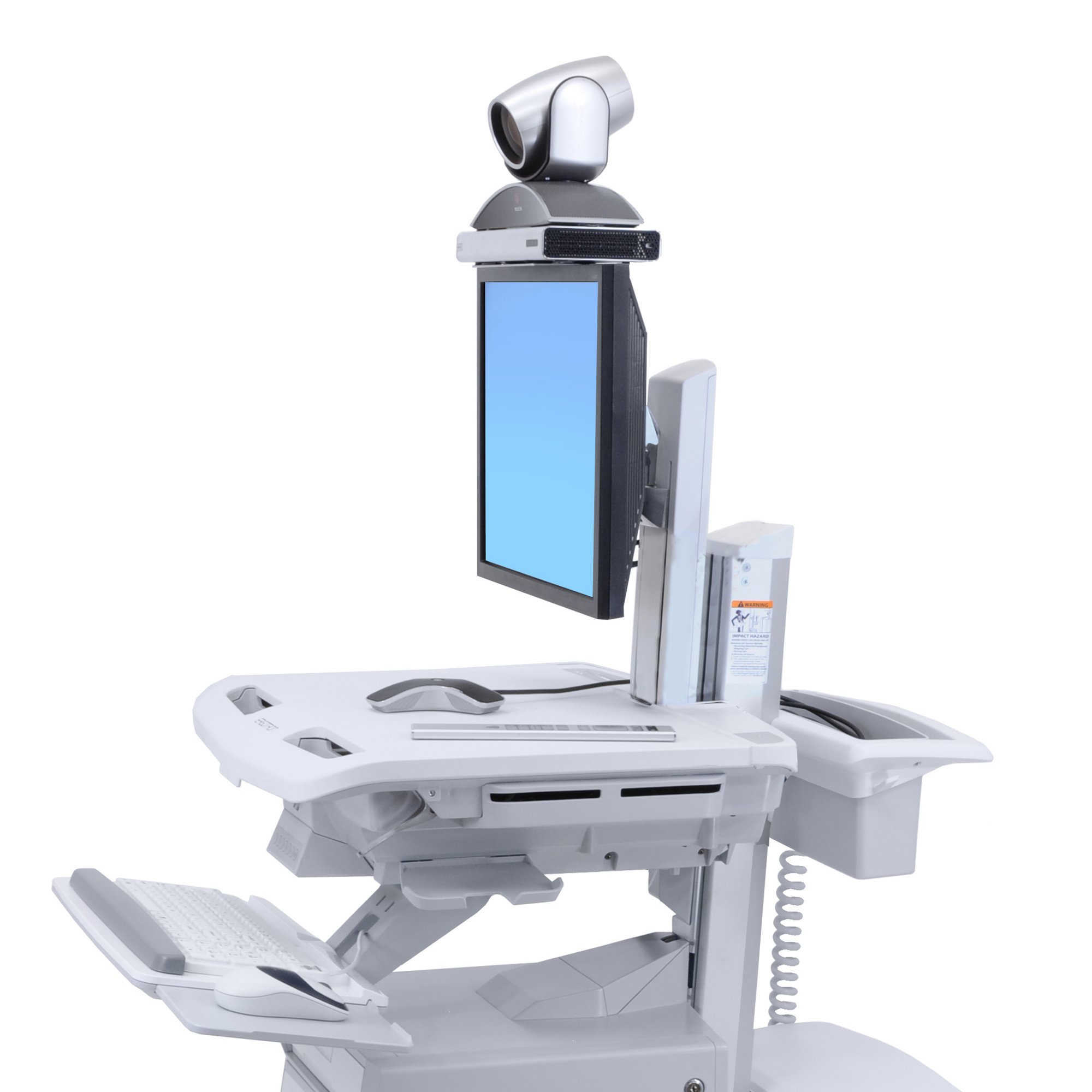

Ergotron SV44-53T1-1 Telemedicine Cart, Single Monitor, Powered

SV44-53T1-1 is non-returnable/non-cancelable.

Product ID 18193

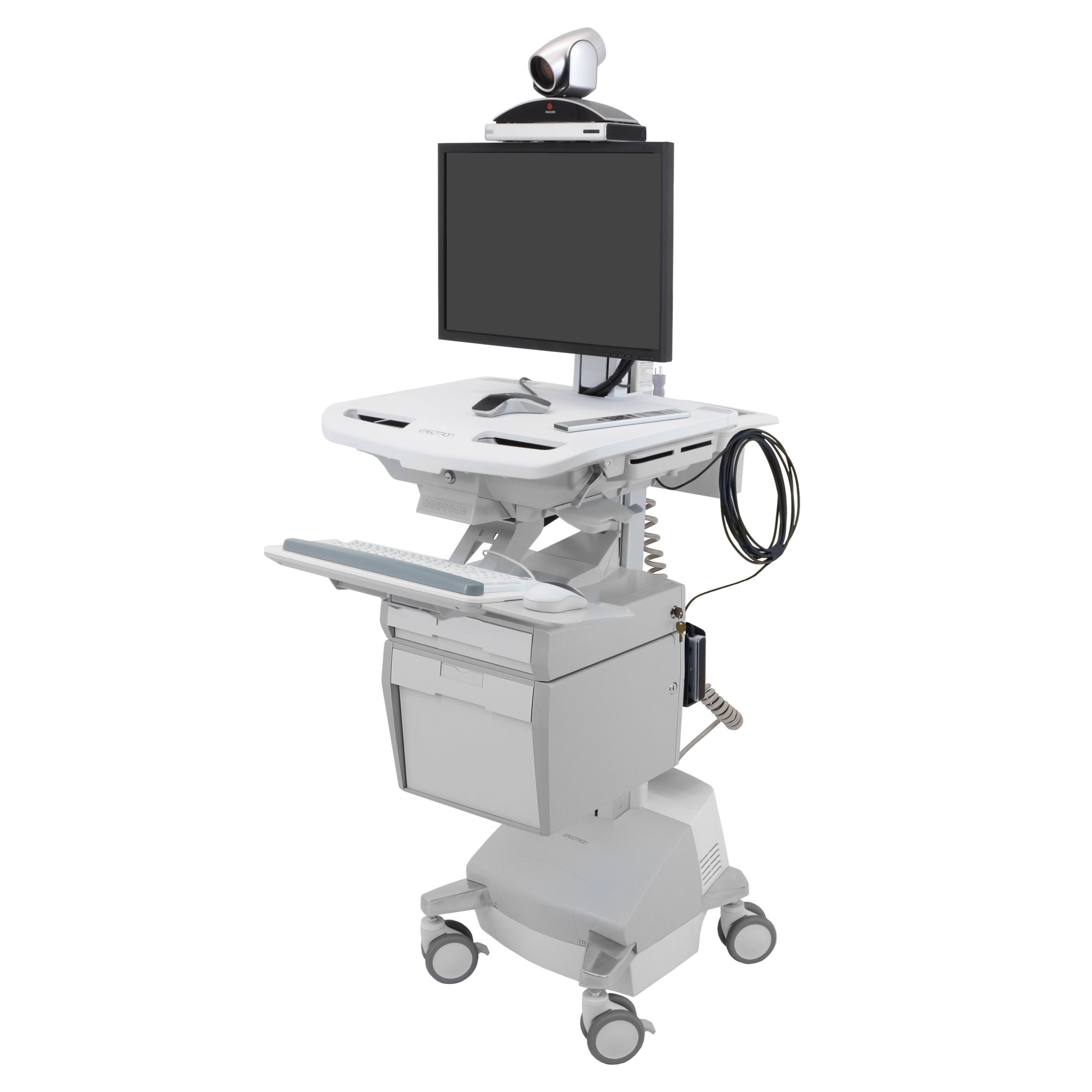

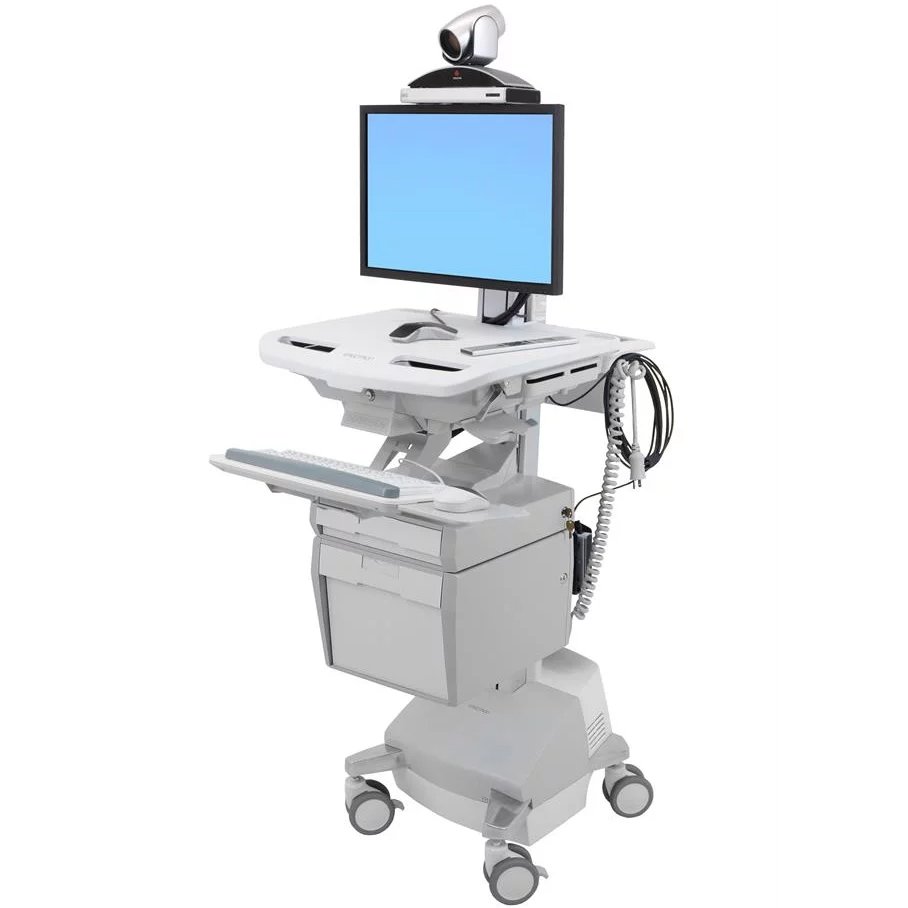

Ergotron SV44-53T1-1 Telemedicine Cart, Single Monitor, Powered
Interior
Casters
Front view
Single Monitor
Interior

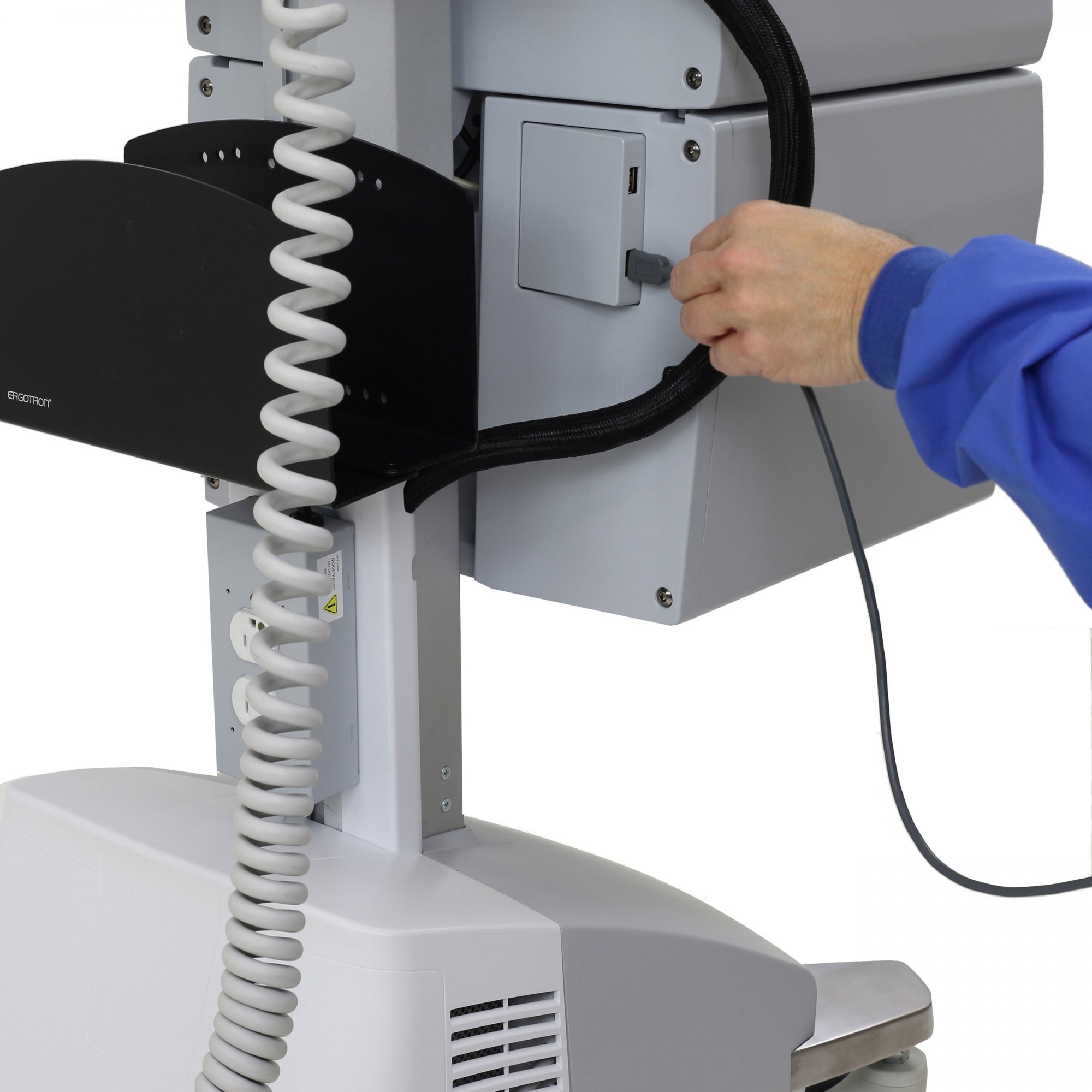

Rear view
Brake
Ergotron SV44-53T1-1 Telemedicine Cart, Single Monitor, Powered
Interior

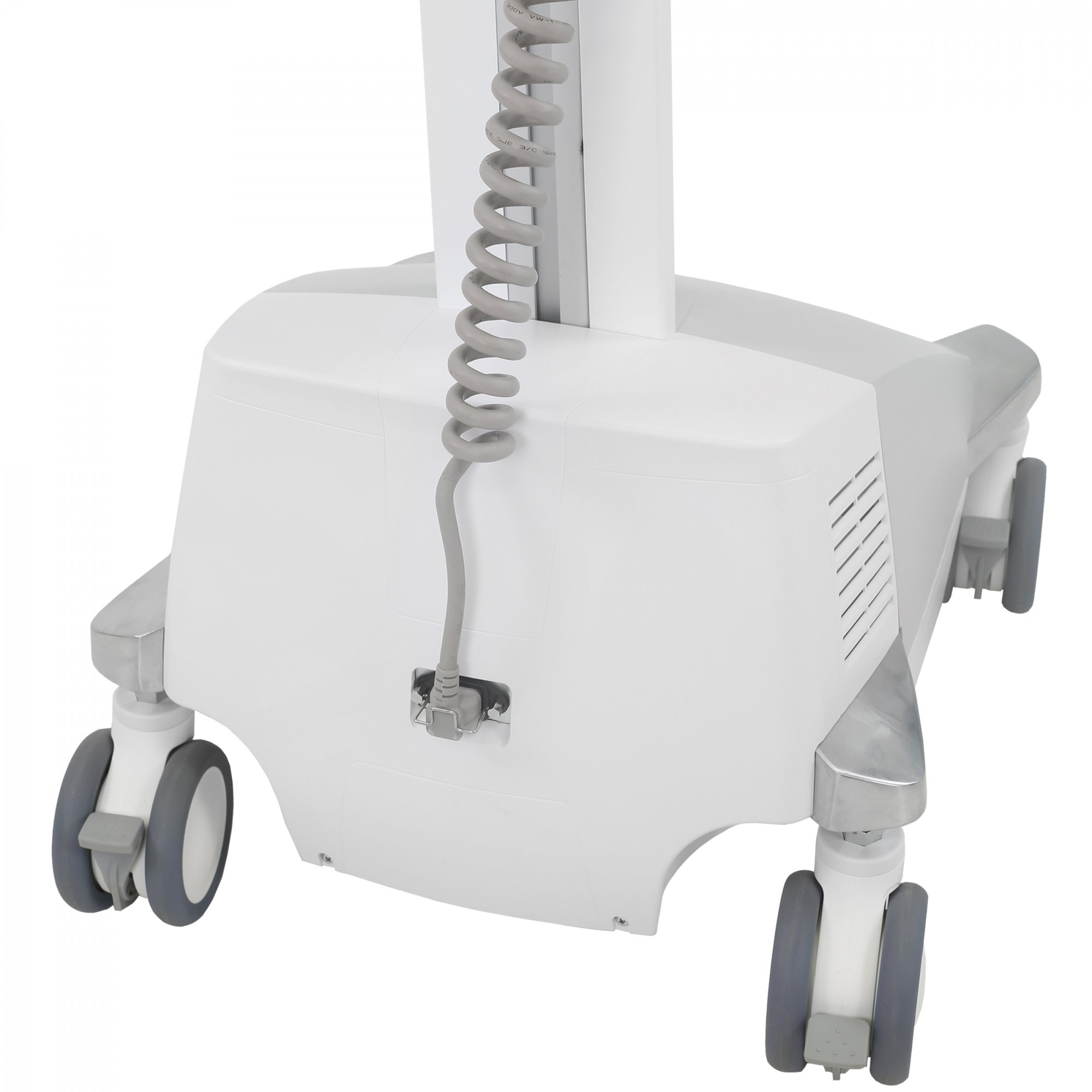

Casters

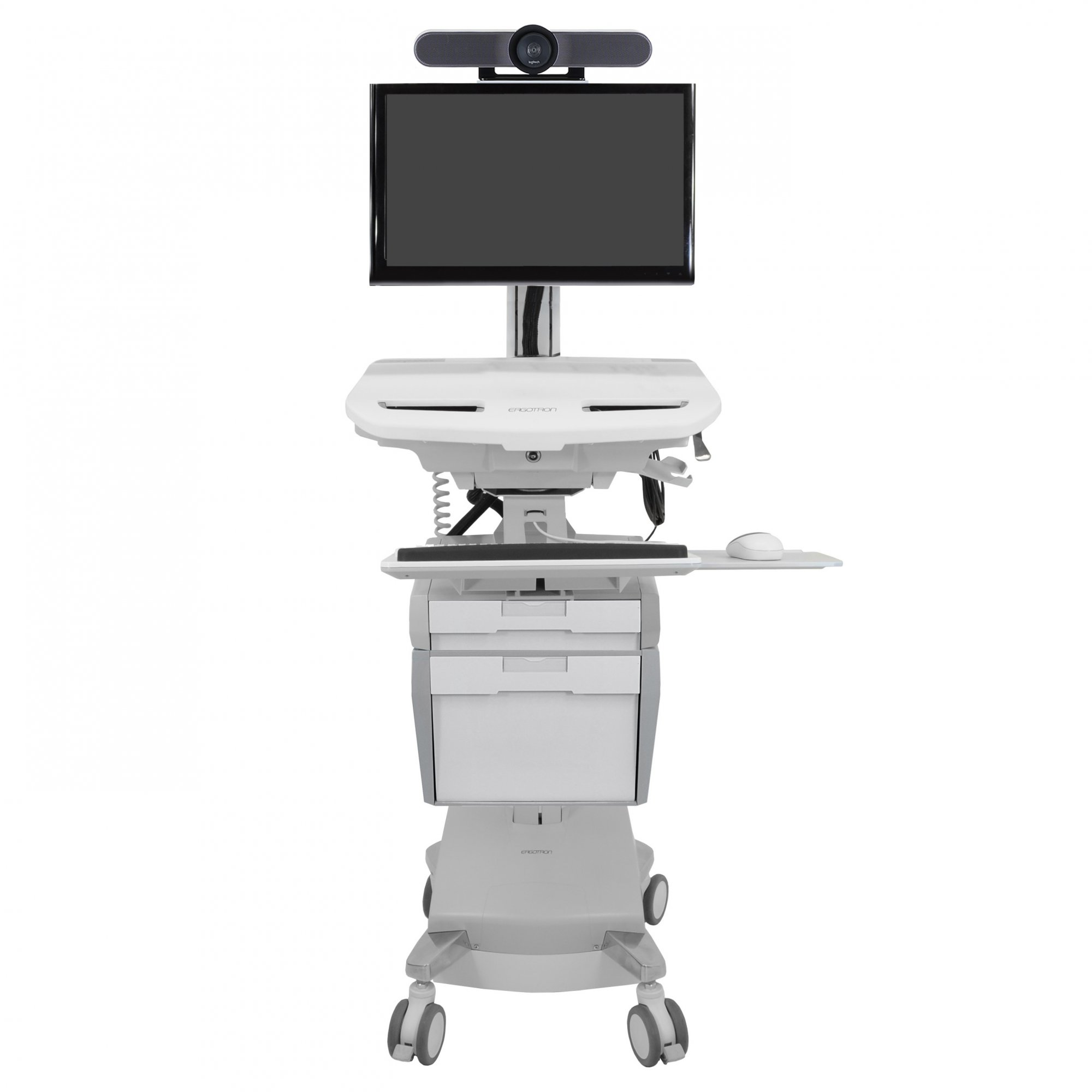

Front view
Single Monitor
Interior
Rear view
Brake

Description

Expand healthcare access through telehealth with this easy and affordable mobile solution, which combines the power to support onboard diagnostics and videoconferencing with the benefits of a StyleView medical cart. Backed by our years of expertise and service, you can confidently build a telemedicine platform that matches your needs and budget.

Technical Drawing

Technical Drawing for Ergotron SV44-53T1-1 Telemedicine Cart, Single Monitor, Powered

Technical Specifications

LCD size Capacity Lift Tilt Pan Rotation VESA
Screen Capacity Lift Tilt Pan Rotation VESA
Up to 24"

Up to 39 lbs

17.7 kg

17"

43.2 cm

25° 24° 90° MIS-D

Product Information

Part Numbers
  • North America = SV44-53T1-1

  • Europe = SV44-53T1-2

  • United Kingdom/Ireland = SV44-53T1-3

  • Japan = SV44-53T1-6

  • Saudi Arabia (UK standard) = SV44-53T1-7

  • Saudi Arabia (EU standard) = SV44-53T1-8

  • Switzerland = SV44-53T1-C

Description StyleView Telemedicine Cart, Single Monitor, SLA Powered (white, grey and polished aluminum)
Includes
  • LCD pivot

  • Auto-locking drawer system (ADS)

  • Primary top drawer with dividers

  • Telemedicine bin with dividers

  • Ethernet side panel

  • Worksurface

  • Camera shelf

  • Codec holder

  • Medical-grade power strip

  • CPU lock

  • Secure CPU compartment

  • Four-port USB hub

  • Scanner holder bracket

  • Mouse holder

  • Wrist rest

  • Back-tilt keyboard tray

  • Left/right mouse tray

  • Rear handle

  • Storage basket

  • Cable storage

  • Four casters (lockable, 1 tracking function)

  • Two-battery 66 Ah power system

  • 10-foot (3 m) coiled cord

  • Three AC outlets

  • Power system user interface

Not Included Video camera, monitors, codec, diagnostic appliances and computing equipment not included
Total Maximum Load on Height Adjustment Assembly 39 lbs (17.7 kg). This is the sum of the following components: LCD pivot = 5–14 lbs (2.3–6.4 kg); camera shelf ≤ 2 lbs (1 kg); worksurface ≤ 5 lbs (2.2 kg); keyboard tray ≤ 2 lbs (1 kg); CPU compartment ≤ 13 lbs (5.9 kg); drawer ≤ 2 lbs (1 kg). Total maximum load attached to back of cart’s main column = 25 lbs (11.4 kg). This is the sum of the following components: codec/CPU holder ≤ 25 lbs (10.5 kg); storage basket = 5 lbs (2.2 kg)
Note
  • Locking the height of the LCD lift pivot changes the weight capacity to ≤ 20 lbs (9.1 kg), allowing it to accommodate heavier displays and all-in-one computers. When calculating load on pivot, also include weight of camera. Combined weight of LCD and camera should not exceed 20 lbs (9.1 kg). Combined weight of LCD, camera and CPU should not exceed 27 lbs (12.3 kg)
LCD and Worksurface LCD and worksurface adjust 12" (30 cm) in tandem; LCD Pivot adjusts 5" (13 cm) independently; maximum LCD height adjustment = 17" (43 cm)
Portrait Screen Orientation Portrait screen orientation may be incompatible with widescreen displays > 19"
PINs PINs managed by StyleLink software are limited to 5-digit length and 100 per cart
True Ergonomics

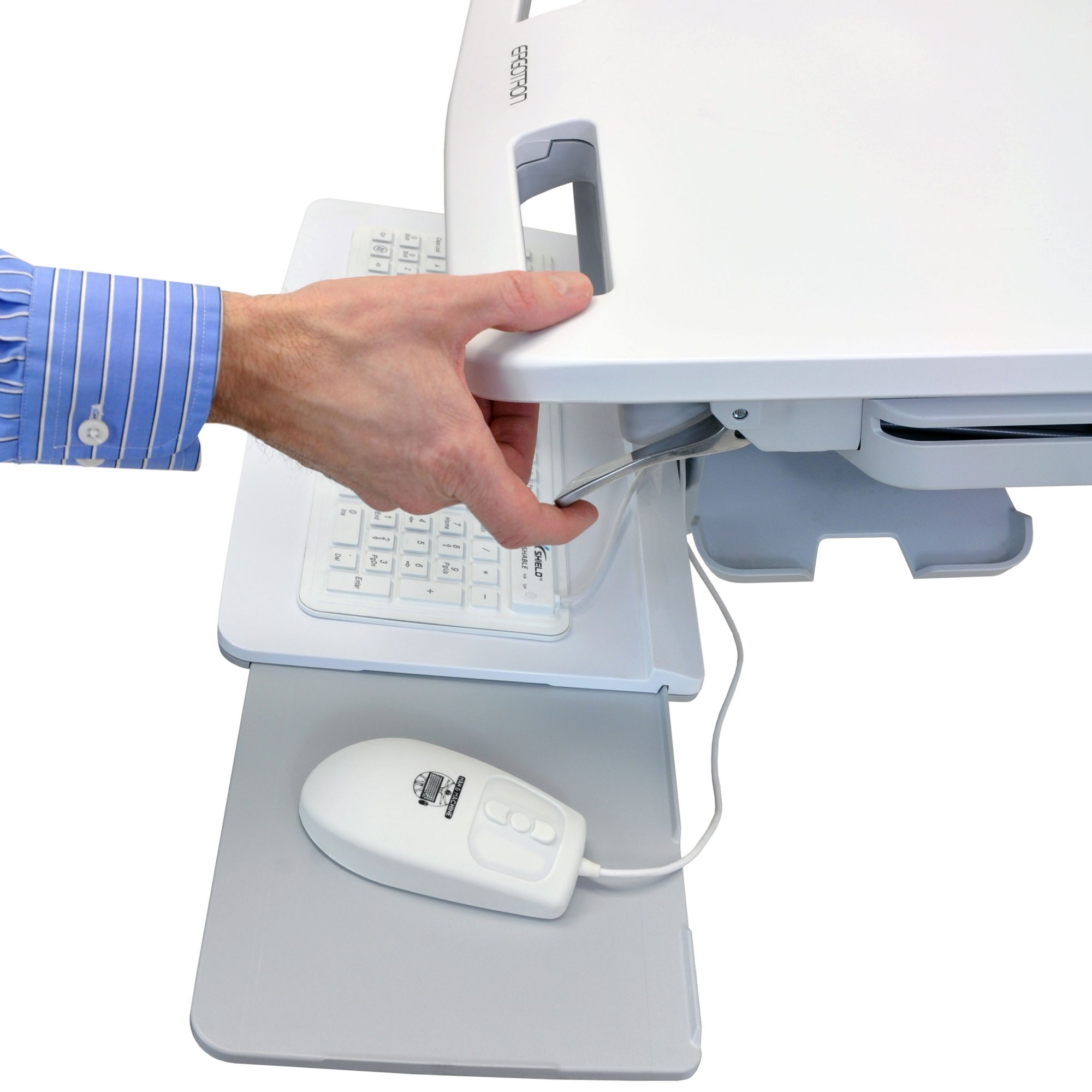

  • Ergonomic back-tilt keyboard tray with left or right mouse tray ensures wrists remain in a neutral position during data entry - avoid repetitive-stress injuries while increasing comfort and productivity

  • Patented CF lift-and-pivot motion technology minimizes forces required to adjust cart position: Casters, height adjustment, LCD tilt and pan all require just a touch

Safe
  • For patient and caregiver safety the entire power system and the FULL cart are certified to UL/EN/IEC 60601-1 and CAN/CSA-C22.2 No. 60601-1:08. Also complies with EMI limits of FCC Part 15 Class A

  • Power System User Interface integrated conveniently on the worksurface (includes visual and audible battery status indicator)

  • Surfaces are treated with antimicrobial for product protection; handles are smooth and continuous for improved cleanability

  • Environmentally clean: RoHS, REACH, WEEE and EU (94/62/EC) packaging compliant

  • Durable, easy-to-clean exterior composed of aluminum, high-grade plastic and zinc-plated steel promotes infection control

  • Large, smooth worksurface; easy-to-clean design promotes infection control

  • Lockable, ventilated enclosed storage for closed notebook, thin client or CPU. Keys and locks are heavy-duty

  • Locking casters

  • CPU lock provided inside the storage compartment for additional security

  • Designed to meet guidelines established by the American National Standards Institute for computer use

Service
  • StyleLink SKY compatible: A cloud-based service that facilitates easy and remote management of your cart fleet

  • Covered by Global Service Program - 24/7 coverage

All the Details Covered

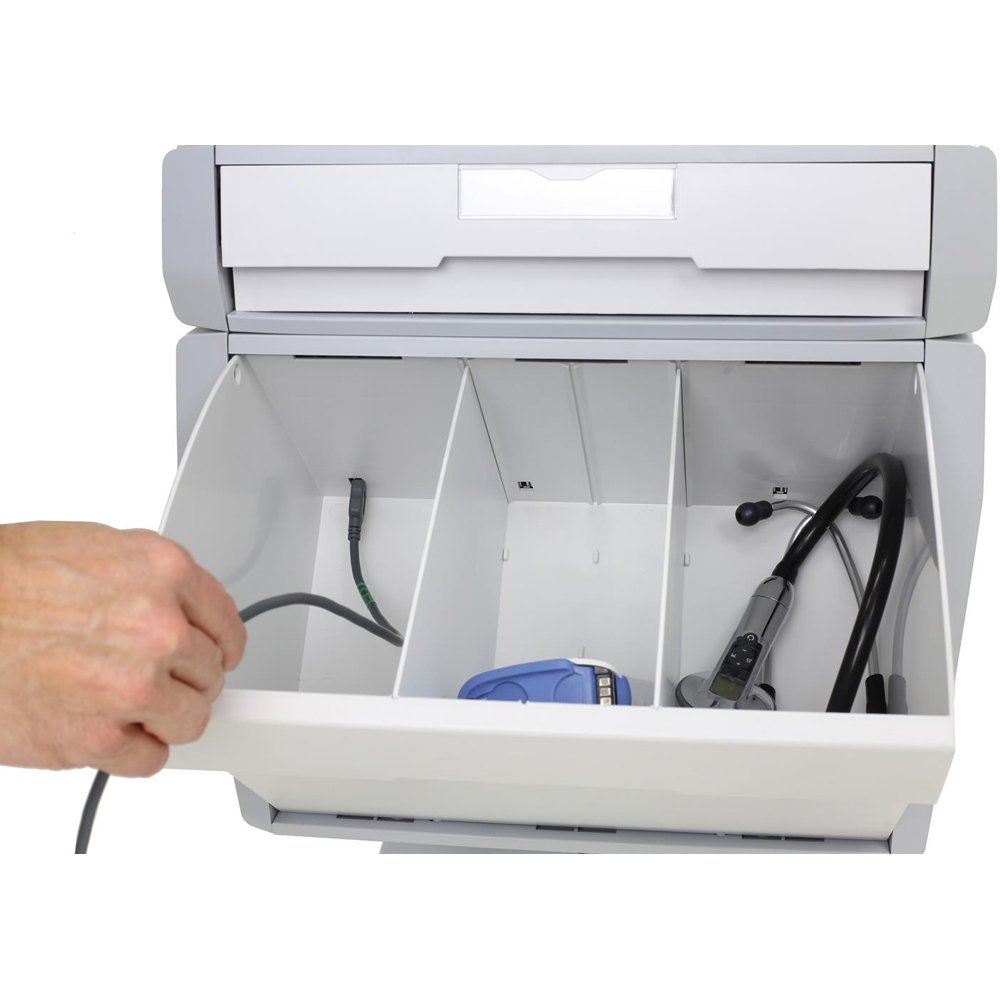

  • Tip-out bin provides storage and USB connectivity for up to three devices

  • Two external USB ports allow use of additional devices on the fly

  • External Ethernet port allows cart to be connected to network when wireless signal is not present

  • Drawer dividers are included, allowing compartments to be customized to match your workflow requirements

  • Four amber LEDs provide light over keyboard tray; includes 15-minute auto shut-off

  • Button for LED lights is located conveniently on worksurface

  • Rear basket keeps task-related items where they can be quickly accessed

  • Ships fully assembled

  • Quick, easy access to CPU storage compartment: One-hand operation of secure latch with slide-out worksurface ensures easy access. Security cable in compartment deters CPU theft

  • Four-port USB hub

  • TAA (Trade Agreements Act) compliant

  • Easy access to components for field replacement and serviceability: keyboard LEDs, PC boards (including the user interface). Easier, faster upkeep and service means less down time

  • Pre-routed cables provide quicker integration with equipment

  • Onboard internal power strip supports computing equipment and devices while external outlet strip on back of cart supports teleconference equipment

  • Four ultra-smooth gliding casters for extremely easy push/pull mobility; locking casters ensure lock-in-place stability

Compatibility and Dimensions
  • Internal Dimensions: primary top drawer = 2.5"H x 12"W x 10.5"D (63.5 x 305 x 267 mm) - includes dividers to configure up to 16 compartments; large lower drawer: 10"H x 12"W x 10.5"D (254 x 305 x 267 mm) - includes dividers to configure up to 3 compartments; codec holder: 1-3/8" to 3-3/4" (35 to 95 mm) wide

  • Open-architecture design accommodates multiple configurations, closed notebooks with monitor (even widescreen with up to 17.3" diagonal size), CPU and monitor, thin clients, tablets, all-in-one computers and future hardware upgrades

  • Storage compartment for closed notebook, thin client or CPU: 17.75"W x 14.75"D x 4"H (45 x 37.5 x 10.1 cm); larger computers can mount to rear of cart with Universal CPU Holder accessory (ordered separately)

  • Compact Wheel-to-Wheel Base Dimensions: 15.5" x 17" (394 x 432 mm)

  • Worksurface Dimensions: 22.4"W x 19.75"D (567 x 502 mm)

  • Mounting Standards: VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)

  • VAC:
    SV44-53T1-1 = 120V/60Hz
    SV44-53T1-2 = 230V/50Hz
    SV44-53T1-3 = 230V/50Hz
    SV44-53T1-6 = 100V/50Hz
    SV44-53T1-7 = 220V/60Hz
    SV44-53T1-8 = 220V/60Hz
    SV44-53T1-C = 230V/50Hz

  • Grounded Plug:
    SV44-53T1-1 = NEMA 5-15P Hospital Grade
    SV44-53T1-2 = European CEE 7
    SV44-53T1-3 = UK BS 1363
    SV44-53T1-6 = JIS 8303
    SV44-53T1-7 = UK BS 1363
    SV44-53T1-8 = European CEE 7
    SV44-53T1-C = SEV 1011

  • 66 Ah Power System with two (2) 33 Ah, 12 V DC, Sealed Lead Acid (SLA), Absorbed Glass Mat (AGM), valve-regulated batteries with supporting electronics

  • It is recommended that a discharge test be conducted when cart is first purchased to determine runtime with computer equipment configured on the cart. Change batteries when instructed by StyleLink battery management software. If StyleLink is not used, it is strongly recommended a monthly discharge test be conducted to determine runtime loss. If runtime is less than 50% of original, batteries must be changed

Shipping Dimensions 24.5"W x 34"D x 56"H (62 x 87 x 142 cm)
Shipping Weight 202 lbs (91.8 kg); actual cart weight = 168 lbs (76.4 kg)
Warranty Five (5) years for cart’s mechanical components, two (2) years on power module

Benefits

  • Open architecture allows for the integration of most standard computer and mobile communications equipment

  • Enables remote delivery of specialized care and timely diagnostics

  • Configured to accommodate all your telemedicine equipment; large lower bin is perfect for storage of critical appliances

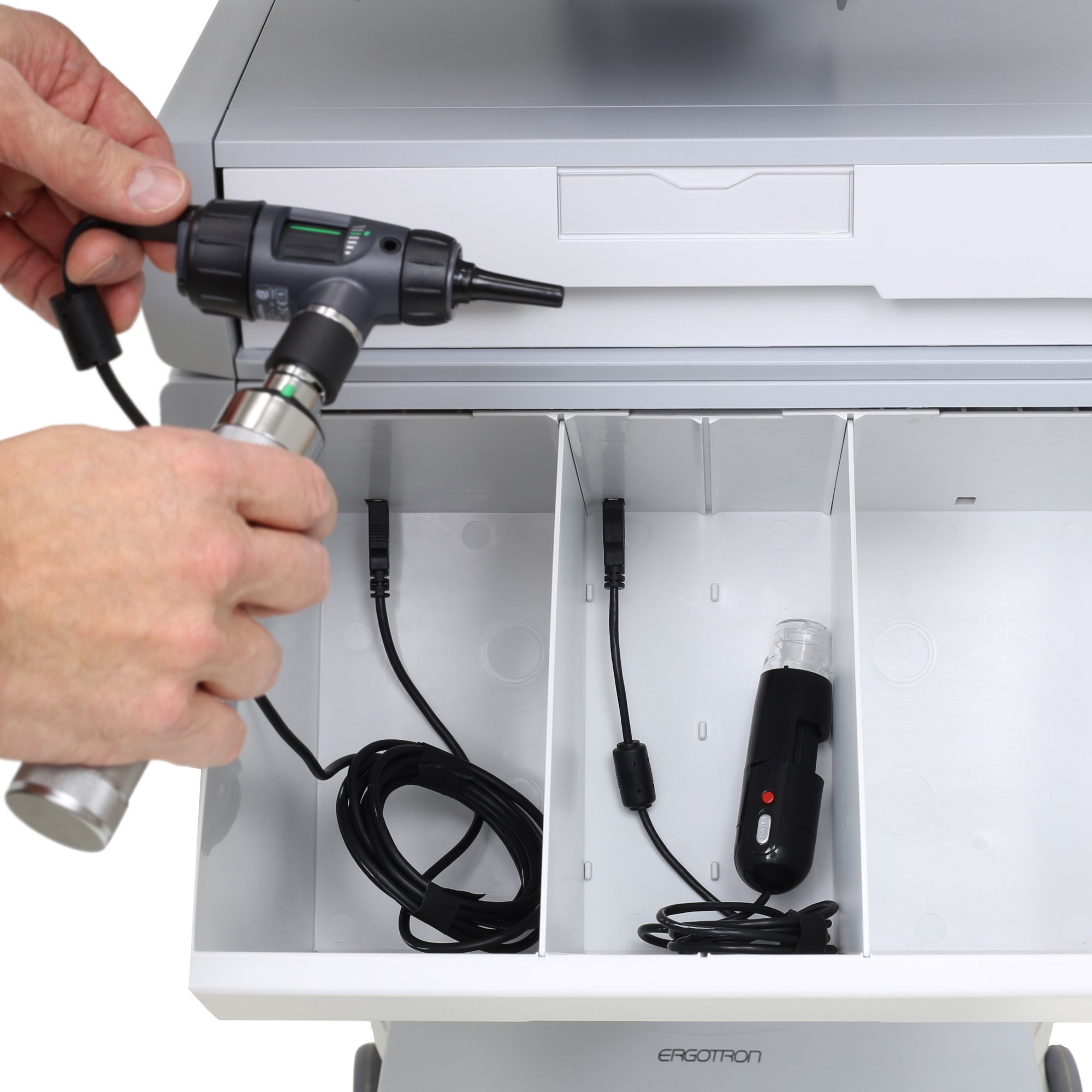

  • Lower bin includes three internal USB ports for connecting diagnostic devices and two additional external ports for other devices to be connected on the fly

  • Mounts a video or web camera above the monitor, facing forward; camera travels with the monitor through its entire range of motion

  • Low configuration cost; ships fully assembled

  • Auto-locking drawers: Cart stores variable-length PINs for up to 1,000 users to allow electronically controlled access

  • StyleView’s small footprint, with ultra-smooth gliding casters, travels easily across crowded carpet or hard surface floors and is perfect for space constrained areas

  • Keyboard pans fully side-to-side for closer access while interacting with clients

  • Passes Ergotron’s 10,000-cycle motion test, which ensures years of trouble-free height adjustment

  • For patient and caregiver safety the entire power system and the FULL cart are certified to UL/EN/IEC 60601-1. Complies with EMI limits of FCC Part 15 Class A

  • Low operating cost - autonomous rechargeable AC electrical source delivers safe, inexpensive and dependable power

Model SV44-53T1-1
Manufacturer Ergotron
Part Number SV44-53T1-1
UPC 698833046120
Weight lb(s)
Color White, grey and polished aluminum
Monitor Size Up to 24"
Weight Capacity Up to 39 lbs (17.7 kg)
Lift (43.2 cm) 17 in
Tilt 25 degree
Pan 24 degree
Rotation 90 degree
Mounting Pattern VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
Compact Wheel to Wheel Base Dimensions 15.5" x 17" (394 x 432 mm)
Worksurface Dimensions 22.4"W x 19.75"D (567 x 502 mm)
Shipping Dimensions 24.5"W x 34"D x 56"H (62 x 87 x 142 cm)
Shipping Weight 202 lbs (91.8 kg)
Cart Weight 168 lbs (76.4 kg)
Warranty Five (5) years
Power Type SLA
Display Type 1 Monitor
Lift Technology Constant Force
Screen Size 24"-30" in
TAA Compliant Yes
