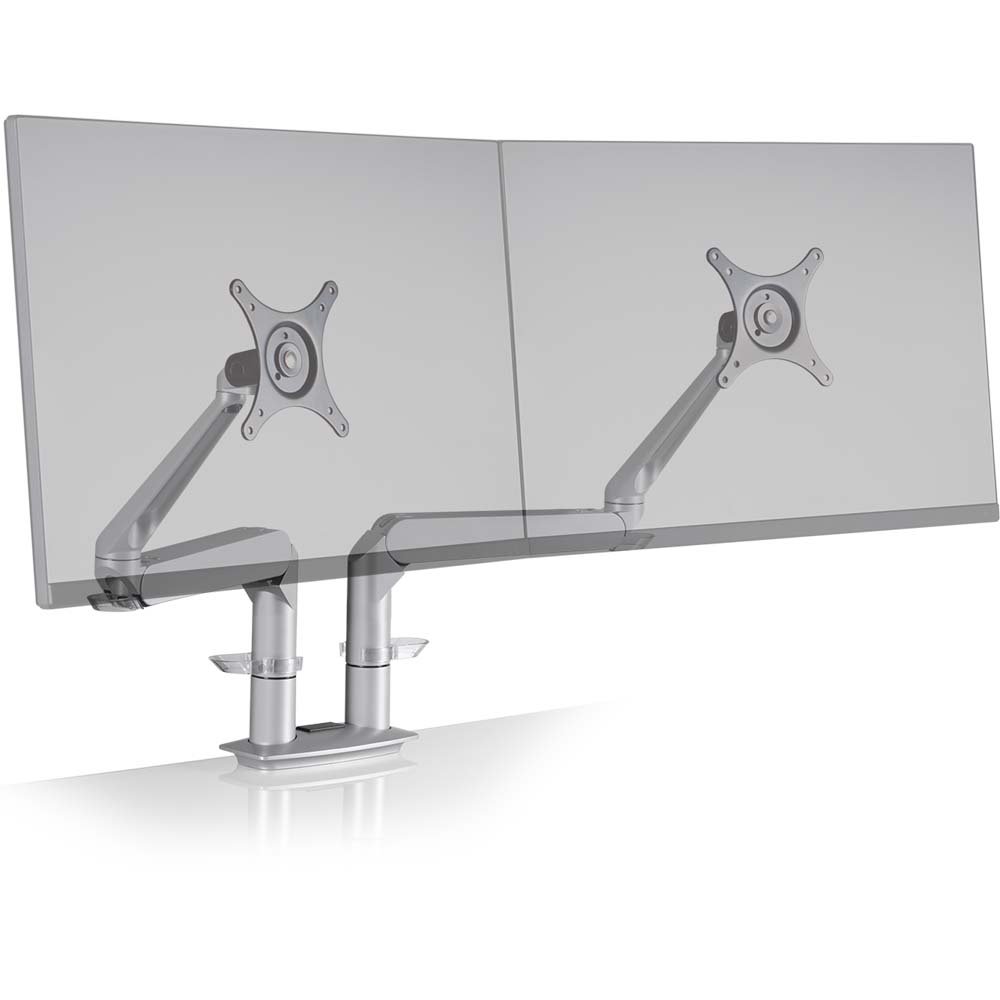

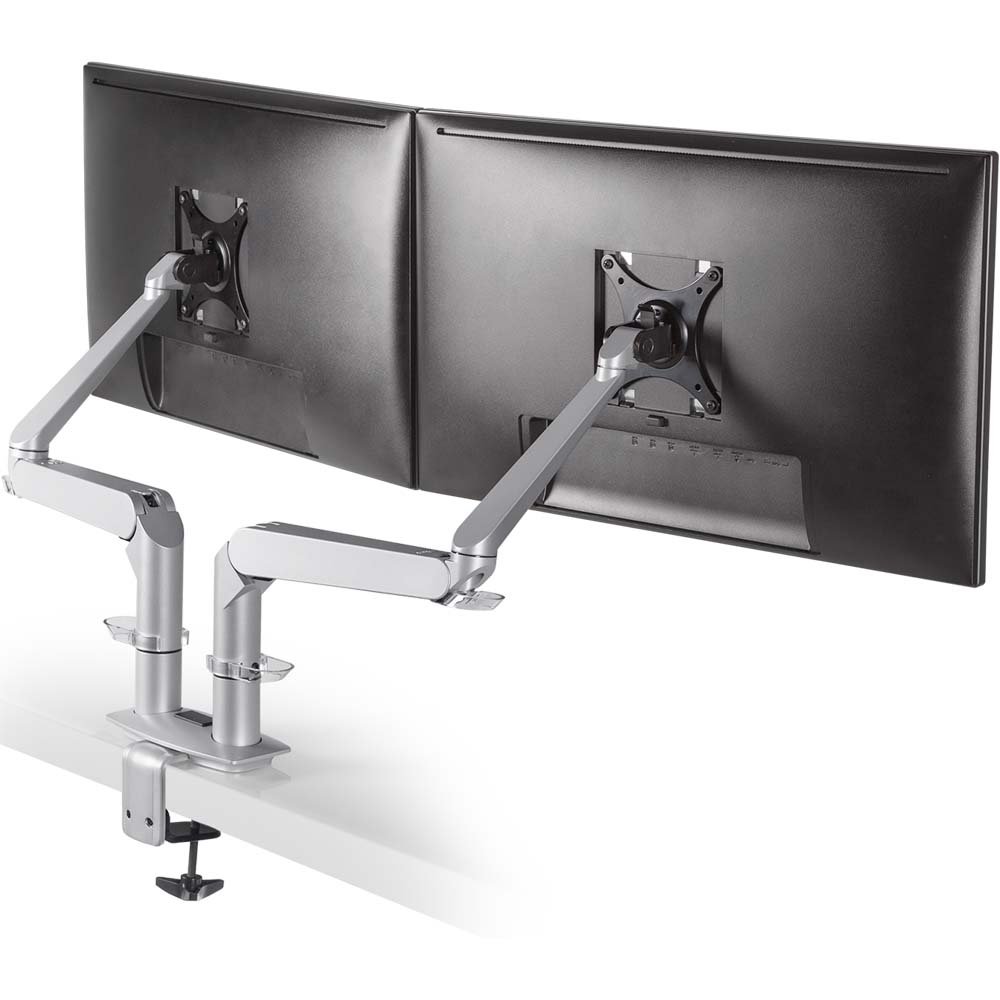

Innovative 5902 Dual EVO Monitor Arm

Product ID 18596


  • Dual monitor arm designed for stylish offices
  • Weight capacity:  1-15 lbs per monitor
  • Clamp mount is included; Desk thickness 2"

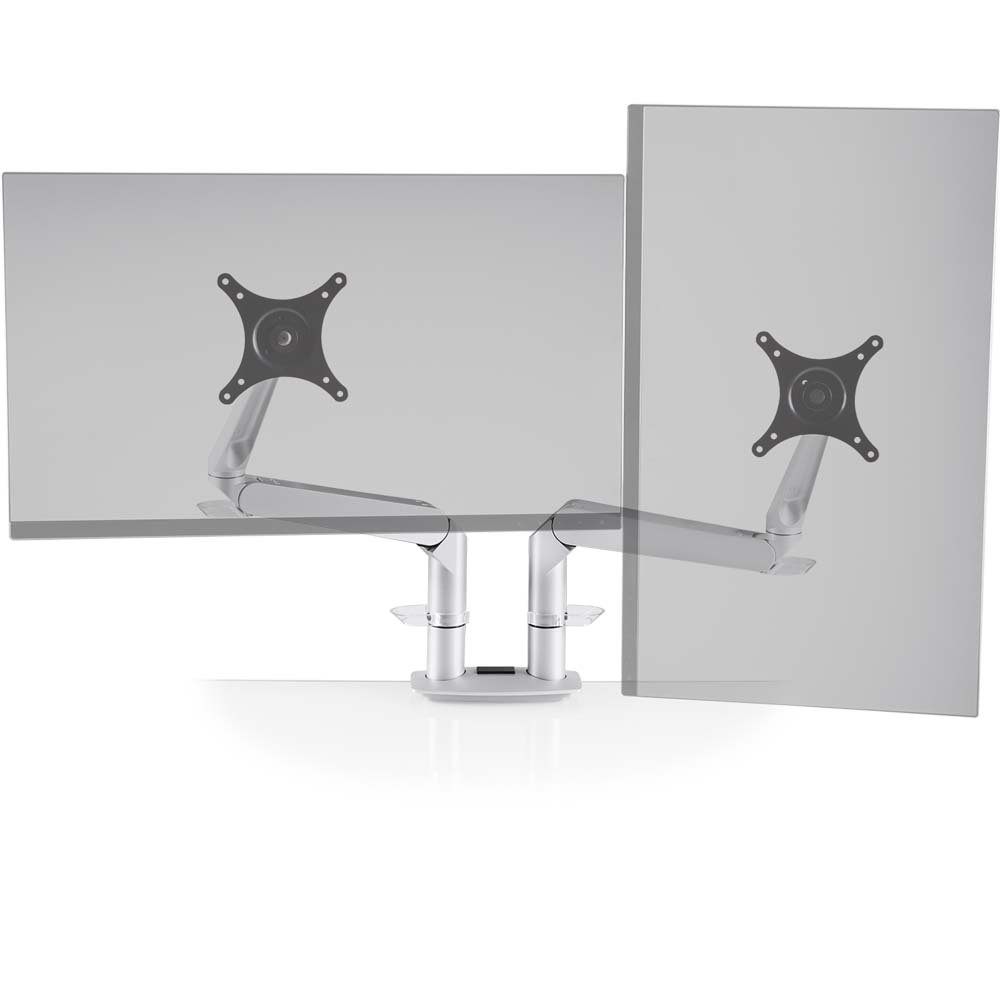

  • Rotate monitors for Landscape and portrait viewing
  • Maximum vertical range: 10.4"
  • Horizontal reach: 18"
  • Quick-install VESA adapter for fast installation
  • Warranty: 10 years


Save space and enhance desktop flexibility with the stylish dual EVO two monitor setup. Provides easy monitor motion in a clean aesthetic to complement any office environment.

Innovative 5902 Dual EVO monitor arm utilizes our award-winning EVO monitor arm in a dual monitor desk mount application. The monitor arms provide intuitive function and dual monitor rotation for easy, ergonomic viewing of both screens. The dual monitor setup can be clamped to the desk edge or bolted through the desk.

Technical Drawing

Technical Drawing for Innovative 5902 Dual EVO Monitor Arm

Technical Specifications

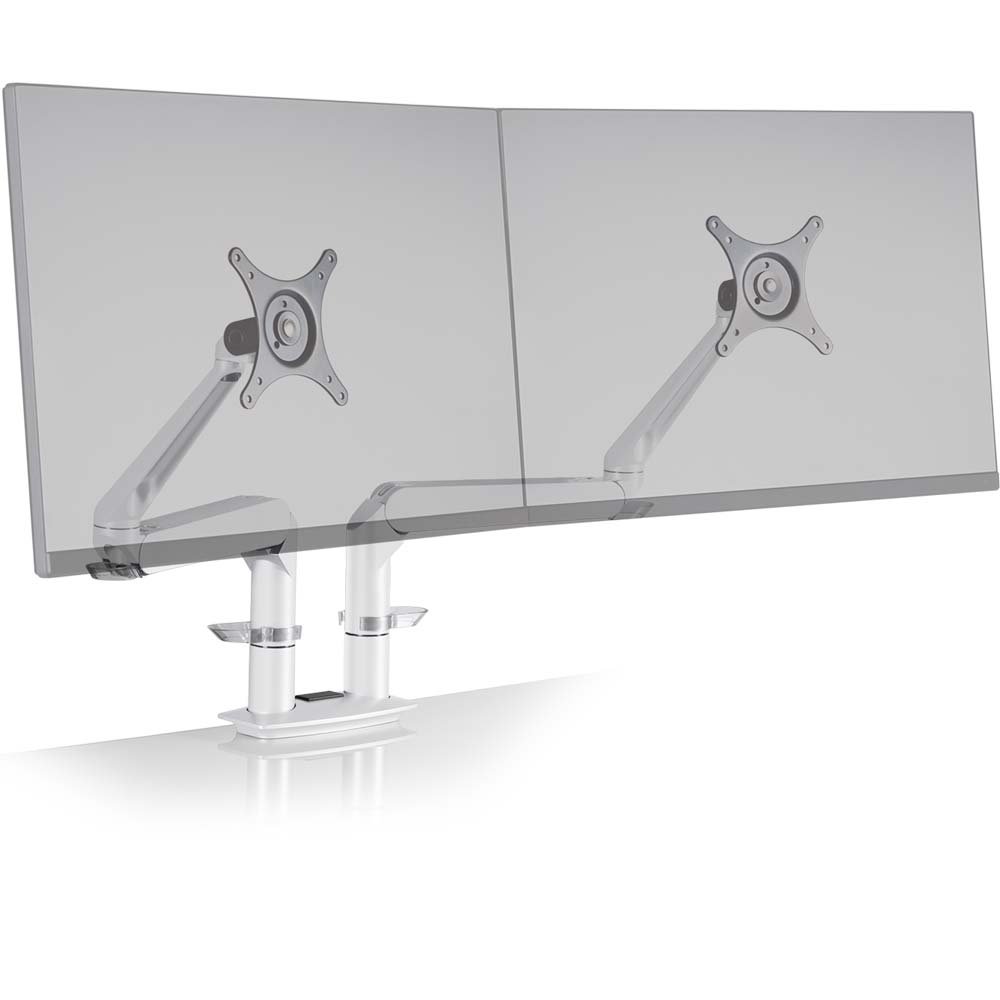

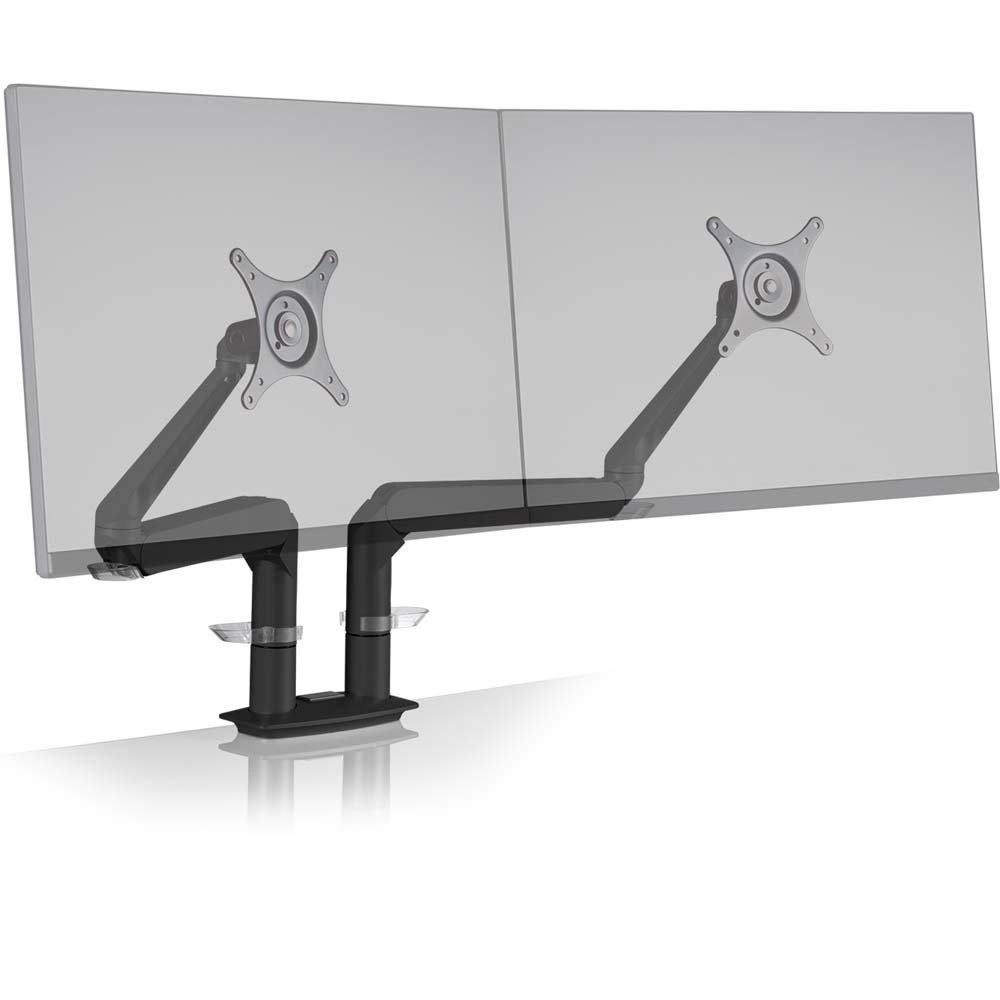

Color 248 - Flat White, 124 - Silver and 104 - Vista Black
Screen Size Up to 27"
Height Adjustment 10.4" (26.4 cm)
Extension Range 18" (45.72 cm)
Pivot Landscape / Portrait
Rotation 180° at base, 360° at upper joints
Mount Configurations Desk Edge
VESA Compatibilty 75 & 100mm, quick-release adapters included

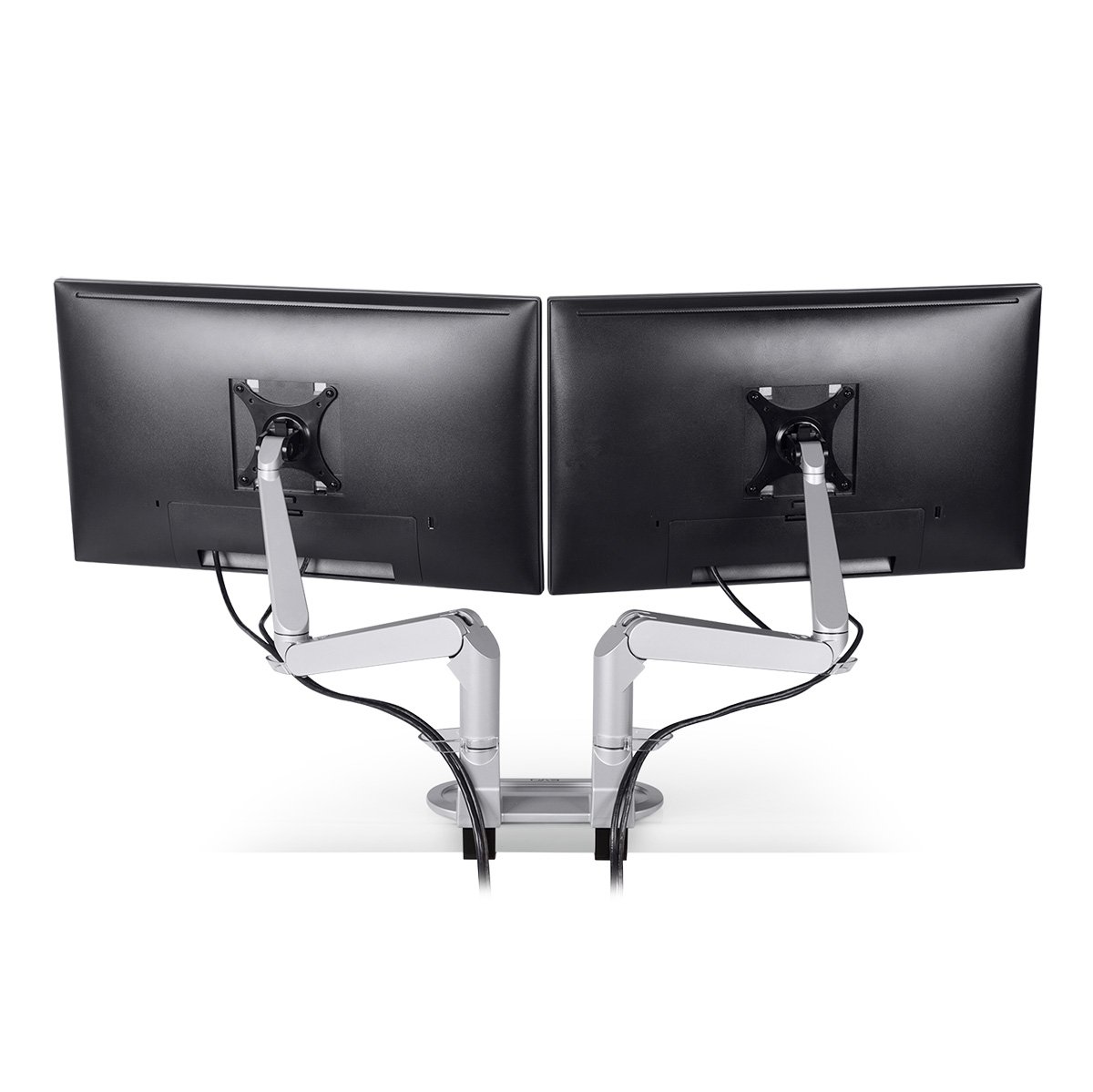

Cable Management Cables are clipped beneath the monitor arm
Weight Capacity 1 - 15 lbs (0.5 - 6.8 kg) per monitor
Warranty 10 Years


  • Extremely flexible positioning of dual flat panel monitors

  • Stylish desk mount design complements any office environment

  • Ease-of-use encourages users to work with their dual monitors ergonomically

  • Mount design includes a cable management system that routes cables beneath the monitor arm. Cable management reduces workplace clutter.

  • Rotate dual monitors for portrait or landscape viewing

  • Tension adjustment at each joint

  • 180-degree rotation stop prevents monitor arm from swinging into screens or walls

  • Durable, quick-install VESA adapter reduces installation time

  • VESA-monitor compatible - 75mm & 100mm VESA adapters included

  • Supports two monitors with screen sizes up to 27"

Model 5902
Manufacturer Innovative LCD Arms
Part Number 5902
Color 248 - Flat White, 124 - Silver and 104 - Vista Black
Horizontal Range 32.4" (82.3 cm)
Mounting Options Desk Edge
Weight Capacity 1 - 15 lbs (0.5 - 6.8 kg) per monitor
Monitor Size Up to 27"
Extension 18"
Pivot Landscape/Portrait
Rotation At base 180 degree, at upper joints 360 degree
Warranty 10 Years
Mounting Pattern VESA 75mm and 100mm
Height Adjustment 10.4" (26.4 cm)
Maximum Monitor Size 27"
Monitor Placement Side-by-Side
