$692.00

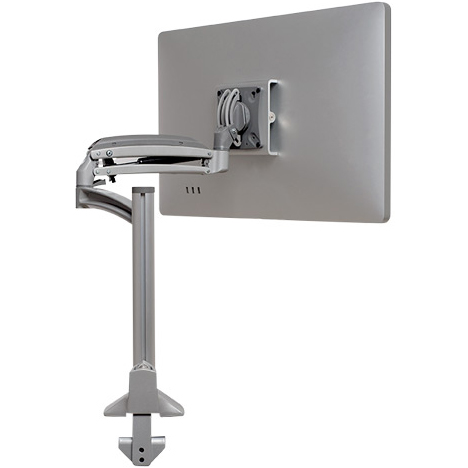

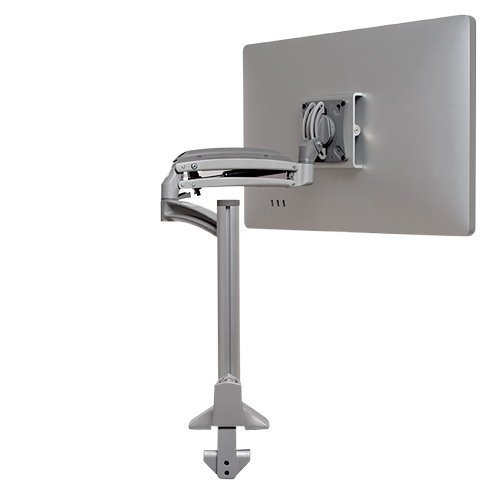

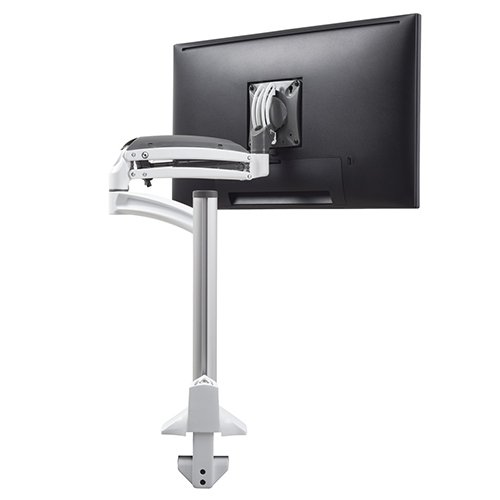

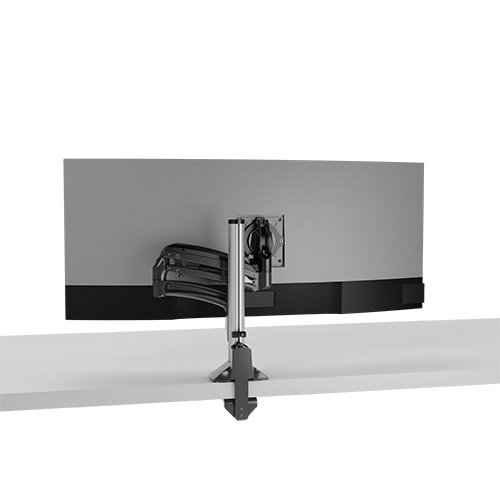

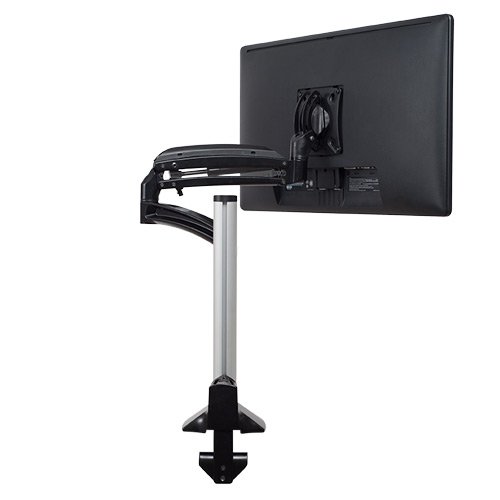

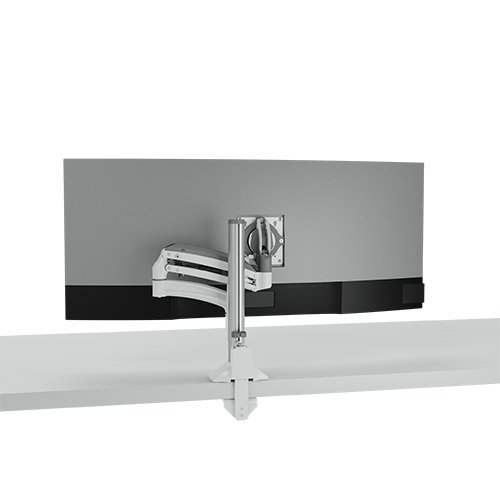

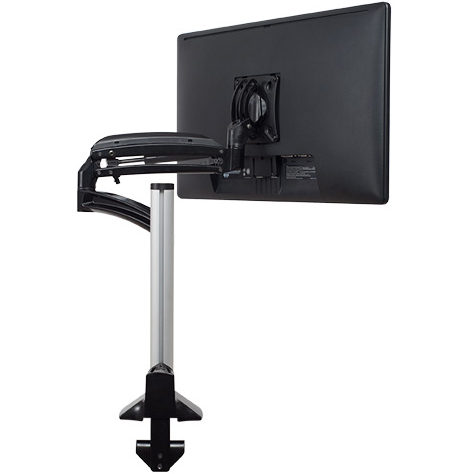

Chief Kontour Dynamic Column Mount, Reduced Height - K1C120BXRH

Product ID 18626
HIGHLIGHTS

Highlights

  • Ideal desk mount monitor arm for those who want their monitor close to the worksurface
  • Helpful for bi-focal lens wearers and touch panel users
  • Compatible with monitors weighing 5-25 lbs, 10-30" in screen size
  • Offers both dynamic and manual height adjustment
  • Move your monitor effortlessly with a fingertip
  • TAA compliant

Description

The K1C120BXRH has been tested only with standard monitors. Use of this arm with an ultrawide monitor may damage equipment and is not covered under warranty. If you wish to mount an ultrawide monitor, please see ErgoDirect's Ultrawide Monitor Arm EDM-49UW

Chief K1C120BXRH enhanced Kontour K1C Dynamic Height-Adjustable Column Mount is the perfect solution to mount standard monitors for the office, healthcare facilities, or home. This Reduced Height model provides the maximum amount of both dynamic and manual height adjustment for the ultimate ergonomic solution, and is optimal for bi-focal wearers or touch-panel users that desire the display as close to the work surface as possible.

Key enhancements have been made to Chief's patented Centris Extreme Tilt technology for effortless fingertip monitor positioning. Kontour monitor mounts float your displays in the optimal ergonomic position above your work surface to create a more productive and comfortable work environment.

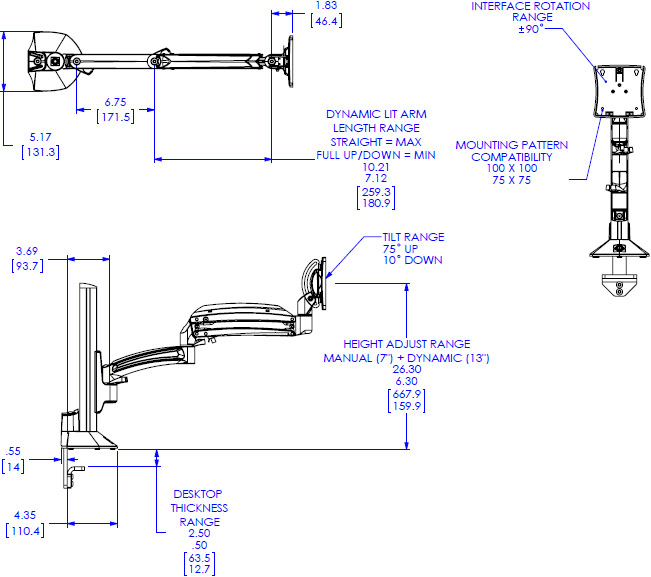

Technical Drawing

Technical Drawing for Chief K1C120BXRH Kontour K1C Dynamic Column Mount, Reduced Height

Specifications

Color Black, Silver and White
Certifications TAA Compliant
Desktop Thickness Range 0.50 - 2.50" (12.7 - 63.5 mm)
Dynamic Height Adjustment 13" (330.2 mm)
Manual Height Adjustment 7.0" (177.8 mm)
Maximum Extension 22.5" (571.0 mm)
Minimum Depth 2.45" (62 mm)
Mounting Pattern Compatibility (Universal Versions) 75 x 75mm, 100 x 100mm
Notes Weight capacity is per monitor
Number of Monitors 1
Shipping Weight 13 lbs (5.9 kg)
Tilt +75°, -10°
Typical Screen Sizes 10 - 30" (254 - 762 mm) diagonals
Weight Capacity 5 - 25 lbs (2.3 - 11.3 kg)
Orientation Landscape, Portrait

Features

  • Reduced Height model provides optimal minimum height for bi-focal wearers and touch-panel users that require the display be as close to the work surface as possible

  • Sleek, solidly-constructed forged aluminum arms in subtle silver & black finishes

  • Enhanced patented Centris Extreme Tilt provides +75°, -10° of effortless tilt, for optimal viewing comfort whether sitting or standing

  • Enhanced column interface enables easy upgrades from single- to dual- or triple-monitor installations without impacting the existing installation, future-proofing your investment

  • 20" (508 mm) of total height adjustment range

  • 13" (330 mm) of dynamic height adjustment using smooth motion gas-spring technology

  • Additional 7" (178 mm) of manual height adjustment on the column

  • Enhanced 3-step installation and quick-release monitor interface for easy mounting and maintenance, with included tool storage in the updated base

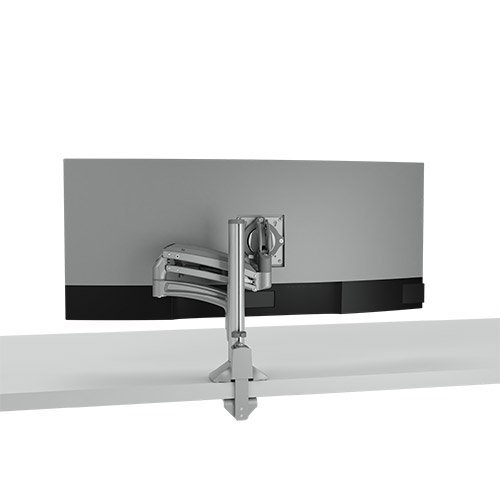

  • Easily clamps to edge of desk, through standard grommet hole, or through bolt hole with included kit

  • Tool-free cable management covers for a clean, professional look

  • With high levels of recycled content & a highly-recyclable design, Chief Kontour monitor arms may contribute to valuable LEED-CI, -NC, and -EB credits

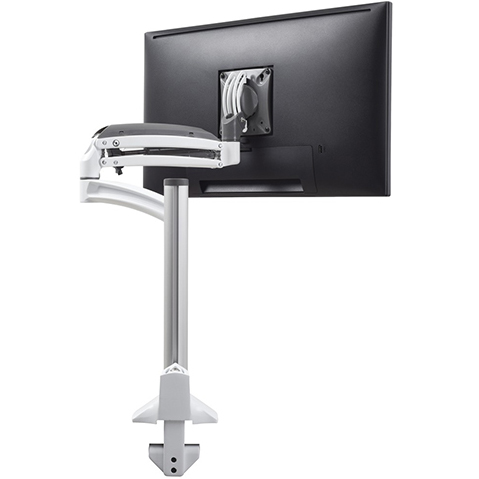

Model K1C120BXRH, K1C120SXRH, K1C120WXRH
Manufacturer Chief Mounts
Part Number K1C120BXRH, K1C120SXRH, K1C120WXRH
UPC 841872163031
Color Black, Silver and White
Desktop Thickness Range 0.50 - 2.50" (12.7 - 63.5 mm)
Dynamic Height Adjustment 13" (330.2 mm)
Manual Height Adjustment 7.0" (177.8 mm)
Maximum Extension 22.5" (571.0 mm)
Minimum Depth 2.45" (62 mm)
Mounting Pattern 75 x 75mm, 100 x 100mm
Shipping Weight 13 lbs (5.9 kg)
Tilt +75 degree, -10 degree
Monitor Size 10 - 30" (254 - 762 mm) diagonals
Weight Capacity 5 - 25 lbs (2.3 - 11.3 kg)
Mounting Options Desk
Monitor Arm Types 1 Monitor
Number of Monitors 1 Monitor
Orientation Landscape, Portrait

Customer reviews

  • 1 stars 0
  • 2 stars 0
  • 3 stars 0
  • 4 stars 0
  • 5 stars 0
(0 out of 0)

Warranty

With the exception of electrical products, Chief warrants its products to be free of defects in material and workmanship for 10 years. All warranties are in effect beginning the date the product was invoiced by Chief. Electrical mechanisms (such as lift products) have a 1-year limited warranty. All warranties are in effect for the original purchaser only. Chief disclaims liability for any modifications, improper installation and/or installations over the specified weight capacity. Chief also disclaims liability for any modifications made to electrical mechanisms, improper installation, incorrect voltage connection and/or installations over the stated weight capacity. All Electrical Mechanisms are intended for indoor use only and failure to comply will void warranty.

Chief's sole warranty obligation to the owner of its products is to repair or replace (at Chief's discretion) defective products at no charge to the original purchaser within the warranty period. The purchaser is responsible for returning the product to Chief Manufacturing via prepaid shipping. To the maximum extent permitted by applicable law, Chief disclaims any other warranties, express or implied, including warranties of fitness for a particular purpose and warranties of merchantability. Chief will not be liable for any damages whatsoever arising out of the use or inability to use Chief products, even if Chief has been advised of the possibility of such damages. Chief bears no responsibility for incidental or consequential damages. This includes, but is not limited to, any labor charges for the repair of Chief products performed by someone other than a Chief employee. Because some states and jurisdictions do not allow the exclusion or limitation of liability for consequential or incidental damages, the above limitation may not apply. Chief will not be responsible for damage to Chief products caused by misuse, abuse, failure to properly package the product for return to Chief or for damage caused by carriers during shipment to or from Chief. Any repairs to Chief products required due to misuse, abuse or shipping damage or repairs of defective Chief product outside the warranty period will be performed at the current rates established by Chief for factory service.
