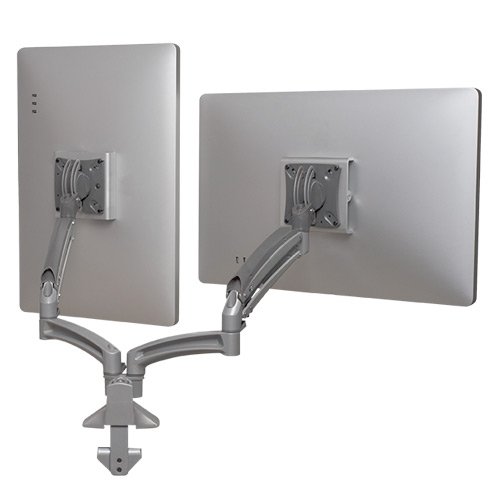

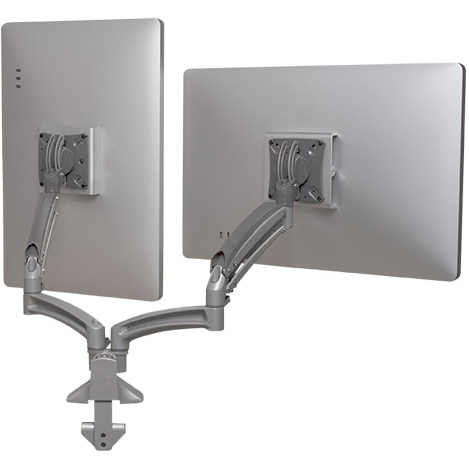

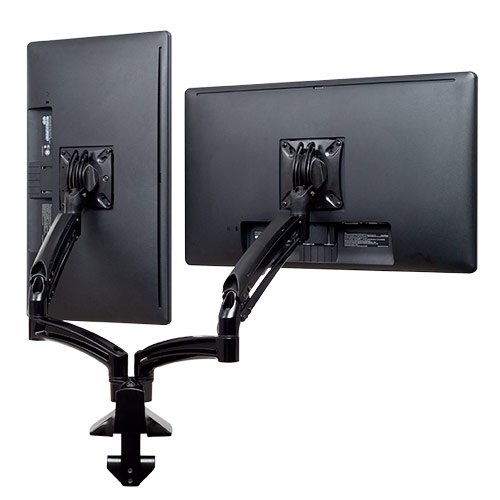

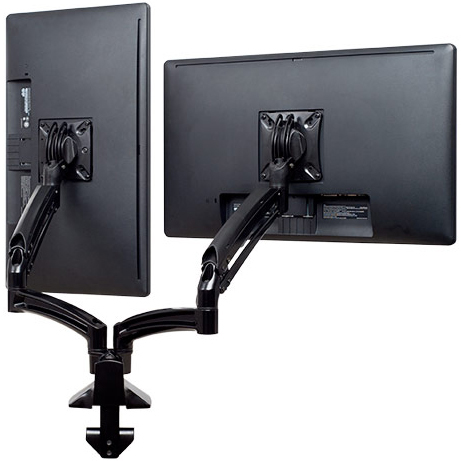

Chief Dual Monitor Dynamic Desk Mount, Reduced Height - K1D220BXRH

Product ID 18631


  • Dual Monitor Desk Mount Monitor Arm
  • Allows for your monitor to be placed closer to your desktop
  • 13" height adjustment from 5.52" to 18.52" from desktop
  • Ideal for users who wear bi-focals, use touch screen monitors or have a high desk
  • Reduced height will position monitors in your neutral area such that you don’t have to strain your neck
  • Compatible with monitors 10-30" screen size, weighing 5-25 lbs


Chief K1D220BXRH, the enhanced Kontour K1D Dual Monitor Dynamic Height-Adjustable Desk Clamp Mount is the perfect solution for the office, healthcare facilities, or home. This Reduced Height model is optimal for bi-focal wearers or touch-panel users that desire their monitors positioned as close to the work surface as possible.

Key enhancements have been made to Chief's patented Centris Extreme Tilt technology for the ultimate in effortless fingertip monitor positioning. Kontour monitor mounts float your displays in the optimal ergonomic position above your work surface to create a more productive and comfortable work space.

Chief K1D220BXRH Kontour Dual Monitor Desk Clamp Mount places monitors close to desktop surface in range 5.52"-18.52" (measured from the center of the VESA plate in the back of the monitor to the desktop surface). This reduced height feature is especially helpful in case of a few situations -

- If your desk is too high, this arm will lower the monitor to a more comfortable viewing height. This way, you won’t have to tilt your head up and down and strain your neck

- If you wear bi-focals

- If you use touch-screen monitor. Placed close to the work surface, touch-screen monitor will be ergonomically comfortable for your hands, elbows and arms.

Monitors can be horizontally adjusted from 2.45" to 20.32" and both the vertical as well as horizontal adjustments can be effortlessly made with mere fingertips. Available in silver and black, this reduced height, TAA compliant, made-in-USA mount is sleekly built with forged aluminum and can be easily installed with clamp, grommet hole or bolt hole.

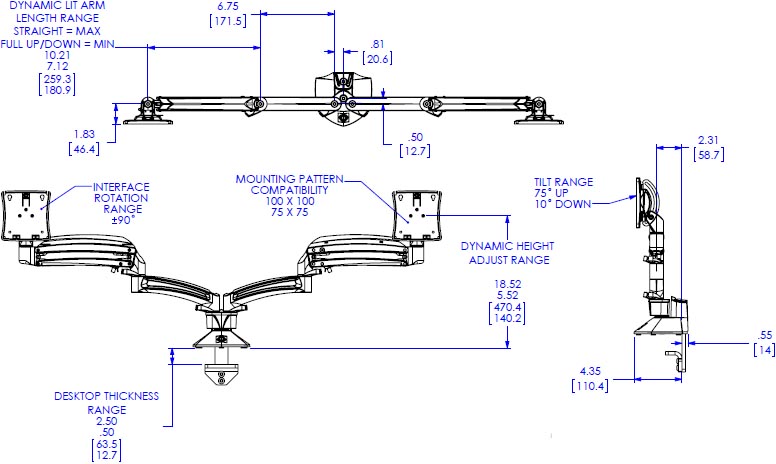

Technical Drawing

Technical Drawing for Chief K1D220BXRH Kontour Reduced Height Dual Desk Mount


Color Black and Silver
Certifications TAA Compliant
Desktop Thickness Range 0.5 - 2.5" (13 - 63 mm)
Dynamic Height Adjustment 5.52" to 18.52" (140 to 470 mm) center of monitor height range
Maximum Extension 20.32" (516 mm)
Minimum Depth 2.45" (62 mm)
Mounting Pattern Compatibility (Universal Versions) 75 x 75mm, 100 x 100mm
Notes Weight capacity is per monitor
Number of Monitors 2
Shipping Weight 14 lbs (6.35 kg)
Tilt +75°, -10°
Typical Screen Sizes 10 - 30" (254 - 762 mm) diagonals
Weight Capacity 5 - 25 lbs (2.3 - 11.3 kg)
Orientation Landscape, Portrait


  • Reduced Height model provides optimal minimum height for bi-focal wearers and touch-panel users that require their displays be as close to the work surface as possible

  • Sleek, solidly-constructed forged aluminum arms in subtle silver and black finishes

  • Enhanced patented Centris Extreme Tilt provides +75°, -10° of effortless tilt, for optimal viewing comfort whether sitting or standing

  • 13" (330 mm) of dynamic height adjustment using smooth motion gas-spring technology

  • Enhanced 3-step installation and quick-release monitor interface for easy mounting and maintenance, with included tool storage in the updated base

  • Easily clamps to edge of desk, through standard grommet hole, or through bolt hole with included kit

  • Tool-free cable management covers for a clean, professional look

  • With high levels of recycled content & a highly-recyclable design, Chief Kontour monitor arms may contribute to valuable LEED-CI, -NC, and -EB credits

Model K1D220BXRH, K1D220SXRH
Manufacturer Chief Mounts
Part Number K1D220BXRH, K1D220SXRH
UPC 841872163130
Color Black and Silver
Desktop Thickness Range 0.5 - 2.5" (13 - 63 mm)
Dynamic Height Adjustment 5.52" to 18.52" (140 to 470 mm) center of monitor height range
Maximum Extension 20.32" (516 mm)
Minimum Depth 2.45" (62 mm)
Mounting Pattern 75 x 75mm and 100 x 100mm
Shipping Weight 14 lbs (6.35 kg)
Tilt +75 degree, -10 degree
Monitor Size 10 - 30" (254 - 762 mm) diagonals
Weight Capacity 5 - 25 lbs (2.3 - 11.3 kg)
Mounting Options Desk
Monitor Arm Types 2 Monitors
Number of Monitors 2 Monitors
Orientation Landscape, Portrait
Maximum Monitor Size 30"
Monitor Placement Side-by-Side
