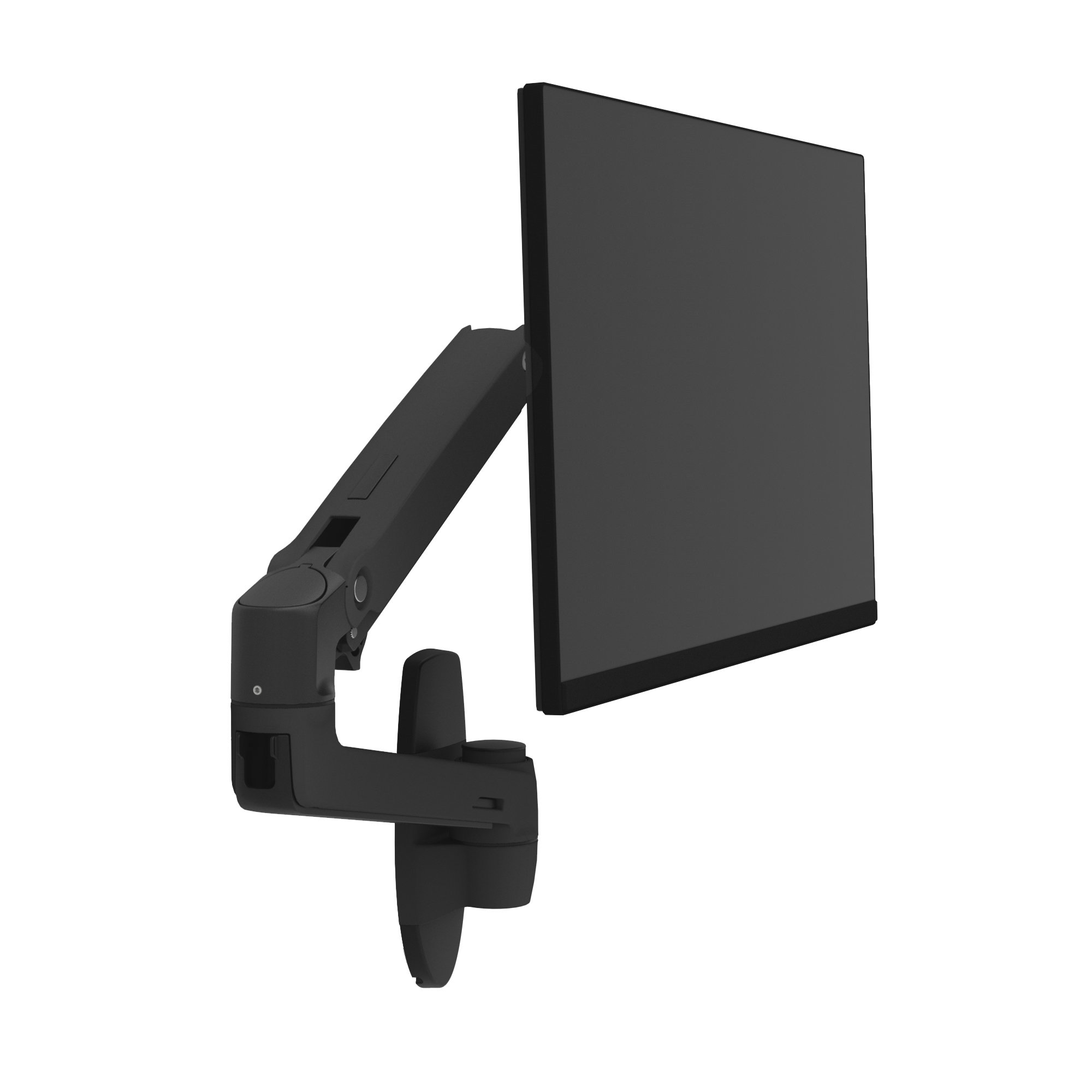

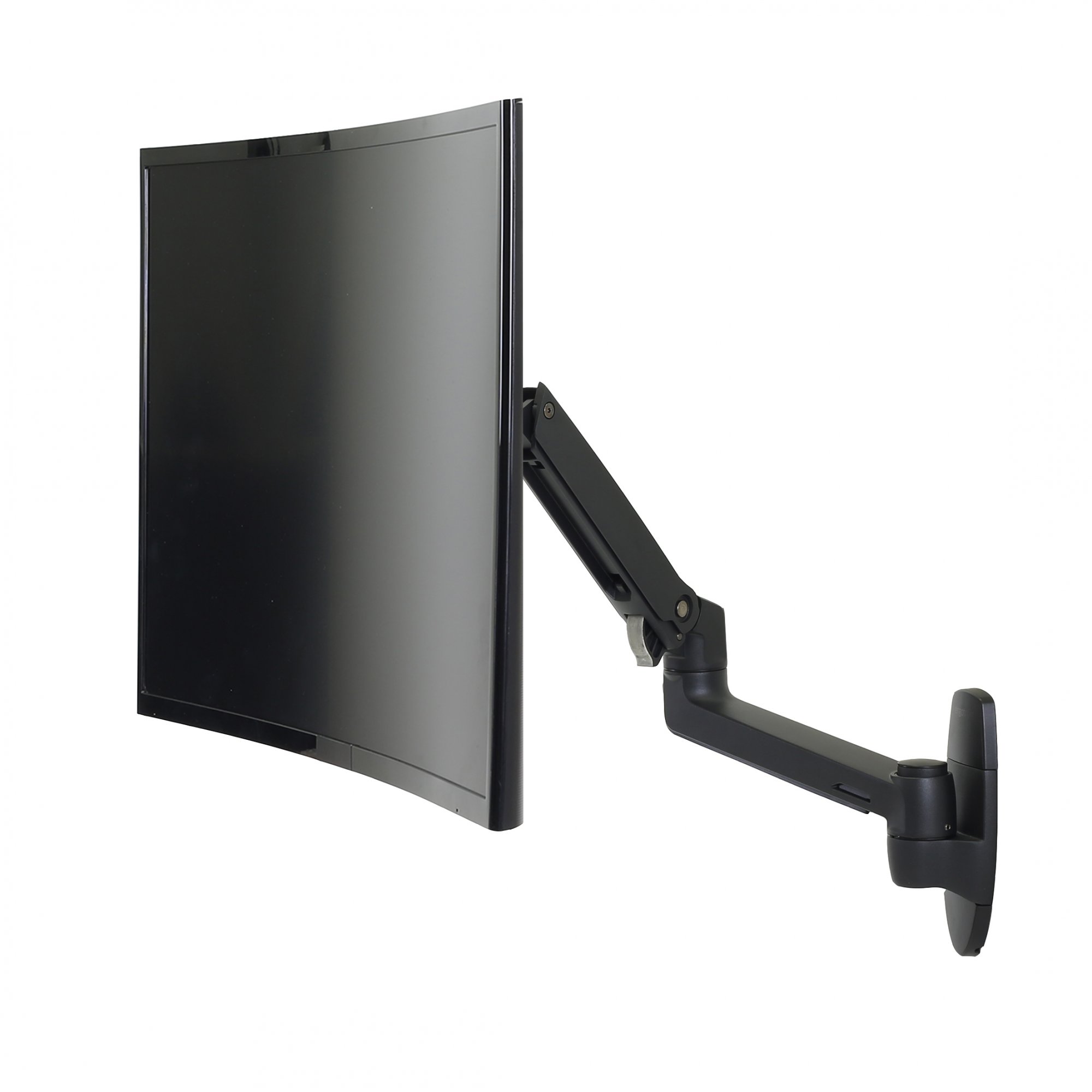

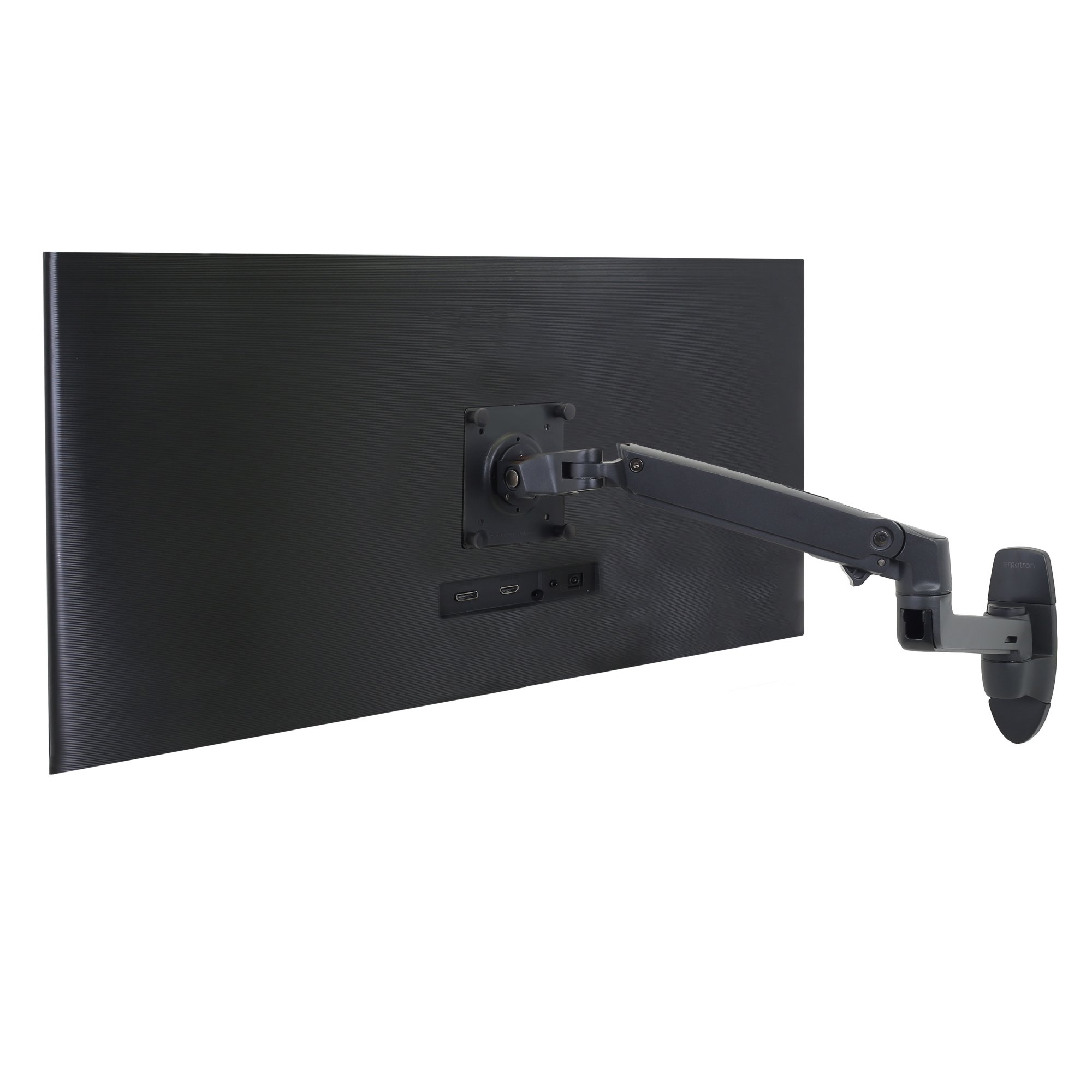

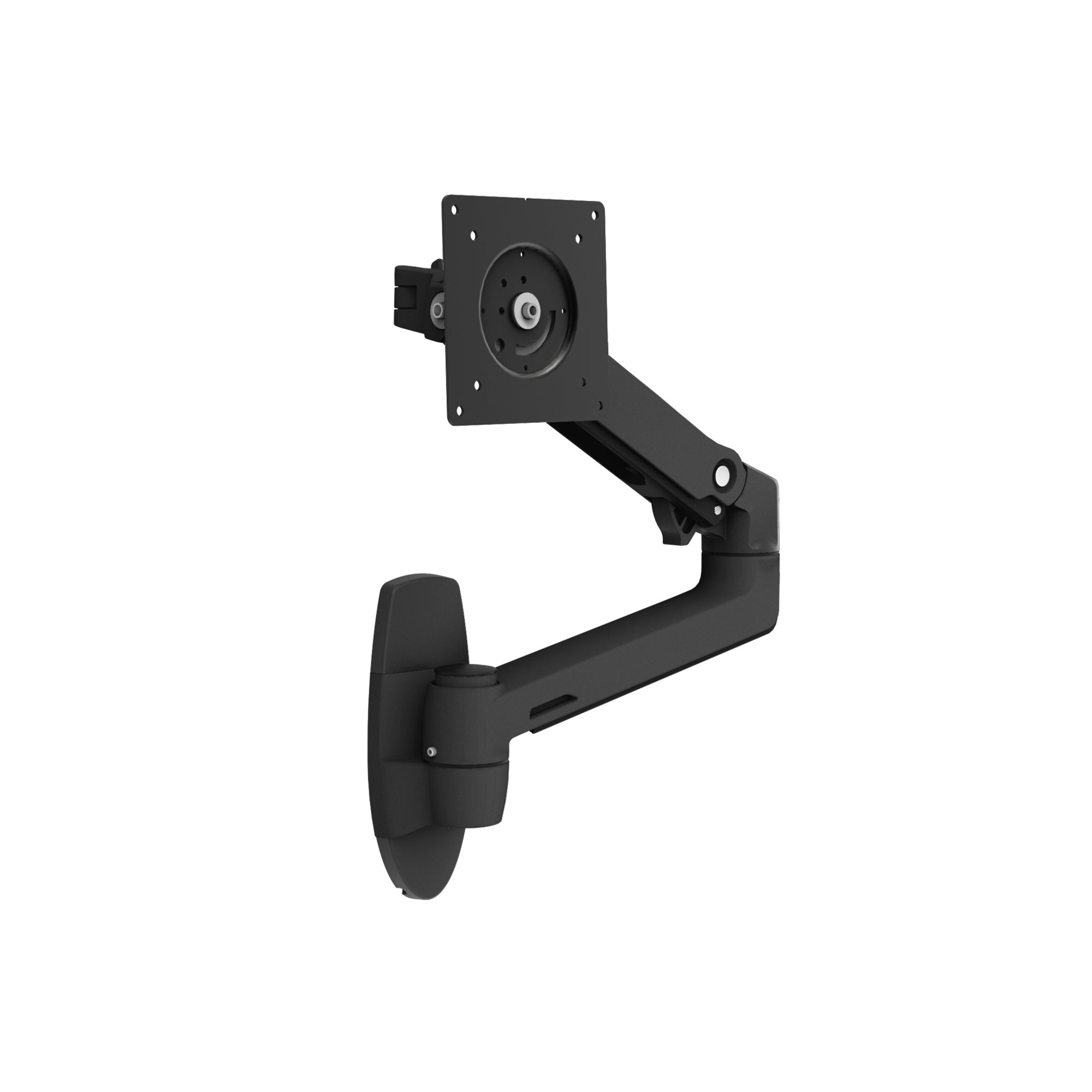

Ergotron LX Wall Mount Monitor Arm (matte black) - 45-243-224

0 out of 5 (based on 0 review). Be the first to review this product
Product ID: 19174
  • Wall mount monitor arm
  • Looking for a Long Reach Wall Mount Monitor Arm?
  • 13" height adjustment: Vertical lift range meets needs of most adults

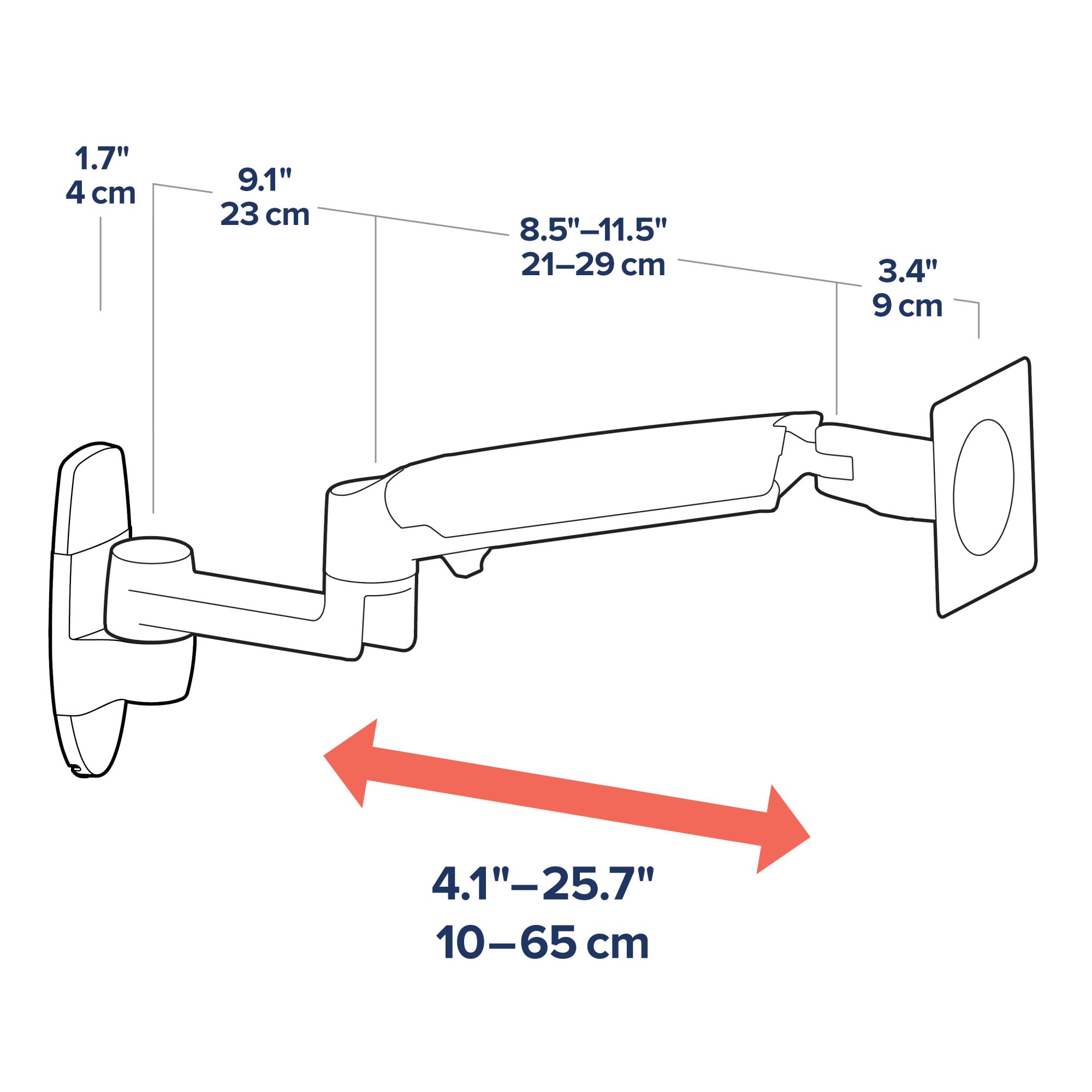

  • 25" horizontal extension: Arm extends to get out of the way when not in use
  • 34" screen size: Monitor should not be more than 34" in screen size
  • Weight capacity of the arm: 7-25 lbs
  • Retractability: Folds back over the base to get out of the way when not in use
  • Please see, if you want a bigger, heavier display and more vertical adjustment
  • Please see if you want this arm in polished aluminum
Recommended Accessories
List Price: $370.00
You save $181.00
Our Price: $189.00
Shipping: $0.00 *
* applies to Contiguous United States

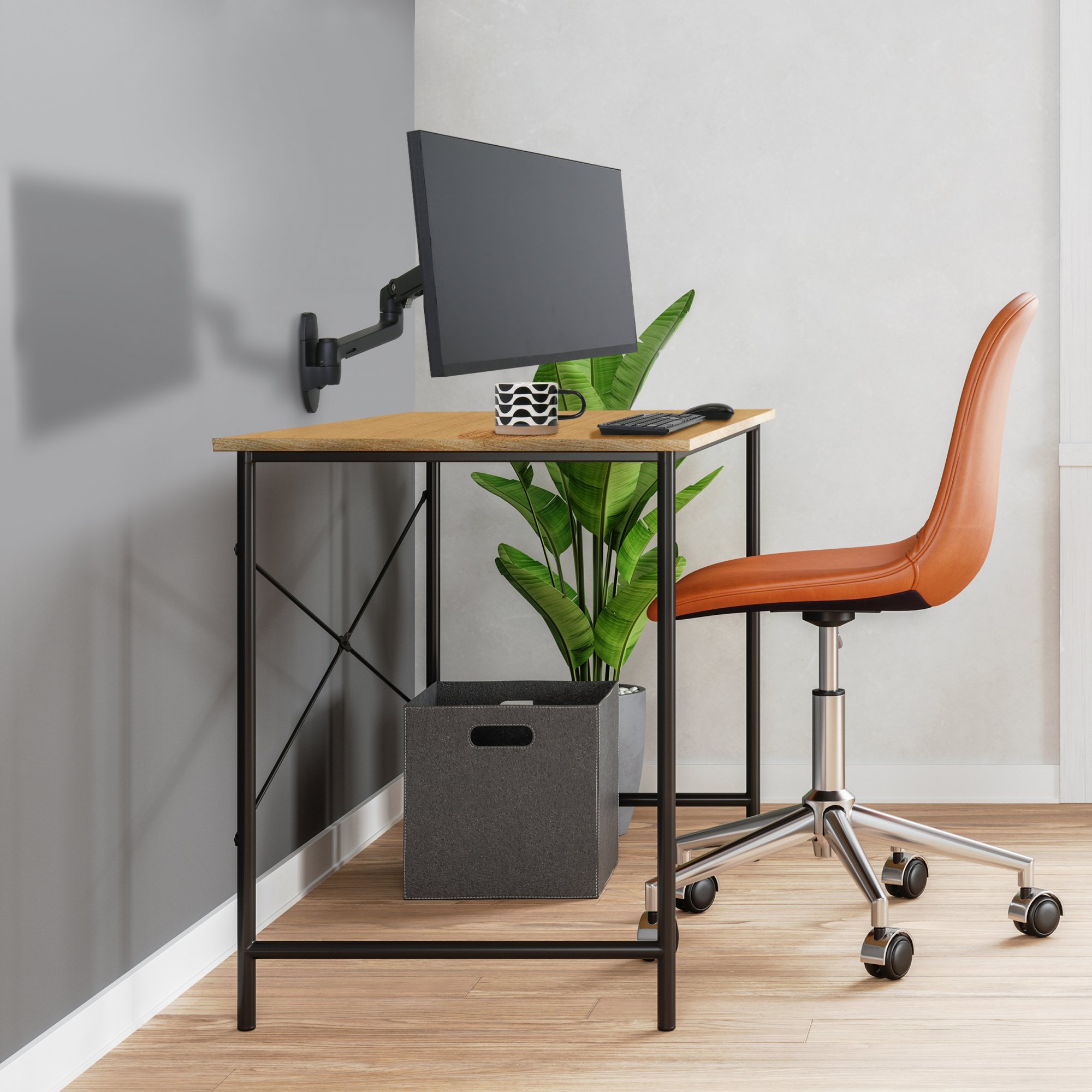

Find your best view, save desk space and discover your most productive self, thanks to ergotron 45-243-224 LX Wall Monitor Arm. Place your screen where you need it for each project, and then reclaim a space full of opportunities by folding the arm and pushing it aside during a much-needed screen break.

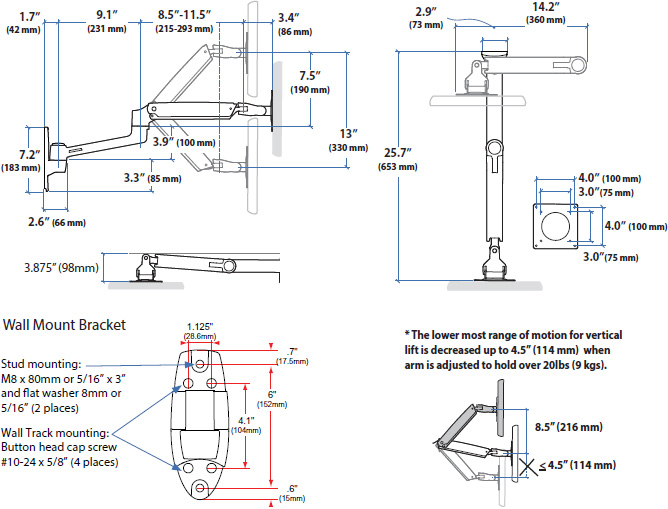

Technical Drawing

Technical drawing for Ergotron LX Wall Mount Monitor Arm (matte black) - 45-243-224

Technical Specifications

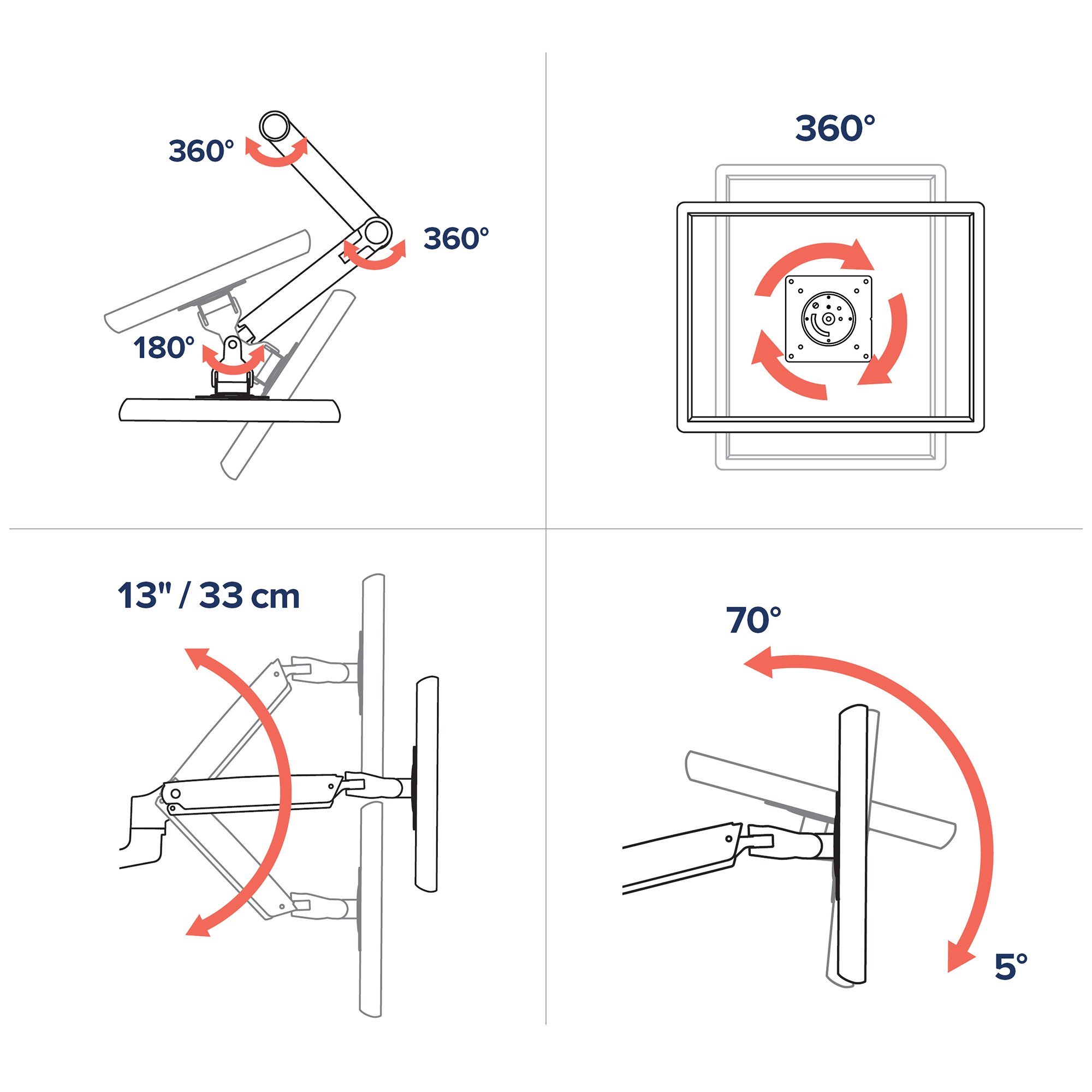

LCD size Capacity Lift Tilt Pan Rotation VESA
Screen Capacity Lift Tilt Pan Rotation VESA
Up to 34"

7-25 lbs

3.2-11.3 kg


33.0 cm

75° 360° 360° MIS-D

Product Information

Part Number 45-243-224 (matte black)

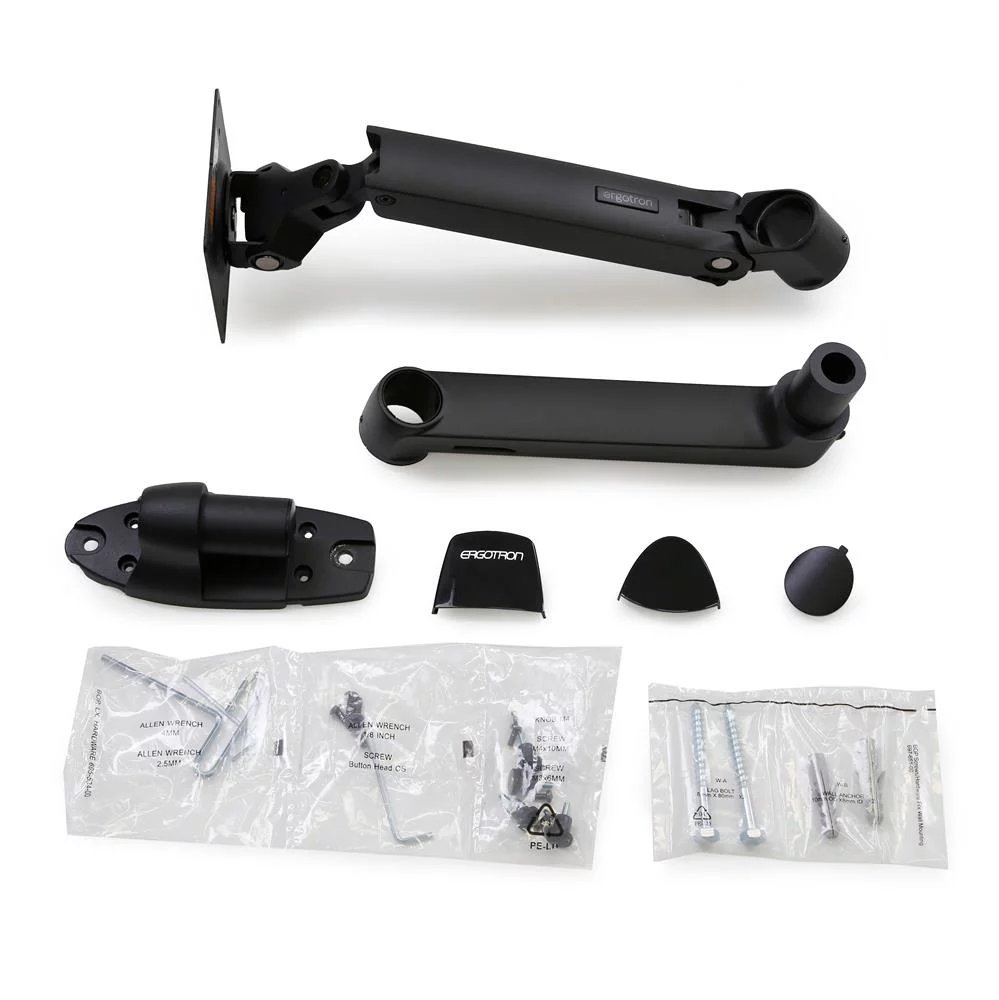

Description LX Wall Mount LCD Monitor Arm
  • LX arm

  • Extension

  • Wall-mount base

Notebook Tray Can be configured to hold a laptop instead of an LCD display; also order a Notebook Tray (50-193-200)
Quality Tested 10,000-cycle test applied to lift mechanism, ensuring years of trouble-free height adjustment
Weight Capacity 7 to 25 lbs (3.2 to 11.3 kg). With monitors greater than 20 lbs (9.1 kg) in weight, the vertical range of motion may be reduced up to 4.5" (11 cm) for a total height range of 8.5" (22 cm)
Tilts Monitor tilts 70° up and 5° down
LX Arm Features & Benefits
  • Aluminum construction offers greater durability and enhanced aesthetics

  • Arm folds back over the base into a compact retracted position

  • Snap-fit cap secures interface of arm to extension for greater stability

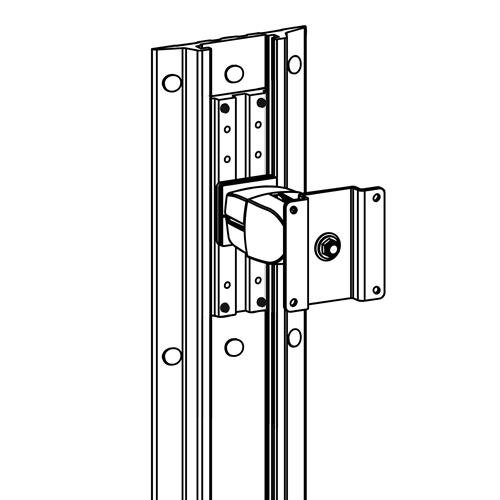

Mounting Options Attaches directly to sturdy vertical surfaces. Where applicable, install to wood stud. Also attaches to Wall Plate, or to Wall Track using bracket 97-091 (order separately)
Mounting Standards VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
Base Base includes theft deterrent anchor holes for cable locks
Certified This product is certified in compliance with indoor air quality standards defined by ANSI/BIFMA pertaining to emissions of VOC (volatile organic compounds)
Product Weight 5.4 lbs (2.5 kg)
Shipping Dimensions 17.5" H x 7.7" W x 6.9" D (44.5 x 19.5 x 17.5 cm)
Shipping Weight 6.2 lbs (2.8 kg)
Warranty Ten (10) years


  • Comfortable fit - Offers full monitor movement and improved ergonomics

  • More motion - Luxury arm easily adjusts monitors up to 34" in size

  • Saves space - Places screen in the best view to tackle each to-do 

  • Sleek build - Streamlined look enhances your work area

  • Easy storage - Folds to fit within 4" (10 cm) of the wall

  • Quality design - Built for years of use by passing our 10,000-cycle motion test

Product Options/Accessories

Ergotron 50-193-200 Notebook/Laptop Tray Ergotron 50-193-200 Laptop Tray $70.00 $57.70 Ergotron 31-016-182 - 10" Wall Track 31-016-182 Wall Track 10" $80.00 $49.99 Ergotron 31-018-182 - 34" Wall Track 31-018-182 Wall Track 34" $170.00 $95.99 Ergotron 97-101-003 Wall Plate 97-101-003 Wall Plate $55.00 $31.25 Ergotron 90-011 Wall Track Mounting Kit for Hollow Walls 90-011 Wall Track Mounting Kit $45.00 $26.92 Ergotron 97-091 Track Mount Bracket Kit for Arms, Pivots 97-091 Track Mount Bracket Kit $55.00 $34.95 Ergotron 31-017-182 - 26" Wall Track 31-017-182 Wall Track 26" $125.00 $76.65 Ergotron 31-039-182 - 42" Wall Track 31-039-182 Wall Track 42" $195.00 $118.06 Ergotron 80-063-200 Vertical Small CPU Holder Black 80-063-200 Small Vertical CPU Holder $105.00 $64.10 Ergotron 60-589-060 Quick Release LCD Bracket 60-589-060 Quick Release Bracket $35.00 $29.00 Ergotron 60-271-009 Slatwall Bracket 60-271-009 Slatwall Bracket $245.00 $149.48 Ergotron 60-591-003 Steel Stud Wall Mounting Kit 60-591-003 Steel Stud Wall Mounting Kit $105.00 $63.51 Ergotron 97-468-202 Universal CPU Holder 97-468-202 Universal CPU Holder $125.00 $73.11 Ergotron 97-531 Wall Track Mounting Fastener Kit for Metal or Wood Studs 97-531 Wall Track Mounting Fastener Kit $20.00 $15.50 Ergotron 97-563-057 Cable Management Kit 97-563-057 Cable Management Kit $55.00 $31.85 Ergotron 80-105-064 Universal CPU Holder 80-105-064 Universal CPU Holder $85.00 $43.90 Ergotron 45-289-026 LX Extension 45-289-026 LX 9" Extension $65.00 $62.95 Ergotron 97-711 Power Strip 97-711 Six Outlet Power Strip $135.00 $82.61 Ergotron 97-747 - 6-ft. USB 2.0 Extension Cable 97-747 USB 2.0 Extension Cable 6' $20.00 $12.53 Ergotron 97-749 - 10-ft. Power Cord 97-749 Power Cord 10' $35.00 $23.64 Ergotron 97-748 - 10-ft. SVGA/VGA Monitor Cable 97-748 - 10 ft. SVGA/VGA Monitor Cable with RGB Coax $55.00 $33.02 Ergotron 97-750 - 10-ft. DVI Dual-Link Monitor Cable 97-750 DVI Dual Link TMDS Cable $60.00 $38.50 Ergotron 97-759 VESA Bracket Adaptor Kit 97-759 VESA (400 x 400 mm) Bracket Adaptor Kit $70.00 $43.01 Ergotron 97-760-009 Monitor Handle Kit Ergotron 97-760-009 Display Handle Kit $85.00 $46.52 Surge Protector with 15ft Long Cord| Desk or Wall Mountable  ED-SURGE-615 Surge Protector with 15ft long Cord - Wall / Under-Desk Mount ED-SURGE-615 Power Strip $39.95 Ergotron 97-815 Scanner Shelf, VESA Attach Ergotron 97-815 VESA Scanner Shelf $85.00 $51.45 Ergotron 80-107-200 Thin Client Mount ( Black) Ergotron 80-107-200 Thin Client Mount ( Black) $85.00 $55.00 Ergotron 31-018-216 Wall Track 34" with Cable Management Cover Ergotron 31-018-216 - 34" Wall Track (white) $170.00 $95.99 Ergotron 45-460-026 Lockable Tablet Mount Ergotron 45-460-026 Lockable Tablet Mount $185.00 $104.34 Ergotron 85-046-231 Tandem Tablet Holder for Microsoft Surface Ergotron 85-046-231 Tandem Tablet Holder, for Microsoft Surface $265.00 $187.18
Model 45-243-224
Manufacturer Ergotron
Part Number 45-243-224
Color Matte black
Monitor Size Up to 34"
Weight Capacity 7-25 lbs (3.2-11.3 kg)
Lift (33.0 cm) 13 in
Tilt 75 degree
Pan 360 degree
Rotation 360 degree
Mounting Pattern VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
Weight 5.4 lbs (2.5 kg)
Shipping Dimensions 17.5" H x 7.7" W x 6.9" D (44.5 x 19.5 x 17.5 cm)
Shipping Weight 6.2 lbs (2.8 kg)
Warranty Ten (10) years

Be the first to review this product

Ergotron LX Wall Mount Monitor Arm (matte black) - 45-243-224


All Ergotron and OmniMount durable products will remain free of defects in material and workmanship for a period of five years from the date of receipt of the product, subject to any exclusions and limitations as set forth below.


  • Ten-year warranty on all HX Products, as well as LX and MX Products purchased on or after August 1, 2014

  • Zip and YES Charging Systems: Lifetime material/workmanship; three years electrical components; one year cables (power/Ethernet)

  • Ten-year warranty on LearnFit Sit-Stand Desks

  • Three-year warranty on all Neo-Flex Ergotron Products

  • Two-year warranty on WorkFit-Z Mini

  • Elevate and accessories: Lifetime material/workmanship. Five (5) years on electrical components. Cords, cables and plugs not warranted

  • The Peanut, Zido and accessories: Lifetime material/workmanship; five (5) years for pneumatic cylinder

  • One-year warranty on electronic components. For example: Auto Lock Drawers, Auto Lock Systems, Keyboard Lights, User Interface, Coiled Cord, Battery Harness, Cables from User I/F to Power Module (excludes AA batteries)

  • Two-year warranty on Power Modules by Ergotron

  • Sealed Lead-Acid (SLA) Power Systems, SLA Batteries

  • Two-year warranty on all SLA power system components by Ergotron

  • Up to one-year capacity warranty on SLA batteries (refer to Further Exclusions and Limitations section)

  • Six-month warranty against Manufacturer’s Defects on SLA batteries, or as mandated by local law

  • Lithium Iron (LiFe) Power Systems, LiFe Batteries

  • LiFe battery capacity is warranted for two years or 1200 discharge cycles, whichever comes first (refer to Further Exclusions and Limitations section)

  • Five-year warranty against Manufacturer’s Defects on LiFe factory-installed batteries (excludes LiFe replacement batteries). Factory-installed LiFe batteries are covered at 100% for the first three years; coverage for years four and five are prorated at 1/60th per month (refer to Further Exclusions and Limitations section)

  • Service Programs - 30-day warranty

  • Refurbished StyleView Carts - one-year warranty for Mechanical Components and Power Module (excludes batteries and cosmetic defects). The appropriate battery-type warranty applies

  • Original Equipment Manufacturer (OEM) Products resold by Ergotron are warranted by the respective manufacturer

  • StyleView Electric Lift motor: Three (3) years on motor and switch

Further Exclusions and Limitations

SLA Batteries

  • In Dual SLA battery systems, replacement of both batteries must occur at the same time (in accordance with the Ergotron User Manual), or the Warranty is automatically void

  • Warranties on SLA batteries (fully-charged or fully-uncharged) left in an unused state for more than three consecutive months are automatically void

  • Factory-installed SLA batteries, and replacement SLA batteries carry a Six-month Warranty Against Manufacturer’s Defects and a 90-day Performance Warranty, or as mandated by local law

  • The 90-day Performance Warranty on factory-installed SLA batteries (excludes SLA replacement batteries) is extended to one-year provided that:
  1. StyleLink software is installed and remains continually operational to show compliance with exclusions and limitations

  2. SLA Battery is not discharged below 25% capacity more than 25 times as recorded by the StyleLink software history

  3. SLA Battery is fully recharged at least once every 36 hours as recorded by the StyleLink software history

LiFe Batteries

  • LiFe batteries that fail to deliver 70% of their rated capacity during the first 1200 discharge cycles of battery life are deemed not to have met performance standards (capacity retention)

  • The LiFe battery discharge cycle is defined as starting at the fully-charged state through the fully discharged state and back to the fully-charged state. Discharge cycle counts are calculated by the software within the battery.

These warranties do not cover product abuse, modification and failure to adhere to product instructions, improper operations and/or misuse. Ergotron is not responsible for damage arising from failure to follow instructions relating to the product’s intended use. Ergotron is not responsible for injury or loss caused by or associated with the installation and/or use of equipment in any manner other than in strict conformance with the instructions set forth in its installation manuals, supplemental assembly and installation instruction sheets, technical bulletins and/or product literature. You will provide Ergotron immediate written notice of any personal injury resulting from the use of Ergotron products.

Ergotron does not warrant damages or defects to the Ergotron product under the following conditions: an Act of God, unauthorized service or repair of the Ergotron products, damage from electrical power problems, usage of parts or components not supplied by Ergotron, failure to follow product instructions and guidelines, unauthorized changes to the Ergotron product, shipping damage (other than original shipment from Ergotron), failure to perform preventative maintenance, or damage caused by peripherals or software or from other external sources.

Exclusive Remedy

Warranty Repair: In the event that any Ergotron equipment becomes defective in material or workmanship during the warranty period, Ergotron will determine with you if the product defect is covered under warranty. Ergotron, at its sole discretion, may replace or repair the unit determined to be under warranty at a designated Ergotron location or at your location. The labor costs associated with the repair of the product may be the responsibility of Ergotron if determined to be under warranty. You must receive pre-approval by Ergotron for the labor costs prior to repair or replacement of warranty products. You must contact Ergotron to obtain a Return Material Authorization (RMA) number. An RMA number may be obtained by contacting Ergotron Customer Care online or by telephone within your specific region. Contact information is available to you on the Ergotron web site at Performance of any repair or replacement on product under warranty does not renew or extend the warranty period.

Non-Warranty Repair: You may return a product for repair that is not covered by warranty only if you have received a preapproved RMA number from Ergotron Customer Care. Labor costs and freight charges associated with non-warranty repair will be the sole responsibility of the customer, reseller or installer/integrator. A standard repair fee, specific to the product, is charged for any product that is repaired outside of the warranty period. Repairs on products out of warranty also carry a 90-day warranty, effective the day that you receive the item after repair.

For products that are not covered under warranty, Ergotron offers you the following options:
  1. You may upgrade to a newer, functionally equivalent product at a normal MSR list price

  2. Ergotron will return the product to you

  3. You can request in writing that Ergotron appropriately dispose of the product for you. A fee may apply for this service as designated by local law

Non-Defective Products: You are notified if, after examining and testing a returned product, Ergotron concludes that the product is not defective. The product is returned to you and you would be responsible for the freight charges associated with the return.

Warranty Disclaimer

Except as expressly set forth in this Limited Warranty and to the greatest extent allowed by law, Ergotron makes no other representations, warranties or conditions, express or implied, including any implied representations, warranties or conditions of merchantability, fitness for a particular purpose, non-infringement, and non-interference. Ergotron does not warrant that your use of the Ergotron product will be uninterrupted or error free. Any implied warranties that may be imposed by law are limited in duration to the Limited Warranty period, to the greatest extent allowed by law. Some states or countries do not allow a limitation on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages for consumer products. In such states or countries, some exclusions or limitations of this Limited Warranty may not apply to you. This Limited Warranty is subject to change without notification.

Ergotron devices are not intended to cure, treat, mitigate or prevent any disease.

Warranty Transferability

This Limited Warranty is available only to the original end consumer and is non-transferable. For this warranty to be valid, the Ergotron product must have been purchased directly from an authorized distributor, reseller and/or authorized representative of Ergotron.
