Ergotron 45-583-026 SV Combo Arm with Worksurface & Pan (polished aluminum)

0 out of 5 (based on 0 review). Be the first to review this product
Product ID: 19339
Recommended Accessories
Our Price: $969.80
Shipping: $29.99 *
* applies to Contiguous United States


Let caregivers in your healthcare organization work sitting or standing with everything they need at their fingertips. Ergotron 45-583-026 sit-stand combo arm holds a monitor, barcode scanner, keyboard, wrist rest and mouse, plus a sturdy worksurface, all on the same height-adjustable arm. The pan-pivot feature moves the monitor up to 180° to easily share information with patients or colleagues and for an ergonomic fit that supports the best workflows (and comfort).

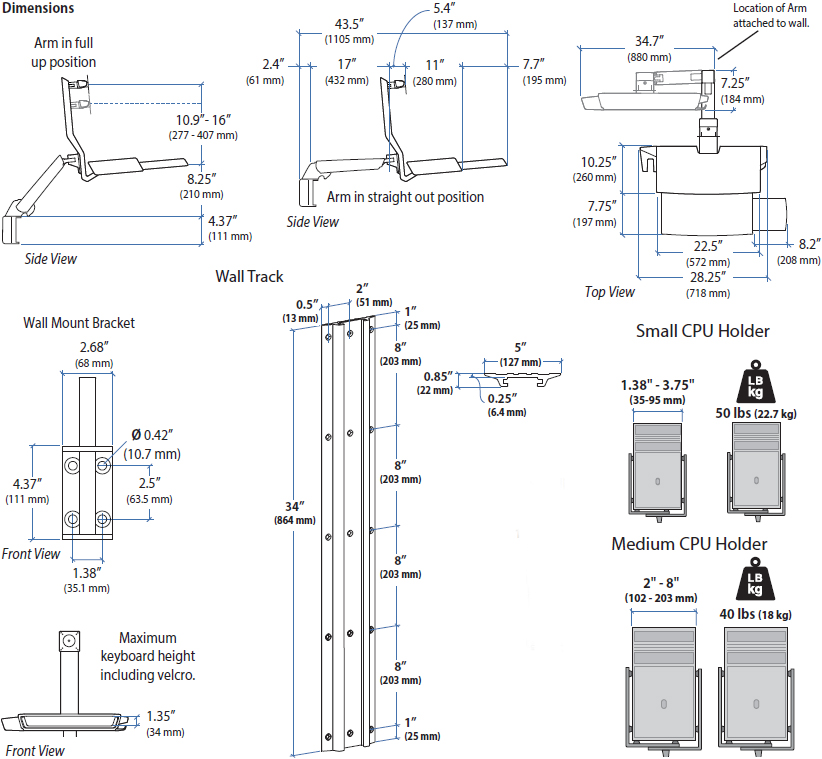

Technical Drawing

Technical Drawing for Ergotron 45-583-026 SV Combo Arm with Worksurface and Pan (polished aluminum)

Technical Specifications

LCD size Capacity Lift Tilt Pan Rotation VESA
Screen Capacity Lift Tilt Pan Rotation VESA
Up to 24"

Up to 32 lbs

14.5 kg


63.5 cm

30° 360° 90° MIS-D

Product Information

Part Numbers (color)
  • 45-583-026 (polished aluminum)

  • 45-583-216 (white)

Description StyleView Combo Arm with Worksurface
  • Combo arm

  • Wall mount bracket

  • Track mount bracket kit

  • Height-adjustable LCD mount

  • Wrist rest

  • Scanner holder

  • Mouse holder

  • Worksurface with integrated keyboard tray

  • Slide-out mouse tray

  • VESA monitor mounting kit

  • Cable ties

Exterior Durable, easy-to-clean exterior composed of aluminum, high-grade plastic
Weight Capacity Display = 6–18 lbs (2.7–8.2 kg); worksurface = 10 lbs (4.5 kg); keyboard, mouse and barcode scanner = 4 lbs (1.8 kg)
Lift Range LCD and keyboard adjusts 20" (51 cm) in tandem with single-motion; LCD adjusts 5" (13 cm) independently; maximum LCD height adjustment = 25" (64 cm)
Pan Range Arm can turn 360° side to side; LCD can turn 180° independently
Patented CF Technology Patented CF lift-and-pivot motion technology
Mounting Standards VESA FDMI, MIS-D, 75/100, C (hole patterns = 100 x 100 mm and 75 x 75 mm)
Scanner Holder Integrated mouse and barcode scanner holder provide easy access
Fold-Down Worksurface/Keyboard Tray Fold-down worksurface / keyboard tray to support workflow needs. Worksurface is 22.75"W x 10.6"D (57.8 x 26.9 cm). Keyboard tray is 18.6"W x 9"D (47.2 x 22.8 cm). Maximum allowable keyboard height = 1.35" (3.4 cm)
SV Extender To increase extension range, also order SV Extender (see Accessories)
Notebook Tray Can be configured to hold a laptop instead of an LCD display; also order Notebook Tray (see Accessories)
Product Weight 32 lbs (14.6 kg)
Shipping Dimensions 26.5" x 26.2" x 11.5" (67 x 67 x 29 cm)
Shipping Weight 40 lbs (18 kg)
Warranty Five (5) years


  • Comfortable documentation - Work sitting or standing with 20" (51 cm) of height adjustment

  • Personalized fit - Independent screen adjustment, plus monitor and keyboard extension

  • Ergonomic set-up - Back-tilt keyboard tray protects wrists from pain or injury

  • Infection control - Offers easy-to-clean features and antimicrobial-treated surfaces

  • Save space - Fold the arm out of the way and stow the keyboard when not in use

  • Clean look - Cables stay hidden and organized for easy cleaning

Product Options/Accessories

Ergotron 20-076-100 Command Post 20-076-100 Multiple Monitor Mounting Command Post $370.00 $335.17 Ergotron 50-193-200 Notebook/Laptop Tray Ergotron 50-193-200 Laptop Tray $70.00 $61.00 Ergotron 31-016-182 - 10" Wall Track 31-016-182 Wall Track 10" $80.00 $63.05 Ergotron 31-018-182 - 34" Wall Track 31-018-182 Wall Track 34" $170.00 $133.00 Ergotron 31-017-182 - 26" Wall Track 31-017-182 Wall Track 26" $125.00 $106.00 Ergotron 31-039-182 - 42" Wall Track 31-039-182 Wall Track 42" $195.00 $157.85 Ergotron 80-063-200 Vertical Small CPU Holder Black 80-063-200 Small Vertical CPU Holder $105.00 $80.85 Ergotron 60-154-100 Brackets for 3" x 3" Command Post 60-154-100 Brackets for 3" x 3" Command Post $350.00 $270.31 Ergotron 97-468-202 Universal CPU Holder 97-468-202 Universal CPU Holder $125.00 $92.21 Ergotron 97-466-214 Medical-Grade Power Strip 97-466-214 Medical-Grade Power Strip $230.00 $178.96 Ergotron 97-563-057 Cable Management Kit 97-563-057 Cable Management Kit $55.00 $43.99 Ergotron 80-105-064 Universal CPU Holder 80-105-064 Universal CPU Holder $85.00 $60.54 Ergotron 45-261-026 StyleView Sit-Stand Combo Extender in Polished Aluminum 45-261-026 SV Sit-Stand Combo Extender $275.00 $217.54 Ergotron 97-747 - 6-ft. USB 2.0 Extension Cable 97-747 USB 2.0 Extension Cable 6' $20.00 $19.00 Ergotron 97-749 - 10-ft. Power Cord 97-749 Power Cord 10' $35.00 $33.00 Ergotron 97-748 - 10-ft. SVGA/VGA Monitor Cable 97-748 - 10 ft. SVGA/VGA Monitor Cable with RGB Coax $55.00 $46.00 Ergotron 97-750 - 10-ft. DVI Dual-Link Monitor Cable 97-750 DVI Dual Link TMDS Cable $60.00 $52.00 Ergotron 97-783 Dual Monitor and Handle Kit Ergotron 97-783 Dual Monitor & Handle Kit $109.00 Ergotron 97-815 Scanner Shelf, VESA Attach Ergotron 97-815 VESA Scanner Shelf $85.00 $77.51 Ergotron 80-107-200 Thin Client Mount ( Black) Ergotron 80-107-200 Thin Client Mount ( Black) $130.00 $69.00 Ergotron 31-018-216 Wall Track 34" with Cable Management Cover Ergotron 31-018-216 - 34" Wall Track (white) $170.00 $133.00 Ergotron 45-261-216 StyleView Sit-Stand Combo Extender in White 45-261-216 SV Sit-Stand Combo Extender $275.00 $226.99 Ergotron 80-063-216 Small Vertical CPU Holder White 80-063-216 Small Vertical CPU Holder $105.00 $80.85 Ergotron 97-858-026 StyleView Sit-Stand Combo Extender, Short 97-858-026 SV Sit-Stand Combo Extender, Short $230.00 $184.11 Ergotron 97-858-216 SV Sit-Stand Combo Extender, Short in White 97-858-216 SV Sit-Stand Combo Extender, Short in White $230.00 $184.11 Ergotron 45-460-026 Lockable Tablet Mount Ergotron 45-460-026 Lockable Tablet Mount $185.00 $119.00 Ergotron 97-468-216 Vertical Universal CPU Holder Ergotron 97-468-216 Vertical Universal CPU Holder $125.00 $92.21 Ergotron 80-107-216 Thin Client Mount (White) Ergotron 80-107-216 Thin Client Mount (White) $130.00 $69.00
Model 45-583-026
Manufacturer Ergotron
Part Number 45-583-026
UPC 698833075632
Color Polished aluminum
Monitor Size Up to 24"
Weight Capacity Up to 32 lbs (14.5 kg)
Lift (63.5 cm) 25 in
Tilt 30 degree
Pan 360 degree
Rotation 90 degree
Mounting Pattern VESA FDMI, MIS-D, 75/100, C (hole patterns = 100 x 100 mm and 75 x 75 mm)
Worksurface Dimensions 22.75" W x 10.6" D (57.8 x 26.9 cm)
Keyboard Tray Dimensions 18.6" W x 9" D (47.2 x 22.8 cm)
Weight 32 lbs (14.6 kg)
Shipping Dimensions 26.5" x 26.2" x 11.5" (67 x 67 x 29 cm)
Shipping Weight 40 lbs (18 kg)
Warranty Five (5) years
