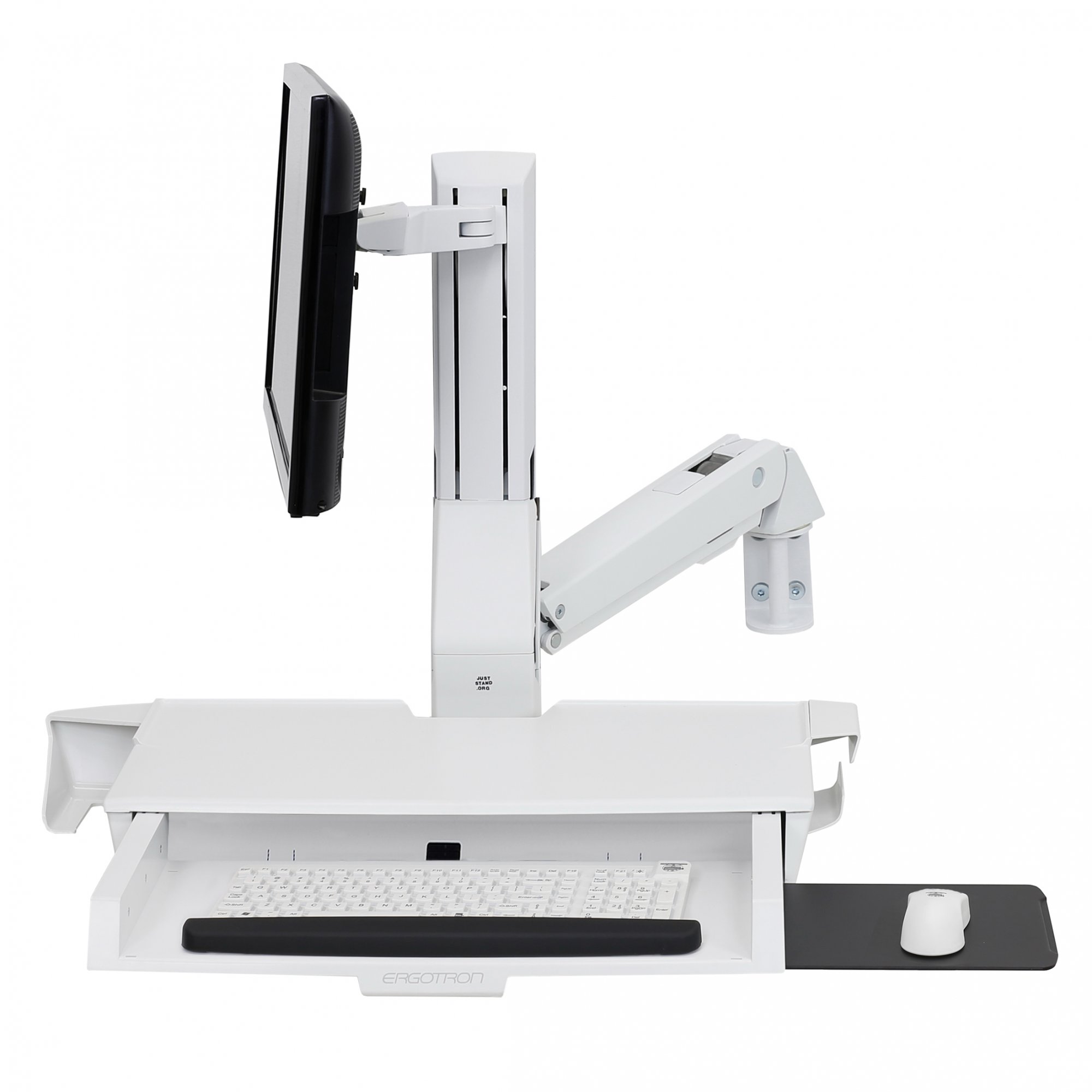

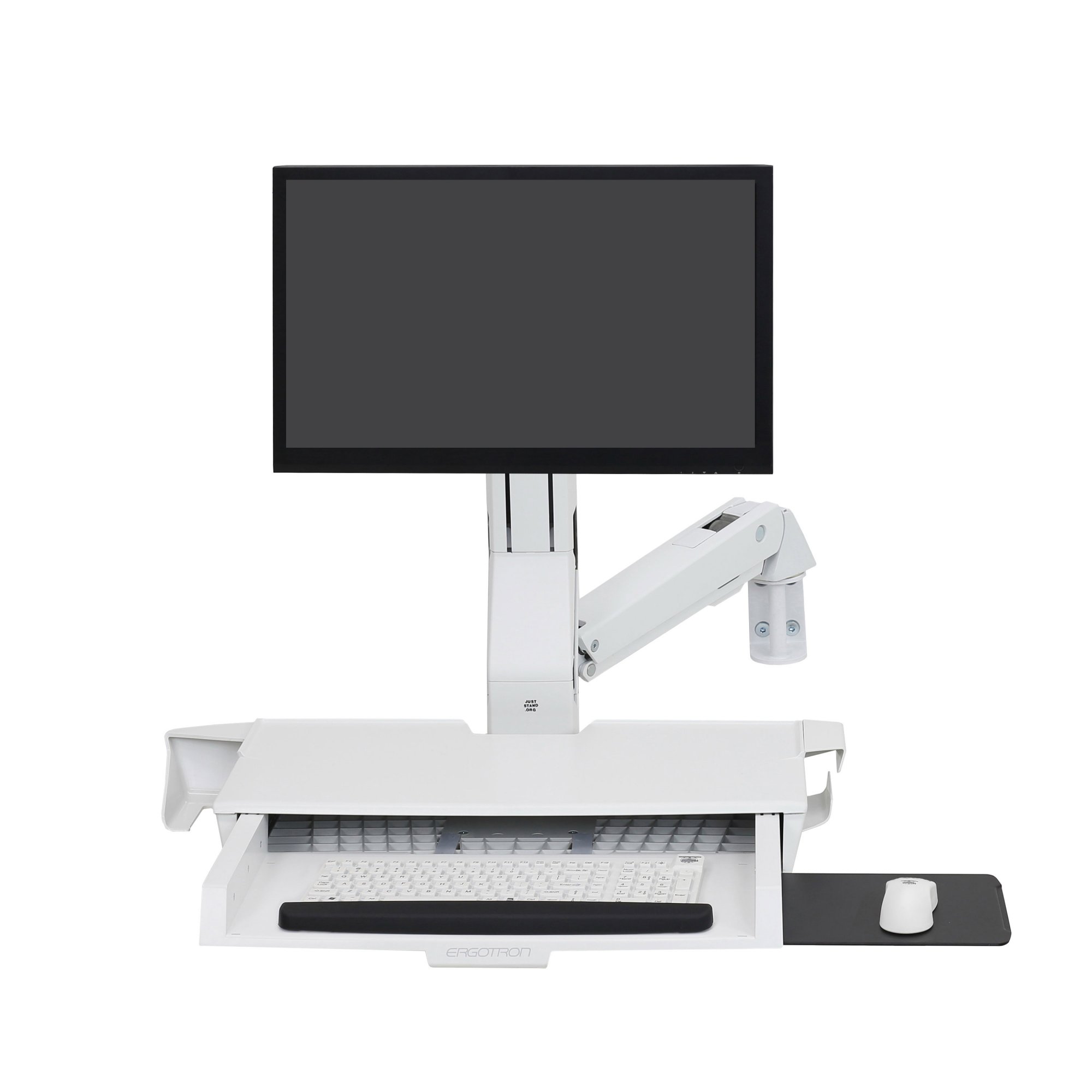

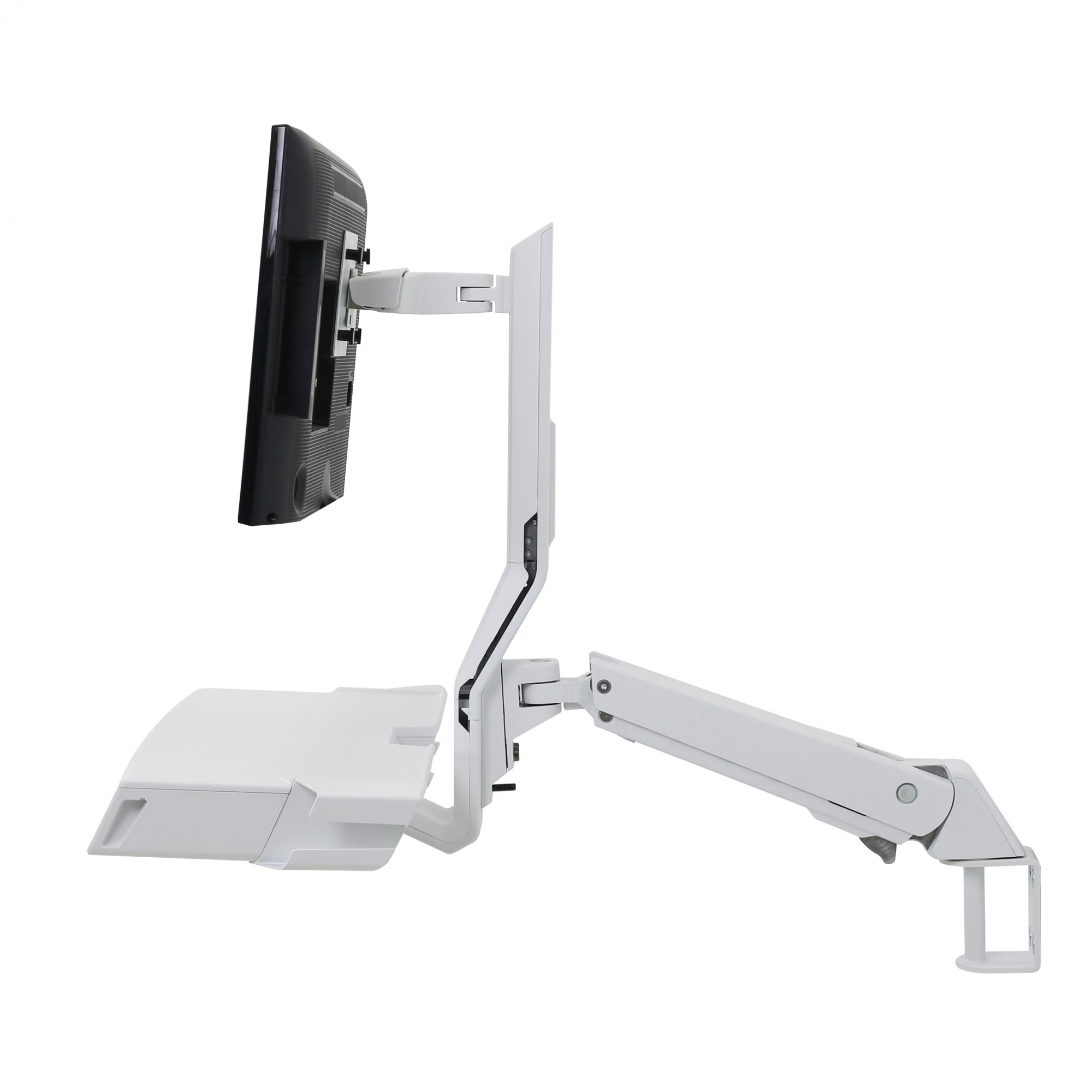

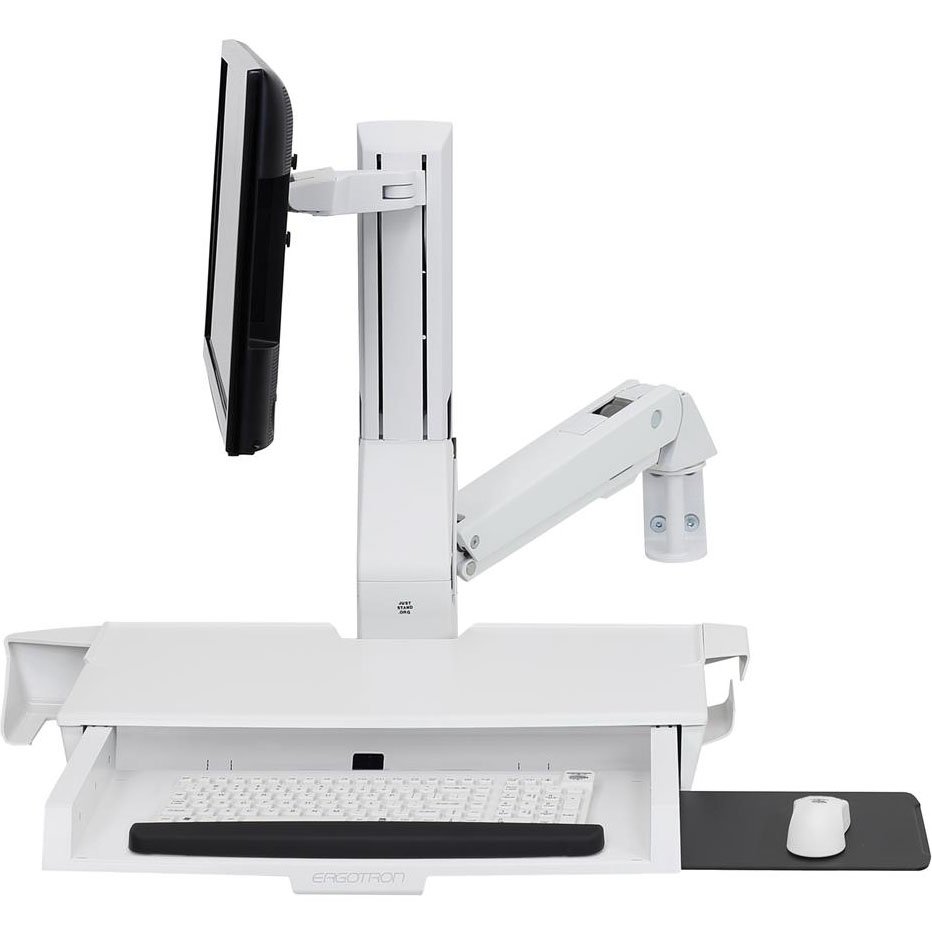

Ergotron 45-583-216 StyleView Combo Arm with Worksurface & Pan (white)

0 out of 5 (based on 0 review). Be the first to review this product
Product ID: 19340
Recommended Accessories
Our Price: $969.80
Shipping: $29.99 *
* applies to Contiguous United States

Description

Let caregivers in your healthcare organization work sitting or standing with everything they need at their fingertips. Ergotron 45-583-216 sit-stand combo arm holds a monitor, barcode scanner, keyboard, wrist rest and mouse, plus a sturdy worksurface, all on the same height-adjustable arm. The pan-pivot feature moves the monitor up to 180° to easily share information with patients or colleagues and for an ergonomic fit that supports the best workflows (and comfort).

Technical Drawing

Technical Drawing for Ergotron 45-583-216 StyleView Combo Arm with Worksurface and Pan (white)

Technical Specifications

LCD size Capacity Lift Tilt Pan Rotation VESA
Screen Capacity Lift Tilt Pan Rotation VESA
Up to 24"

Up to 32 lbs

14.5 kg

25"

63.5 cm

30° 360° 90° MIS-D

Product Information

Part Numbers (color)
  • 45-583-026 (polished aluminum)

  • 45-583-216 (white)

Description StyleView Combo Arm with Worksurface
Includes
  • Combo arm

  • Wall mount bracket

  • Track mount bracket kit

  • Height-adjustable LCD mount

  • Wrist rest

  • Scanner holder

  • Mouse holder

  • Worksurface with integrated keyboard tray

  • Slide-out mouse tray

  • VESA monitor mounting kit

  • Cable ties

Exterior Durable, easy-to-clean exterior composed of aluminum, high-grade plastic
Weight Capacity Display = 6–18 lbs (2.7–8.2 kg); worksurface = 10 lbs (4.5 kg); keyboard, mouse and barcode scanner = 4 lbs (1.8 kg)
Lift Range LCD and keyboard adjusts 20" (51 cm) in tandem with single-motion; LCD adjusts 5" (13 cm) independently; maximum LCD height adjustment = 25" (64 cm)
Pan Range Arm can turn 360° side to side; LCD can turn 180° independently
Patented CF Technology Patented CF lift-and-pivot motion technology
Mounting Standards VESA FDMI, MIS-D, 75/100, C (hole patterns = 100 x 100 mm and 75 x 75 mm)
Scanner Holder Integrated mouse and barcode scanner holder provide easy access
Fold-Down Worksurface/Keyboard Tray Fold-down worksurface / keyboard tray to support workflow needs. Worksurface is 22.75"W x 10.6"D (57.8 x 26.9 cm). Keyboard tray is 18.6"W x 9"D (47.2 x 22.8 cm). Maximum allowable keyboard height = 1.35" (3.4 cm)
SV Extender To increase extension range, also order SV Extender (see Accessories)
Notebook Tray Can be configured to hold a laptop instead of an LCD display; also order Notebook Tray (see Accessories)
Product Weight 32 lbs (14.6 kg)
Shipping Dimensions 26.5" x 26.2" x 11.5" (67 x 67 x 29 cm)
Shipping Weight 40 lbs (18 kg)
Warranty Five (5) years

Benefits

  • Comfortable documentation - Work sitting or standing with 20" (51 cm) of height adjustment

  • Personalized fit - Independent screen adjustment, plus monitor and keyboard extension

  • Ergonomic set-up - Back-tilt keyboard tray protects wrists from pain or injury

  • Infection control - Offers easy-to-clean features and antimicrobial-treated surfaces

  • Save space - Fold the arm out of the way and stow the keyboard when not in use

  • Clean look - Cables stay hidden and organized for easy cleaning

Product Options/Accessories

Ergotron 20-076-100 Command Post 20-076-100 Multiple Monitor Mounting Command Post $370.00 $335.17 Ergotron 50-193-200 Notebook/Laptop Tray Ergotron 50-193-200 Laptop Tray $70.00 $61.00 Ergotron 31-016-182 - 10" Wall Track 31-016-182 Wall Track 10" $80.00 $63.05 Ergotron 31-018-182 - 34" Wall Track 31-018-182 Wall Track 34" $170.00 $133.00 Ergotron 31-017-182 - 26" Wall Track 31-017-182 Wall Track 26" $125.00 $106.00 Ergotron 31-039-182 - 42" Wall Track 31-039-182 Wall Track 42" $195.00 $157.85 Ergotron 80-063-200 Vertical Small CPU Holder Black 80-063-200 Small Vertical CPU Holder $105.00 $80.85 Ergotron 60-154-100 Brackets for 3" x 3" Command Post 60-154-100 Brackets for 3" x 3" Command Post $350.00 $270.31 Ergotron 97-468-202 Universal CPU Holder 97-468-202 Universal CPU Holder $125.00 $92.21 Ergotron 97-466-214 Medical-Grade Power Strip 97-466-214 Medical-Grade Power Strip $230.00 $178.96 Ergotron 97-563-057 Cable Management Kit 97-563-057 Cable Management Kit $55.00 $43.99 Ergotron 80-105-064 Universal CPU Holder 80-105-064 Universal CPU Holder $85.00 $60.54 Ergotron 45-261-026 StyleView Sit-Stand Combo Extender in Polished Aluminum 45-261-026 SV Sit-Stand Combo Extender $275.00 $217.54 Ergotron 97-747 - 6-ft. USB 2.0 Extension Cable 97-747 USB 2.0 Extension Cable 6' $20.00 $19.00 Ergotron 97-749 - 10-ft. Power Cord 97-749 Power Cord 10' $35.00 $33.00 Ergotron 97-748 - 10-ft. SVGA/VGA Monitor Cable 97-748 - 10 ft. SVGA/VGA Monitor Cable with RGB Coax $55.00 $46.00 Ergotron 97-750 - 10-ft. DVI Dual-Link Monitor Cable 97-750 DVI Dual Link TMDS Cable $60.00 $52.00 Ergotron 97-783 Dual Monitor and Handle Kit Ergotron 97-783 Dual Monitor & Handle Kit $109.00 Ergotron 97-815 Scanner Shelf, VESA Attach Ergotron 97-815 VESA Scanner Shelf $85.00 $77.51 Ergotron 80-107-200 Thin Client Mount ( Black) Ergotron 80-107-200 Thin Client Mount ( Black) $130.00 $69.00 Ergotron 31-018-216 Wall Track 34" with Cable Management Cover Ergotron 31-018-216 - 34" Wall Track (white) $170.00 $133.00 Ergotron 45-261-216 StyleView Sit-Stand Combo Extender in White 45-261-216 SV Sit-Stand Combo Extender $275.00 $226.99 Ergotron 80-063-216 Small Vertical CPU Holder White 80-063-216 Small Vertical CPU Holder $105.00 $80.85 Ergotron 97-858-026 StyleView Sit-Stand Combo Extender, Short 97-858-026 SV Sit-Stand Combo Extender, Short $230.00 $184.11 Ergotron 97-858-216 SV Sit-Stand Combo Extender, Short in White 97-858-216 SV Sit-Stand Combo Extender, Short in White $230.00 $184.11 Ergotron 45-460-026 Lockable Tablet Mount Ergotron 45-460-026 Lockable Tablet Mount $185.00 $119.00 Ergotron 97-468-216 Vertical Universal CPU Holder Ergotron 97-468-216 Vertical Universal CPU Holder $125.00 $92.21 Ergotron 80-107-216 Thin Client Mount (White) Ergotron 80-107-216 Thin Client Mount (White) $130.00 $69.00
Model 45-583-216
Manufacturer Ergotron
Part Number 45-583-216
UPC 698833077575
Color White
Monitor Size Up to 24"
Weight Capacity Up to 32 lbs (14.5 kg)
Lift (63.5 cm) 25 in
Tilt 30 degree
Pan 360 degree
Rotation 90 degree
Mounting Pattern VESA FDMI, MIS-D, 75/100, C (hole patterns = 100 x 100 mm and 75 x 75 mm)
Worksurface Dimensions 22.75" W x 10.6" D (57.8 x 26.9 cm)
Keyboard Tray Dimensions 18.6" W x 9" D (47.2 x 22.8 cm)
Weight 32 lbs (14.6 kg)
Shipping Dimensions 26.5" x 26.2" x 11.5" (67 x 67 x 29 cm)
Shipping Weight 40 lbs (18 kg)
Warranty Five (5) years

Be the first to review this product

Ergotron 45-583-216 StyleView Combo Arm with Worksurface & Pan (white)

Warranty

All Ergotron and OmniMount durable products will remain free of defects in material and workmanship for a period of five years from the date of receipt of the product, subject to any exclusions and limitations as set forth below.

Exceptions

  • Ten-year warranty on all HX Products, as well as LX and MX Products purchased on or after August 1, 2014

  • Zip and YES Charging Systems: Lifetime material/workmanship; three years electrical components; one year cables (power/Ethernet)

  • Ten-year warranty on LearnFit Sit-Stand Desks

  • Three-year warranty on all Neo-Flex Ergotron Products

  • Two-year warranty on WorkFit-Z Mini

  • Elevate and accessories: Lifetime material/workmanship. Five (5) years on electrical components. Cords, cables and plugs not warranted

  • The Peanut, Zido and accessories: Lifetime material/workmanship; five (5) years for pneumatic cylinder

  • One-year warranty on electronic components. For example: Auto Lock Drawers, Auto Lock Systems, Keyboard Lights, User Interface, Coiled Cord, Battery Harness, Cables from User I/F to Power Module (excludes AA batteries)

  • Two-year warranty on Power Modules by Ergotron

  • Sealed Lead-Acid (SLA) Power Systems, SLA Batteries

  • Two-year warranty on all SLA power system components by Ergotron

  • Up to one-year capacity warranty on SLA batteries (refer to Further Exclusions and Limitations section)

  • Six-month warranty against Manufacturer’s Defects on SLA batteries, or as mandated by local law

  • Lithium Iron (LiFe) Power Systems, LiFe Batteries

  • LiFe battery capacity is warranted for two years or 1200 discharge cycles, whichever comes first (refer to Further Exclusions and Limitations section)

  • Five-year warranty against Manufacturer’s Defects on LiFe factory-installed batteries (excludes LiFe replacement batteries). Factory-installed LiFe batteries are covered at 100% for the first three years; coverage for years four and five are prorated at 1/60th per month (refer to Further Exclusions and Limitations section)

  • Service Programs - 30-day warranty

  • Refurbished StyleView Carts - one-year warranty for Mechanical Components and Power Module (excludes batteries and cosmetic defects). The appropriate battery-type warranty applies

  • Original Equipment Manufacturer (OEM) Products resold by Ergotron are warranted by the respective manufacturer

  • StyleView Electric Lift motor: Three (3) years on motor and switch

Further Exclusions and Limitations

SLA Batteries

  • In Dual SLA battery systems, replacement of both batteries must occur at the same time (in accordance with the Ergotron User Manual), or the Warranty is automatically void

  • Warranties on SLA batteries (fully-charged or fully-uncharged) left in an unused state for more than three consecutive months are automatically void

  • Factory-installed SLA batteries, and replacement SLA batteries carry a Six-month Warranty Against Manufacturer’s Defects and a 90-day Performance Warranty, or as mandated by local law

  • The 90-day Performance Warranty on factory-installed SLA batteries (excludes SLA replacement batteries) is extended to one-year provided that:
  1. StyleLink software is installed and remains continually operational to show compliance with exclusions and limitations

  2. SLA Battery is not discharged below 25% capacity more than 25 times as recorded by the StyleLink software history

  3. SLA Battery is fully recharged at least once every 36 hours as recorded by the StyleLink software history


LiFe Batteries

  • LiFe batteries that fail to deliver 70% of their rated capacity during the first 1200 discharge cycles of battery life are deemed not to have met performance standards (capacity retention)

  • The LiFe battery discharge cycle is defined as starting at the fully-charged state through the fully discharged state and back to the fully-charged state. Discharge cycle counts are calculated by the software within the battery.

These warranties do not cover product abuse, modification and failure to adhere to product instructions, improper operations and/or misuse. Ergotron is not responsible for damage arising from failure to follow instructions relating to the product’s intended use. Ergotron is not responsible for injury or loss caused by or associated with the installation and/or use of equipment in any manner other than in strict conformance with the instructions set forth in its installation manuals, supplemental assembly and installation instruction sheets, technical bulletins and/or product literature. You will provide Ergotron immediate written notice of any personal injury resulting from the use of Ergotron products.

Ergotron does not warrant damages or defects to the Ergotron product under the following conditions: an Act of God, unauthorized service or repair of the Ergotron products, damage from electrical power problems, usage of parts or components not supplied by Ergotron, failure to follow product instructions and guidelines, unauthorized changes to the Ergotron product, shipping damage (other than original shipment from Ergotron), failure to perform preventative maintenance, or damage caused by peripherals or software or from other external sources.


Exclusive Remedy

Warranty Repair: In the event that any Ergotron equipment becomes defective in material or workmanship during the warranty period, Ergotron will determine with you if the product defect is covered under warranty. Ergotron, at its sole discretion, may replace or repair the unit determined to be under warranty at a designated Ergotron location or at your location. The labor costs associated with the repair of the product may be the responsibility of Ergotron if determined to be under warranty. You must receive pre-approval by Ergotron for the labor costs prior to repair or replacement of warranty products. You must contact Ergotron to obtain a Return Material Authorization (RMA) number. An RMA number may be obtained by contacting Ergotron Customer Care online or by telephone within your specific region. Contact information is available to you on the Ergotron web site at www.ergotron.com. Performance of any repair or replacement on product under warranty does not renew or extend the warranty period.

Non-Warranty Repair: You may return a product for repair that is not covered by warranty only if you have received a preapproved RMA number from Ergotron Customer Care. Labor costs and freight charges associated with non-warranty repair will be the sole responsibility of the customer, reseller or installer/integrator. A standard repair fee, specific to the product, is charged for any product that is repaired outside of the warranty period. Repairs on products out of warranty also carry a 90-day warranty, effective the day that you receive the item after repair.


For products that are not covered under warranty, Ergotron offers you the following options:
  1. You may upgrade to a newer, functionally equivalent product at a normal MSR list price

  2. Ergotron will return the product to you

  3. You can request in writing that Ergotron appropriately dispose of the product for you. A fee may apply for this service as designated by local law

Non-Defective Products: You are notified if, after examining and testing a returned product, Ergotron concludes that the product is not defective. The product is returned to you and you would be responsible for the freight charges associated with the return.


Warranty Disclaimer

Except as expressly set forth in this Limited Warranty and to the greatest extent allowed by law, Ergotron makes no other representations, warranties or conditions, express or implied, including any implied representations, warranties or conditions of merchantability, fitness for a particular purpose, non-infringement, and non-interference. Ergotron does not warrant that your use of the Ergotron product will be uninterrupted or error free. Any implied warranties that may be imposed by law are limited in duration to the Limited Warranty period, to the greatest extent allowed by law. Some states or countries do not allow a limitation on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages for consumer products. In such states or countries, some exclusions or limitations of this Limited Warranty may not apply to you. This Limited Warranty is subject to change without notification.

Ergotron devices are not intended to cure, treat, mitigate or prevent any disease.


Warranty Transferability

This Limited Warranty is available only to the original end consumer and is non-transferable. For this warranty to be valid, the Ergotron product must have been purchased directly from an authorized distributor, reseller and/or authorized representative of Ergotron.
