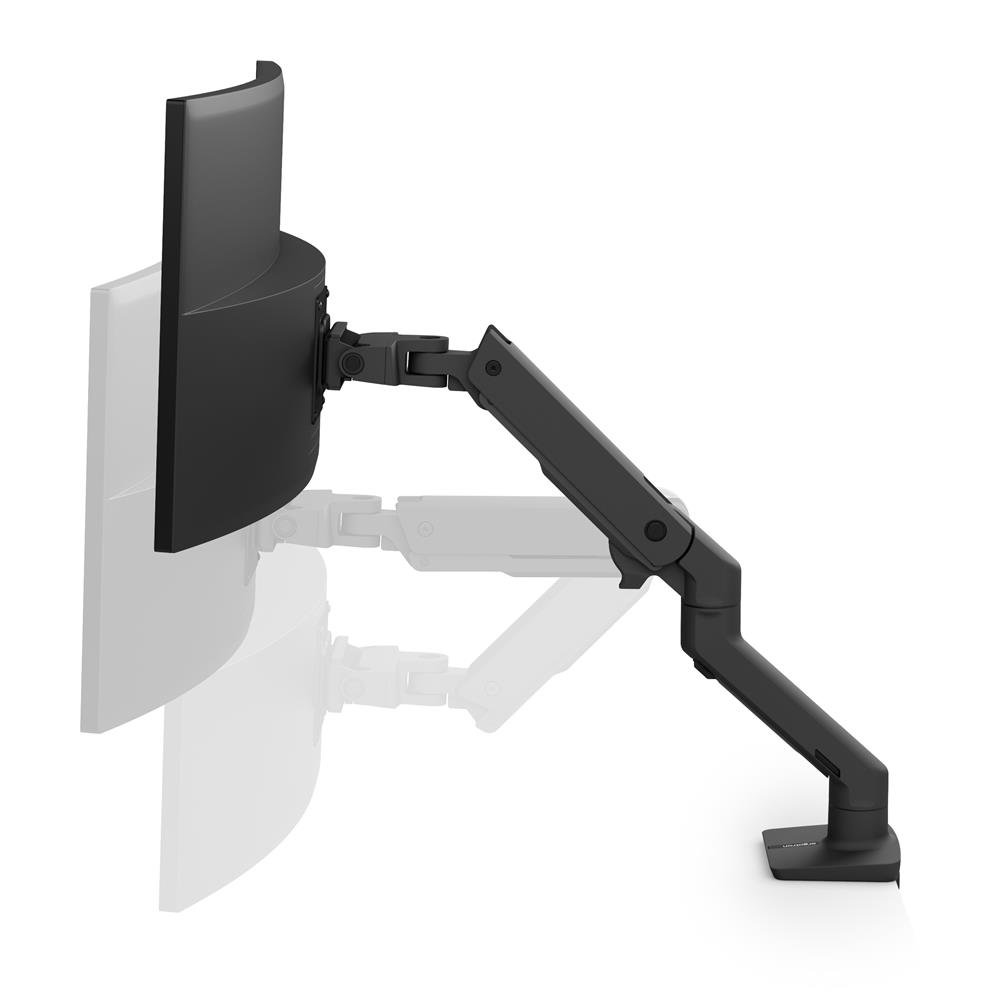

Ergotron 45-475-224 HX Desk Mount Heavy Monitor Arm (matte black)
HX Monitor Arm 45-475-224 provides flexibility in the form
of height adjustability and extension to your heavy monitors, weighing
from 20-42 lbs. Mount the HX arm on your desk, install your heavy
monitor and what you have freed up is valuable desk space for your
writing material, keyboard, mice and other devices. This arm's 11.5"
vertical as well as 23.6" horizontal adjustability not only allows you
to position your display to suit your ergonomic preference but it also
lets you retract the arm over the base or tuck away the monitor under
the shelf or cabinet, when not in use. This feature is especially
important in space constrained areas. The display adjustability
increases ergonomic comfort by reducing strain on shoulders, neck and
Higher weight capacity of this arm makes it suitable for healthcare, hospital diagnostic/treatment rooms like radiation, graphic designing and surveillance needs that demand heavy monitors. Modular ability to increase from single monitor setup to triple monitor setup (with a HX Triple Bow Kit sold separately) is a big attraction for these industries too. Available in white, matte black and polished aluminum, this arm looks slick and chic and comes with a ten year warranty.
The HX Monitor Arm is the perfect accessory to add flexibility and superior ergonomics to your monitor or TV. The HX features a new post design, frees up space and allows positioning of your display for greater productivity. Sleek and streamlined, it accommodates large monitors weighing up to 42 lbs (19.1 kg) using patented Constant Force Technology. Extension/retraction motion and height adjustment capability promote user comfort. It enhances your workspace with a sleek design, and an optional dual or triple monitor bow kit ups your screen count and productivity. It’s BIFMA level 2 certified based on the arm’s low environmental and social impact.
IMPORTANT NOTE - Please note that mounting ultrawide monitors is an evolving field. As new monitors are coming to market all the time, it is not possible to test each and every ultrawide monitor with all the arms that we are offering. However based on the specifications, we believe this arm is compatible with most ultrawide monitors. We recommend that, if and when you purchase this arm, do not discard the original packaging material in case it is needed for a return.
NOTE: To use this arm with the ultra-wide, curved Samsung 49" Odyssey G9, the accessory HX Heavy-Duty Tilt Pivot is required.
|Up to 49"||
20 - 42 lbs
9.1 - 19.1 kg
|Description||HX Desk Monitor Arm|
|Arm||Arm folds back over the base into a compact retracted position; perfect for tucking under systems furniture storage shelves or cabinets in space constrained areas|
|Portrait/Landscape||Portrait/landscape rotation with lockout|
|Cable Management||Streamlined cable management routes cables under arm and within extension|
|Desk Clamp||Desk clamp attaches to surface edge .4" to 2.4" (1 to 6.6 cm) thick|
|Grommet Mount||Grommet mount attaches through surface holes|

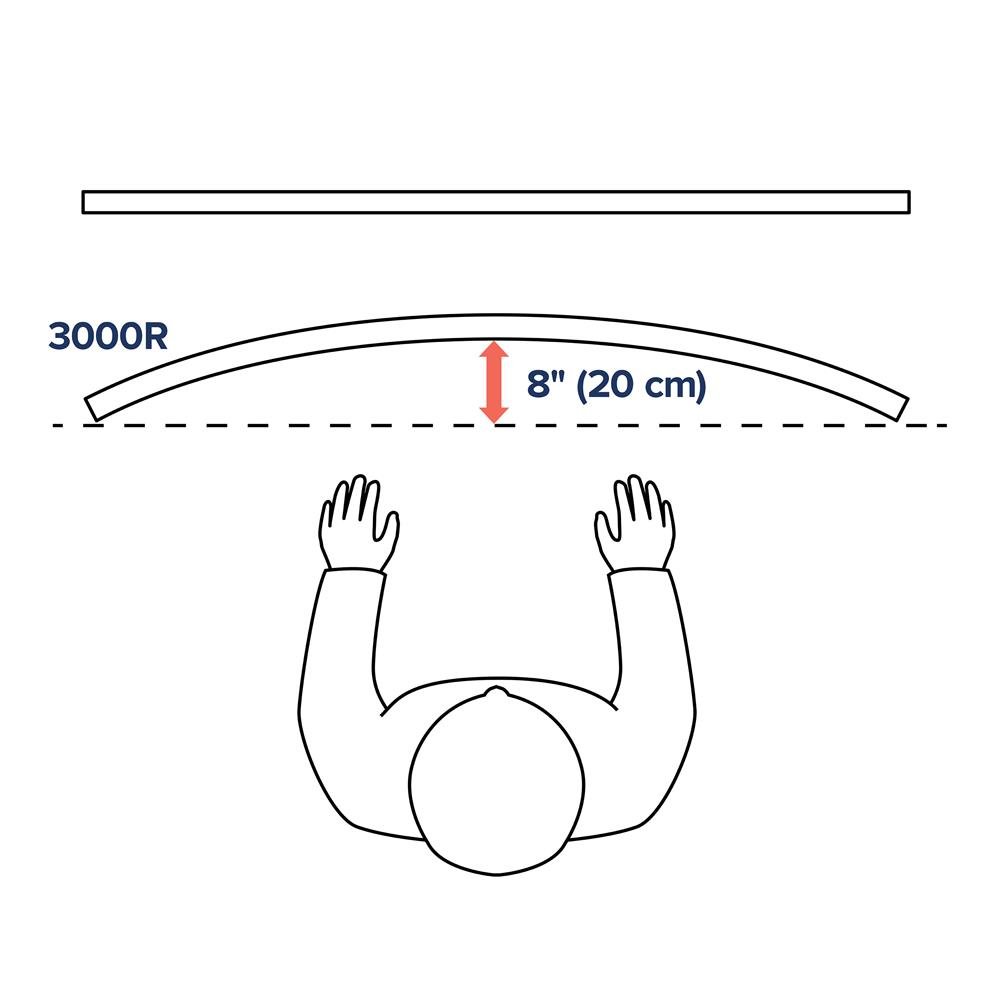

|Weight Capacity||20–42 lbs (9.1–19.1 kg). Note: Display depth > 6" (15 cm) may affect the arm’s weight capacity. For a curved monitor, consider the arc’s depth to determine compatibility. For a display weighing 28–42 lbs (12.7–19.1 kg) with a depth of 6"–12" (15–30 cm), the accessory HX Heavy-Duty Tilt Pivot (98-540-216) is required|
|Ultrawide||To use an HX arm with the ultra-wide, curved Samsung 49" Odyssey G9 Monitor, also order the accessory HX Heavy-Duty Tilt Pivot (98-540-216)|
|Rotation||Monitor can be rotated 360° at connection point of arm and extension; rotation is restricted to 180° at connection point of extension and base|
|Mounting Standards||VESA MIS-D, 75/100 (hole pattern = 100 x 100 mm & 75 x 75 mm), MIS-E (hole pattern = 200 x 100 mm), MIS-F (hole pattern = 200 x 200 mm ONLY). Optional VESA Bracket Adaptor Kit (97-759) can be ordered separately for MIS-F interface with hole pattern of 400 x 200 mm, 400 x 300 mm or 400 x 400 mm|
|Tilt Range||70° backward, 5° forward|
|Certified||This product is certified in compliance with indoor air quality standards defined by ANSI/BIFMA pertaining to emissions of VOC (volatile organic compounds)|
|Product Weight||15.25 lb (6.9 kg)|
|Shipping Dimensions||12" x 19.2" x 7" (30.5 x 48.8 x 17.8 cm)|
|Shipping Weight||18.3 lbs (8.3 kg)|
|Warranty||Ten (10) years|
Comfortable fit - Offers ergonomic monitor positioning using patented Constant Force Technology
Rotation stop - Avoid hitting cube walls with a rotation-stop on the base
Saves space - Places screen in the best view to tackle each to-do
Sleek build - Cables stay hidden under the arm and through the extension
Sustainable choice - BIFMA level 2 certified for a low environmental and social impact
Quality design - Built for thousands of movements by passing 10,000-cycle test
|Monitor Size||Up to 49"|
|Weight Capacity||20–42 lbs (9.1–19.1 kg)|
|Lift||(29.2 cm) 11.5 in|
|Mounting Pattern||VESA MIS-D, 75/100 (hole pattern = 100 x 100 mm & 75 x 75 mm), MIS-E (hole pattern = 200 x 100 mm), MIS-F (hole pattern = 200 x 200 mm ONLY)|
|Surface Edge Thickness||0.4" to 2.4" (1 to 6.6 cm)|
|Weight||15.25 lb (6.9 kg)|
|Shipping Dimensions||12" x 19.2" x 7" (30.5 x 48.8 x 17.8 cm)|
|Shipping Weight||18.3 lbs (8.3 kg)|
|Warranty||Ten (10) years|
