Ergotron 98-540-216 HX Heavy-Duty Tilt Pivot for Samsung Odyssey G9

Product ID 19509

Description

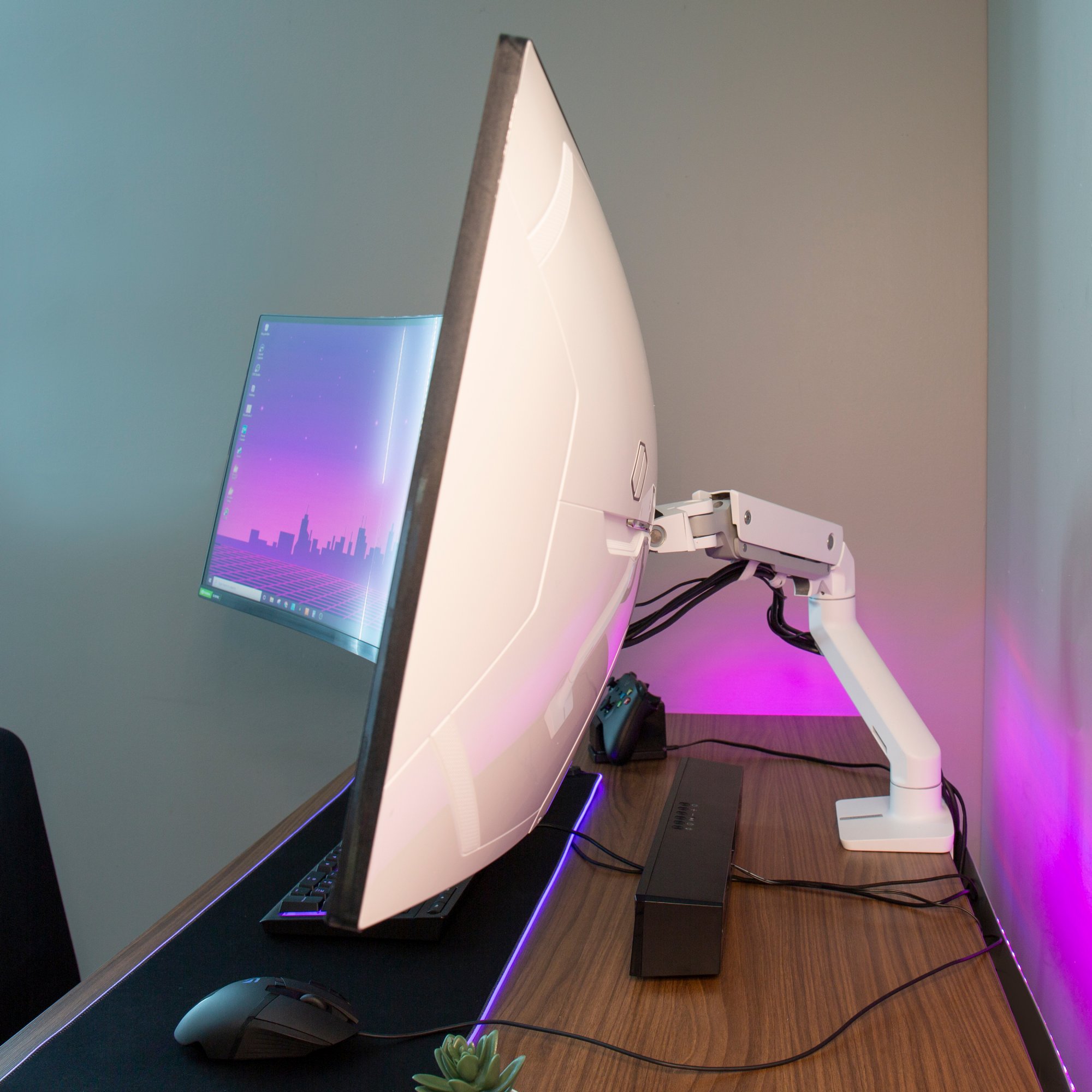

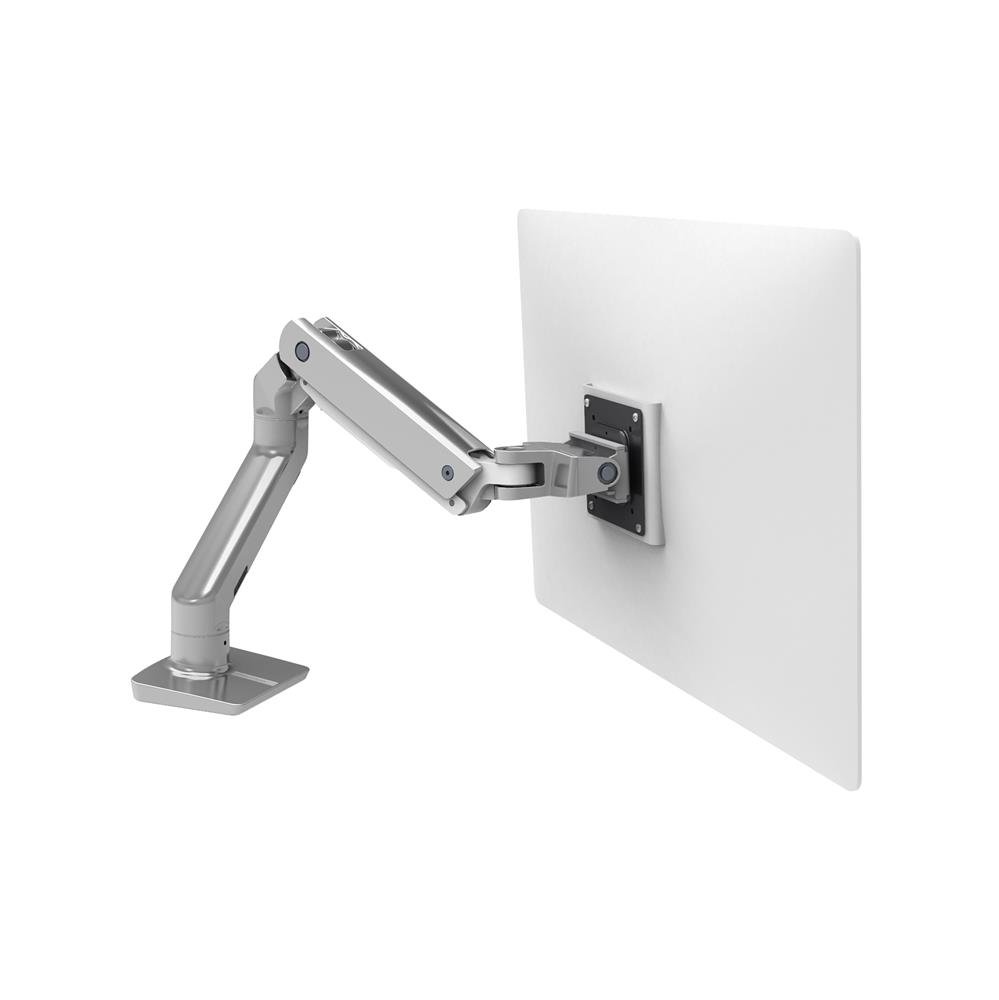

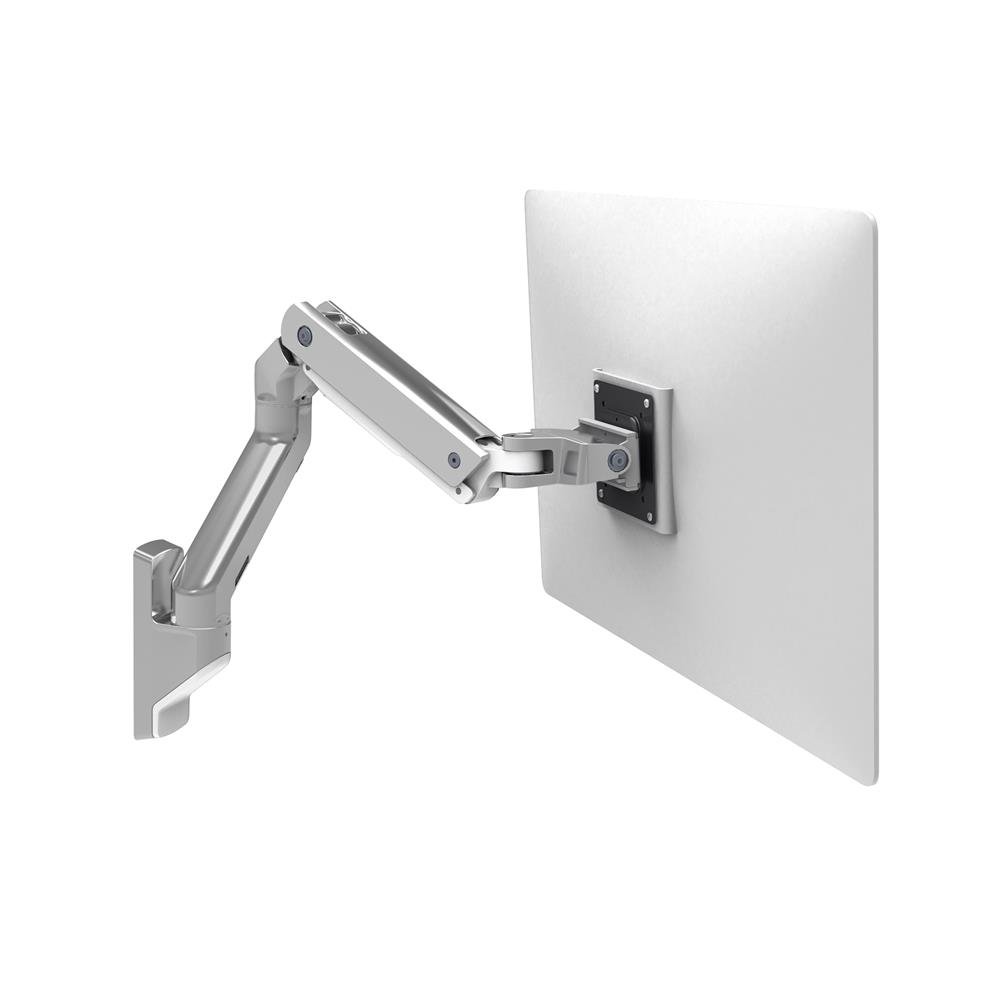

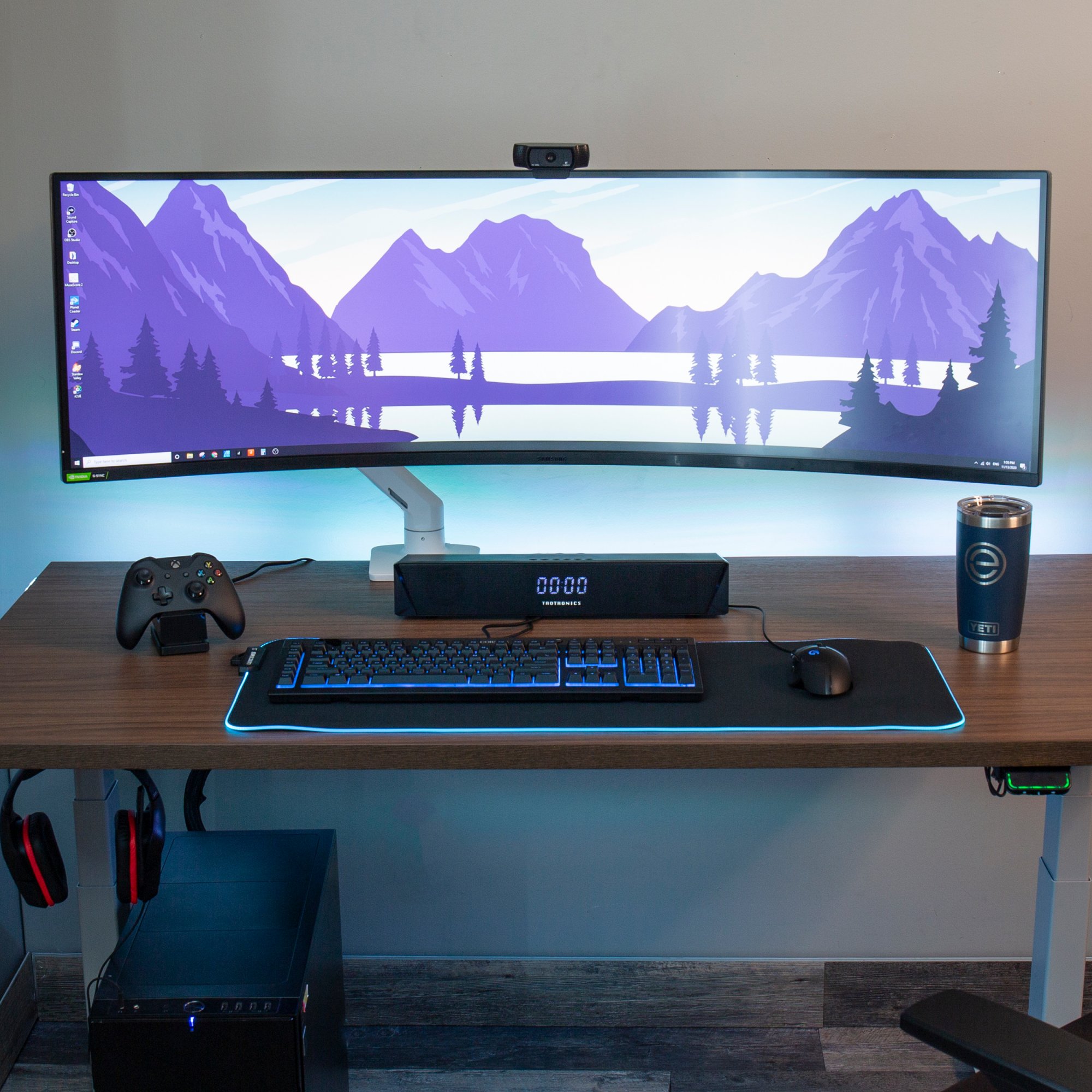

Enable immersive viewing experiences with a professional-grade HX Desk or Wall Monitor Arm. When added to an HX, Ergotron 98-540-216 heavy-duty pivot gives gamers or office professionals the freedom to move and position ultra-wide curved displays that have a depth of 6"–12" (15–30 cm), such as the Samsung G9.

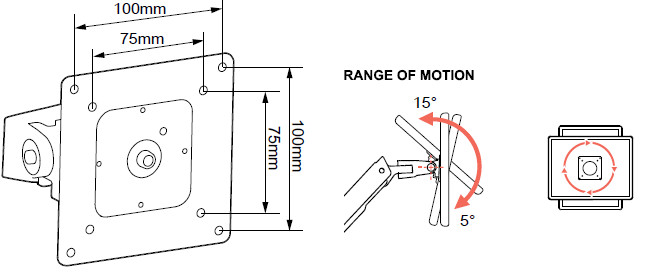

Technical Drawing

Technical Drawing for Ergotron 98-540-216 HX Heavy-Duty Tilt Pivot for Samsung G9

Technical Specifications

LCD size Capacity Lift Tilt Pan Rotation VESA
Screen Capacity Lift Tilt Pan Rotation VESA
Up to 49"

28 - 42 lbs

12.7 - 19.1 kg

- 20° - 360° MIS-D

Product Information

UPC 698833085204
Part Number 98-540-216
Color White

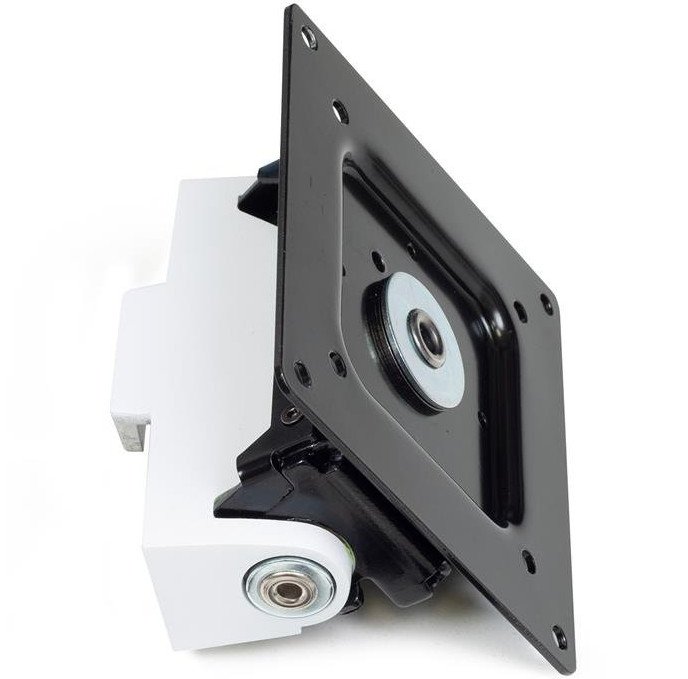

Description HX Heavy-Duty Tilt Pivot
Includes
  • Tilt pivot

  • Attachment hardware

Compatible Specially designed to enable using an HX arm with the Samsung 49" Odyssey G9 (C49G97T and C49G95T Series). This pivot’s heavy-duty tilt mechanism compensates for the curved display’s extreme depth of 12" (30 cm)
Suitable for Monitors Weighing 28–42 lbs (12.7–19.1 kg) with a depth of 6"–12" (15–30 cm) without stand. For displays that fall outside these specifications, this pivot is not necessary
Tilt Range 15° backward, 5° forward
Mounting Standard VESA MIS-D, 75/100 (hole pattern = 100 x 100 mm & 75 x 75 mm)
Recommended Worksurface Thickness ≥ 1.0" (2.5 cm) in order to minimize vibration
Product Weight 2 lbs (1 kg)
Shipping Dimensions 8" x 6.9" x 4.1" (20.5 x 17.5 x 10.5 cm)
Shipping Weight 2.8 lbs (1.3 kg)
Warranty Ten years

Benefits

  • Sturdy fit - Tilts +15/-5° to work or play comfortably

  • Protect your investment - Quality design securely supports large monitors

  • Quick install - Just replace the existing HX pivot for easy attachment of an ultra-wide display

  • Guaranteed compatible - Works with the Samsung 49" Odyssey G9 Monitor

  • Reclaim desk space - Skip the standard monitor base - lift your screen above the desktop

  • Simple adjustability - A wide range of motion enables precise screen positioning

Model 98-540-216
Manufacturer Ergotron
Part Number 98-540-216
UPC 698833085204
Color White
Monitor Size Up to 49"
Weight Capacity 28-42 lbs (12.7–19.1 kg)
Tilt 20 degree
Rotation 360 degree
Mounting Pattern VESA MIS-D, 75/100 (hole pattern = 100 x 100 mm & 75 x 75 mm)
Desk Thickness ≥ 1.0" (2.5 cm) in order to minimize vibration
Weight 2 lbs (1 kg)
Shipping Dimensions 8" x 6.9" x 4.1" (20.5 x 17.5 x 10.5 cm)
Shipping Weight 2.8 lbs (1.3 kg)
Warranty 10 yrs

Customer reviews

  • 1 stars 0
  • 2 stars 0
  • 3 stars 0
  • 4 stars 0
  • 5 stars 1
(5 out of 1)
Keeps the G9 Stable

by Oliver, Federal Way, WA, May 31, 2021

This is required to use the HX arm for an Odyssey G9 and it does the job. It's definitely heavier duty than the standard and works well. I'm glad they rushed this to make it available for a new monitor. Hopefully eventually they'll be able to package it with the HX and reduce the cost a little because it does add up.
