Ergotron 61-367-060 CareFit Enclosure Wall Mount Computer Workstation

Product ID 19681
Ergotron 61-367-060 CareFit Enclosure Wall Mount Computer Workstation
Low-profile design stays within 4" (10 cm) of the wall to fit tight spaces
Ergotron 61-367-060 CareFit Enclosure Wall Mount Computer Workstation
Low-profile design stays within 4" (10 cm) of the wall to fit tight spaces


  • Wall mount workstation in color black

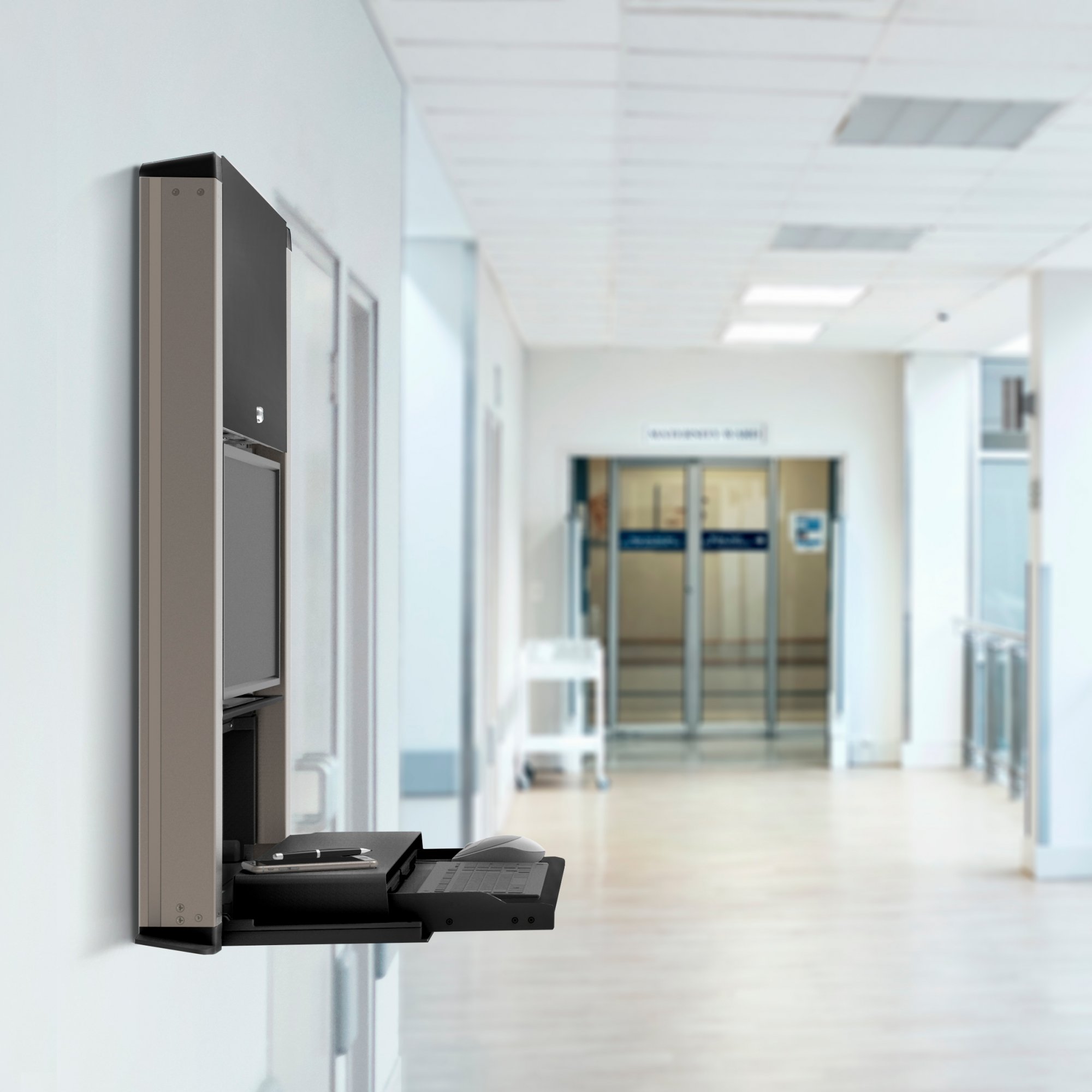

  • Low profile feature (just 4" from wall) makes it suitable for crowded corridors and patient rooms
  • Offers 20" height adjustment for sitting and standing
  • Compatible with most monitors from 24"-27" screen size

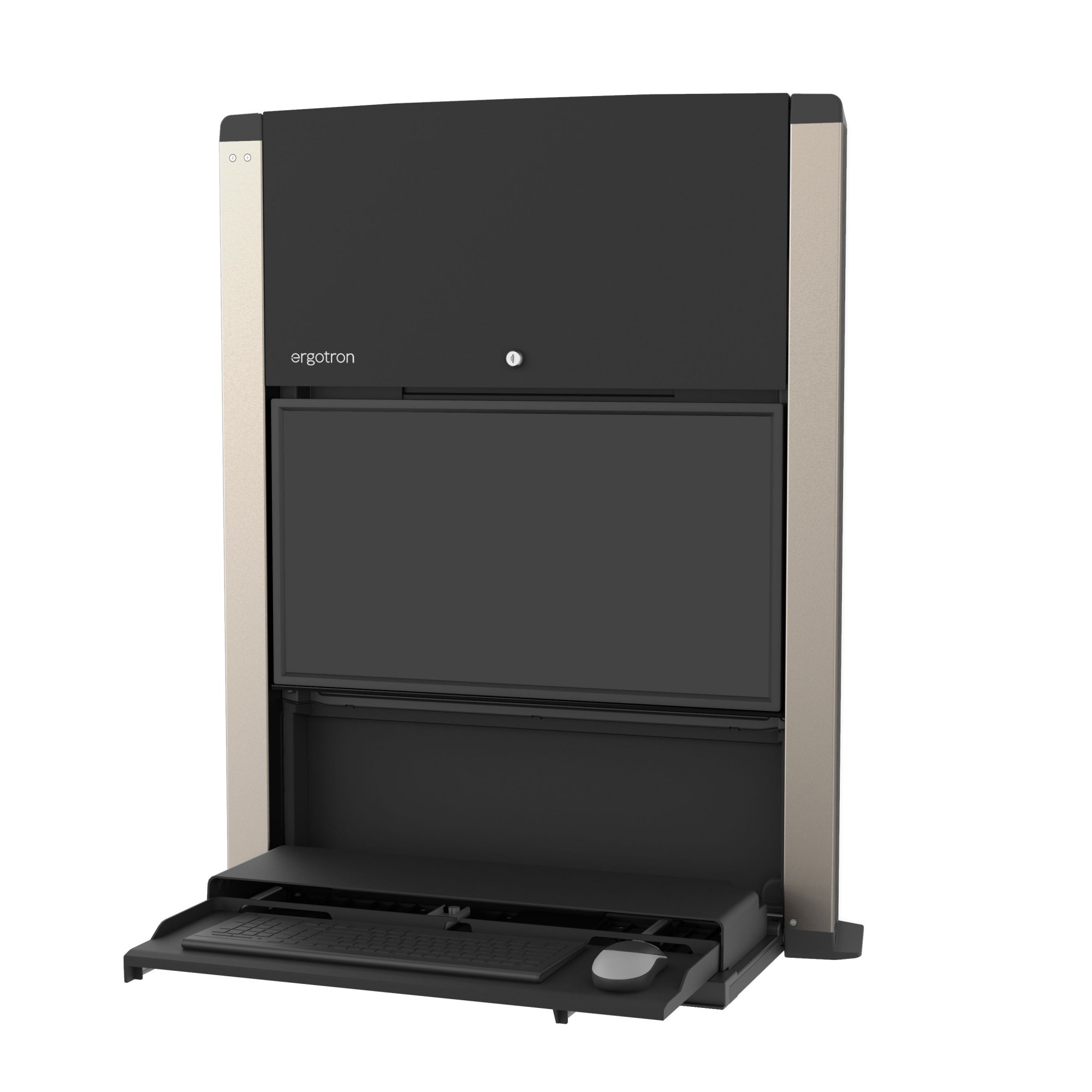

  • Has a mouse, keyboard tray and removable worksurface
  • Worksurface folds when not in use creating even more space
  • Available in white too!

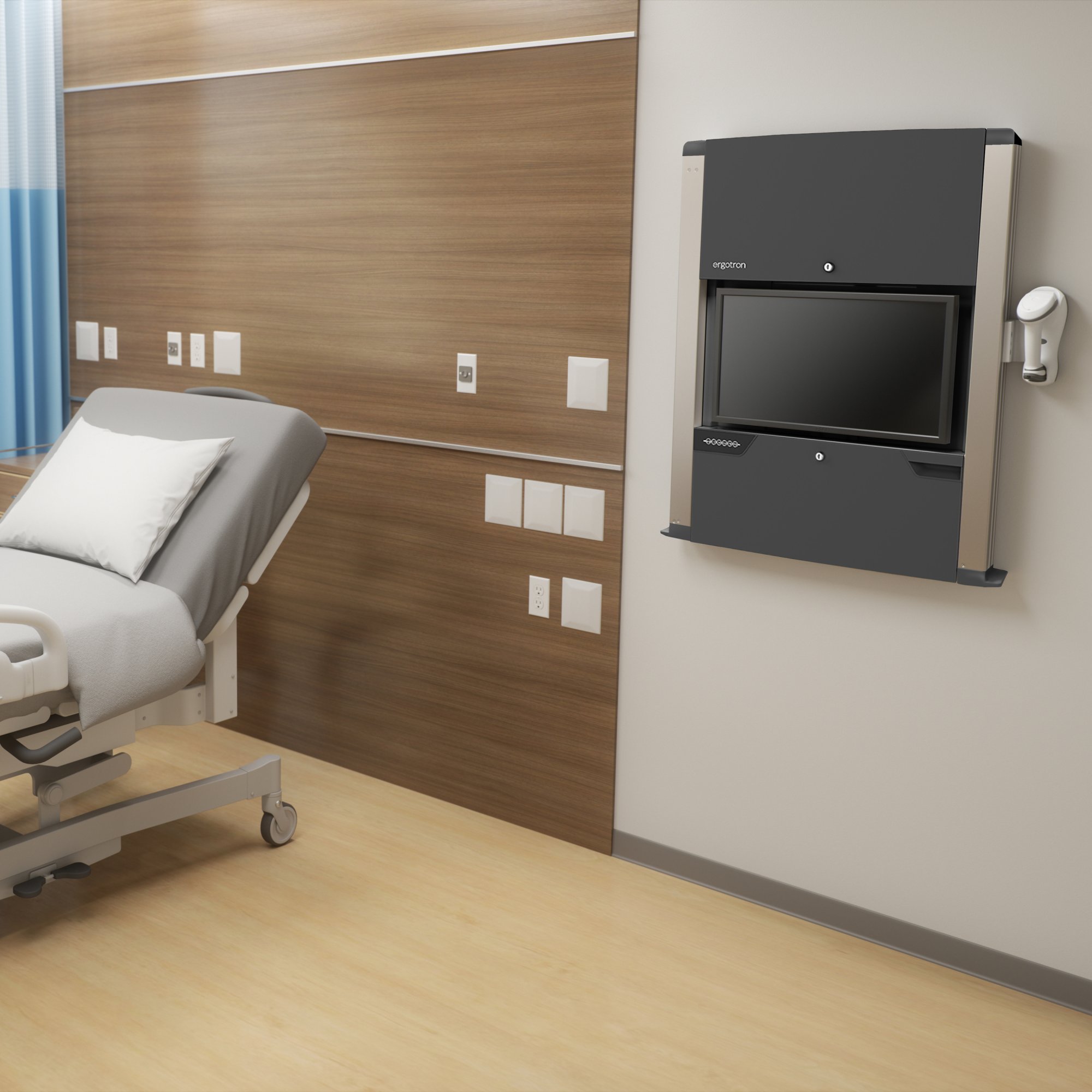

Caregivers can work comfortably while saving space in crowded patient rooms or hallways with ergotron 61-367-060 low-profile, wall-mount workstation. The ergonomic design offers 20" (51 cm) of height adjustment to work sitting or standing. Data entry complete? It folds when not in use to open up more space for the best patient care. Cable management keeps cords organized and easy to clean, and interchangeable laminate options enhance your healthcare designs.

Technical Drawing

Technical Drawing for Ergotron 61-367-060 CareFit Enclosure Wall Mount Computer Workstation

Technical Specifications

LCD size Capacity Lift Tilt Pan Rotation VESA
Screen Capacity Lift Tilt Pan Rotation VESA
Up to 27"

Up to 23.5 lbs

10.7 kg


50.8 cm

- - - MIS-D

Product Information

Part Number (color) 61-367-060 (matte black), 61-367-030 (snow white)
Description CareFit Enclosure
  • Enclosure

  • Wrist rest

  • Cable management hardware

  • Installation template

  • Installation hardware

  • Keys

Finish Can be customized with application of woodgrain laminates. See accessories for options (not available in all regions)
Listed Weight Capacity Represents total load. This includes: thin client holder = 3–8 lbs (1.4–3.6 kg); monitor bracket = 7–12 lbs (3.2–5.7 kg); keyboard tray = 0.5–3 lbs (0.2–1.4 kg)
Maximum Monitor Physical Dimensions 25.8" W x 14.5" H x 2.5" D (65.5 x 36.8 x 6.4 cm). Monitor depth greater than 2.5" (6.4 cm) is allowable, however screen will protrude beyond profile of enclosure
Maximum Thin Client Physical Dimensions 10.7" W x 10.5" H x 2.8" D (27.2 x 26.7 x 7.1 cm)
Maximum Keyboard Physical Dimensions 24.2" W x 1.5" H x 8.3" D (61.5 x 3.8 x 21.1 cm)
Mounting Standards VESA FDMI, MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
CF Technology Patented Constant Force motion technology
Plastic/Polycarbonate Components Are compliant with the surface flame spread and smoke development requirements from the NFPA 101 Life Safety Code interior wall finish requirements
Cable Wrap Included for better cable management
Note Designed for thin clients. Product is not intended for CPU’s and hard drives
Product Weight 73.8 lbs (33.5 kg)
Shipping Dimensions 45.3" x 37.5" x 8.2" (115 x 95 x 21 cm)
Shipping Weight 77.2 lbs (35 kg)
Warranty Five (5) years for mechanical components; one (1) year for electrical components

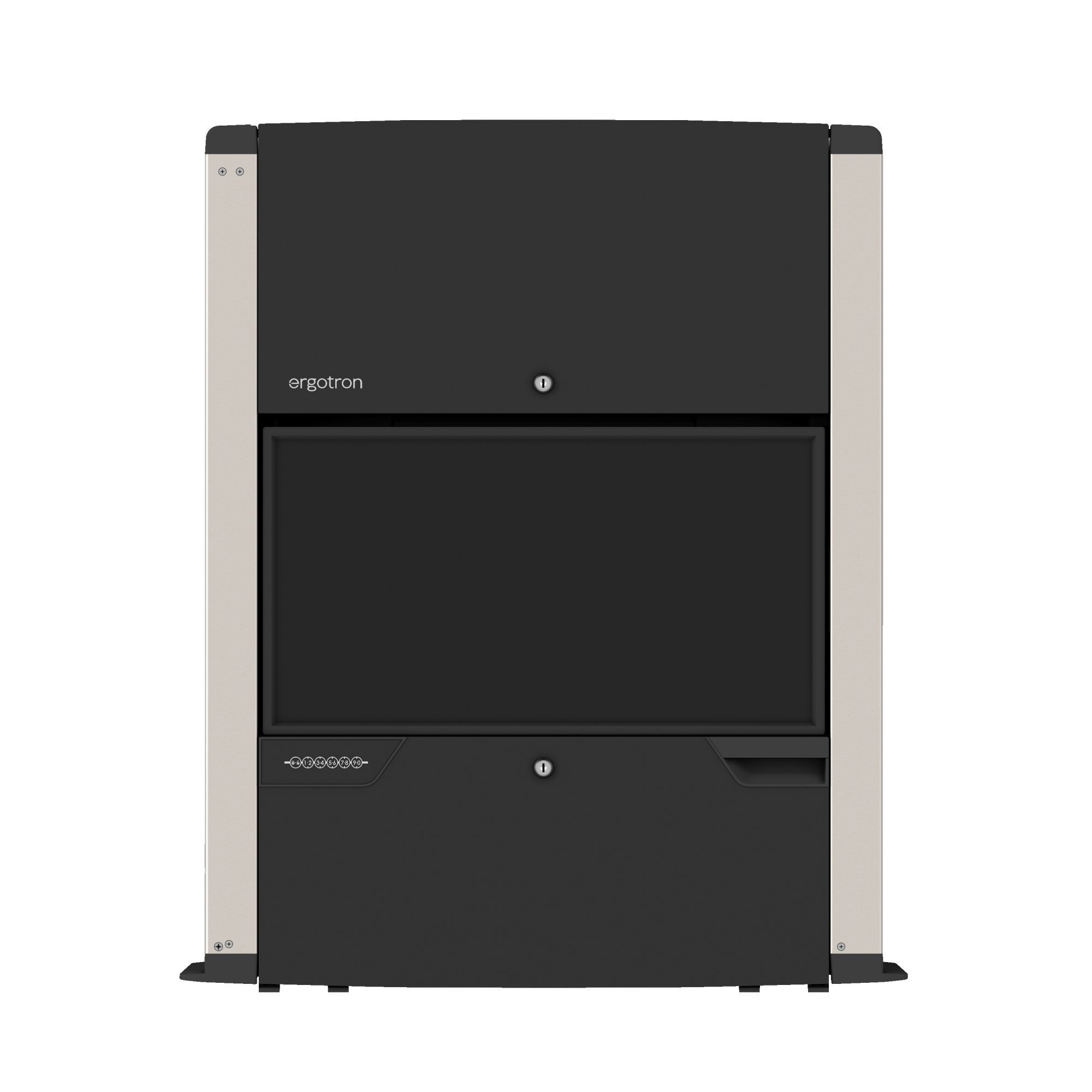

  • Wall display - Fits most screens 24-27" with a black backing for a seamless background

  • Save space - Low-profile design stays within 4" (10 cm) of the wall to fit tight spaces

  • Add accessories - Unique T-slot makes it easy to attach accessories like a proximity reader

  • Extra workspace - Includes a mouse/keyboard tray with a removable worksurface

  • Additional security - 10-digit lock code keeps patient data and technology secure

  • Stay organized - Cable management controls the cable chaos

Model 61-367-060
Manufacturer Ergotron
Part Number 61-367-060
UPC 698833075878
Color Matte black
Monitor Size Up to 27"
Weight Capacity Up to 23.5 lbs (10.7 kg)
Lift (50.8 cm) 20 in
Thin Client Physical Dimensions 10.7" W x 10.5" H x 2.8" D (27.2 x 26.7 x 7.1 cm)
Keyboard Dimensions 24.2" W x 1.5" H x 8.3" D (61.5 x 3.8 x 21.1 cm)
Mounting Pattern VESA FDMI, MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
Weight 73.8 lbs (33.5 kg)
Shipping Dimensions 45.3" x 37.5" x 8.2" (115 x 95 x 21 cm)
Shipping Weight 77.2 lbs (35 kg)
Warranty Five years for mechanical components; one year for electrical components
