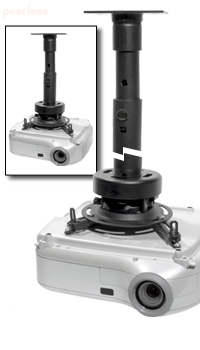

Peerless PRS KIT0811 Adjustable Height Projector Ceiling Mount Kit
|
|

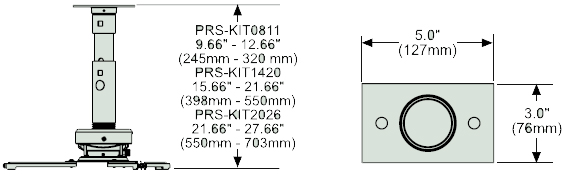

Dimensional Diagram for Adjustable Height Projector Kit PRS KIT0811
|
|
|
|
|
|
Peerless PRS Series Adjustable height Projector Kit Description:
|
|
The new PRS series adjustable height ceiling kits provide an all in one solution for quick and easy installations with variable drop ceiling lengths. It can be mounted to any common ceiling structure, and can be flush mounted where a low profile application is required. The kitted ceiling mount is available in three adjustable sizes designed to save time and money when mounting projectors.
|
|
Features:
-
Color: black
-
Comes in three adjustable height ranges (in 1" increments): 8"-11", 20"-26", and 14"-20"
-
Can also be flush mounted to position the projector close to the ceiling
-
+5°/-20° Pitch, +/-10° Roll, 360° Swivel (when attached to an extension column), +/-15° Swivel (when flush mounted)
-
Independent roll, pitch, and yaw adjustments provide easy image alignment
-
Ceiling plate included
-
Hardware included for wood or concrete installations
-
Built in cord management access hole provides complete access to route cords through extension column to keep cords hidden
-
Quickly release the projector for maintenance by a simple turn of a knob
|
|
Product Information:
|
|
Model Numbers
|
PRS-KIT
|
|
Product Numbers
|
PRS-KIT0811, PRS-KIT1420, PRS-KIT2026
|
|
Product Specifications
|
|
Features
|
-
Color: black
-
Comes in three adjustable height ranges (in 1" increments): 8"-11", 20"-26", and 14"-20"
-
Can also be flush mounted, positioning the projector close to the ceiling
-
+5°/-20° Pitch, +/-10° Roll, 360° Yaw (when attached to an extension column), +/-15° Yaw (when flush mounted)
-
Independent roll, pitch, and yaw adjustments provide easy image alignment
-
Ceiling plate included
-
Hardware included for wood or concrete installations
-
Built in cord management hole provides complete access to route cords through extension column, keeping cords hidden from view
-
Quickly release the projector for maintenance by a simple turn of a knob
|
|
Load Capacity
|
25 lbs (11.34 kg)
|
|
Product Weight
|
PRS-KIT0811: 6 lb (3.2 kg)
PRS-KIT1420: 8 lb (4.1 kg)
PRS-KIT2026: 10 lb (5 kg)
|
|
Finish
|
Scratch Resistant Fused Epoxy
|
|
Available Colors
|
Black
|
|
Accessories
|
-
Escutcheon Ring (ACC640)
-
Extension Column Stabilizer (ACC 050)
-
Side-to-Side Adjuster (PRS Series & PJF2) (ACC830)
-
Armor Lock PlusTM Security Cables (ACC020, ACC021)
-
Unistrut® Ceiling Plate (ACC550)
-
Horizontal Adjuster (ACC410)
|
|
Package Specifications
|
|
Package Contents
|

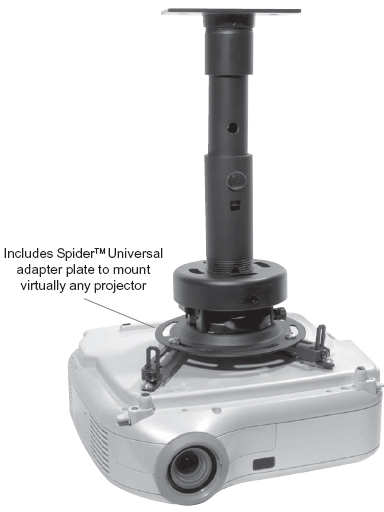

Mount, Universal Adapter Plate, Adjustable Extension Column, Ceiling Plate, Mounting Hardware
|
|
Package Size (L x W x H)
|
PRS-KIT0811: 12.25" x 9.625" x 4" (31.16 x 24.45 x 10.16 cm)
PRS-KIT1420: 14.5" x 6.5" x 4" (36.83 x 16.51 x 10.16 cm)
PRS-KIT2026: 14.5" x 6.5" x 4" (36.83 x 16.51 x 10.16 cm)
|
|
Package Ship Weight
|
PRS-KIT0811: 7 lb (3.2 kg)
PRS-KIT1420: 9 lb (4.1 kg)
PRS-KIT2026: 11 lb (5 kg)
|
|
Package UPC Code
(Black/Silver/White)
|
PRS-KIT0811: 735029238140
PRS-KIT1420: 735029238157
PRS-KIT2026: 735029238164
|
|
Warranty
|
Limited 5-year
|
|
|
Additional Images:
|
|
|
|
|
|
|
ACC557 Truss Ceiling Adapter
