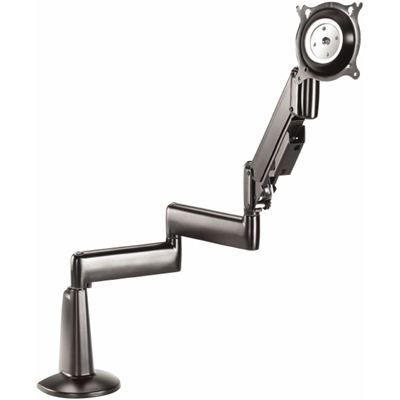

Chief KCB110 Height-Adjustable Triple Arm Desk Mount, 1 Monitor

Features of Chief KCB 110B:

    1.  Centris Technology (PATENTED FEATURE): Provides smooth fingertip tilt in all directions

         using the screen’s center of gravity. Screen angle stays set until you decide to re-adjust.

    2.  Cable Management: Built-in cable management for a clean installation.

    3. Adjustable tension in individual pivot points; touch screen compatible.

    4.  Clamp option allows mount to be installed from the top of the mounting surface.

    5.  Multiple mounting options: edge clamp, grommet clamp, grommet thru-bolt.

    6.  Smooth tilt adjustment and portrait/landscape rotation.

    7.  Fingertip height adjustment with customizable tension.

    8.  Clean look with minimal hardware visible from underside of work surface.

    9.  Easy installation with teardrop hole pattern, ships fully assembled.

   10.  Portrait and landscape rotation and side-to-side pivot.

   11.  VESA 75 x 75 mm and 100 x 100 mm compatible (interface brackets available for non-

          VESA compliant monitors)

   12.  Note: Mounting surface maximum thickness: 3.2" (81 mm), grommet hole size: 0.38"- 3"

         (10-76 mm)

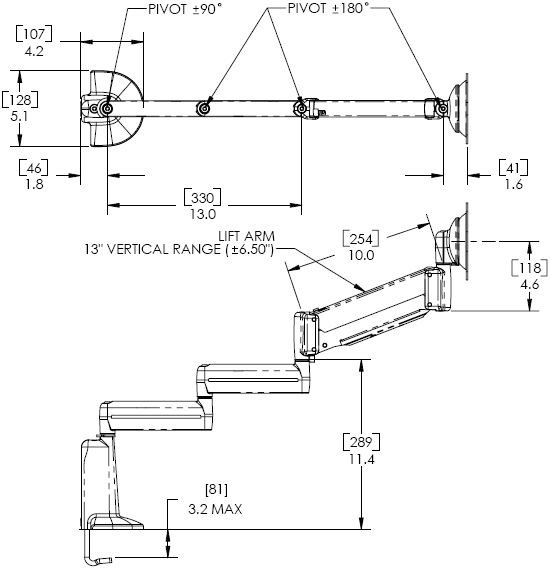

Technical Drawing for KCB-110 Desk Mount

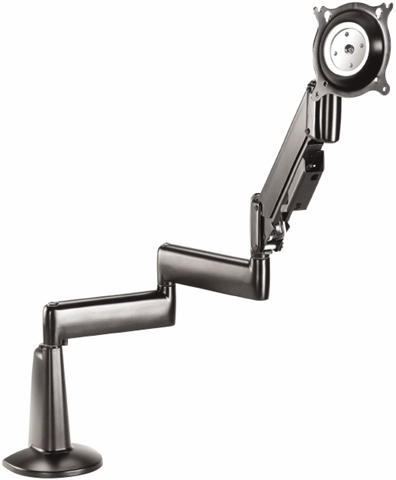

Height Adjustable Flat Panel Triple LCD Arm

Description of Chief KCB-110B:

The KCB110 is the most versatile desk mount in Chief's line of monitor mounts, providing the maximum height adjustment and extension. (Previously sold as FCB110)

• Ergonomic solution for the home or office providing excellent adjustability

Depth (closed):

2.19" (56 mm)

Maximum Extension:

26.38" (670 mm)

Height Adjustment:

13.25" (337 mm)

Tilt:

+/-15º

Pivot (Desk/Display/Arm):

360º/180º/360º

Dimensions (H x W x D):

7.63" x 5.63" x 0.88" (194 x 143 x 22 mm)

Color:

Black

Weight Capacity:

25 lbs (11.3 kg)

Maximum Mounting

Surface Thickness:

3.2" (81 mm)

Grommet Hole Size:

0.38" -  3" (10 - 76 mm)

Mounting Arms:

Triple

Connection Type:

Desk

VESA Compatibility:

75 x 75 mm and 100 x 100 mm (without extra interface bracket)
