Technical Drawings forChief KCD-110 Desk Mount Dual Swing LCD Arm
Description of Chief KCD-110B:

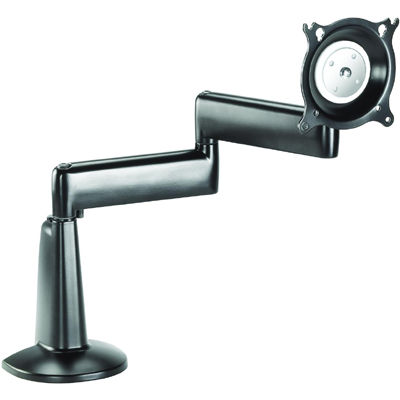

The KCD110 is an ergonomic solution provides a broad range of motion for viewing small flat panel TVs, LCDs and monitors from multiple angles. (Previously sold as FCD110)
Perfect for home and office installations
Specifications:
Depth (closed):
2.19" (56 mm)
Maximum Extension:
16.38" (416 mm)
Lateral Shift:
4" (102 mm)
Tilt:
+/-15º
Pivot (Desk/Display/Arm):
360º/180º/180º
Dimensions (H x W x D):
6.88" x 5.63" x 1.5" (175 x 143 x 38 mm)
Color:
Black
Weight Capacity:
40 lbs (18.2 kg)
Maximum Mounting Surface Thickness:
3.2" (81 mm)
Grommet Hole Size:
0.38"- 3" (10-76 mm)
VESA Compatibility:
75 x 75 mm and 100 x 100 mm (without extra interface bracket)
