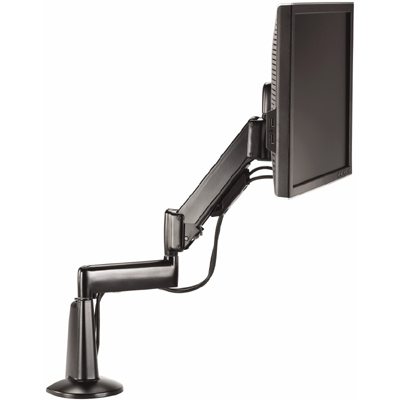

Chief KCG110 Height-Adjustable Dual Arm Desk Mount, One Monitor

Features of Chief KCG-110B:

1.  Centris Technology (PATENTED FEATURE): Provides smooth fingertip tilt in all directions

         using the screen’s center of gravity. Screen angle stays set until you decide to re-adjust.

  2.  Easy 3-Step Installation:Ships fully assembled, clamp option can be installed from top of

         desk, grommet bolt through hardware included.

    3.  Fingertip Height Adjustment: Adjust viewing height up to 13.25” (337 mm). Optimize height

         adjustment for any display with customizable tension

4.  Advanced Display Mounting:Teardrop hole pattern makes mounting the screen quick and

         easy.

    5.  Multiple mounting options: edge clamp, grommet clamp, grommet thru-bolt

    6.  Smooth extension to achieve ideal viewing angle

    7.  Built-in cable management for a clean installation

    8.  Clean look with minimal hardware visible from underside of work surface

    9.  Portrait and landscape rotation and side-to-side pivot

  10. VESA 75 x 75 mm and 100 x 100 mm compliant (interface brackets available for non-VESA

         compliant displays)

   11. Note: Mounting surface maximum thickness: 3.2" (81 mm), grommet hole size: 0.38"- 3"

       (10-76 mm)

Technical Drawings for Chief KCG 110 Desk Mount

Height Adjustable Flat Panel Dual LCD Arm

Description of Chief KCG 110B:

Depth (closed):

2.19" (56 mm)

Maximum Extension:

20" (508 mm)

Height Adjustment:

13.25" (337 mm)

Tilt:

+/-15º

Pivot (Desk/Display/Arm):

360º/180º/360º

Dimensions (H x W x D):

7.63" x 5.63" x 0.88" (194 x 143 x 22 mm)

Color:

Black

Weight Capacity:

5-25 lbs (2.3-11.4 kg)

Maximum Mounting Surface Thickness:

3.5" (89 mm)

Grommet Hole Size:

0.38"- 3" (10-76 mm)

VESA Compatibility:

75 x 75 mm and 100 x 100 mm (without extra interface bracket)
