Technical Drawing forKCS 110 Desk Mount Flat Panel Single Swing LCD Arm

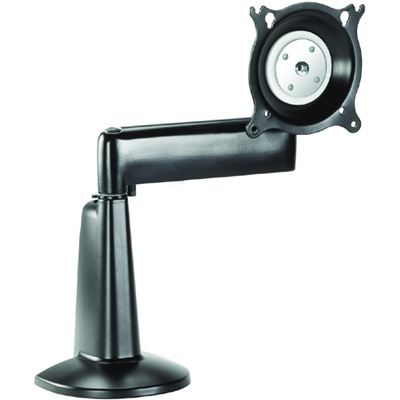

Description of Chief KCS 110B:
Chief’s KCS110 swings your small flat panel TV, LCD or monitor closer for better viewing, or out of the way for when you need more work surface. (Previously sold as FCS110)
Perfect for home and office installations
Specifications:
Depth (closed):
2.19" (56 mm)
Maximum Extension:
9.88" (251 mm)
Lateral Shift:
2" (51 mm)
Tilt:
+/-15º
Pivot (Desk/Display/Arm):
360º/180º/180º
Dimensions (H x W x D):
7.63" x 5.63" x 0.88" (194 x 143 x 22 mm)
Color:
Black
Weight Capacity:
40 lbs (18.1 kg)
Maximum Mounting
Surface Thickness:
3.5" (89 mm)
Grommet Hole Size:
0.38" - 3" (10 - 76 mm)
Mounting Arms:
Single
Connection Type:
Desk
VESA Compatibility:
75 x 75 mm and 100 x 100 mm(without extra interface bracket)
