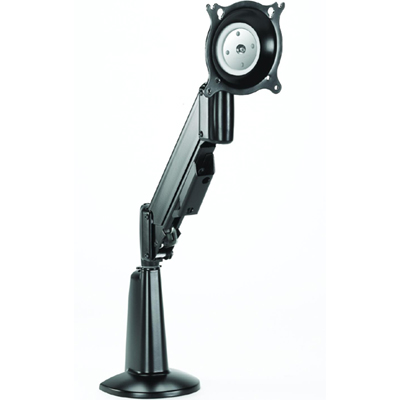

Chief KCV110 Height-Adjustable Single Arm Desk Mount, 1 Monitor

Features of Chief KCV-110:

    1.  Centris Technology (PATENTED FEATURE): Provides smooth fingertip tilt in all directions

         using the screen’s center of gravity. Screen angle stays set until you decide to re-adjust.

    2.  Cable Management: Built-in cable management for a clean installation.

    3.  Clamp option allows mount to be installed from the top of the mounting surface.

    4.  Multiple mounting options: edge clamp, grommet clamp, grommet thru-bolt.

    5.  Smooth tension to achieve ideal viewing angle.

    6. Fingertip height adjustment with customizable tension.

    7.  Clean look with minimal hardware visible from underside of work surface.

    8.  Easy installation with teardrop hole pattern, ships fully assembled.

    9.  Portrait and landscape rotation and side-to-side pivot.

   10. VESA 75 x 75 mm and 100 x 100 mm compatible (interface brackets available for non-

         VESA compliant displays)

   11. Note: Mounting surface maximum thickness: 3.2" (81 mm), grommet hole size: 0.38"- 3"

        (10-76 mm)

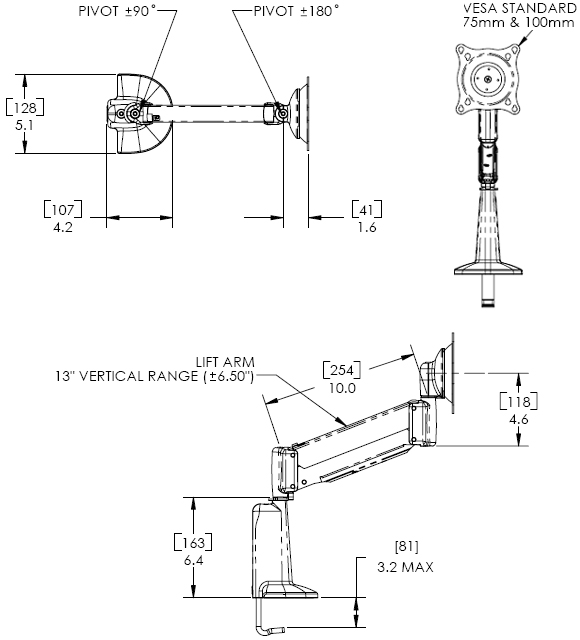

Technical Drawing for KCV 110 Desk Mount Height Adjustable Single LCD Arm

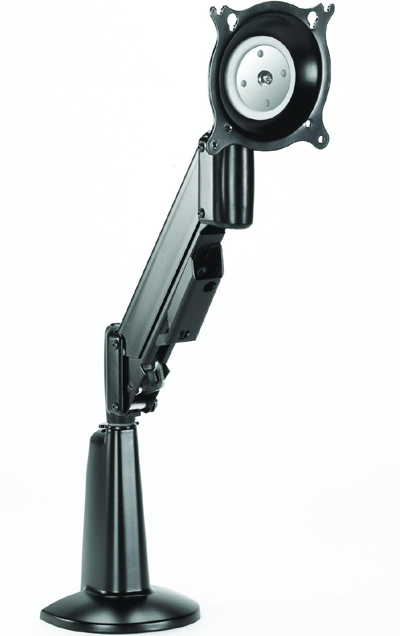

Description of Chief KCV 110B:

Chief's KCV110 provides a broad range of motion for viewing displays from multiple angles and heights. (Previously sold as the FCV110)

• Ergonomic solution for the home or office providing excellent adjustability.

• Centris fingertip tilt adjustment.

• Adjustable tension in individual pivot points - touch screen compatible

Depth (closed):

2.19" (56 mm)

Maximum Extension:

13.38" (340 mm)

Height Adjustment:

13.25" (337 mm)

Tilt:

+/-15º

Pivot (Desk/Display/Arm):

360º/180º/0º

Dimensions (H x W x D):

7.63" x 5.63" x 0.88" (194 x 143 x 22 mm)

Color:

Black

Weight Capacity:

5 - 25 lbs (2.3 - 11.4 kg)

Maximum Mounting

Surface Thickness:

3.5" (89 mm)

Grommet Hole Size:

0.38" -  3" (10 - 76 mm)

Mounting Arms:

Single

Connection Type:

Desk

VESA Compatibility:

75 x 75 mm and 100 x 100 mm (without extra interface bracket)
