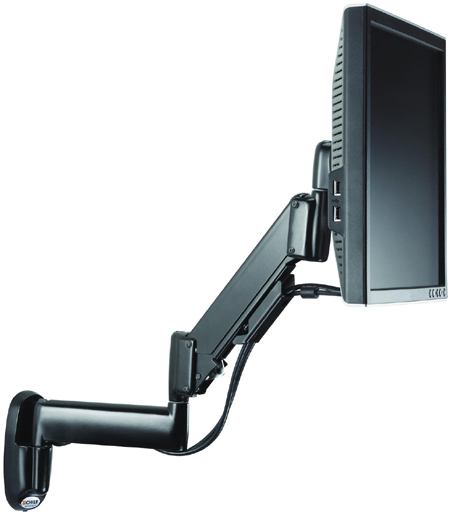

Chief KWG110B Height Adjustable Dual Arm Wall Mount

Features of Chief KWG 110:

    1.  Fingertip Height Adjustment: Adjust viewing height up to 13.25” (337 mm). Optimize height

         adjustment for any display with customizable tension

    2.  Centris Technology (PATENTED FEATURE): Provides smooth fingertip tilt in all directions

         using the screen’s center of gravity. Screen angle stays set until you decide to re-adjust.

    3.  Compatible with Office Furniture: Custom OFB office furniture interface brackets available

         for most office systems. (OFB brackets sold separately)

    4.  Advanced Display Mounting: Teardrop hole pattern makes mounting the screen quick and

         easy.

    5.  Easy installation - Attach wall plate to single stud. Slide mount onto plate. Attach display to

         mount. Secure hardware.

    6.  Sleek, attractive design hides all hardware.

    7.  Independently adjustable tension at pivot points for customized control.

    8.  Tension can be optimized for touch screen use.

    9.  VESA 75 x 75 mm and 100 x 100 mm compatible (Custom interfaces also available)

Technical Drawing for Chief KWG-110 Wall Mount

Height Adjustable Single Monitor Dual LCD Arm

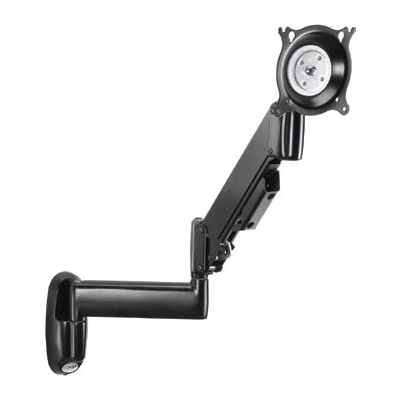

Description of Chief KWG-110B:

Chief’s KWG110 provides a broad range of motion for viewing small flat panel monitors and TVs from multiple angles and heights.

• An ergonomic solution for installations that require various viewing heights

• Folds in close to the wall for a low-profile appearance and provides cable management

Depth (closed):

2.19" (56 mm)

Maximum Extension:

19.5" (495 mm)

Height Adjustment:

13.25" (337 mm)

Tilt:

+/-15º

Pivot:

180º

Dimensions (H x W x D):

12.84" x 4.55" x 19.45" (326 x 116 x 494 mm)

Weight Capacity:

5-25 lbs (2.3-11.4 kg)

Color:

Black

VESA Compatibility:

75 x 75 mm and 100 x 100 mm (without extra interface bracket)
