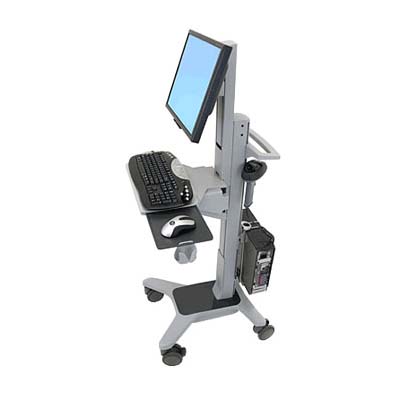

Ergotron 24-182-055 Neo Flex Mobile Work Space 24182055
|
|
|
|
|
|
|
|
Description of Ergotron 24-182-055 WorkSpace:
|
|
Low-cost, height-adjustable computer cart supports your mobile computing needs today and tomorrow. A versatile design configures for notebooks or LCDs. Features 20+ inches (51 cm) of height adjustment (work sitting or standing), small footprint, rugged open architecture and a fleet of accessories.
|
|
|
|
|
|
|
|

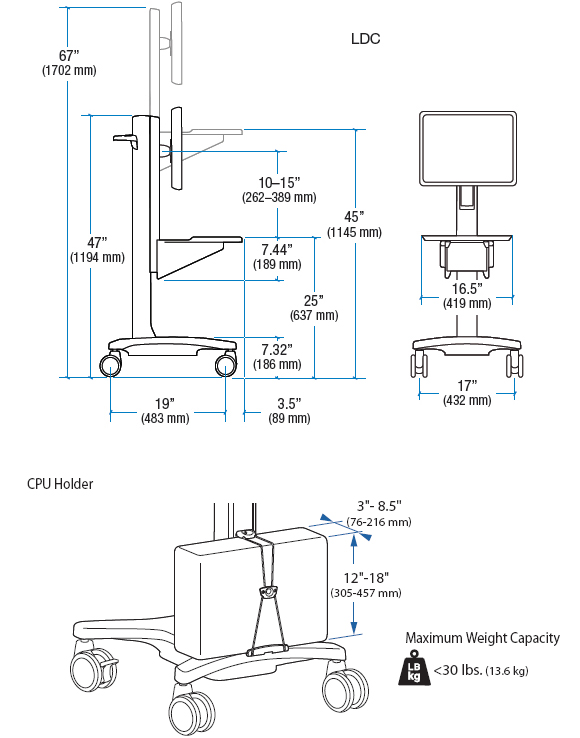

Technical Drawing for Ergotron 24-182-055 Neo-Flex Mobile WorkSpace
|
|
|
|
|
|
|
|
Technical Specifications:
|
|
|
|
|
|
|
|
|
|
LCD Size
|
Wt. Capacity
|
Lift
|
Tilt
|
Pan
|
Rotation
|
VESA
|
|
up to 22"
|
28 lbs
12.7 kg
|
25"
63 cm
|
25° |
- |
90° P/L
|
MIS-D
|
|
|
|
|
|
|
Product Information:
|
|
Part Number:
|
24-182-055
|
|
Description:
|
Neo-Flex Mobile Workspace
|
|
Included:
|
-
Integrated worksurface/keyboard tray with left/right mouse tray
-
Scanner holder bracket
-
Mouse holder
-
Rear handle
-
Cable storage box
-
Four dual casters (two locking)
-
5" (13 cm) lift monitor pivot
-
CPU holder
|
|
Steel:
|
Durable, easy-to-clean exterior composed of aluminum, high-grade plastic and zinc-plated steel
|
|
Weight Capacity:
|
Total load of height-adjustment assembly = 28 lbs (12.7 kg)
Includes contents of Worksurface, Cable Storage Box and LCD Pivot or Notebook Tray.
LCD Pivot capacity = 5–18 lbs (2.3–8.1 kg)
|
|
CPU Holder capacity:
|
30 lbs (13.6 kg)
|
|
CPU:
|
CPU can attach safely to rear of cart with CPU Holder,
Adjusts from 12" H x 3" D to 18" H x 8.5" D (30 x 8 cm to 46 x 22 cm)
|
|
CPU Holder capacity:
|
30 lbs (13.6 kg)
|
|
Lift Range:
|
LCD/notebook/worksurface adjusts 20" (51 cm) in tandem,
LCD adjusts 5" (13 cm) independently,
Maximum LCD height adjustment = 25" (63 cm)
|
|
Wheel-to-Wheel Base Dimensions:
|
17" x 20.5" (43 x 52 cm)
|
|
Worksurface Dimensions:
|
16.5"W x 9"D (42 x 23 cm
|
|
Mounting Standard:
|
VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
|
|
Compatible:
|
Compatible with tablet PCs, interface bracket may be required (purchase separately)
|
|
Shipping Dimensions:
|
45.5"H x 19.75"W x 24"D (1156 x 502 x 610 mm)
|
|
Shipping Weight:
|
68 lbs (30.8 kg)
|
|
Warranty:
|
Three (3) years
|
|
|
|
|
|
|
|
|
Benefits of Ergotron 24-182-055:
|
|
1. Flexible, open architecture design is ready for the computer equipment of today and tomorrow
and each cart may be configured for a notebook or LCD and is supported by a fleet of
accessories
|
|
2. Constant Force (CF) patented lift-and-pivot motion technology provides fluid, one-touch
adjustment.
|
|
3. Work sitting or standing through its ergonomic 20-inch (51 cm) height adjustment range; with
an LCD, height range is 25 inches (63 cm).
|
|
4. Barcode scanner holder provides easy access to hand-held scanner.
|
|
5. Increased comfort and productivity for personalized viewing using five-inch (13 cm),
independent LCD height adjustment, 25° tilt and portrait to landscape rotation.
|
|
6. Safe and neat routing of cables through the expansive cable management storage area.
|
|
7. Very accessible - facilitates ADA (Americans with Disabilities Act) compliant computing
initiatives, such as mobile kiosks
|
|
8. Save time and money utilizing a network of certified professionals to deploy Neo-Flex carts in
your facility with an Ergotron Service Program (US/Canada only).
|
|
|
|
|
|
More Images:
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
