Chief PCMU Large Flat Panel Ceiling Mount with Angled Column

This product has been discontinued.

Related Products:

Part Number	Description
PCMU	Black Flat Panel Ceiling Mount with Angled Column for 42 to 71 inch Displays
PCMUS	Silver Ceiling Mount with Angled Column or 42 to 71 inch Flat Panel Displays

Accessories for Chief PCM Ceiling Mount with Angled Column

Chief CMA101 Designer 5 inch Ceiling Plate

Chief CMA105- 4 inch Ceiling Plate for Columns

Chief CMA110- 8 inch Ceiling Plate for Extension

Chief CMA115- 6 inch Ceiling Plate for Extension

Chief CMS115 Speed-Connect 6 inch Ceiling Plate

Chief PAC400 - 90° Rotation Adapter Plate Black

General Information


Buy from an Authorized Dealer

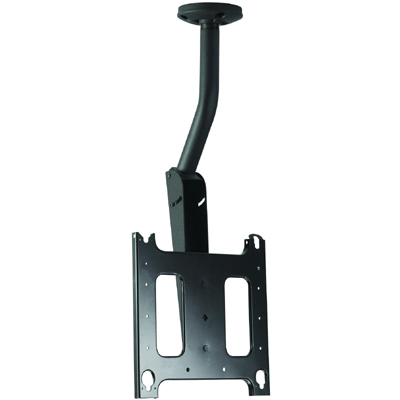

Chief PCMU Ceiling Mount with Angled Column for Flat Panel Displays

Chief PCMU Ceiling Mount with Angled Column for Flat Panel Displays

Features of Chief PCMUS:

1. Centris Technology provides fingertip tilt for effortless screen adjustment.

2. ClickConnect Technology provides simplified tooless latching with an audible click.

3. Screen can be installed in portrait or landscape orientation ( PAC400 or MAC400 accessory can be used to rotate without removing the screen).

4. Full line of accessories available to accommodate almost any type of ceiling.

5. Through-pipe cabling can be accomplished with the appropriate accessory (CMA330 and

CMS115)

6. PAC140 Q-Clamp accessory included.

Technical Drawing for Chief PCMU Ceiling Mount with Angled Column

Technical Drawing for Chief PCMUS Ceiling Mount with Angled Column

Description of Chief PCMUS:

The PCM plasma ceiling mount hangs a TV with the natural center of gravity to provide a stable, durable installation.

Great for digital signage applications
Ceiling plate is required and must be ordered separately; vertical extension column may also be required for your installation


Specifications:
Tilt:	+5°/ - 25°
Roll:	3°
Height Adjustment:	5" (127 mm)
Color:	Black
Weight Capacity:	200 lbs (90.7 kg)

Literature (Please open the following documents for more technical information)

Description	File Type
Chief PCM Ceiling Mount with Angled Column - Technical Drawing	- pdf
Chief PCMU Ceiling Mount with Angled Column - Installation Assembly	- pdf
Chief PCMUS Angled Column Single Ceiling Mount - Installation Interface	- pdf
Chief PCMU Single Ceiling Mount - Technical Drawing Interface	- pdf
