Peerless IM740P In-Wall Steel Articulating Mount Arm for 22-40" LCD Flat Panel Screens IM-740P IM740P-S

Model Numbers

IM740P(-S): In-wall Mount (Includes IB40 In-wall  box and SA740P mount for up to 40" screens)

IB40(-S)(-w): In-wall Box

Product Specifications

Features:

• IM740P models are VESA 75/100/200x100/200x200 mm compatible

• IB40 models (box only) compatible with SA730P, SAL730P, SP730P, SA740P, SP740P and LCS-KLA models

• Three height adjustment points in box set screen at desired vertical position

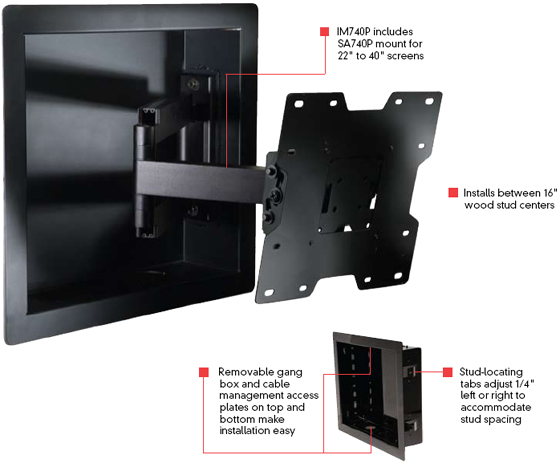

• Installs between 16" wood stud centers

• Stud-locating tabs adjust 1/4" left or right to accommodate stud spacing

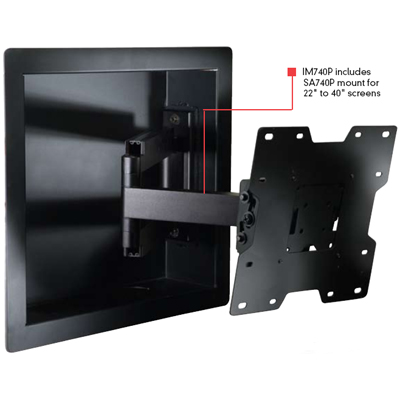

• IM740P includes SA740P mount for up to 40" screens

• Removable gang box and cable management access plates make installation easy

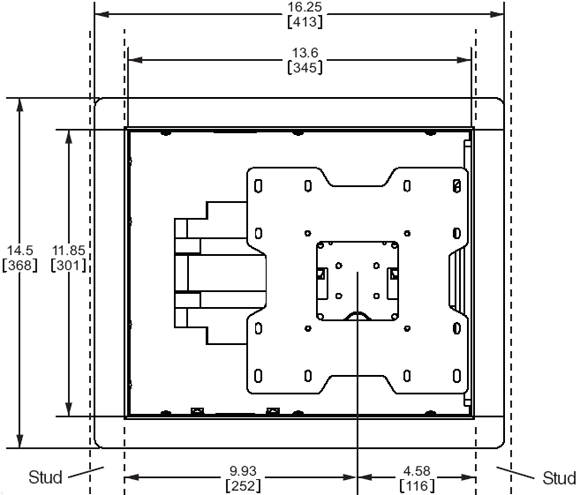

Dimensions (W x H x D)

IM740P(-S): 16.25" x 14.5" x 3.85"-20.52" (41.2 x 36.8 x

                   9.8-52.12 cm)

IB40(-S)(-w): 16.26" x 14.5" x 3.77" (41.3 x 36.8 x 9.5 cm)

Load Capacity

80 lb (36.3 kg)

Product Weight

IM740P(-S): 18.3 lb (8.3 kg)

IB40(-S)(-w): 10.4 lb (4.7 kg)

Finish

Scratch Resistant Fused Epoxy

Available Colors

IM740P(-S): High gloss black, high gloss silver

IB40(-S)(-w): High gloss black, high gloss silver, white

Package Specifications

Package Contents

IM740P(-S): IB40 In-wall box, SA740P mount, mounting

                  and screen attachment hardware.

IB40(-S)(-w): IB40 In-wall box and mounting hardware

Units in Package

1

Package Size (W x H x D)

21" x 4.25" x 22.4" (53.3 x 10.8 x 56.9 cm)

Package Ship Weight

IM740P(-S): 22.63 lb (10.26 kg)

IB40(-S)(-w): 14.23 lb (6.45 kg)

Package UPC Code

IM740P: 735029255178

IM740P-S: 735029255185

IB40: 735029255192

IB40-S: 735029255208

IB40-w: 735029255215

Warranty

Limited 5-year
