Dimensional Diagram for Peerless PRS-EXB Projector Ceiling or Wall Mount
|
|
|
|
Projector Ceiling or Wall Mount:
|
|

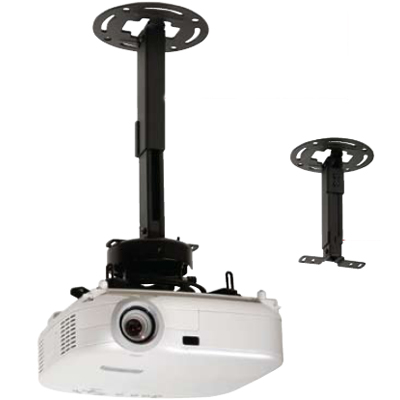

Peerless has packaged flexibility and ease together in one box with these ceiling/wall mounting kits, which enable the installation of a projector from either the ceiling or the wall. Each kit includes a PRS Series Projector Mount and an adjustable length extension column that provides ideal height positioning for the perfect projector installation. The extension column provides cable-management that organizes signal and power cables for a clean, clutter-free appearance. This complete projector mounting kit supplies everything needed for an easy projector installation in one convenient package.
|
|
PRS-EXB Description:
This kit combines the precision adjustment and low profile design of the PRS-series projector mount line with a convenient variable-adjustable square column extension kit. Each kit includes the ceiling/mount, extension column and mounting hardware for either ceiling or wall applications. You also get color-coordinated wire slot covers for neat and clean installations.
|
|
Features:
-
Continuous channel design for uninterrupted drop length or wall extension adjustments
-
Three adjustable extension lengths:
PRS-EXA models: 8.7"-12.8" (ceiling), 9.72" - 13.86" (wall),
PRS-EXB models: 12.68"-20.67" (ceiling), 13.74"-21.73" (wall),
PRS-EXC models: 19.13"-32.91" (ceiling only)
-
Safety catch designed into extension to ensure user and equipment safety
-
Internal cable management channels for clean, clutter-free appearance
-
Mounts to ceiling or wall with included wall mount interface (PRS-EXA and PRS-EXB models only. PRS-EXC is not wall mountable due to its extensive reach)
-
Includes PRS Series projector mount for precise image alignment: Tilt: +20/-5° Swivel: 360° Roll: ±10°
-
Works with standard 4" loops for use with round, square, rectangular or I-Beam truss up to 3" wide x 3 1/2" wide
|
|
Product Information:
|
|
Model Number
|
PRS-EXB(-S)(-W) -- (Security Version)
|
|
Projector Adapter
|
Includes Spider universal adapter plate to accommodate projector mounting holes from 7.1 inch to 16.5 inch
|
|
Product Specifications
|
|
Tilt
|
+20/-5°
|
|
Swivel
|
360º
|
|
Roll
|
±10º
|
|
Dimension (W x H x D)
|
PRS-EXB(-S)(-W): 6.5" - 16.55" x 12.68" - 20.67" x 6.5" - 16.55"
(16.5 - 42 x 32.2 - 52.5 x 16.5 - 42 cm) ceiling;
13.74" - 21.73" (34.9 - 55.2 cm) distance from wall
|
|
Load Capacity
|
25 lb (11.3 kg)
|
|
Product Weight
|
PRS-EXB(-S)(-W): 6.70 lb (3.04 kg)
|
|
Finish
|
Scratch-resistant fused epoxy
|
|
Available Colors
|
PRS-EXB: Black
PRS-EXB-S: Silver
PRS-EXB-W: White
|
|
Package Specifications
|
|
Package Contents
|
Wall/ceiling plate, adjustable extension channels, PRS Series Projector Mount, Spider Universal Adapter Plate, mounting and screen attachment hardware, wall mount interface
|
|
Units in Package
|
1
|
|
Package Size (W x H x D)
|
PRS-EXB-S)(-W): 9.31" x 4.25" x 12.63" (23.7 x 10.8 x 32.1 cm)
|
|
Package Ship Weight
|
PRS-EXB(-S)(-W): 7.64 lb (3.47 kg)
|
|
UPC Code
|
PRS-EXB: 735029258414
PRS-EXB-S: 735029258421
PRS-EXB-W: 735029258438
|
|
