Features of Peerless PRS 35:
|
-
+5°/-20° Pitch, +/-10° Roll, 360° Yaw (when attached to an extension column), +/-15° Yaw (when flush mounted), which enables the image to be perfectly aligned with the screen.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

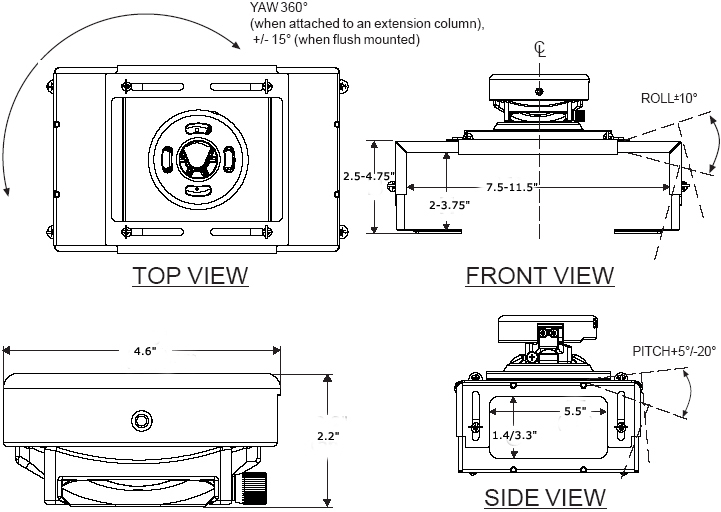

Technical Drawing of Peerless PRS35 Projector Mount with Small Clamp Style Adapter Plate

|
|
|

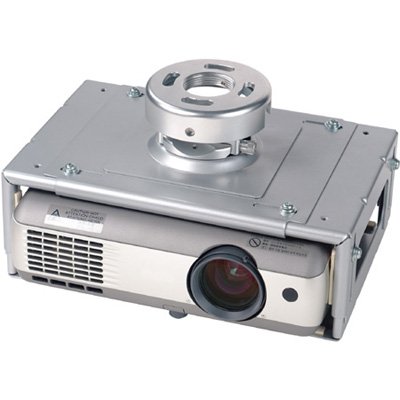

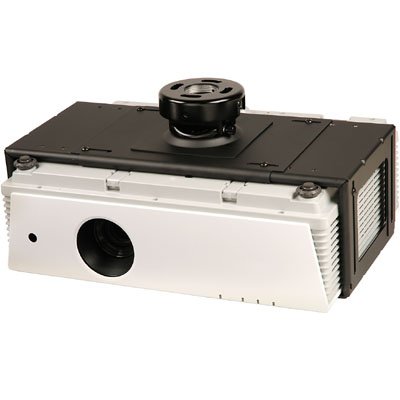

Description of Peerless PRS-35:
|
The PRS Series Clamp-Style Universal Projector Mount is the most low profile universal mount available today. It offers a quick and easy installation in addition to unmatched versatility. The mount ships preassembled, can be attached to any common ceiling structure, and is offered in multiple colors to complement any setting.
|
|
|
Specifications of Peerless PRS 35:
Color:
|
Black
|
Tilt:
|
+5°/-20°
|
Swivel:
|
360° (±15° when flush mounted)
|
Roll:
|
±10°
|
Mounting Surfaces:
|
Wood joist, concrete and other structures (Other structures require accessory)
|
Inside Dimensions (W x H):
|
7.5"-11.5" (191 - 292 mm) x 2" - 3.75" (51 - 95 mm)
|
Outside Dimensions (W x H):
|
8.5"-12.75" (216 - 324 mm) x 2.5" - 4.75" (64 - 121 mm)
|
Product Weight:
|
5.5 lb (2.5 kg)
|
Load Capacity:
|
25 lbs (11 kg)
|
Shipping Carton Dimensions:
|
12.25" x 9.625" x 4" (311 x 244 x 102 mm)
|
Ship Weight:
|
8 lb (3.6 kg)
|
|
|
