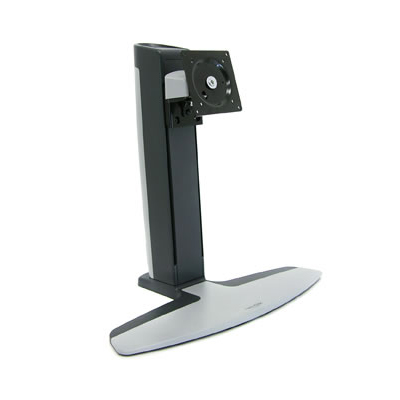

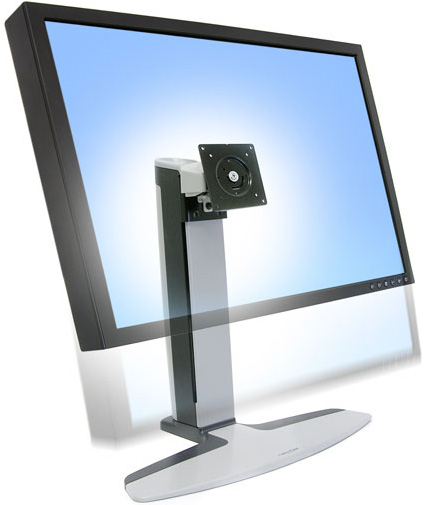

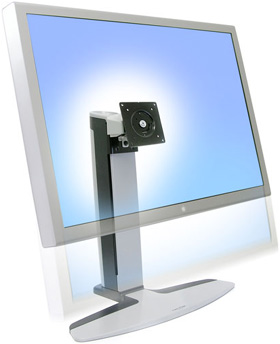

Ergotron 33-329-057 NeoFlex WideScreen Lift Stand 33329057
|
|
|
|
|
|
|
|
Description of Ergotron 33-329-057 WideScreen Lift Stand:
|
|
Upgrade larger displays with five-inch (12.7 cm) height adjustment, tilt, pan and portrait-to-landscape rotation for optimum viewing. Embedded with patented motion technology, this stand enables light-touch adjustments without any knobs or levers.
|
|
|
|
|
|
|
|

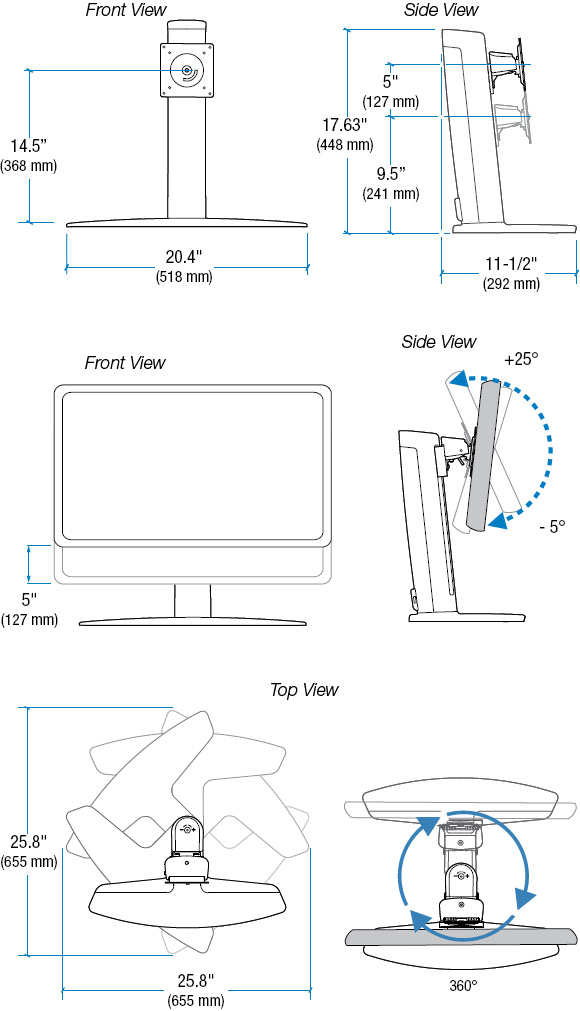

Technical Drawing for Ergotron 33-329-057 Neo Flex WideScreen Lift Stand
|
|
|
|
|
|
|
|
Techncal Specifications:
|
|
|
|
|
|
|
|
|
|
LCD Size
|
Capacity
|
Lift
|
Tilt
|
Pan
|
Rotation
|
VESA
|
|
20" - 32"
|
16 - 36 lbs
7.3 - 16.3 kg
|
5"
12.7 cm
|
30° |
360° |
360° P/L
|
MIS-D/E/F
|
|
|
|
|
|
|
Product Information:
|
|
Part Number:
|
Ergotron 33-329-057
|
|
Description:
|
Neo-Flex Widescreen Lift Stand (two-toned grey)
|
|
Includes:
|
|
|
Everything:
|
Everything is included to neatly route cables behind the stand, out of the way
|
|
Weight Capacity:
|
16–36 lbs (7.3–16.3 kg)
|
|
Monitor up/down tilt:
|
+25°/-5
|
|
Mounting Standards:
|
VESA FDMI, MIS-D, 75/100, C (hole pattern = 100 x 100 mm & 75 x 75 mm)
VESA FDMI, MIS-E, C (hole pattern = 200 x 100 mm)
VESA FDMI, MIS-F, C (hole pattern = 200 x 200 mm)
For displays that use a 400 x 200 mm hole pattern, the VESA Bracket Adaptor Kit (97-474) can be ordered separately
|
|
Landscape to Portrait:
|
Landscape-to-portrait screen rotation may be inhibited when using screens that are 30"–32" in size
|
|
Apple’s Cinema Display:
|
Requires a separately ordered adaptor bracket, which is available from Apple
|
|
UL compliant::
|
Meets UL Specification 1678 Tip Test.
|
|
Shipping Dimensions:
|
23.1" x 12.9" x 7.5" (587mm x 327mm x 190mm)
|
|
Shipping Weight:
|
16.5 lbs (7.5 kg)
|
|
Warranty:
|
Three (3) years
|
|
|
|
|
|
|
|
|
Benefits of Ergotron 33-329-057:
|
|
1. Easily position your widescreen LCD for maximum ergonomic comfort—promotes wellness in
any environment.
|
|
2. Upgrade mid-size monitors or TVs with improved adjustability.
|
|
3. Rotate screen for portrait viewing of photos and pages - eliminate scrolling
|
|
4. Fully weight-adjustable desk stand accommodates most mid-size displays.
|
|
5. Easy to use - simple installation and effortless operation.
|
|
6. Embedded with patented motion technology, this stand enables light-touch adjustments
without any knobs or levers.
|
|
7. Integrated base rollers enable 360° pan rotation of the stand so you can share your view with
others.
|
|
8. Five-inch (12.7 cm) height adjustment ergonomically accommodates average range of users.
|
|
|
|
|
|
