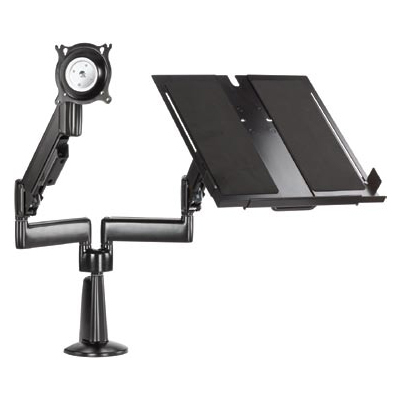

Chief KGL220 Height-Adjustable Monitor/Laptop Dual Arm Desk Mount

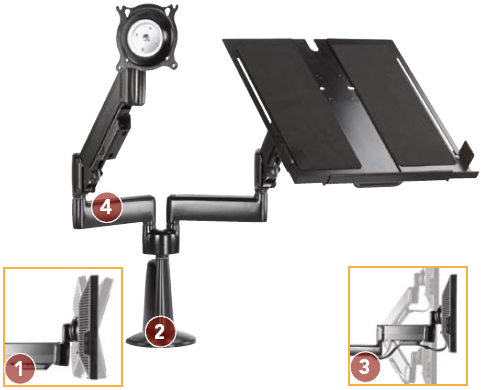

Features of Chief KGL-220B:

    1.  Centris Technology (PATENTED FEATURE): Provides smooth fingertip tilt in all directions

         using the screen’s center of gravity. Screen angle stays set until you decide to re-adjust.

    2.  Easy 3-Step Installation: Ships fully assembled, clamp option can be installed from top of

         desk, grommet bolt through hardware included.

    3.  Fingertip Height Adjustment: Adjust viewing height up to 13.25” (337 mm). Optimize height

         adjustment for any display with customizable tension.

    4.  Ultimate Flexibility: Maximum range of motion from low profile to full extension.

    5.  Laptop desk mount with adjustable laptop tray fits various brands

    6.  Multiple mounting options: edge clamp, grommet clamp, grommet thru-bolt

    7.  Clean look with minimal hardware visible from underside of work surface

    8.  Built-in-cable management for a clean installation

    9.  VESA 75 x 75 mm and 100 x 100 mm compliant

  10.  Note: Mounting surface maximum thickness: 3.2" (81 mm), grommet hole size: 0.38"- 3"

        (10-76 mm)

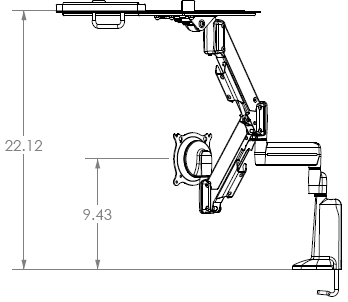

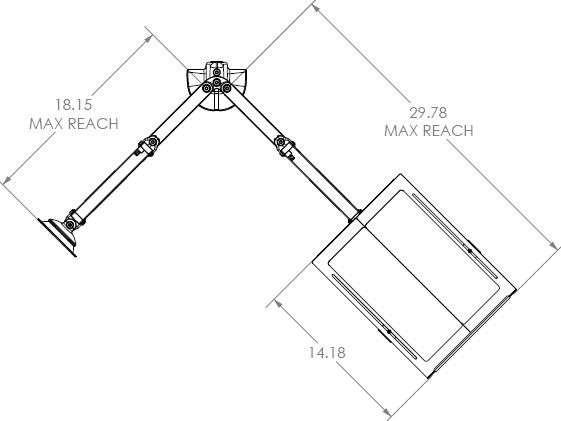

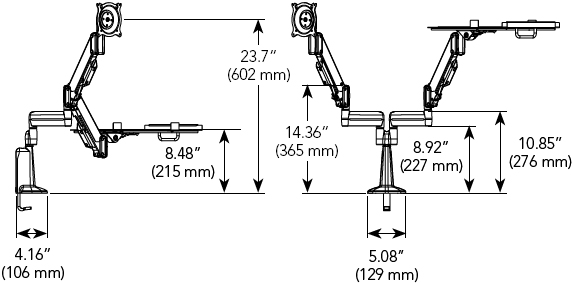

Technical Drawings for Chief KGL 220 Desk Mount Arm

Height Adjustable Dual LCD Monitor or Laptop

Description of Chief KGL 220B:

The KGL220 is an adjustable dual monitor mounting solution and laptop docking station designed for increased productivity at the home or office

Depth (closed):

2.19" (56 mm), monitor/laptop - 15" (381 mm)

Maximum Extension:

20" (508 mm), monitor/laptop - 31.5" (800 mm)

Height Adjustment:

13.25" (337 mm)

Tilt:

+/-15°

Roll:

360º (monitor only)

Yaw:

+/-15º, -25º (monitor/laptop)

Dimensions (H x W x D):

10.81" x 5.17" x 4.2" (275 x 129 x 160 mm)

Color:

Black

Weight Capacity:

monitor - 25 lbs (11.4 kg), laptop - 15 lbs (6.9 kg)

Laptop Width:

10.75- 16.75" (273 - 425 mm)

VESA Compatibility:

75 x 75 mm 100 x 100 mm (without extra interface bracket)
