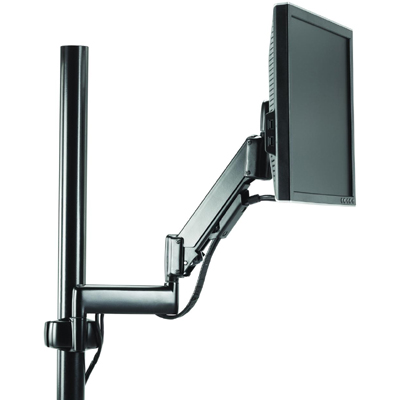

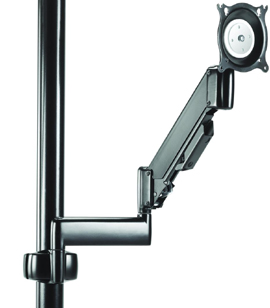

Chief KPG-110B Pole Mount Arm
Height Adjustable Dual Swing LCD Flat Panel or Laptop

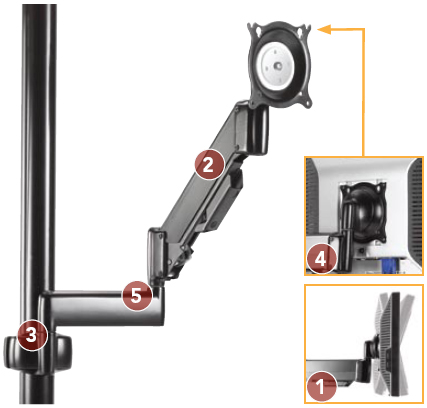

Features of Chief KPG-110:
1. Centris Technology (PATENTED FEATURE): Provides smooth fingertip tilt in all directions
using the screen's center of gravity. Screen angle stays set until you decide to re-adjust.
2. Fingertip Height Adjustment: Adjust viewing height up to 13.25" (337 mm). Optimize height
adjustment for any display with customizable tension
3. Flexible Installation: Allows installation on pre-existing poles with 1.5 - 2" (38 - 51 mm)
outer diameters. Ships fully assembled.
4. Advanced Display Mounting: Teardrop hole pattern makes mounting the screen quick and
5. Ultimate Flexibility: Maximum range of motion from low profile to full extension
6. Portrait and landscape rotation and side-to-side pivot
7. Friction-adjustable pivot points for customized movement
8. Easy cable management through predefined pathway inside arms
9. VESA 75 x 75 mm and 100 x 100 mm compatible

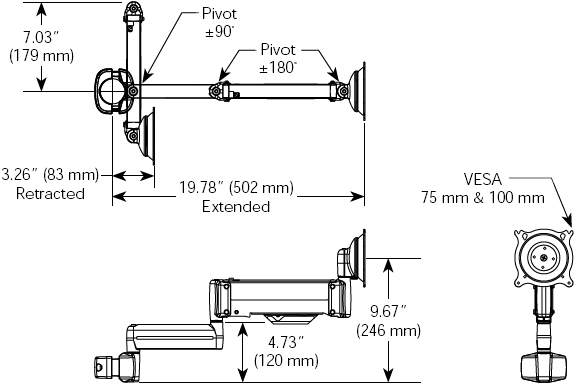

Technical Drawings for Chief KPG 110 Pole Mount
Flat Panel Height Adjustable Dual Swing LCD Arm
Description of Chief KPG 110B:

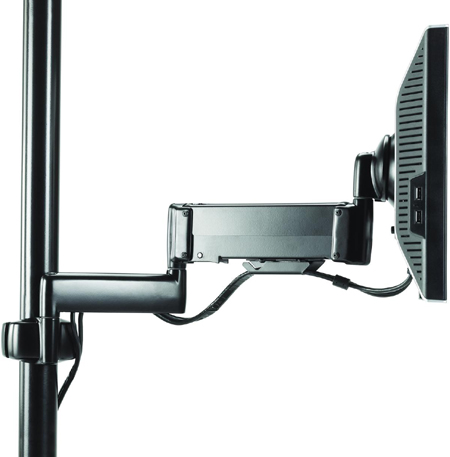

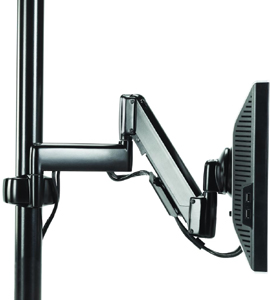

The KPG110 easily attaches small flat panel TVs, LCDs and monitors to poles and allows viewing from multiple angles
Depth from Pole:
2.13" (56 mm)
19.5" (495 mm)
13.25" (337 mm)
Pivot (Pole, Arm, Display):
360 degree/180 degree/180 degree
5-25 lbs (2.3 - 11.4 kg)
Pole Outer Diameter Range:
1.5 - 2" (38 - 51 mm)
75 x 75 mm and 100 x 100 mm (without extra interface bracket)
