Chief KWD130B Height Adjustable Dual Arm Wall Mount, One Monitor

This product has been discontinued.

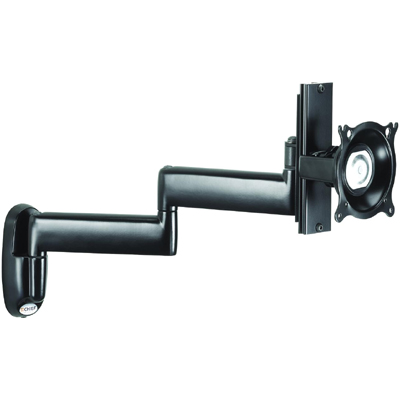

Chief KWD 130B Wall Mount

Flat Panel Height Adjustable Single Monitor Dual LCD Arm

Chief KWD130 Wall Mount Flat Panel Height Adjustable Single Monitor Dual LCD Arm

Features of Chief KWD 130:

1. Height Adjustment: Provides 4.75" (121 mm) of height adjustment to achieve the proper

viewing height.

2. Centris Technology (PATENTED FEATURE): Provides smooth fingertip tilt in all directions

using the screen’s center of gravity. Screen angle stays set until you decide to re-adjust.

3. Compatible with Office Furniture: Custom OFB office furniture interface brackets available

for most office systems. (OFB brackets sold separately)

4. Advanced Display Mounting: Teardrop hole pattern makes mounting the screen quick and

easy.

5. Independently adjustable tension at pivot points for customized control, tension can be

optimized for touch screen use

6. Maximum range of motion from low profile to full extension.

7. Side-to-side pivot adjustment up to 180° depending on installation.

8. Built-in cable management.

9. VESA 75 x 75 mm and 100 x 100 mm compatible (Interface brackets available for non-VESA

compliant monitors)

Technical Drawing for Chief KWD-130 Wall Mount

Height Adjustable Flat Panel Single Monitor Dual LCD Arm

Technical Drawing for Chief KWD130B or KWD130S Wall Mount Flat Panel Height Adjustable Single Monitor Dual LCD Arm

Description of Chief KWD-130B:

Chief’s KWD130 provides manual height adjustment so a monitor can be placed in the appropriate viewing height.

Specifications:
Depth (closed):	5.06" (129 mm)
Maximum Extension:	18.6" (472 mm)
Height Adjustment:	4.75" (121 mm)
Pivot (wall plate/arm):	180º/360º
Dimensions (H x W x D):	11.4" x 12.18" x 5.06" (283 x 309 x 129 mm)
Weight Capacity:	30 lbs (13.6 kg)
Color:	Black
VESA Compatibility:	75 x 75 mm and 100 x 100 mm (without extra interface bracket)
