Innovative 7011-8252 Height Adjustable Laptop Arm with Oversize Tray

0 out of 5 (based on 0 review). Be the first to review this product
Product ID: 15994
  • Tray size is 17" x 10"
List Price: $476.00
Our Price: $333.20
Shipping: $0.00 *
Usually ships in 5 to 7 business days
* applies to Contiguous United States

Dimensional Diagram for Innovative 9110 Pivoting LCD TV Wall Mount


Notebook computers can be an ergonomic nightmare. As we spend more and more time hunched over while pecking at those tiny keyboards, our necks and backs pay the price.

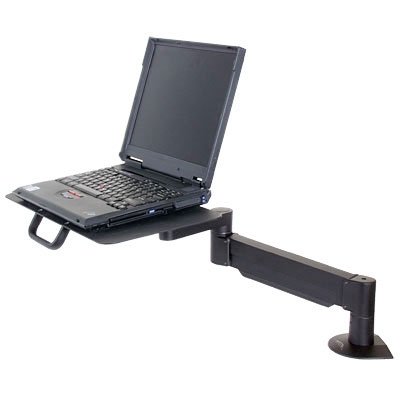

Innovative 7011-8252 is just what you need to make your laptop user-friendly. Simply place your notebook computer on the holding tray; the arm renders it weightless. One-touch adjustment will change height or position. Finished working? Simply move it out of the way, or grab your notebook and go.

Accommodates notebook computers from 1 to 23 pounds. It's offered with an oversize 17"x10" tray. The computer can be secured to the tray with included velcro. Includes our FLEXmount kit, which provides 6 options for mounting the arm.


Technical Drawing

Dimensional Diagram for Innovative 7011-8252 Notebook Mount Arm with oversized Laptop Tray


Technical Specifications

Vertical Range


Horizontal Range



360 degrees at three joints

Monitor Tilt

200 degrees


Holds notebooks up to 23 lbs (10.4 kg)

Notebook Tray Size

17" x 10" (43.2 x 25.4 cm)

Cable Management

Cables are concealed in arm

Mounting Options

FLEXmount, Slatwall, Wall, Thru-Desk

Monitor Weight/Model Number

  • 1 - 12 lbs (0.5 - 5.4 kg) / 7011-8252-500hy
  • 5 - 23 lbs (2.3 - 10.4 kg) / 7011-8252-800hy

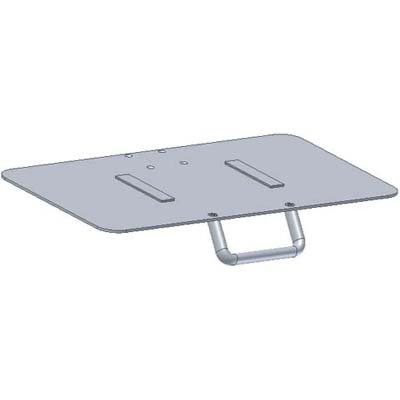

  • Includes oversize 17" x 10" mounting platform to support notebook. (Includes velcro to secure notebook to platform)
  • Rotates 360 degrees at three joints
  • Monitor tilter mechanism can tilt over 200 degrees
  • Optional 6" extender tube available to raise monitor

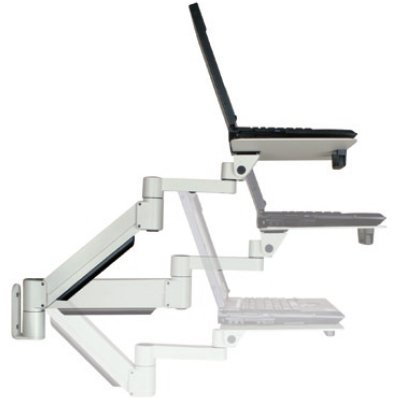

  • Gas cylinder "floats" notebook above desk - instantly raise and lower notebook
  • Extends up to 24" (81 cm), with 14" (37 cm) vertical range and folds up to occupy 10.9" (28 cm) of space
  • Integrated cable management system keeps your work surface free of annoying cable clutter
  • Made of sturdy cast aluminum
Model 7011-8252-500HY, 7011-8252-800HY
Manufacturer Innovative LCD Arms
Part Number 7011-8252-500HY, 7011-8252-800HY
Weight 18.00 lb(s)
Mounting Options Desk
Mounting Options Wall
Mounting Options Pole
Mounting Options Slatwall
Monitor Arm Types Laptop/Notebook
Tilt 200 degree
Weight Capacity Up to 23 lbs (10.4 kg)
Tray Dimensions 17" x 10" (43.2 x 25.4 cm)
Color 104 - Vista Black, 124 - Silver, 248 - Flat White
Height Adjustment 16"
Extension 24"
Pivot Landscape to Portrait
Rotation At three joints 360 degree
Warranty 10 Years
