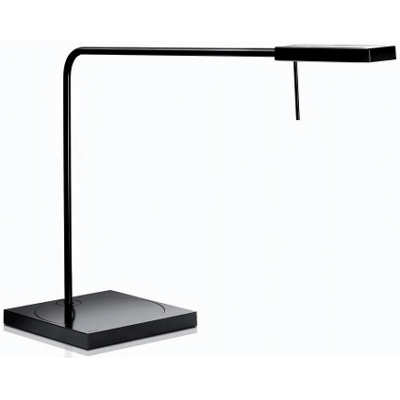

Luxo Ninety Energy Efficient LED Task Light

Related Products:

NIN025934

Grey Gloss Ninety Energy Efficient LED Task Light with Edge Clamp

NIN025938

Metallic Black Gloss Energy Efficient LED Task Light with Edge Clamp

NIN025942

White Gloss Ninety Energy Efficient LED Task Light with Edge Clamp

NIN026240

Grey Gloss Energy Efficient LED Task Light with Table/Desk Base

NIN026241

Metallic Black Gloss Ninety Energy Efficient LED Task Light with Table/Desk Base

NIN026242

White Gloss Ninety Energy Efficient Task Light with Table/Desk Base

Features of Ninety Task Light:

    1.  Light source: 4x1.4W Dimmable LEDs

2.  Energy Consumption: 7.8 Watt

    3.  Standby Power Consumption: 0.6 W

    4.  Luminance: 100 foot candles at 16 in. (1000 lux at 400 mm)

5.  Color Temperature: 3000 Kelvin

    6.  Color Rendering: >90

7.  AC/DC Converter: Electronic plug-in transformer

    8.  Power Cord: 4.5' long

9.  Arm Lengths:

• Short Arm Edge Clamp/ Table/Desk Base (length of the tubes themselves): 13.82 in. (351mm) H x 14.1 in. (369 mm) L, Total Length: 28.35 in. (720 mm)

• Long Arm Edge Clamp/Table Desk base (length of the tubes themselves): 16.99 in. (431.6 mm) H x 23.2 in. (588.4 mm) L, Total Length: 32.5 in. (825 mm)

• Panel Mount (length of the tubes themselves): 4.13 in. (105 mm) H x 17.52 in. (445 mm) L, Total Length: 20.67 in. (525 mm)

  10.  Available with edge clamp, panel mount or table/desk base.

11.  Colors: Metallic Black Gloss, White Gloss or Gray Gloss

Technical Drawing for Luxo Ninety Energy Efficient LED

Ergonomic Task Light Table/Desk Base

Description of Ninety Task Light:

Ninety - the world's most energy-efficient LED task light. Four high-power LEDs illuminate the task area as the asymmetric light distribution ensures optimal ergonomic lighting. A spring-balanced arm, rotating base and sleek head give the Ninety excellent range of motion.

Specifications:

Watt:

6 Watt

Total Effect:

8 Watt

Weight:

16746BK/GY/WT: 2.6 lb

16747WT/MB/GY: 2.2 lb

16739WT/MB/GY: 2.2 lb

16738BK/GY/WT: 8.8 lb

16748WT/MB/GY: 8.8 lb

Voltage:

120 V

Diode Color:

3000

Arm Length:

825 mm, 720 mm and 525 mm

IP:

20

Color Rendition:

90

Colors:

White Gloss or Grey Gloss or Metallic Black Gloss

Accessories:

8990-081 - Recessed Surface Mount Bracket

50064 - Ninety Panel Bracket

50068 - Ninety Edge Clamp

50069 - Ninety Paper Management Bracket

50067 - Ninety Panel Mount Bracket

50066 - Ninety Table/Desk Base

More Images:

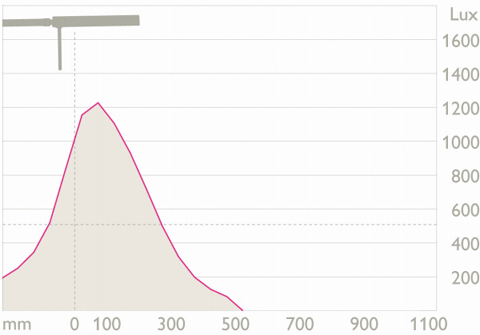

Luxo Ninety Task Light Data

Luxo Ninety Energy Efficient Ergonomic LED Task Light - Product Sheet

- pdf
