Workrite AST Astra LED Task Light

Workrite AST Astra User Friendly LED Ergonomic Task Light

Related Products:

AST-DB-C

Carbon Astra LED Ergonomic Task Light with Desk Base

AST-DB-S

Sterling Astra LED Ergonomic Task Light with Desk Base

AST-DB-W

Winter Astra LED Ergonomic Task Light with Desk Base

AST-CC-C

AST-CC-S

AST-CC-W

AST-TC-C

AST-TC-S

AST-TC-W

AST-SW-C

AST-SW-S

AST-SW-W

AST-WM-C

AST-WM-S

AST-WM-W

AST-P1-C

AST-P1-S

AST-P1-W

AST-P2-C

AST-P2-S

AST-P2-W

AST-P3-C

AST-P3-S

AST-P3-W

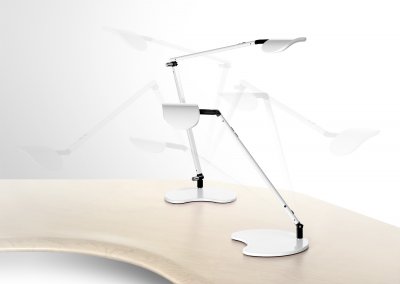

Astra Dual Arm Configuration shown

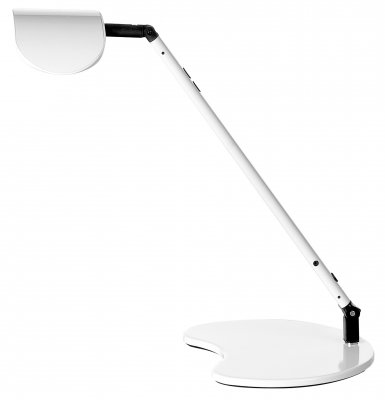

Astra LED Light Single Arm

Astra's User Friendly Features:

    1. Over 34 inches horizontal reach and up to 32 inches vertical reach.

    2. Asymmetric light distribution for glare free light.

    3. 4 step dimming.

    4. Multiple mounting options including panel system adaptors.

    5. Three finishes plus custom colors for quantity 200+.

    6. Meets DOE Ergonomics Guidelines and IESNA RP-1-04 section 2.3 requirements for task lighting illuminance levels.

    7. UL, cUL listed.

Green Features for LEED Eligibility:

    1. Astra is eligible for 1-7 LEED credits based on its energy use and ergonomic adjustability.

    2. Energy and atmosphere, credit 1.1

• Optimize energy performance: lighting power (1-3 points)

        Innovation and design, credits 1.1 -1.4

• Implementation of comprehensive ergonomic program (1 - 4 points)

Additional Environmental Considerations:

    1. Uses over 50% less energy than comparable fluorescent lights.

    2. Aluminum housing and table base are completely recyclable.

    3.  All three finishes use water-based paint.

    4. Energy Star credential in process.

    5.  Product packaging contains minimum 70% recycled content, fully recyclable.

    6. LEDs are a mercury-free light source

Technical Drawing for Workrite Astra User Friendly Ergonomic LED Task Lighting

Description of Workrite AST Astra Task Light:

The Ideal LED Task Light is Now in Reach. Astra shines brightly with a pleasing, warm white light. Its minimal 6 watt power use will lighten your energy load for years to come. And naturally, its low energy use contributes to LEED credits. With five points of adjustment, Astra goes the distance in ergonomic task lighting. Astra is designed to fit your workspace -  whether mounted to a Sierra toolbar, the edge of your worksurface or attached to a panel system. So even when your projects get out of hand, the Astra is never out of reach.

Specifications:

Pivot and Rotation:

180 degree pivot and 360 degree rotation at base (90 degree rotation with desk base), 180 degree pivot at elbow, 180 degree pivot and 360 degree rotation at shade

Horizontal Reach:

Over 34 inches

Vertical Reach:

Up to 32 inches

Color Temperature:

3500K, CRI: 92

LED and Watts:

6 LEDs, 6 Watts

Useful Life:

50,000 hour 20 year useful life

Mounting Options:

• Desk Clamp

• C-Clamp

• Two Piece Clamp

• Slat Wall

• Wall Mount

• Sierra Tool Bar

• Panel Adapter Narrow

• Panel Adapter Wide

Color:

Carbon or Sterling or Green

Warranty:

10 years

More Images:

DB - Desk Base

9" x 7.5"

For worksurfaces 0.5" - 2.25"

P1 - Sierra Tool Bar

Panel Adaptor

WM - Wall Mount

SW - Slat Wall

Workrite AST Astra Ergonomic LED Task Light - Product Sheet

- pdf

Workrite Astra User Friendly LED Light - Instruction Installation

- pdf

Workrite Lighting Comparison Guide

- pdf

Workrite Astra Environmental Data

- pdf
