Ergotron 60-603-003 TM Tilting Wall Mount

0 out of 5 (based on 0 review). Be the first to review this product
Product ID: 16046
Recommended Accessories
Our Price: $100.48
Shipping: $15.95 *
Usually ships in 2 to 3 business days
* applies to Contiguous United States



Animation for Ergotron TM Tilting Wall Mount

Description

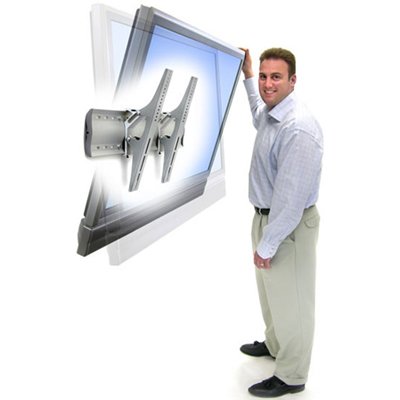

Attaching your valuable (and heavy) flat panel investment to a wall can be nerve-racking. So we took our engineering know-how and created an extremely stable large display and TV wall mount. With its integrated CF motion technology, anyone can effortlessly adjust the tilt of the screen.

Note: For very thin or very light-weight displays, Ergotron recommends our Neo-Flex Tilting Wall Mounts.



Technical Drawing

Technical Drawing for Ergotron 60-603-003 Tilting Wall Mount



Technical Specifications

LCD size

Capacity

Lift

Tilt

Pan

Rotation

VESA

LCD Size

Capacity

Lift

Tilt

Pan

Rotation

VESA

32"-65" Up to 175 lbs

79 kg

- 20° - - MIS-D/E/F



Product Information

Part Number:

60-603-003 (replacement for 60-572-003)

Description:

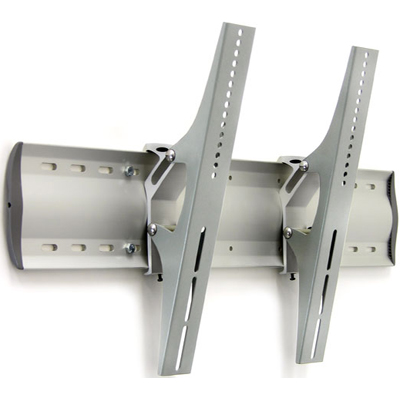

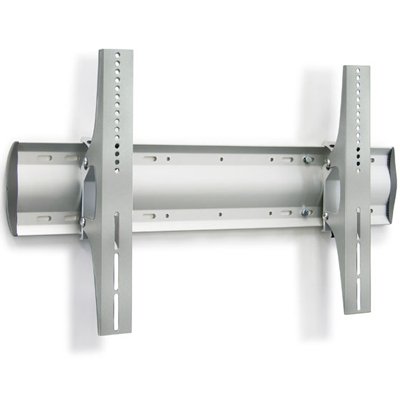

TM Tilting Wall Mount (silver)

Includes:

  • Wall plate

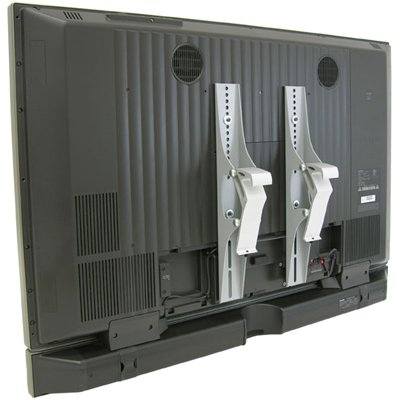

  • Two (2) display brackets
  • Hardware fastener kit

Universal Monitor Attachment:

Mounting holes must fit within spacing range below... Horizontal = 100 mm (min.) to 600 mm (max.) Vertical = 100 mm (min.) to 450 mm (max.)

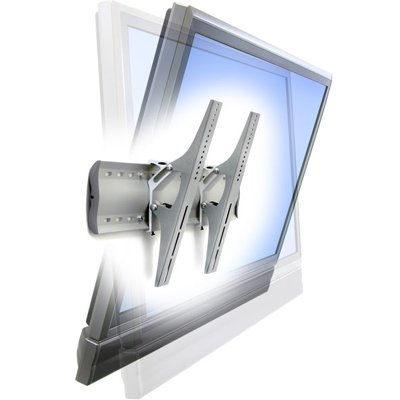

Tilt:

Tilt functionality may be impaired if used with very thin or very light-weight displays

Premium Construction:

Composed of extruded aluminum and steel.

Mounting Options:

Wall plate attaches to vertical wall surfaces. Includes hardware for mounting to wood studs (16" centered studs) or concrete walls.

Note:

  • If mounting to wall using 24" centered studs, order TM, XL version (pt. # 60-601-003).
  • For displays with horizontal hole pattern of 601–800 mm, order TM, XL version (pt. # 60-601-003).

Profile off the Wall:

3.5" (89 mm)

UL Certified and Listed:

To UL Standard 1678. This product has been tested to hold four times its maximum load capacity per UL standard (do NOT exceed listed weight capacity in actual use).

Shipping Dimensions:

34.6"W x 12.9"H x 4.3"D (88 x 33 x 11 cm)

Shipping Weight:

14 lbs (6.3 kg)

Warranty:

Five (5) years



Benefits

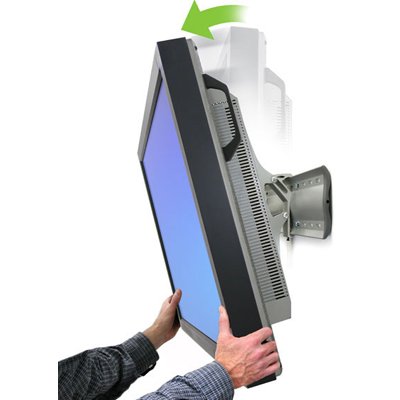

  • Benefits Tilt your screen with just your fingertips - no knobs or levers.
  • Easy to install.
  • Protect your investment: Integrated security fasteners hold display in place and deter others from removing your display.
  • View in comfort: Cut glare while improving sight lines.
  • Fits most ≥ 32" displays up to 175 lbs (79 kg).
  • Includes fasteners for mounting to wood studs or concrete walls.
Model 60-603-003
Manufacturer Ergotron
Part Number 60-603-003
UPC 698833011654
Weight 14.00 lb(s)
Color Silver
Monitor Size 32"–65"
Weight Capacity Up to 175 lbs (79 kg). Tilt functionality may be impaired if used with very thin or very light-weight displays.
Tilt 20 degree
Mounting Pattern Universal Monitor Attachment: Mounting holes must fit within spacing range below... Horizontal = 100 mm (min.) to 600 mm (max.) Vertical = 100 mm (min.) to 450 mm (max.)
Mounting Options Tilting Wall
Profile off the Wall 3.5" (89 mm)
Shipping Dimensions 34.6"W x 12.9"H x 4.3"D (88 x 33 x 11 cm)
Shipping Weight 14 lbs (6.3 kg)
Warranty Five (5) years
