Workrite Sierra Pin Equal Corner 3 Legs Adjustable Height Tables SN606024

Our Price:	$1,203.60
Shipping:	$0.00 * - See delivery options below
Usually ships in 3 to 5 business days
* applies to Contiguous United States

Accessories for Sierra Pin Equal Corner 3 Legs Height Adjustable Table

Workrite 800 Mobile Pedestal

Workrite 820 Storage Tower

Workrite 941 Modesty Screen

WorkRite 971 Privacy Panel

WorkRite 970 Tool Bar

Workrite 95234 Locking Casters

WorkRite 95204 Pen Holder

WorkRite 95205 CD Holder

95207 Legal Size Paper Tray

Workrite 95208 Accessory Tray

95301 Power/Data Supply

WorkRite 4400038 kits

Workrte 95209 Phone Base

Workrite 95210 Folder Tray

Workrite 95222 Wire Way

Workrite 95212 Cup Holder

Workrite 95213 Shelf

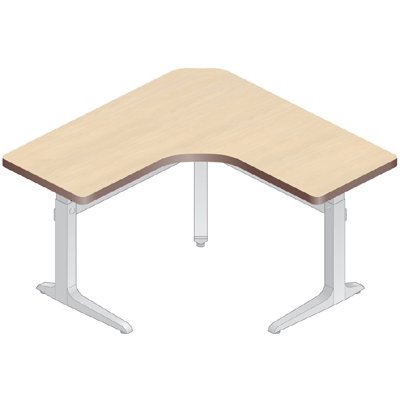

WorkRite Sierra Pin Equal Corner - 3 legs SN606024 Height Adjustable Desk and Table

Pin-Set Seated Height Range

General Information

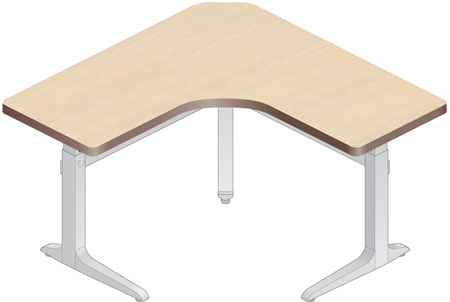

WorkRite Sierra Pin Equal Corner 3 Legs Adjustable Height Workcenter SN606024

WorkRite Sierra Pin Equal Corner 3 Legs Adjustable Height Workcenter

Workrite Sierra Pin Workstation Description

Features:

Adjusts from 22" - 34" in 1" pin-set increments
Load capacity 250 lbs.
Two piece thermofoil top, two piece laminate top if width is greater than 60"

Sierra comes in an equally sleek pin-set version. A smart alternative in settings where only the occasional change in seated height is needed.

An ergonomic and economic solution:

For today's multishift, job-sharing offices, the WorkRite Sierra Pin offers maximum flexibility and exonomy in the seated position. In typical office environments where employees move frequently, the Sierra Pin permits facilities personnel to quickly and easily calibrate each workcenter to its new owner.

Sierra pin height range fully meets BIFMA requirement

Stylish leg profile provides robust support:

Readily adjust the height in 1" increments to achieve full 5th - 95th percentile height range support for seated workers. With 250 pounds of support in over a dozen shapes and our full range of laminate and trim options, the Sierra Pin is a sturdy stalwart for virtually any office.

Pin sets in 1" increments for complete BIFMA height range

LEED eligibility:

All Sierra Electric workcenters exceed LEED requirement MR4.2 (20% recycled content) with a minimum of 42% LEED recycled content, and 35% for base only models.

Tool Bar and Privacy Panel:

Make your workcenter work for you with our complete line of accessories, mounted to our stylish tool bar or privacy panel.

Sierra Tool Bar and Privacy Panel

Sierra tool bar provides ready access to work tools

Option 1: Choose your Surface Dimensions:

Model SN606024: 60" x 60" x 24" Surface Dimensions

Model SN666624: 66" x 66" x 24" Surface Dimensions

Model SN727224: 72" x 72" x 24" Surface Dimensions

Model SN606030: 60" x 60" x 30" Surface Dimensions

Model SN666630: 66" x 66" x 30" Surface Dimensions

Model SN727230: 72" x 72" x 30" Surface Dimensions

Option 2: Choose your Base Frame Color:

Sierra Silver (S)

Option 3: Choose your Laminate Top Color:

Classic Collection Laminates

White Spectrum

AW785

Amber Raffia

AO351

Black

SE101

Black Ashwood

SZ101

Caramel Crepe

AT111

Coriander Fiber

AT981

Folkstone Gray

SG241

Gateway to the Future AV100

Hardrock Maple

WM791

IL Palio Papel

AV981

Jewel Mahagony WY351

Manila Linen

AT231

Opti Gray

SG213

Pearwood

WX031

Sharker Cherry

WC521

Taupe

ST606

Vanilla Fiber

AW871

Wheat Fiber

AT991

Opti Gray Crepe

AG341

Oiled Cherry

WC421

Designer Collection Laminates

Almond

ST655

Spa White

S740T

Sage

SV720

Thyme Fiber

AV721

Anigre

WX041

Beige Crepe

AT251

Beige Crepe

AT301

Blue Sandstone

AB191

Cubicle Papel

AG561

Yorkshire Cherry

WC411

Graveyard

AG611

Gray Santos

AG291

Gridlock

PFA51

Honey Maple

WM951

Millwork Cherry

WC431

Moonlighting Papel AV971

Moroccan Fresco AT121

Negotiating in Geneva PFA60

Oatmeal Fiber

AT101

Pearl of the Orient AG601

Pepper Fiber

AG581

Putty Gray

SG209

Rhinestone Cowboy AT151

Sipping Seattle Java PFA48

Star of the West

AT361

Streets of San Francisco PFA54

Witchcraft

WX421

Thermofoil Laminates (Minimum 10 Desks)

American Natural

98150

Aururn Pear

88898

Cashmere Fiber

98930

Clove

90340

Ebony Starlight

89865

Hayward Cherry

498120

Northern Gray

448395

Studio White

Dust 88885

Option 4: Edge Treatments

Edge Treatments for Laminated Surfaces:

Standard

Colors 01 - 05

Wedge

Black only - 06

Ripple

Black only - 07

Standard Edge Colors:

Folkstone 01

Black 02

Opti-Grey 03

Almond 04

HW Brown 05

Soft White 53

Edge Treatments for Thermofoil Surfaces:

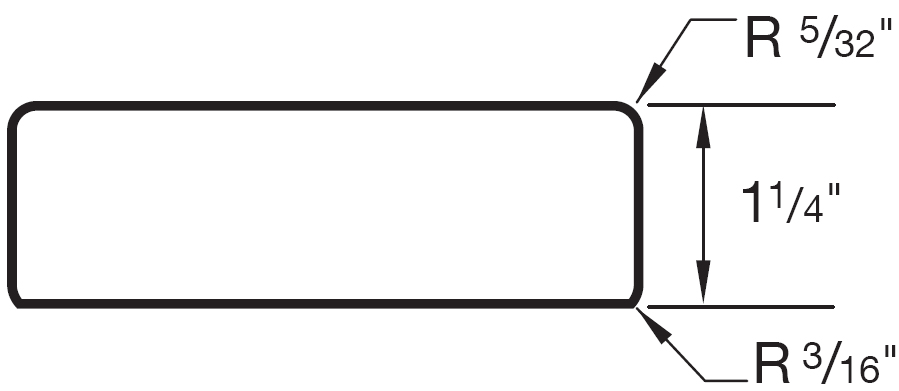

Block B1

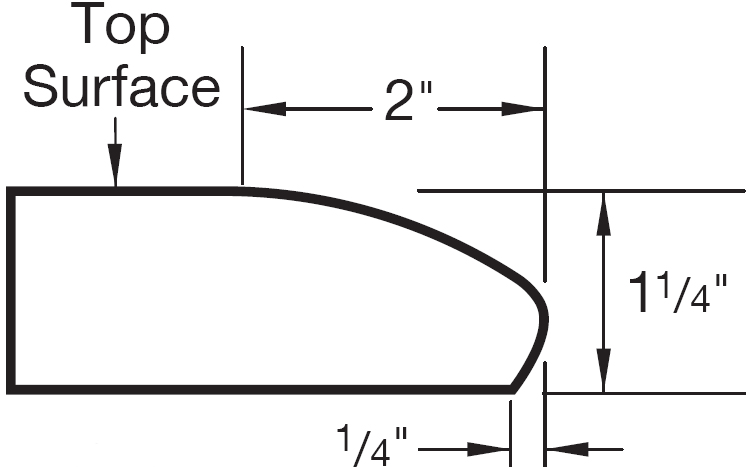

Cascade C1

Option 5: Casters

Sierra Locking Casters

Sierra Locking Casters

Features:

Low profile locking casters, 2" W x 1.5" H
Casters raise workcenters by 1" versus installed adjustable glides
Can be used with all Workrite adjustable workcenters, recommended for Sierra workcenters
Four (4) casters required for 2 leg workcenters, five (5) casters required for 3 leg workcenters

The following casters are available:

95234: 4 casters for 2 leg Workcenters
95235: 5 casters for 3 leg Workcenters

Option 6: Pinch Points

Actual Desktop Size:

Dimensions provided above are nominal. Actual widths of all tables are reduced by approximately 2" and depths by 1". For example, a nominal 72" x 72" x 24" large corner table has an actual dimension of 70" x 70" x 23", and a 72" x 30" rectangular table has an actual dimension of 70" x 29".

Workcenter Ordering Information

For Thermofoil laminates: Minimum quantity 25 tables per base model number (i.e. SN6030); consult factory for quote on larger projects.

Dual Surface specifications:

Front surface laminate and trim matches main worksurface.

Keyboard Cutout:

Front surface adjusted using fixed mount Pinnacle 2 Arm with 0" to -6" height range and -15 degree to +10 degree tilt range.

Table Surface Installation:

Table surfaces are pre-drilled with mounting location for bases and dual surface platform (if any). A joining kit is provided for all three leg tables with a two piece top.

Assembly:

All tables and bases ship unassembled. Weight information is shipped weight for laminate option only.

Sierra Assembly Image

Power:

Control box powered by 120V / 60Hz. May draw 6 amps maximum under full load, idle current is typically 20mA. 10ft grounded power cord with IEC type connection at control box provided.
Cable management spool provided to manage excess control cables; optional cable mount accessories are available - see Accessories.

Application Tips:
Mobile pedestals 21.5" H x 17" D and 21.5" H x 18.75" D will fit under 24"D and 30" D tables, respectively. To accommodate deeper pedestals, contact factory for custom leg placement.

Moving worksurfaces can collide with other components. Installation of overhead storage or wall mounted accessories in the path of the worksuface is not recommended. WorkRite has tool bars which move with the worksurface and can accept a variety of desk accessories.

Note for Base Units Only:

For safe operation of the moving worksurface in close proximity to walls or other worksurfaces, we recommend the following:

Reduce the width of the worksurface by two inches.
Reduce the depth of the worksurface by one inch.
Customer assumes full responsibility for proper clearances.

Lead Times:

Classic Collection Laminates: Ships in 10 working days
Designer Collection Laminates: Ships in 15 working days
Thermofoil Laminates: Ships in 6 weeks, minimum quantities apply
Note: All lead times quoted are for the models shown in current catalog. Please call for lead times on custom tables.

Literature (Please open the following documents for more technical information)

Description	File Type
WorkRite Sierra Pin Equal Corner 3 Legs Height Adjustable Table - Product Cut Sheet	- pdf
WorkRite Sierra Height Adjustable Workcenter - Assembly Instructions	- pdf
WorkRite Sierra Adjustable Desk - Tool Bar and Privacy Panel Assembly Instruction	- pdf
WorkRite Sierra User Guide	- pdf
WorkRite Sierra Special Settings	- pdf

Model	SN606024 OR SN666624 OR SN727224 OR SN606030 OR SN666630 OR SN727230
Manufacturer	Workrite Ergonomics
Part Number	SN606024 OR SN666624 OR SN727224 OR SN606030 OR SN666630 OR SN727230
Weight	132.00 lb(s)
