Workrite Sierra Pin Offset Corner Left or Right 3 Legs (22-34") Height Adjustable Tables

Adjusts 22" - 34" in 1" pin-set increments. It is custom made and ships in 10 business days.
0 out of 5 (based on 0 review). Be the first to review this product
Product ID: 16100
Recommended Accessories
Our Price: $1,040.40
Shipping: $0.00 * - See delivery options below
Usually ships in 3 to 5 business days
* applies to Contiguous United States





Accessories for Sierra Pin Offset Corner 3 Legs Height Adjustable Table

WorkRite Mobile Pedestal 800

Workrite 800 Mobile Pedestal

WorkRite Wardrobe/Storage Tower 820

Workrite 820 Storage Tower

WorkRite 941 Sierra Modesty Screen

Workrite 941 Modesty Screen

WorkRite 971 Sierra Privacy Panel

WorkRite 971 Privacy Panel

WorkRite 970 Sierra Tool Bar

WorkRite 970 Tool Bar

WorkRite 95234 Sierra 4 Locking Casters for 2 Leg Workcenter

Workrite 95234 Locking Casters













WorkRite Pen Holder 95204

WorkRite 95204 Pen Holder

WorkRite CD Holder 95205

WorkRite 95205 CD Holder

WorkRite Legal Size Paper Tray 95207

95207 Legal Size Paper Tray

WorkRite Accessory Tray 95208

Workrite 95208 Accessory Tray

WorkRite 95301 Sierra Power / Data Supply

95301 Power/Data Supply

WorkRite 4400038 Kits to join Worksurfaces

WorkRite 4400038 kits













WorkRite Phone Base 95209

Workrte 95209 Phone Base

WorkRite Folder Tray 95210

Workrite 95210 Folder Tray

WorkRite 95222 Wire Way

Workrite 95222 Wire Way

WorkRite 95212 Cup Holder

Workrite 95212 Cup Holder

WorkRite 95213 Shelf

Workrite 95213 Shelf









WorkRite Sierra Pin Offset Corner Left or Right 3 Legs Height Adjustable Desk and Table

Pin-Set Seated Height Range





General Information
















WorkRite Sierra Pin Offset Corner Left SN604824 or Right 3 Legs Adjustable Height Workcenter











WorkRite Sierra Pin Offset Corner 3 Legs Adjustable Height Workcenter













Workrite Sierra Pin Workstation Description





Features:

  • Adjusts from 22" - 34" in 1" pin-set increments

  • Three leg table

  • Load capacity 250 lbs.

  • One piece laminate top, two piece thermofoil top if right/left width greater than 48"



Sierra comes in an equally sleek pin-set version. A smart alternative in settings where only the occasional change in seated height is needed.




An ergonomic and economic solution:

For today's multishift, job-sharing offices, the WorkRite Sierra Pin offers maximum flexibility and exonomy in the seated position. In typical office environments where employees move frequently, the Sierra Pin permits facilities personnel to quickly and easily calibrate each workcenter to its new owner.



Sierra pin height range fully meets BIFMA requirement

Sierra pin height range fully meets BIFMA requirement





Stylish leg profile provides robust support:

Readily adjust the height in 1" increments to achieve full 5th - 95th percentile height range support for seated workers. With 250 pounds of support in over a dozen shapes and our full range of laminate and trim options, the Sierra Pin is a sturdy stalwart for virtually any office.



Pin sets in 1" increments for complete BIFMA height range

Pin sets in 1" increments for complete BIFMA height range





LEED eligibility:

All Sierra Electric workcenters exceed LEED requirement MR4.2 (20% recycled content) with a minimum of 42% LEED recycled content, and 35% for base only models.





Tool Bar and Privacy Panel:

Make your workcenter work for you with our complete line of accessories, mounted to our stylish tool bar or privacy panel.



Sierra Tool Bar and Privacy Panel

Sierra tool bar provides ready access to work tools















Option 1 and 2: Choose your Desk Top Position and Surface Dimensions:

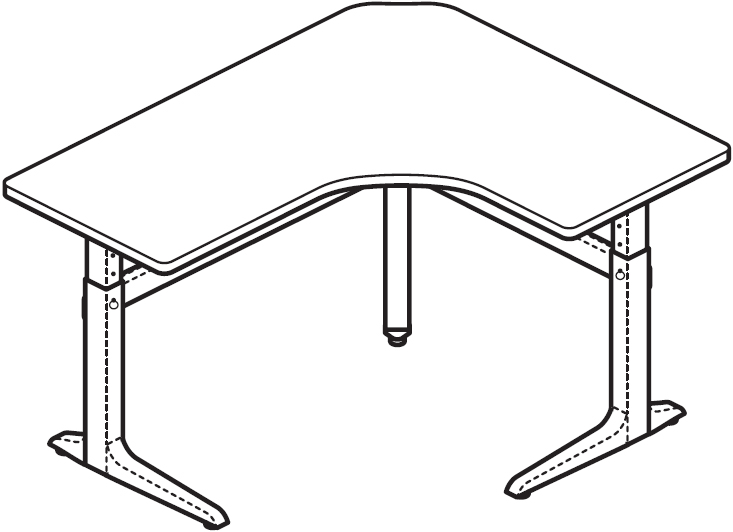

Offset Corner Left (long side at left, short side at right)

Offser corner 3 legs

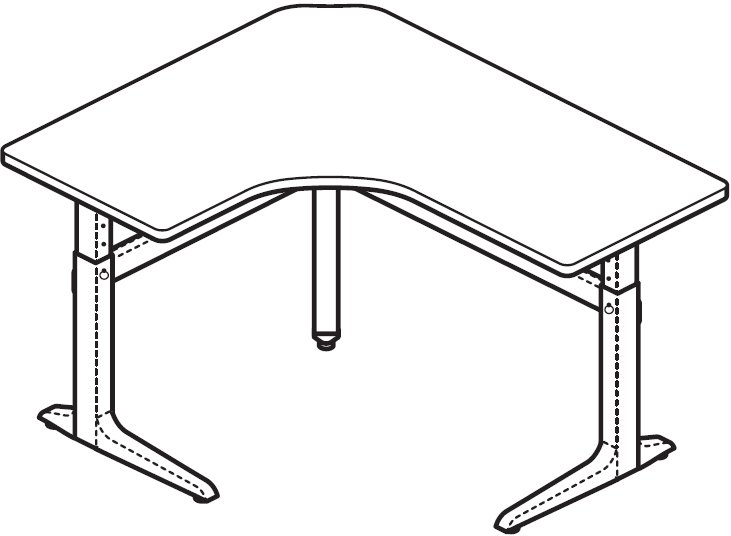

Offset Corner Right (long side at right, short side at left)

Offset Corner Right



Model SN604824: 60" x 48" x 24" Surface Dimensions

Model SN486024: 48" x 60" x 24" Surface Dimensions

Model SN724824: 72" x 48" x 24" Surface Dimensions

Model SN487224: 48" x 72" x 24" Surface Dimensions

Model SN726024: 72" x 60" x 24" Surface Dimensions

Model SN607224: 60" x 72" x 24" Surface Dimensions

Model SN844824: 84" x 48" x 24" Surface Dimensions

Model SN488424: 48" x 84" x 24" Surface Dimensions

Model SN604830: 60" x 48" x 30" Surface Dimensions

Model SN486030: 48" x 60" x 30" Surface Dimensions

Model SN724830: 72" x 48" x 30" Surface Dimensions

Model SN487230: 48" x 72" x 30" Surface Dimensions

Model SN726030: 72" x 60" x 30" Surface Dimensions

Model SN607230: 60" x 72" x 30" Surface Dimensions

Model SN844830: 84" x 48" x 30" Surface Dimensions

Model SN488430: 48" x 84" x 30" Surface Dimensions







Option 3: Choose your Base Frame Color:



Frame Base Color Silver



Sierra Silver (S)









Option 4: Choose your Laminate Top Color:







Classic Collection Laminates






White Spectrum

AW785






Amber Raffia

AO351






Black

SE101






Black Ashwood

SZ101






Caramel Crepe

AT111






Coriander Fiber

AT981






Folkstone Gray

SG241






Gateway to the Future AV100






Hardrock Maple

WM791






IL Palio Papel

AV981






Jewel Mahagony WY351






Manila Linen

AT231






Opti Gray

SG213






Pearwood

WX031






Sharker Cherry

WC521






Taupe

ST606






Vanilla Fiber

AW871






Wheat Fiber

AT991






Opti Gray Crepe

AG341




Oiled Cherry

WC421







Designer Collection Laminates





Workrite Sierra Designer Laminate color Almond

Almond

ST655



Workrite Designer Laminate Color Spa White

Spa White

S740T




Sage

SV720




Thyme Fiber

AV721




Anigre

WX041




Beige Crepe

AT251




Beige Crepe

AT301




Blue Sandstone

AB191




Cubicle Papel

AG561




Yorkshire Cherry

WC411




Graveyard

AG611




Gray Santos

AG291




Gridlock

PFA51




Honey Maple

WM951




Millwork Cherry

WC431




Moonlighting Papel AV971




Moroccan Fresco AT121




Negotiating in Geneva PFA60




Oatmeal Fiber

AT101




Pearl of the Orient AG601




Pepper Fiber

AG581




Putty Gray

SG209




Rhinestone Cowboy AT151




Sipping Seattle Java PFA48




Star of the West

AT361




Streets of San Francisco PFA54




Witchcraft

WX421



















Thermofoil Laminates (Minimum 10 Desks)






American Natural

98150




Aururn Pear

88898




Cashmere Fiber

98930




Clove

90340




Ebony Starlight

89865




Hayward Cherry

498120




Northern Gray

448395




Studio White

Dust 88885







Option 5: Edge Treatments



Edge Treatments for Laminated Surfaces:






Edge Treatment Standard

Standard

Colors 01 - 05



Edge Treatment Wedge

Wedge

Black only - 06



Edge Treatment Ripple

Ripple

Black only - 07

















Standard Edge Colors:




Folkstone 01




Black 02




Opti-Grey 03




Almond 04




HW Brown 05



Workrite Standard Edge Color Soft White

Soft White 53



















Edge Treatments for Thermofoil Surfaces:





Workrite thermofoil edge block B1

Workrite Thermofoil Edge Cascade C1





Edge Treatment Block B1

Block B1



Edge Treatment Cascade C1

Cascade C1







Option 6: Casters



Sierra Locking Casters



Sierra Locking Casters





Features:

  • Low profile locking casters, 2" W x 1.5" H

  • Casters raise workcenters by 1" versus installed adjustable glides

  • Can be used with all Workrite adjustable workcenters, recommended for Sierra workcenters

  • Four (4) casters required for 2 leg workcenters, five (5) casters required for 3 leg workcenters





The following casters are available:



  • 95234: 4 casters for 2 leg Workcenters

  • 95235: 5 casters for 3 leg Workcenters







Option 7: Pinch Points









Actual Desktop Size:





Dimensions provided above are nominal. Actual widths of all tables are reduced by approximately 2" and depths by 1". For example, a nominal 72" x 72" x 24" large corner table has an actual dimension of 70" x 70" x 23", and a 72" x 30" rectangular table has an actual dimension of 70" x 29".





Workcenter Ordering Information









For Thermofoil laminates: Minimum quantity 25 tables per base model number (i.e. SN6030); consult factory for quote on larger projects.









Dual Surface specifications:

Front surface laminate and trim matches main worksurface.











Keyboard Cutout:

Front surface adjusted using fixed mount Pinnacle 2 Arm with 0" to -6" height range and -15 degree to +10 degree tilt range.









Table Surface Installation:

Table surfaces are pre-drilled with mounting location for bases and dual surface platform (if any). A joining kit is provided for all three leg tables with a two piece top.













Assembly:

All tables and bases ship unassembled. Weight information is shipped weight for laminate option only.



Sierra Assembly Image











Power:

Control box powered by 120V / 60Hz. May draw 6 amps maximum under full load, idle current is typically 20mA. 10ft grounded power cord with IEC type connection at control box provided.
Cable management spool provided to manage excess control cables; optional cable mount accessories are available - see Accessories.









Application Tips:
Mobile pedestals 21.5" H x 17" D and 21.5" H x 18.75" D will fit under 24"D and 30" D tables, respectively. To accommodate deeper pedestals, contact factory for custom leg placement.

Moving worksurfaces can collide with other components. Installation of overhead storage or wall mounted accessories in the path of the worksuface is not recommended. WorkRite has tool bars which move with the worksurface and can accept a variety of desk accessories.













Note for Base Units Only:

For safe operation of the moving worksurface in close proximity to walls or other worksurfaces, we recommend the following:



  • Reduce the width of the worksurface by two inches.

  • Reduce the depth of the worksurface by one inch.

  • Customer assumes full responsibility for proper clearances.

Lead Times:

  • Classic Collection Laminates: Ships in 10 working days

  • Designer Collection Laminates: Ships in 15 working days

  • Thermofoil Laminates: Ships in 6 weeks, minimum quantities apply

  • Note: All lead times quoted are for the models shown in current catalog. Please call for lead times on custom tables.





Literature (Please open the following documents for more technical information)

Description

File Type

WorkRite Sierra Pin Offset Corner Height Adjustable Table - Product Cut Sheet

reader-14.jpg - pdf

WorkRite Sierra Height Adjustable Workcenter - Assembly Instructions

reader-14.jpg - pdf

WorkRite Sierra Adjustable Desk - Tool Bar and Privacy Panel Assembly Instruction

reader-14.jpg - pdf

WorkRite Sierra User Guide

reader-14.jpg - pdf

WorkRite Sierra Special Settings

reader-14.jpg - pdf



























Workrite Logo












Model SN604824 OR SN724824 OR SN726024 OR SN844824 OR SN604830 OR SN724830 OR SN726030 OR SN844830 OR SN486024 OR SN487224 OR SN607224 OR SN48424 OR SN486030 OR SN48730 OR SN607230 OR SN488430
Manufacturer Workrite Ergonomics
Part Number SN604824 OR SN724824 OR SN726024 OR SN844824 OR SN604830 OR SN724830 OR SN726030 OR SN844830 OR SN486024 OR SN487224 OR SN607224 OR SN48424 OR SN486030 OR SN48730 OR SN607230 OR SN488430
Weight 112.00 lb(s)
