Ergotron 45-252-216 StyleView HD Combo System Wall Mount White 45252216
Description ofErgotron 45-252-216 HD Combo System Wall Mount:

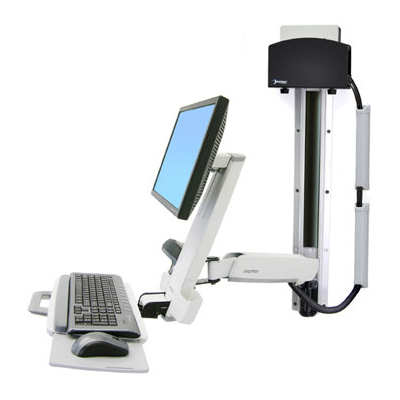

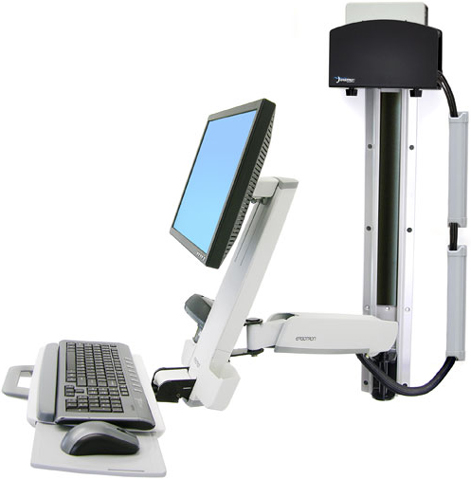

With Small Black CPU Holder. This complete system provides easy re-positioning of your entire workstation - move your display, keyboard, mouse and barcode scanner in a single motion.

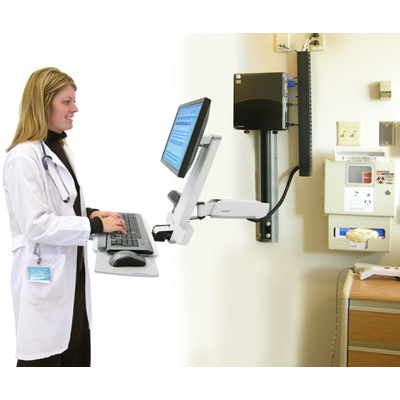

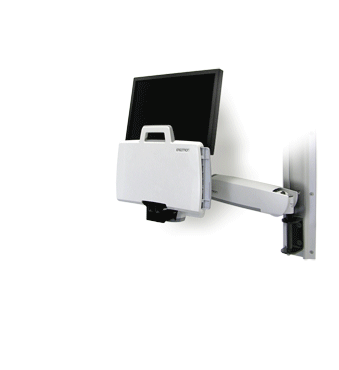

The ample height-adjustment range lets you work sitting or standing. The arm also extends and retracts, so you can fold it back out of the way when not in use. A unique cable management system conceals cords, making cleaning easy.
Technical Drawing forErgotron 45-252-216 StyleView HD Combo System White
Technical Specifications:
LCD Size
Wt. Capacity
Lift
Tilt
Pan
Rotation
VESA
up to 24"
6 - 18 lbs
2.7 - 8.2 kg
20"
51 cm
30°
360°
90° P/L
MIS-D
Product Information:
Part Number:
45-252-216
Description:
StyleView HD Combo System with Small CPU Holder (white arm, black CPU holder)
Included:
HD Combo Arm
34" Wall Track with (2) black track covers
Small CPU Holder
(2) 10" cable channels
CPU and Arm track mount bracket kits
Wall Track fasteners for concrete and wood
CPU direct wall mount kit
Height-adjustable LCD mount
Wrist rest
Scanner and mouse holders
Integrated keyboard tray with left/right mouse tray
Handle
VESA monitor mounting kit
Cable ties
Notebook Tray:
Can be configured to hold a laptop instead of an LCD display, also order the LX Notebook Tray (50-193-200)
Exterior:
Durable, easy-to-clean exterior composed of aluminum, high-grade plastic and powder coated painted steel
Weight Capacity:
Display = 6-18 lbs (2.7-8.2 kg);
Keyboard, mouse and barcode scanner = 5 lbs (2.3 kg)
Monitor up/down tilt:
+25°/-5
CPU Size Range:
1-3/8" to 3-3/4" (35 to 95 mm) wide
CPU Holder:
An alternate system configuration is available with a larger, silver-color CPU holder.
Patented CF:
Patented CF lift-and-pivot motion technology provides premium five-inch (12.7 cm) LCD height adjustment, portrait to landscape rotation and 30° tilt
Mounting Standards:
VESA FDMI, MIS-D, 75/100, C (hole patterns = 100 x 100 mm and 75 x 75 mm)
Fold-down keyboard tray:
Includes mouse tray that slides out to either right of left side, tray features mouse-pad surface
Back-tilt keyboard tray:
Adjustablebetween 0 and -10 degrees
Optional:
18" (46 cm) extender arm increases range of motion for even greater reach
Shipping Dimensions:
12.6"H x 37.7"W x 19.7"D (316 x 958 x 500 mm)
Shipping Weight:
42 lbs (18.9 kg)
Warranty:
Five(5) years
BenefitsofErgotron 45-252-216:
1. Flexible, open-architecture design is scalable for future computer equipment.
2. Comfortable, ergonomic data entry - work sitting or standing with 20" (51 cm) lift adjustment.
3. Maintains the relative position of screen and keyboard throughout full range of motion.
4. Five-inch (12.7 cm) independent LCD height adjustment ergonomically accommodates average range of user heights.
5. Easy to clean design promotes infection control.
6. Barcode scanner holder provides easy access to hand-held scanner.

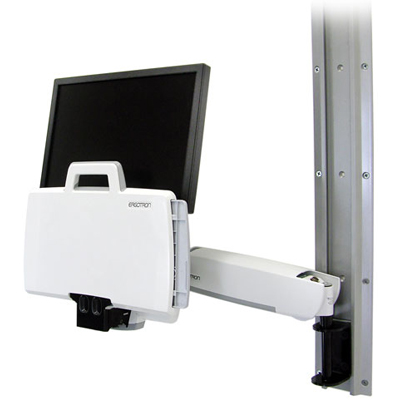

7. Extend LCD and keyboard up to 39" (99 cm) from wall; fold equipment back out of the waywhen not in use. With keyboard in storage position, system depth is as little as 12" (30.5 cm).
8. Ergonomic negative-tilt keyboard tray (with left or right mouse tray) ensures wrists remain in aneutral position during data entry.

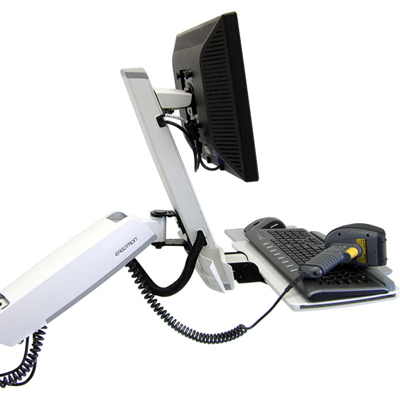

9. Clean, concealed and neat routing of cables through the expansive cable managementsystem.
