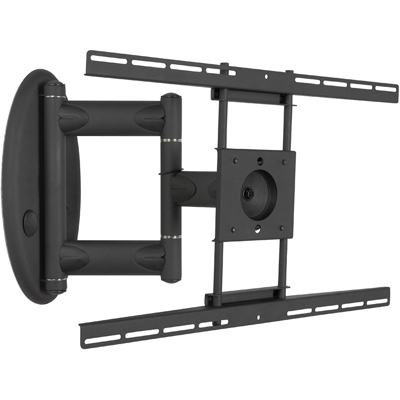

Premier AM80 Articulating Swingout Wall Mount up to 47" Flat panel Display
General Information
Premier AM-80 Articulating Swingout Wall Mount up to 47" Flat panel Displays
FeaturesofPremier AM 80 Articulating Arm:
1. Easily extends flat-panel over 17" from the wall.
2. Retracts down to a slim 4.1".
3. Universal adapter plate fits patterns up to 600 x 400mm.
4. Smooth movement featuring Radial Glide Technology.
5. Cable routing inside arms and through wall plate.
6. Elliptical design adds rigidity and aesthetics
Technical Drawings forPremier AM80 Articulating Swingout Wall Mount Arm
Specifications:
Ship Weight:
24 lbs
Display Range:
37" - 47"
Weight Capacity:
80lbs (36 kg)
Depth/Extension:
17.37" (441 mm)
Tilt:
+/-15°
Pivot:
+/-15°
Swing:
+/-90°
Rotation:
360°
Mounting Patterns:
75 x 75mm (min) - 600 x 400mm (Max)
Frequently Asked Questions:
What if I don't know my mounting pattern? Check the mount locator tool on www.mounts.com to see a list of compatible mounts or select a universal mount, which fits a broader range of mounting points.
My flat panel could fit more than one mount. How do I choose? Installation requirements, aesthetics, flat-panel weight and range of motion should assist in whittling down your decision for you.
Can I mount a flat panel in portrait with this mount? Yes. Thanks to Radial Glide Technology, the head of the mount rotates a full 360º, allowing you to freely rotate from landscape to portrait.
Literature(Please open the following documents for more technical information)
