Ergotron 60-621 Neo-Flex Ceiling Mount Large 37" to 70" TV LCD LED Display

Ergotron 60-621 Neo-Flex Ceiling Mount Large 37" to 70" TV LCD LED Display

This product has been discontinued. See below for similar products we offer instead. We apologize for the inconvenience.

View Similar Products



Accessories for Ergotron 60-621 Neo-Flex Ceiling Mount



Ergotron 97-591 Neo-Flex Ceiling Mount Shelf Black

Ergotron 97-591 Neo-Flex Ceiling Mount Shelf
Ergotron 97-592 (24") or 97-593 (18") or 97-594 (12") Neo-Flex Extension Pipe for Neo-Flex Ceiling Mounts Black
Ergotron 97-592 (24") or 97-593 (18") or 97-594 (12") Neo-Flex Extension Pipe
Ergotron 97-595 Neo-Flex Unistrut Pole Adaptor for Neo-Flex Ceiling Mounts Black
Ergotron 97-595 Neo-Flex Unistrut Pole Adaptor

Ergotron 97-596 Neo-Flex Female Pole Adaptor for Neo-Flex Ceiling Mounts Black

Ergotron 97-596 Neo-Flex Female Pole Adaptor



General Information



Image of Warranty and Returns

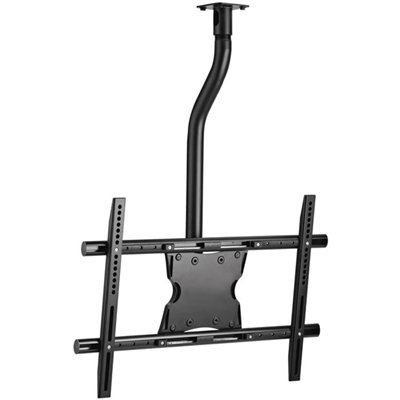

Ergotron 60-621 Neo-Flex Ceiling Mount Large 37" to 70" TV LCD LED Display Black

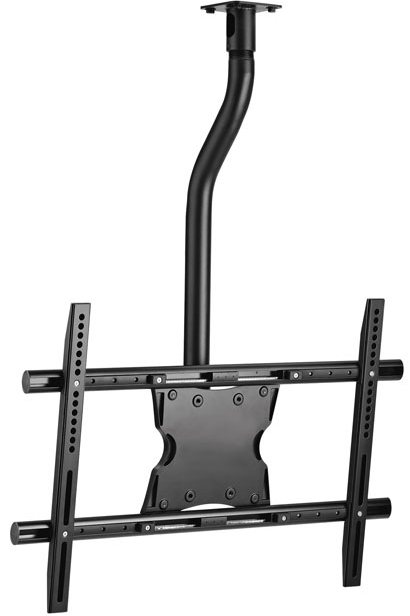

Ergotron 60-621 Neo-Flex Ceiling Mount fro Single Large Display Black









Description of Ergotron 60-621:



A sturdy single flat panel ceiling mount, with universal adapter, that’s ideal for any ceiling application whether TV viewing or digital signage.









Technical Specifications:



LCD size

Capacity

Lift

Tilt

Pan

Rotation

VESA

LCD Size

Capacity

Lift

Tilt

Pan

Rotation

VESA

37"-70"

up to 200 lbs

90 kg

-

30°

-

-

MIS-D/E/F









Product Information:



Part Number:

60-621

Description:

Neo-Flex Ceiling Mount for Single Large TV LCD LED Display (black)

Includes:

  • Ceiling plate

  • Bent pipe

  • Tilt hanger

  • Adaptor plate

  • Universal adaptor

  • Two (2) extension rails

  • Complete installation

  • Grade 5 hardware kit

Universal Monitor Attachment:

Mounting holes must fit within spacing range below
Horizontal = 100 mm (min.) to 800 mm (max.)
Vertical = 100 mm (min.) to 400 mm (max.)

Note:

  • UL certified and listed to UL Standard 1678. This product has been tested to hold four times its maximum load capacity per UL standard (do NOT exceed listed weight capacity in actual use)

  • Full compliance with RoHS directive is in progress

Shipping Dimensions:

21.5" x 32" x 6.6" (546 x 813 x 167 mm)

Shipping Weight:

32.2 lbs (14.6 kg)

Warranty:

Three (3) years









Benefits of Ergotron 60-621:



  • Install display in either portrait or landscape orientation.

  • Includes universal adapter for greater panel compatibility.

  • Tension adjustment for variable tilt or locking pin mechanism for precise positioning in 5º increments.

  • S-bend pipe provides proper weight distribution.

  • Integrated cable management routes cables through NPT pipe and ceiling plate.

  • Lift and Lock for quick installation.

  • Includes 24" (61 cm) of 1.5" NPT pipe.

  • Threaded bottom pipe for additional accessories.

  • Anti-theft security feature.







Literature (Please open the following documents for more technical information)




Ergotron 60-621 Neo-Flex Ceiling Mount for Single Large Display - Installation Manual

- pdf
Ergotron 60-621 Neo-Flex Ceiling Mount for Single Large Display - Market Flyer

- pdf
