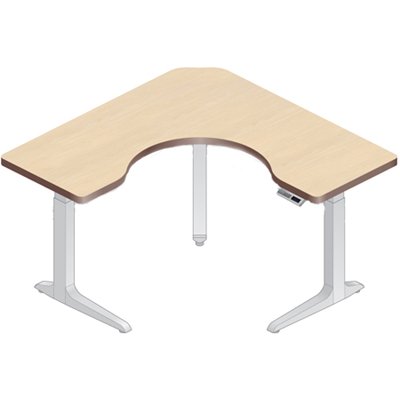

WorkRite Sierra HX Electric Height Adjustable Table, Cockpit Corner

Description

Raise the Bar on Workcenter Comfort. The new Workrite Sierra HX is the most innovative adjustable height workcenter for the professional workplace. The standard crossbar has been eliminated to allow maximum leg clearance for worker comfort. Instead, a mount structure under the worksurface provides unmatched stability and plenty of room to attach a CPU holder and keyboard platform and lots of space to position your mobile pedestal.

Sierra HX Electric workcenters will lift your spirits along with your essential worktools. Quiet motors provide over 100 pounds of lifting force per leg, so no matter how heavy your workload, the Sierra Electric HX Electric is there to support you.

The absolute best solution for height adjustability. Featuring high quality, European engineering and design, the Workrite Sierra HX is the foundation for the most innovative adjustable height workcenter for today’s professional workplace.


Sierra HX meets BIFMA G1-2013 height adjustability requirements, can handle payloads of 225–300 pounds, and features hidden crossbar design that provides greater knee clearance for the user.
Sierra HX is available in three finishes with the widest range of size configurations and feature options, making it the most versatile workcenter in the Workrite portfolio.

Dimensions

Features

• Frame options: 2-leg and 3-leg frames 24" or 30" depths

• Widths from 34" to 84" depending on shape

• Finish options: Silver, Charcoal, and White

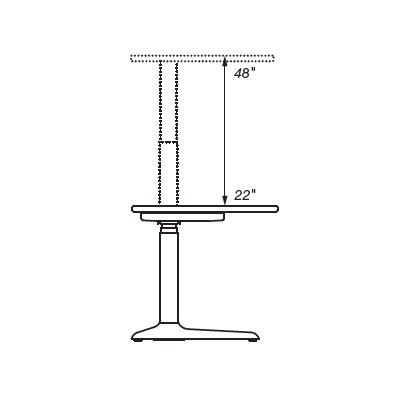

• Height Range: 22.5" to 48.7"

• Payload Capacity: 225 pounds for 2-leg models, 300 pounds for 3-leg models

• Travel Speed: 1.6 inches per second

• Max Power Draw: 120 V, 60 Hz, 2.9 A (2-leg) 5 A (3-leg)

• Standby Power: 0.1 W

Option 1: Surface Dimensions

Option 2: Switch Type

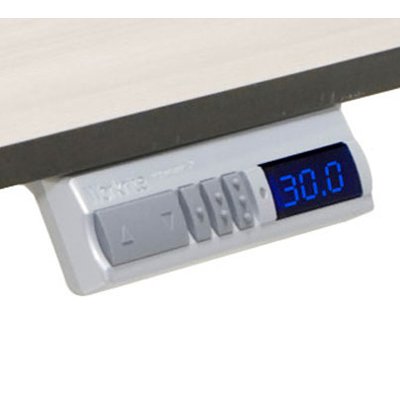

Standard switch for simple Up/Down control or the Programmable switch for more advanced options including 3 memory pre-sets that can be easily customized by the user.

Option 3: Base Frame Colors

Colors and patterns are representative only. Actual colors and patterns may vary slightly

Option 4: Laminate Top Colors

Colors and patterns are representative only. Actual colors and patterns may vary slightly

Option 5: Edge Treatments

Colors and patterns are representative only. Actual colors and patterns may vary slightly

Option 6: Foot Set

Flat foot or the styled foot for use with any Workrite electric height adjustable workcenter. Both options are available in finishes that coordinate with our frame sets and in 23" or 29" lengths.

Option 7: Casters

Sierra Locking Casters

Features

• Low profile locking casters 2" W x 1.5" H
• Casters raise work centers by 1" versus installed adjustable glides
• Can be used with all Workrite adjustable work centers, recommended for Sierra workcenters
• Four (4) casters required for 2 leg workcenters, five (5) casters required for 3 leg workcenters

The following Casters are available

• 95234 - 4 casters for 2 leg tables
• 95235 - 5 casters for 3 leg tables

Option 8: Bench Mount Kit

Designed for mounting keyboard arms to Sierra HX Electric Workcenters where linear supports limit the availability of a flat mounting surface. Attaches between the underside of the worksurface and the keyboard arm track. Used for all installations of tracks greater than 17".



• Fits all Workrite keyboard arms

• Powered coated steel construction

Workcenter Ordering Information

Determining the correct size and shape of your worksurface is extremely important. Combining a Workrite worksurface with any height adjustable base requires 1" of clearance at each side and in the back of the worksurface to avoid pinching or scraping. All Workrite worksurfaces are manufactured to the dimensions required to provide these clearances.


Worksurfaces are pre-drilled with mounting location for frame sets or bases.

Joining kits are provided with all two piece worksurfaces.


Standard lead time for our laminated worksurfaces is 20 business days for quantities of 10 or less. Lead times for larger product orders will be provided upon receipt of the order.

Important Notes:

• Workcenters ship unassembled and require simple hand tools to install.

• If using customer’s own worksurfaces, pre-drill pilot holes for all screws to ensure the most secure attachment.

• If installing a keyboard arm or track, the electric motor control box may need to be repositioned from its pre-drilled location.

• All workcenters have adjustable glides providing 0.5" of adjustment.

• Mobile pedestals may limit lower height range.
