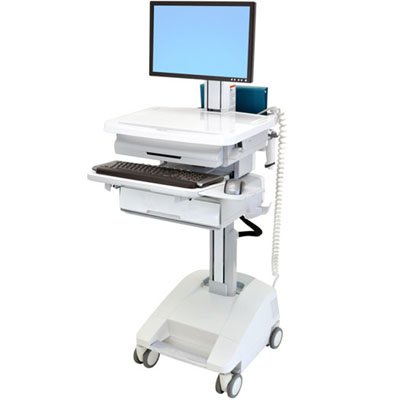

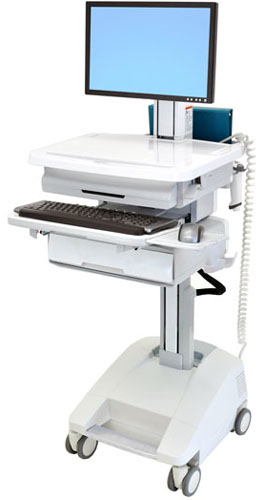

Ergotron SV32-51211 StyleView PHD LCD Cart with 1 Drawer and LiFe Powered (white/grey)

LCD Size

Capacity

Lift

Tilt

Pan

Rotation

VESA

Up to 22"

Up to 39 lbs

17.7 kg

25"

63 cm

Part Number:

SV32-51211

Description:

StyleView PHD LCD Cart, 1 Drawer, LiFe Powered (white/grey)

Includes:

• Auto-locking drawer system (ADS)

• One large drawer

• Cassette insert with six compartments

• Single-battery 40 Ah power system

• 10-foot (3-m) coiled cord

• Hospital-grade AC outlets

• Power system user interface

• Style Link software

• Worksurface

• Secure CPU compartment

• LCD pivot

• Ethernet ready-on function and four-port USB hub

• Scanner holder bracket

• Mouse holder

• Wrist rest

• Back-tilt keyboard tray

• Left/right mouse tray

• Front and rear handles

• Storage basket

• Cable storage

• Four casters (two locking)

Total Maximum Load of Height-Adjustment Assembly:

39 lbs (17.7 kg).

This is the sum of the following components:

• Capacity of LCD pivot = 6–16 lbs (2.7–7.3 kg)
• Capacity of worksurface, keyboard tray and auto lock drawer ≤ 10 lbs (4.5 kg)
• Capacity of CPU compartment ≤ 13 lbs (5.9 kg).

Note: Locking the height of the LCD pivot changes the weight capacity to ≤ 20 lbs (9.1 kg) - contact Ergotron for details

LCD and Worksurface:

LCD and worksurface adjust 20" (51 cm) in tandem; LCD adjusts 5" (13 cm) independently; maximum LCD height adjustment = 25" (63.5 cm).

Portrait Orientation:

Portrait orientation may be incompatible with > 19" widescreen LCDs

True Ergonomics:

• Ergonomic back-tilt keyboard tray with left or right mouse tray ensures wrists remain in a neutral position during data entry - avoid repetitive-stress injuries while increasing comfort and productivity.

• Designed for users 5'0" to 6' 1" (152 to 185 cm) tall and for prolonged sitting or standing applications. Unlike competitive offerings, users as short as 5’0” (152 cm) can easily work comfortably and productively in a seated position.

• Patented CF lift-and-pivot motion technology minimizes forces required to adjust cart position: Height adjustment, keyboard placement, LCD tilt and pan all require just a touch.

• Independent LCD screen positioning - 5" (13 cm) of lift with tilt and pan adjustment - for personalized viewing.

• Four ultra-smooth gliding casters for extremely easy push/pull mobility; two locking casters ensure lock-in-place stability.

Safe:

• Auto-locking drawer system (ADS): Each drawer is individually controlled with 5-digit master or user PIN; manual key-lock option included; drawer auto-locks after 4 seconds; programmable alarm sounds after 20 seconds; securely stores PINs for up to 100 users.

• Style Link Software enables drawer access PINs to be programmed remotely or directly; two points of possible console access for PIN updates/adds include Unit Clerk or IT; full cart open/close event log and reporting capabilities.

• For patient and caregiver safety the LiFe power module is fully certified to UL 60601-1; FULL power system and cart-level certification is in progress. Complies with EMI limits of FCC Part 15 Class A.

• Power System User Interface integrated conveniently on the worksurface (includes visual and audible battery status indicator.

• Surfaces are treated with Agion Antimicrobial for product protection; worksurface and handles are smooth and continuous for improved clean ability.

• Environmentally clean: RoHS, REACH, WEEE and EU (94/62/EC) packaging compliant.

• Durable, easy-to-clean exterior composed of aluminum, high-grade plastic and zinc-plated steel promotes infection control.

• One-piece worksurface with no seams; easy-to-clean design promotes infection control.

• Lockable, ventilated enclosed storage for open laptop. Keys and locks are heavy-duty.

• Front-locking casters.

• Auto locking drawer system securely stores PINs for up to 100 users.

• Designed to meet guidelines established by the American National Standards Institute for computer use.

Service:

• Includes FREE StyleLink with enterprise capabilities - Install, access and manage your StyleView power systems and drawers from a remote location across WAN, LAN, or VPN. StyleLink’s three-part software package maximizes your IT tech-support time by giving you real-time centralized control over carts across campus, the city, country, or the world.

• Covered by Global Service Program - 24/7 coverage.

All the Details Covered:

• Four amber LEDs provide light over keyboard tray or drawers and includes 15 minute auto shut-off.

• Button for LED lights and Ethernet ready-on is now located conveniently on worksurface.

• Easy access to components for field replacement and serviceability: Fan, keyboard LEDs, PC boards (including the user interface). Easier, faster upkeep & service means less down time.

• Pre-routed cables provide quicker integration with equipment.

• TAA (Trade Agreements Act) compliant.

• Universal mounting slot for accessories and equipment.

• A unique cable management system conceals and organizes cords, making cleaning easy.

• Ships fully assembled and is easily accessible from container.

• One-piece worksurface, no seams, easy to clean design promotes infection control.

• Rear basket keeps task-related items where they can be quickly accessed.

• Barcode scanner holder provides easy access to hand-held scanner.

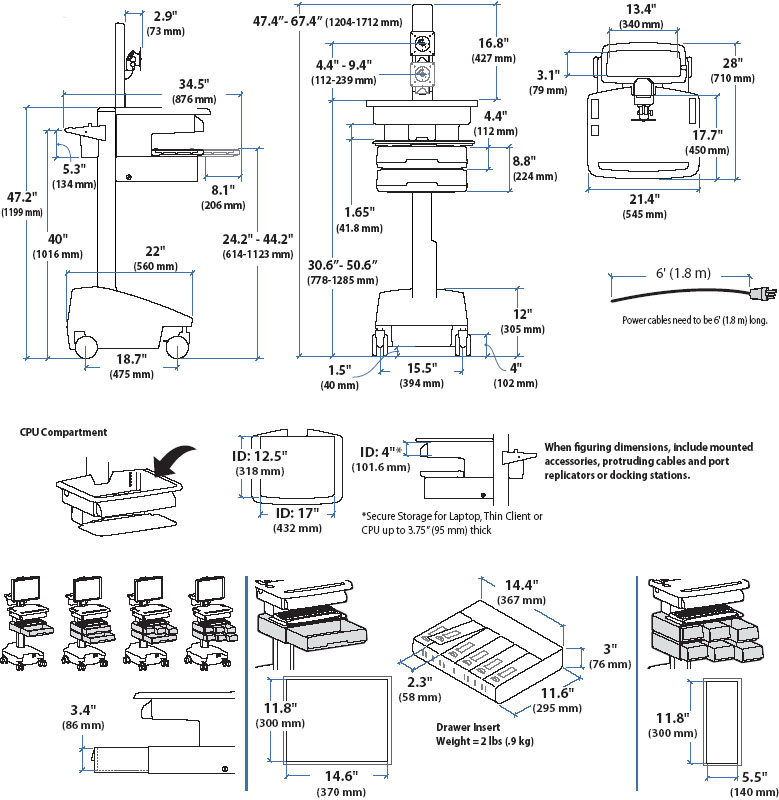

Compatibility and Dimensions:

• Open-architecture design accommodates multiple configurations: closed notebooks with monitor, CPU and monitor, thin clients, tablets, all-in-one computers and future hardware upgrades.

• Mounting Standards: VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm).

• Compact wheel-to-wheel base dimensions: 15.5" x 18.7" (39 x 48 cm).

• Worksurface Dimensions: 20.9"W x 16.4"D (53 x 42 cm).

• Locked, ventilated CPU enclosure internal dimensions: 17"W x 12.5"D x 3.75"H (43 x 31.75 x 9.5 cm)

• Larger CPUs attach safely to rear of cart with Universal CPU Holder accessory (purchased separately): Adjusts from 12"H x 3"D to 18"H x 8.5"D (30 x 8 cm to 46 x 22 cm)

• VAC = 120V/60Hz.

• Grounded Plug & Outlet = NEMA 5-15P Hospital Grade.

• 40 Ah Power System with one (1) 40 Ah, 12 V DC, Lithium Iron Phosphate (LiFe) battery.

Shipping Dimensions:

23" x 30" x 55" (58 x 76 x 140 cm)

Shipping Weight:

151 lbs (68.6 kg); actual cart weight = 118 lbs (53.6 kg)

Warranty:

Five (5) years for cart, two (2) years on all power supply components; five (5) years on LiFe battery, including two-year capacity guarantee.
