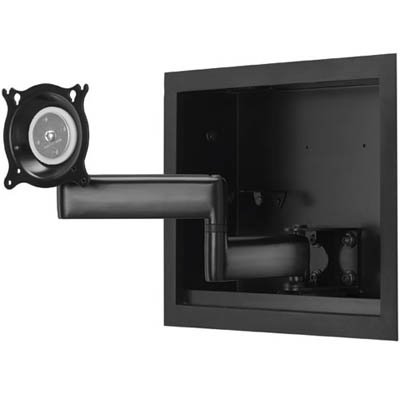

Chief FWDIW Small In-Wall Swing Arm Mount - 13" Extension

Chief FWDIW Small In-Wall Swing Arm Mount - 13" Extension

This product has been discontinued. See below for similar products we offer instead. We apologize for the inconvenience.

View Similar Products

Chief FWDIW110B or FWDIWVB Small (10"-32") In-Wall Swing Arm Mount - 13" Extension



General Information



Image of Warranty and Returns








Chief FWDIW110 or FWDIWV Small In-Wall Swing Arm Mount

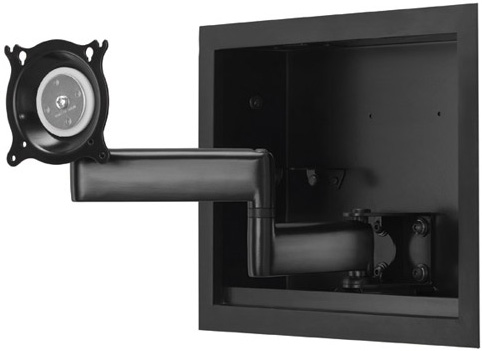

Chief FWDIW100 or FWDIWV Small In-Wall Swing Arm Mount









Features of Chief FWDIW-110B or FWDIW-VB:



  • Low-profile design ensures that the mount remains concealed behind the screen.

  • Centris Fingertip Tilt provides smooth tilt in all directions.

  • Screen angle stays set until you decide to re-adjust.

  • Center the flat panel at any position between 16" center studs without cutting studs.

  • Smooth extension over 17" (432 mm) to achieve ideal viewing angle.

  • Ships fully assembled to save on installation time.

  • VESA 75 x 75 mm and 100 x 100 mm compatible.

  • NOTE: Must order FAC501 In-Wall Accessory.

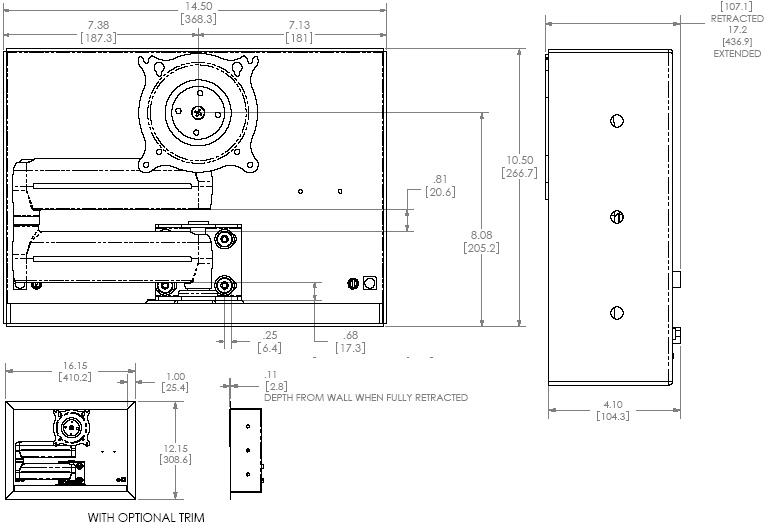

Technical Drawing of Chief FWDIW Small In-wall Swing Arm Mount



Technical Drawing of Chief FWDIW Small In-wall Swing Arm Mount









Description of Chief FWDIW 110B or FWDIW VB:



This swing arm mount hides flush in the wall and ships fully assembled ready for fast installation.









Specifications of Chief FWDIW 110 or FWDIW V:



Color:

Black

Maximum Extension:

13" (330.2mm)

Minimum Depth:

0.1" (2.5mm)

Mounting Pattern Compatibility (Universal Versions):

FWDIWVB: 75 x 75mm, 100 x 100mm, 200 x 100mm

FWDIW110B: 75 x 75mm, 100 x 100mm

Orientation:

Landscape, Portrait

Overall Dimensions (H x W x D):

10.5" x 9.3" x 2.2" (267 x 237 x 55mm)

Post Installation Leveling (Roll):

Yes

Solution Type:

Universal

Tilt:

+ 15°, - 15°

Typical Screen Sizes:

10 - 32"

Wall Stud Compatibility (inches):

Single Stud

Weight Capacity:

40 lbs (18.1kg)







Literature (Please open the following documents for more technical information)




Chief FWDIW110B or FWDIWVB Small (10-32") In-wall Swing Arm Mount - Installation Assembly

- pdf
Chief FWDIW-110 or FWDIW-V Small In-Wall Swing Arm Mount 13" Extension - Technical Drawing

- pdf
Chief FWDIW110 or FWDIWV Small Flat Panel In-Wall Swing Arm Mount - Catalog Page

- pdf







Chief Logo



Hyperlink of all Chief products



Product Options/Accessories
Chief KSA1005B Security Hardware Kit

KSA1005 Security Hardware Kit (non Height-Adjustable)

$77.00 $30.80
Chief KSA1003B or KSA1003S Extension Arm Accessory

KSA1003 Extension Arm

$64.00 $51.20
Chief FSB4101B or FSB4101S Small Flat Panel Interface Bracket

FSB4101 Small Interface Bracket

$61.00 $40.00
Chief Dual Horizontal Monitor Accessory KMA220B

KMA220 Dual Horizontal Array

$243.00 $194.40
Chief Triple Horizontal Monitor Accessory KMA320B

KMA320 Triple Horizontal Array

$303.00 $242.40
Chief KSA1019B Centris Turntite Head Accessory

KSA1019 Centris Head Accessory

$64.00 $51.20
Chief FSB4100B or FSB4100S Small Flat Panel Interface Brackets

FSB4100 VESA Interface Bracket

$61.00 $40.00
Chief Centris Quick Connect Bracket KSA1024B

KSA1024 Quick Release Bracket

$77.00 $61.60
Chief FSBIB Portable iPad 1 Interface Bracket (VESA 100x100 mm)

FSBIB iPad Interface Bracket (100x100 mm)

$47.20
Chief FSBI2B Portable iPad Interface Bracket (VESA 100x100 mm)

FSBI2B Portable iPad Interface Bracket

$44.00 $26.32
Chief FAC501B Small Flat Panel In-Wall Swing Arm Accessory

FAC501B Small In-Wall Swing Arm Accessory

$161.00 $88.00
Chief FSBI2TB iPad Secure Interface Bracket

FSBI2TB iPad Secure Interface Bracket

$135.00 $83.20
Frequently Asked Questions

No FAQs available for this product. Have a question? Ask us!

Product Information
  • Model FWDIW110B, FWDIWVB
  • Manufacturer Chief Mounts
  • Part Number FWDIW110B,FWDIWVB
  • Color Black
  • Maximum Extension 13" (330.2mm)
  • Minimum Depth 0.1" (2.5mm)
  • Mounting Pattern FWDIW110B: 75 x 75mm, 100 x 100mm. FWDIWVB: 75 x 75mm, 100 x 100mm, 200 x 100mm
  • Overall Dimensions 10.5" x 9.3" x 2.2" (267 x 237 x 55mm)
  • Tilt + 15 degree, - 15 degree
  • Screen Size 10 - 32 in
  • Weight Capacity 40 lbs (18.1kg)
