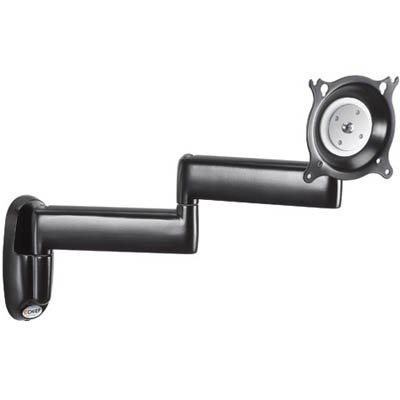

Chief FWD110 Small Dual Swing Arm Wall Mount - 16" Extension

Chief FWD110 Small Dual Swing Arm Wall Mount - 16" Extension

This product has been discontinued. See below for similar products we offer instead. We apologize for the inconvenience.

View Similar Products

Chief FWD110B or FWD110S Small (10"-32") Dual Swing Arm Wall Mount - 16" Extension



General Information



Image of Warranty and Returns

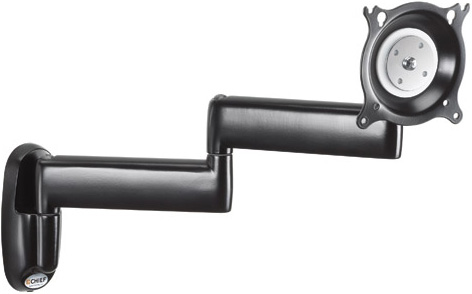

Chief FWD110 Small Dual Swing Arm Wall Mount



Chief FWD110 Small Dual Swing Arm Wall Mount









Features of Chief FWD-110B or FWD-110S:



  • Centris Fingertip Tilt provides smooth tilt adjustment in all directions and self-adjusts to securely hold different display weights.

  • Teardrop hole pattern makes mounting the screen quick and easy.

  • Provides smooth extension to achieve ideal viewing angle.

  • Independently adjustable tension at pivot points for customized control.

  • Quick, easy cable management.

  • Sleek, attractive design hides all hardware.

  • Ships assembled.

  • Compatible with VESA 75 x 75 mm and 100 x 100 mm mounting patterns (interface brackets available for non-VESA compliant displays).

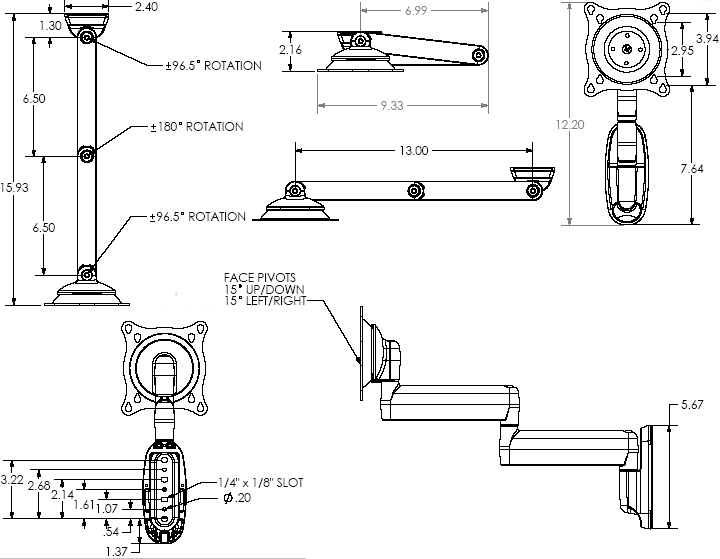

Technical Drawing of Chief FWD-110 Small Dual Swing Arm Wall Mount



Technical Drawing of Chief FWD-110 Small Dual Swing Arm Wall Mount









Description of Chief FWD 110S or FWD 110B:



This mount provides a broad range of motion for viewing small flat panel TVs and monitors from multiple angles. Standard solutions are for single wood stud installations. Additional versions available for metal studs and in-wall applications.









Specifications of Chief FWD 110:



Certifications:

UL Listed

Color:

Black, Silver

Maximum Extension:

15.94" (404.9mm)

Minimum Depth:

2.17" (55.1mm)

Mounting Pattern Compatibility (Universal Versions):

75 x 75mm, 100 x 100mm

Orientation:

Landscape, Portrait

Overall Dimensions (H x W x D):

12.2" x 9.3" x 2.2" (310 x 237 x 55mm)

Post Installation Leveling (Roll):

Yes

Solution Type:

Universal

Tilt:

+ 15°, - 15°

Typical Screen Sizes:

10 - 32"

Wall Stud Compatibility (inches):

Single Stud

Weight Capacity:

40 lbs (18.1kg)







Literature (Please open the following documents for more technical information)




Chief FWD110B or FWD110S Small Dual Swing Arm Wall Mount - Installation Assembly

- pdf
Chief FWD110S or FWD110B Small (10-32") Dual Swing Wall Mount Arm - Technical Drawing

- pdf
Chief FWD110 Small (10-32") Dual Swing Wall Mount Arm 16" Extension- Catalog Page

- pdf







Chief Logo



Hyperlink of all Chief products



Product Options/Accessories
Chief KSA1005B Security Hardware Kit

KSA1005 Security Hardware Kit (non Height-Adjustable)

$77.00 $30.80
Chief KSA1022B Wall Track Accessory

Chief KSA1022B Wall Track Accessory

$274.00 $219.20
Chief KSA1013B Laptop Tray Adapter

KSA1013 Laptop Tray

$232.00 $92.80
Chief KSA1003B or KSA1003S Extension Arm Accessory

KSA1003 Extension Arm

$64.00 $51.20
Chief FSB4101B or FSB4101S Small Flat Panel Interface Bracket

FSB4101 Small Interface Bracket

$61.00 $40.00
Chief KSA1002B Desk Clamp Accessory

KSA1002 Desk Clamp Accessory

$240.00 $96.00
Chief Dual Horizontal Monitor Accessory KMA220B

KMA220 Dual Horizontal Array

$243.00 $194.40
Chief Triple Horizontal Monitor Accessory KMA320B

KMA320 Triple Horizontal Array

$303.00 $242.40
Chief KSA1011B Dual Monitor Y-Connector Accessory

KSA1011 Dual Monitor Y-Connector

$66.00 $26.40
Chief KSA1017B Pole Clamp Accessory

Pole Clamp Accessory - Chief KSA1017B

$60.00 $48.00
Chief KSA1018B or KSA1018S Small Flat Panel Metal Stud Accessory

Metal Stud Wall Adapter - Chief KSA1018

$127.00 $101.60
Chief KSA1019B Centris Turntite Head Accessory

KSA1019 Centris Head Accessory

$64.00 $51.20
Chief FSB4100B or FSB4100S Small Flat Panel Interface Brackets

FSB4100 VESA Interface Bracket

$61.00 $40.00
Chief Centris Quick Connect Bracket KSA1024B

KSA1024 Quick Release Bracket

$77.00 $61.60
Chief FSBIB Portable iPad 1 Interface Bracket (VESA 100x100 mm)

FSBIB iPad Interface Bracket (100x100 mm)

$47.20
Chief FSBI2B Portable iPad Interface Bracket (VESA 100x100 mm)

FSBI2B Portable iPad Interface Bracket

$44.00 $26.32
Chief FSBI2TB iPad Secure Interface Bracket

FSBI2TB iPad Secure Interface Bracket

$135.00 $83.20
Frequently Asked Questions

No FAQs available for this product. Have a question? Ask us!

Product Information
  • Model FWD110
  • Manufacturer Chief Mounts
  • Part Number FWD110
  • Color Black, Silver
  • Maximum Extension 15.94" (404.9mm)
  • Minimum Depth 2.17" (55.1mm)
  • Mounting Pattern 75 x 75mm, 100 x 100mm
  • Overall Dimensions 12.2" x 9.3" x 2.2" (310 x 237 x 55mm)
  • Tilt + 15 degree, - 15 degree
  • Screen Size 10 - 32 in
  • Weight Capacity 40 lbs (18.1kg)
